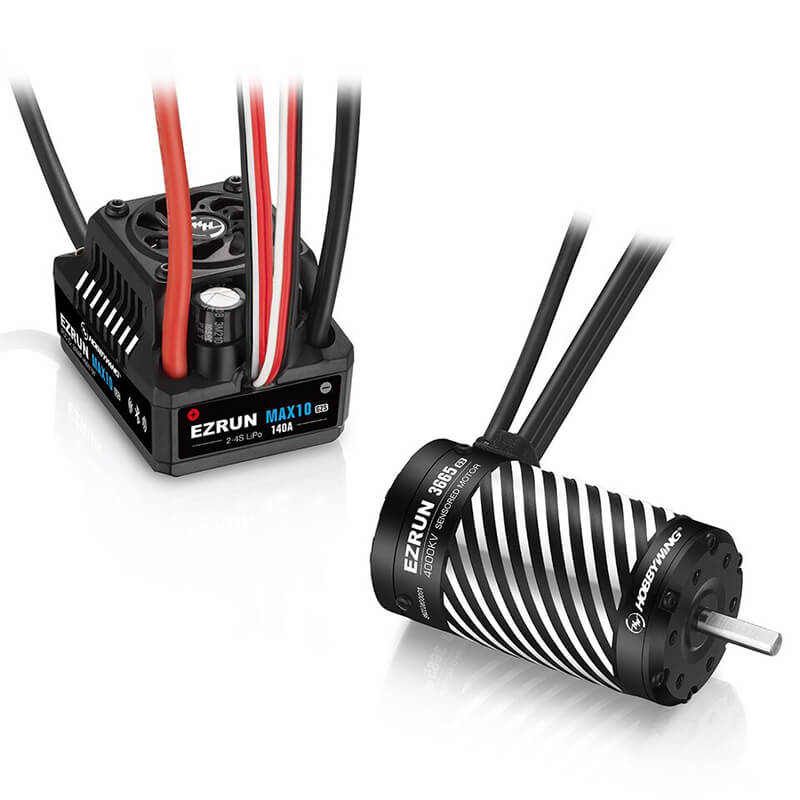

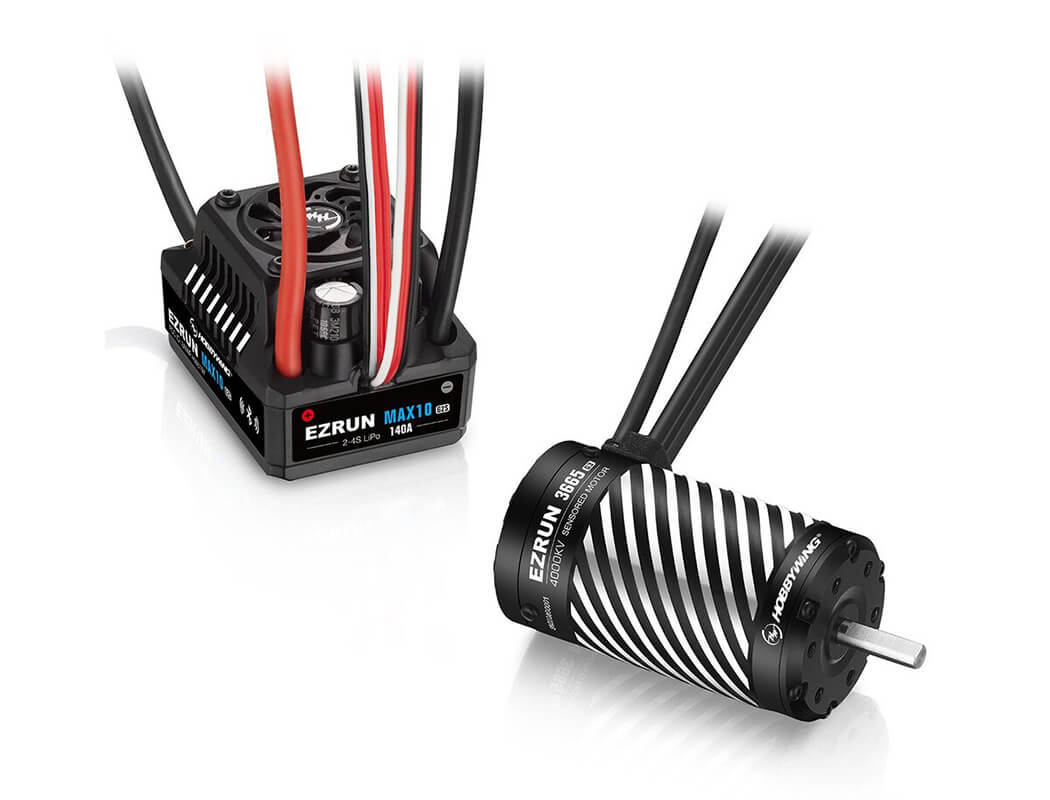

HOBBYWING COMBO MAX10 G2s 140A ESC 3665SD 4000KV BLK G3 MOTOR

The Hobbywing Ezrun MAX10 G2S 140A Brushless Combo pairs the Ezrun MAX10 G2S with 140A and the matching Ezrun 3665SD G3 4000kV Motor – a perfectly synchronized 1:10 scale powertrain package ready for high-performance RC applications.

The MAX10 G2S is the advanced successor to the MAX10 G2: featuring identical performance specs and casing, but now equipped with a regulator that can be configured effortlessly without extra devices. Its integrated Bluetooth module is built into the switch, enabling direct connection to your smartphone via the HW-LINK app. This allows seamless programming, data analysis, and firmware updates. New to the G2S are internal data logging and a third BEC voltage setting of 8.4V designed for high-voltage servos.

In this combo, the ESC’s strengths truly shine: the Turbo Timing feature can only be activated with Hobbywing motors, boosting the maximum RPM by up to approximately 25%. Additionally, the motor overheat protection functions exclusively with supported Hobbywing motors — both available out-of-the-box with the supplied Ezrun 3665SD G3.

Features

• Integrated Bluetooth module in switch – smartphone programming without additional hardware.
• Internal data logging for the last 10 minutes of runtime, visually analyzed in the HW-LINK app.
• Turbo Timing up to 32 degrees – providing around 25% higher top speed with the included motor.
• Three-stage BEC output: 6V / 7.4V / 8.4V at 5A in switch mode, supporting high-voltage servos.
• Frameless, temperature-controlled fan with lateral air outlet.
• Dust and waterproof ESC and motor rated to IP67 standard, including waterproof sensor cable.
• Overheat protection for capacitors.
• Safety features covering undervoltage, overheating, and signal loss conditions.
• 4-pole rotor for high torque, rapid acceleration, and stable performance.
• CNC-machined aluminum housing with high-precision bearings on the motor.

Specifications

ESC (Ezrun MAX10 G2S 140A)

Type: Brushless, compatible with sensored and sensorless motors
Continuous / peak current: 140A / 880A
Input voltage: 2-4S LiPo
BEC adjustable at: 6V, 7.4V, or 8.4V with 5A continuous current (switch mode)
Turbo Timing: Adjustable up to 32 degrees
Temperature-controlled fan powered via: BEC
Bluetooth programming using: HW-LINK app, also supports LCD programmer and OTA updates
Waterproof rating: IP67
Connectors: XT60 input, gold-plated output sockets
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (including cables and connectors)
Ideal for: 1/10 Short Course Trucks, Trucks, and Monster Trucks

Motor (Ezrun 3665SD G3)

Type: Brushless, sensored
KV rating: 4000kV
Idle current: ≤ 8.2A
Compatible with: 2-3S LiPo batteries
Design: 4-pole design
Length: 65.8 mm | Diameter: 37 mm | Shaft diameter: 5 mm
Weight: 297 g
Waterproof: standard IP67
Suitable for: 1/10 Short Course Trucks, Truggies, and Monster Trucks

Please Note: At least a 3S LiPo battery is required to use the 7.4V or 8.4V BEC settings. The Bluetooth range is approximately 5 meters due to design limitations.
