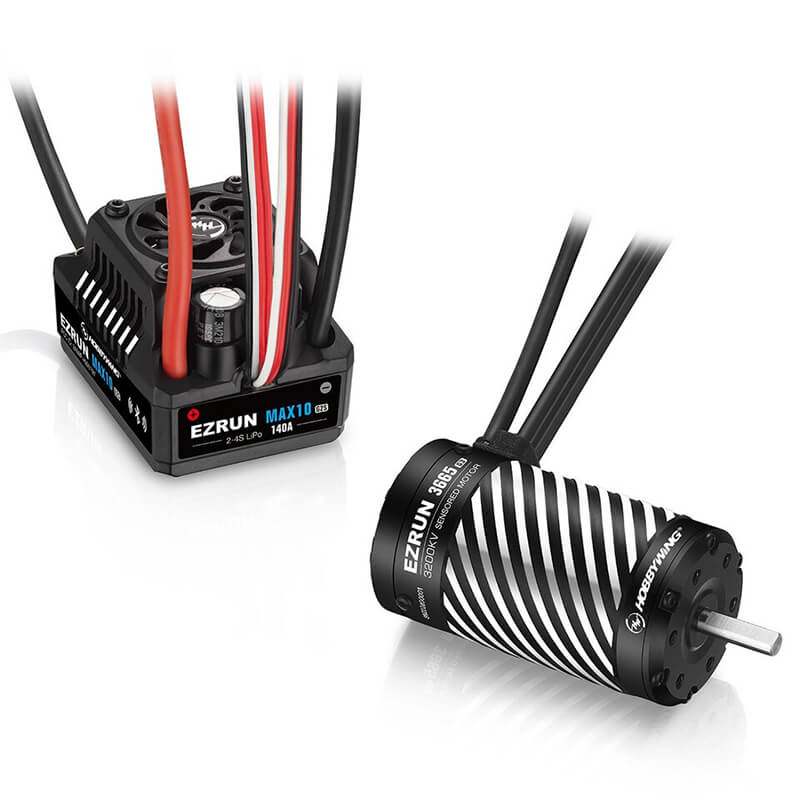

HOBBYWING COMBO MAX10 G2s 140A ESC 3665SD 3200KV BLK G3 MOTOR

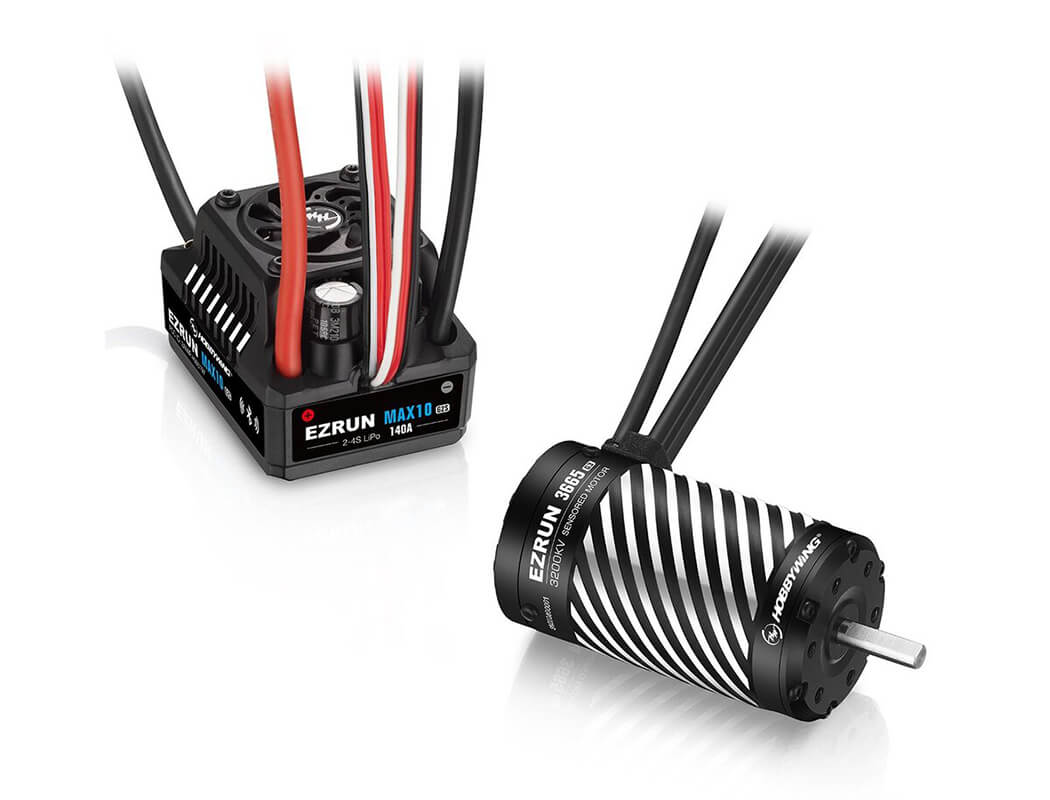

Hobbywing Ezrun MAX10 G2S 140A Brushless Combo with the matching Ezrun 3665SD G3 3200kV motor combines a perfectly matched 1:10 scale drive system straight from the factory for exceptional performance.

The MAX10 G2S is the logical evolution of the MAX10 G2: it features the same power specs and casing but now allows controller programming directly via smartphone without any additional devices. The integrated Bluetooth module is built into the switch, connecting seamlessly to your phone through the HW-LINK app for easy configuration, data analysis, and firmware updates. New additions compared to the G2 include internal data logging and a third BEC voltage level at 8.4V for high-voltage servos.

This combination unlocks the controller's full potential: the exclusive Turbo Timing function can be activated only with Hobbywing motors, increasing the maximum rpm by up to approximately 25%. Additionally, the motor overheat protection works solely with compatible Hobbywing motors. Both features are ready to use with the included Ezrun 3665SD G3 motor.

Features

• Bluetooth module integrated in the switch for direct programming via smartphone, no extra devices needed.
• Internal data logging of the last 10 minutes of runtime, viewable graphically in the HW-LINK app.
• Turbo Timing adjustable up to 32 degrees – boosts max rpm by ~25% with the included motor.
• 3-stage BEC output: 6V / 7.4V / 8.4V at 5A in switch mode.
• Fanless design with side air exhaust, temperature-controlled activation.
• Dust- and waterproof controller and motor rated to IP67, with waterproof sensor cable.
• Overheat protection for capacitors.
• Protection against low voltage, overheating, and signal loss.
• 4-pole rotor delivers high torque, quick acceleration, and stable performance.
• CNC-machined aluminum housing and high-precision bearings in the motor.

Specifications

Controller (Ezrun MAX10 G2S 140A)

Type: 1/10 brushless, sensored and sensorless
Current (continuous/peak): 140A / 880A
Input voltage: 2-4S LiPo
BEC: selectable 6V / 7.4V / 8.4V, 5A continuous (switch mode)
Motor limits:
- 2S LiPo: KV ≤ 6000 (3652 motor)
- 3S LiPo: KV ≤ 4000 (3665 motor)
- 4S LiPo: KV ≤ 2600 (4268 motor)
Turbo Timing: Up to 32 degrees
Fan: Yes, powered by BEC
Programming: Bluetooth (HW-LINK app), LCD programmer, OTA module, separate 3-pin programming port
Waterproof: IP67 rated
Connectors: XT60 input, gold-plated output
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (including cables and connectors)
Applications: 1/10 Short Course Truck, Truck, Monster Truck

Motor (Ezrun 3665SD G3)

Type: Brushless, sensored
KV rating: 3200kV
No-load current: ≤ 7.1A
LiPo cells: 2-3S
Poles: 4
Length: 65.8 mm
Diameter: 37 mm
Shaft diameter: 5 mm
Weight: 304 g
Waterproof: IP67 rated
Applications: 1/10 Short Course Truck, Truggy, Monster Truck

Please Note: For 7.4V or 8.4V BEC output, at least a 3S battery is required. Bluetooth range is approximately 5 meters due to design constraints.
