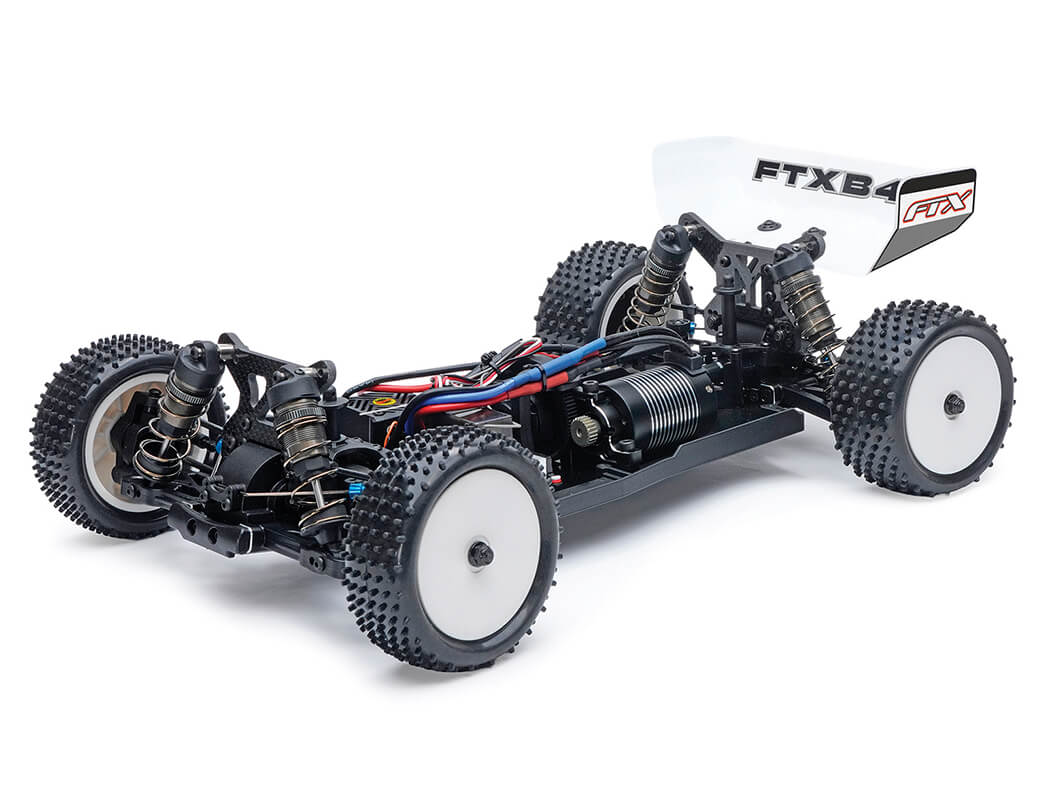

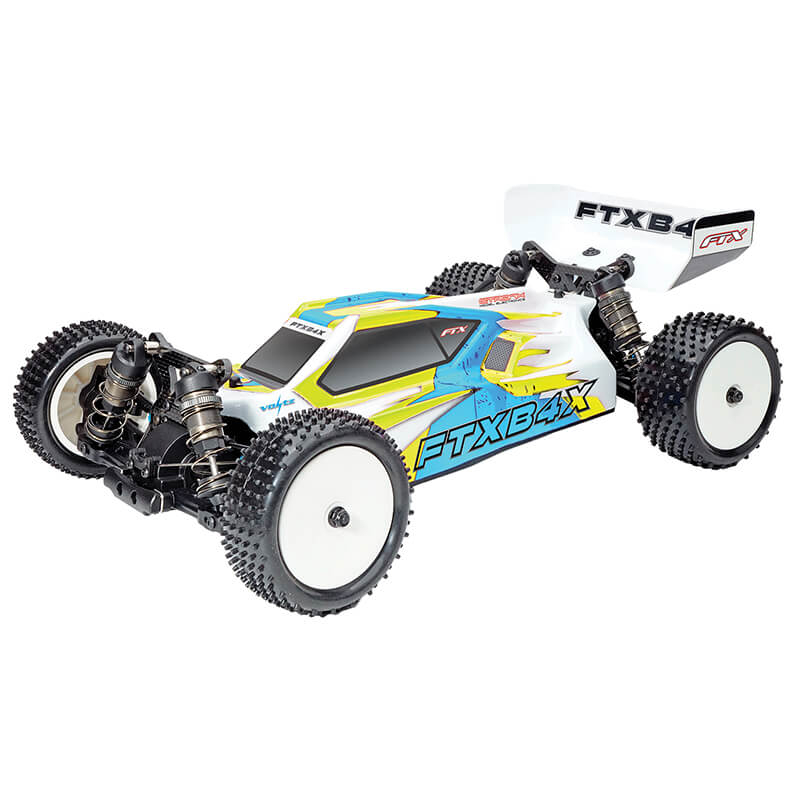

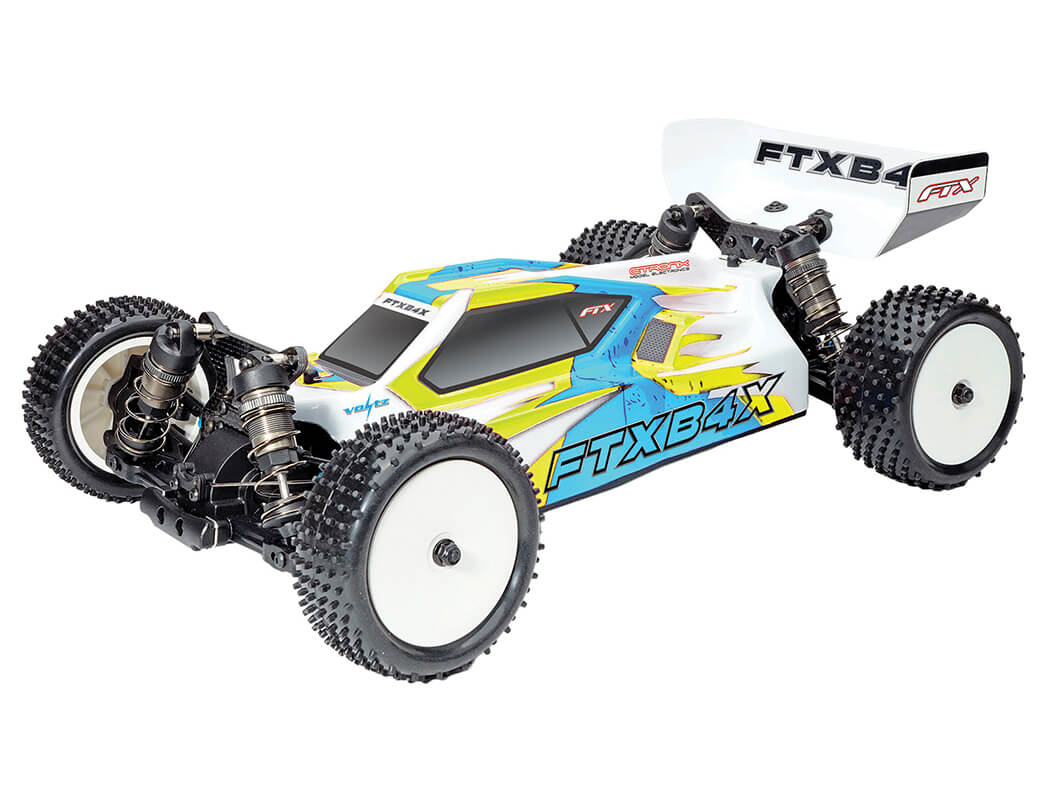

FTX B4X 4WD RACE BUGGY RTR YELLOW/BLUE

Race-Bred Performance. Ready to Compete.

FTX is proud to introduce the all-new B4X 1/10 4WD Brushless Buggy, a high-performance competition-inspired platform designed for drivers looking to step into serious off-road racing without the premium race-kit price tag.

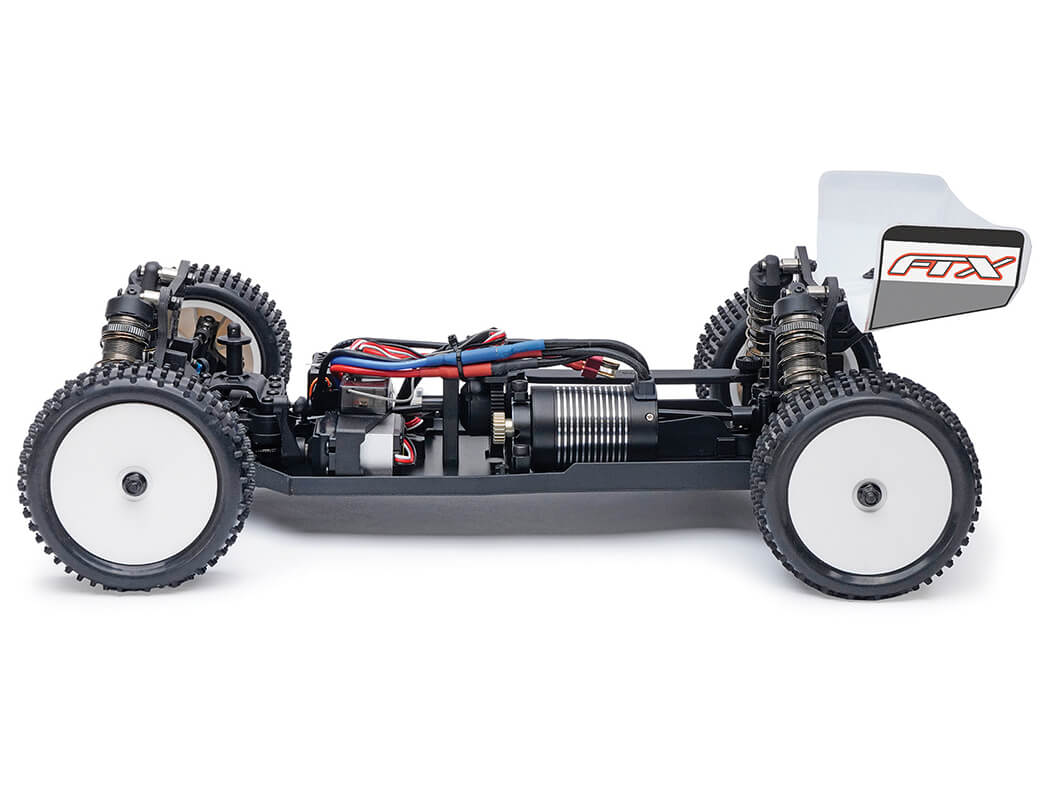

Built around a lightweight yet durable 7075-T6 aluminium chassis, the B4X combines proven race-buggy design principles with premium components throughout. From its three-differential shaft-driven transmission to its carbon fibre shock towers and CNCmachined aluminium suspension hardware, every aspect of the B4X has been engneered to deliver precision handling, durability and tunability on a wide variety of track surfaces.

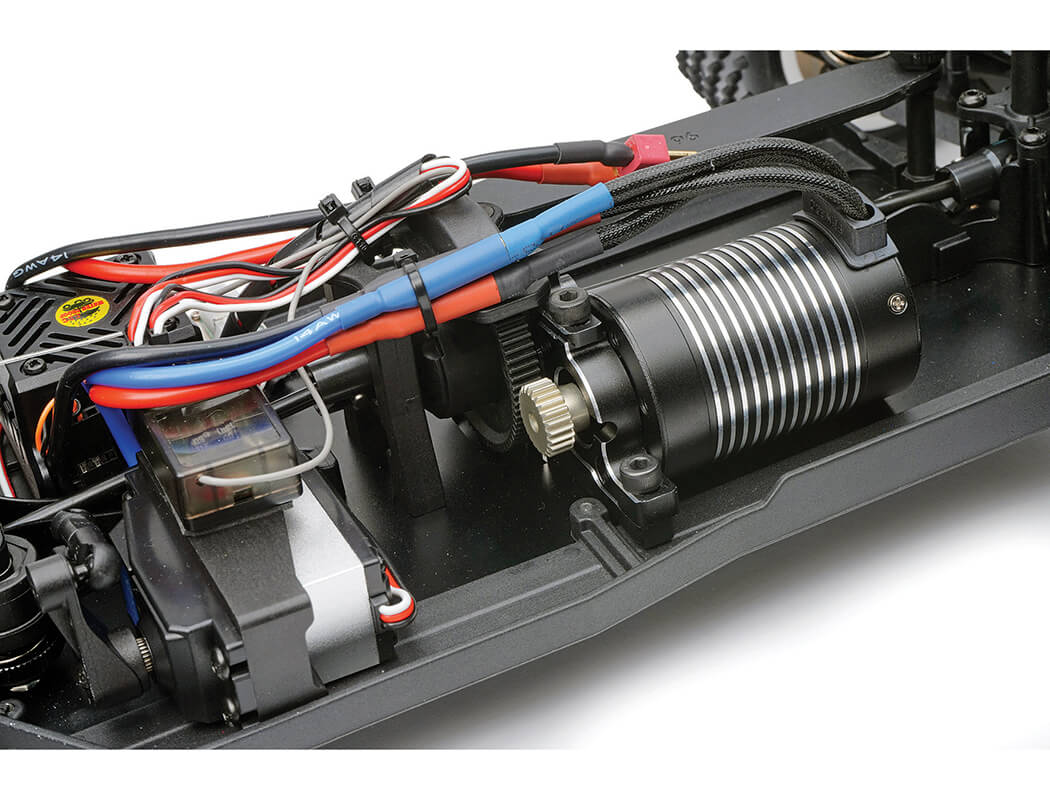

Power comes from a potent Etronix 3652 4000KV brushless motor paired with a HobbyWing WP-10BL60 brushless speed controller, providing smooth, efficient power delivery and compatibility with both 2S and 3S shorty LiPo batteries. Steering is handled by an Etronix 9kg metal-geared digital servo, ensuring fast and reliable response when navigating technical race sections or high-speed sweepers.

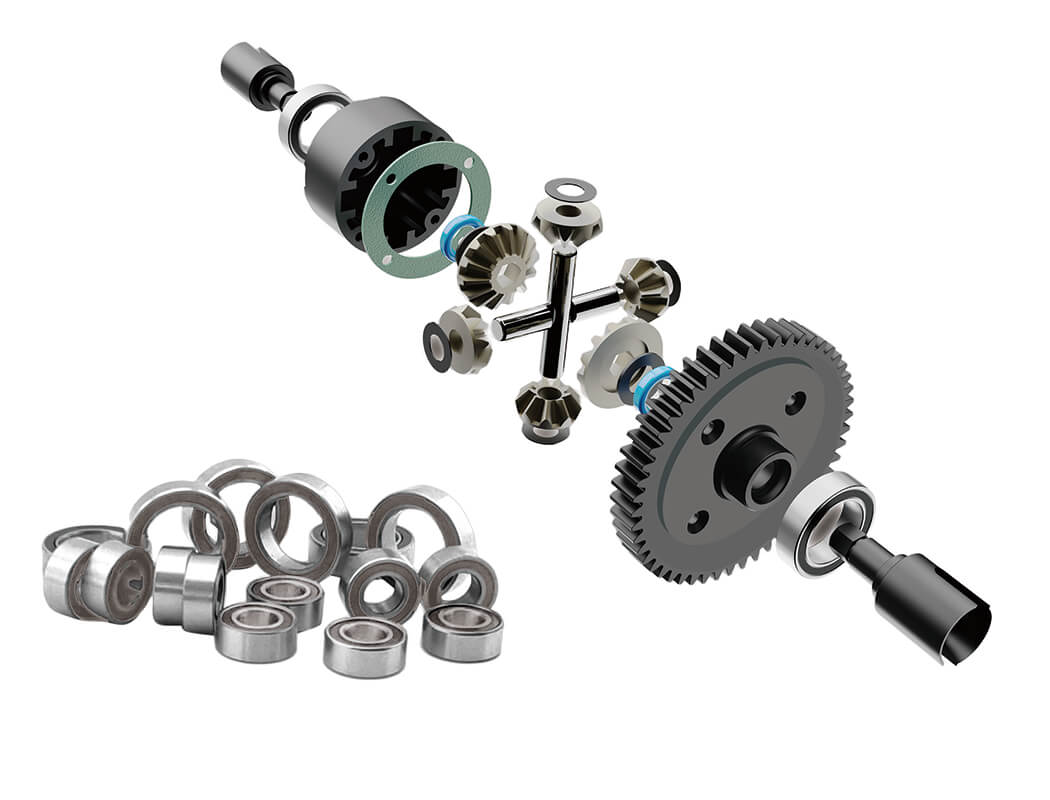

The shaft-driven 4WD drivetrain features front, centre and rear metal geared differentials with internal steel satellite gears, delivering excellent traction and power distribution under all conditions. Front and rear CVA universal driveshafts, rubber-sealed ball bearings and anti-roll bars further enhance performance, while CNC aluminium suspension hangers with adjustable inserts allow racers to fine-tune geometry settings including
toe-in, antisquat, roll centre, kick-up and track width.

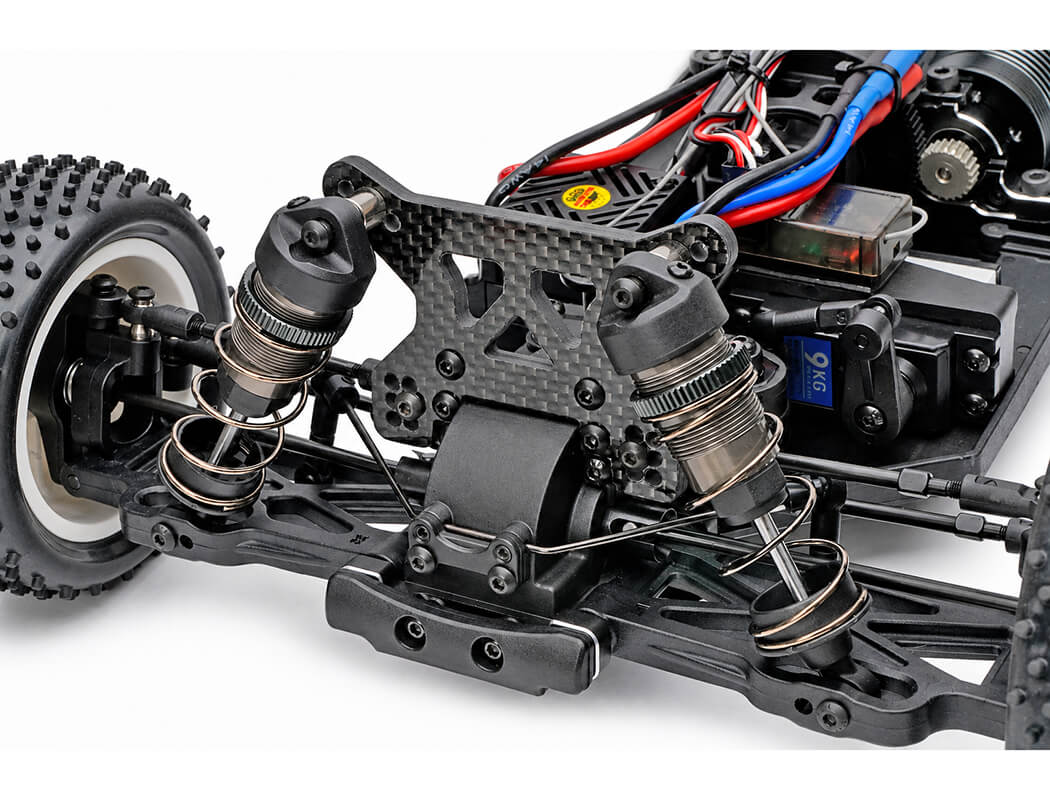

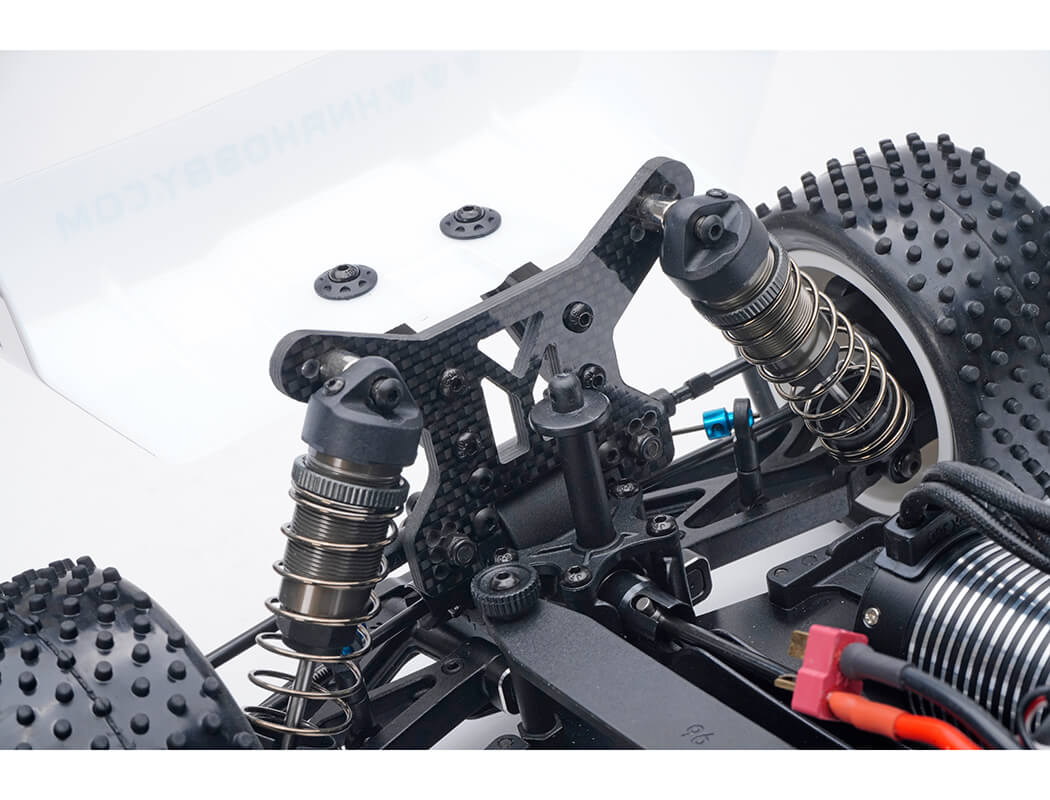

Large-bore hard-anodised aluminium oil shocks and carbon fibre shock towers provide exceptional damping and chassis control, helping the B4X remain composed over rough terrain, jumps and demanding race surfaces.

Finished with a factory-printed 1mm polycarbonate body and rear wing, the B4X delivers competition looks straight out of the box.

Whether you’re upgrading from an entry-level buggy or searching for a capable club-racing platform, the FTX B4X offers an impressive combination of performance, adjustability and value in a near-ready-to-run package.

Features

Competition Chassis & Drivetrain

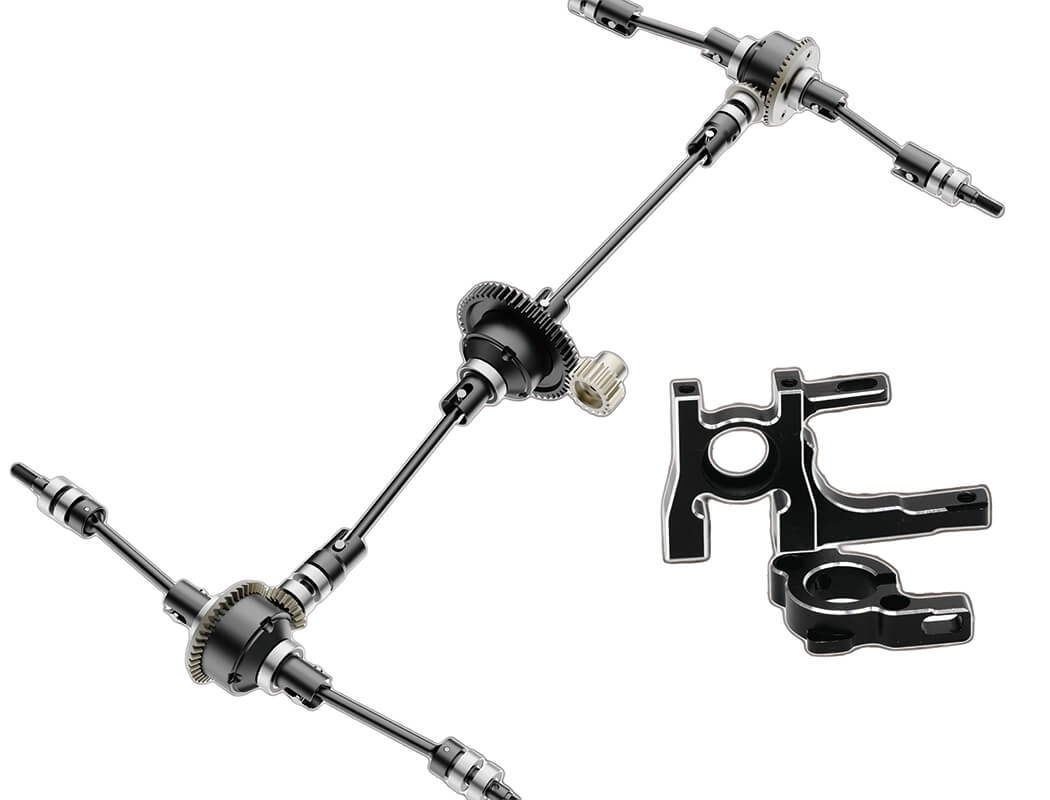

• Shaft-driven 4WD transmission.
• Front, centre and rear metal geared differentials.
• Internal steel differential satellite gears.
• Full rubber-sealed ball bearings throughout.
• Front and rear CVA universal driveshafts.
• CNC aluminium centre differential mount.
• Sliding CNC aluminium motor mount for easy gear adjustments.

Premium Construction

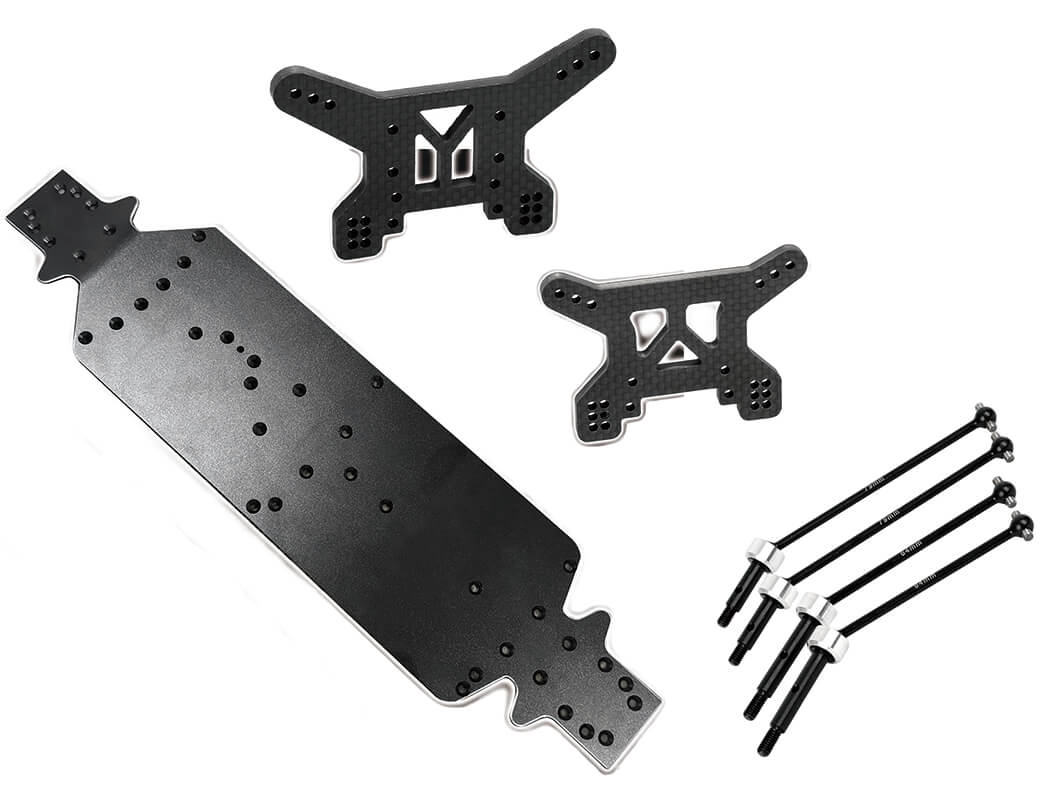

• 2.5mm 7075-T6 aluminium chassis.

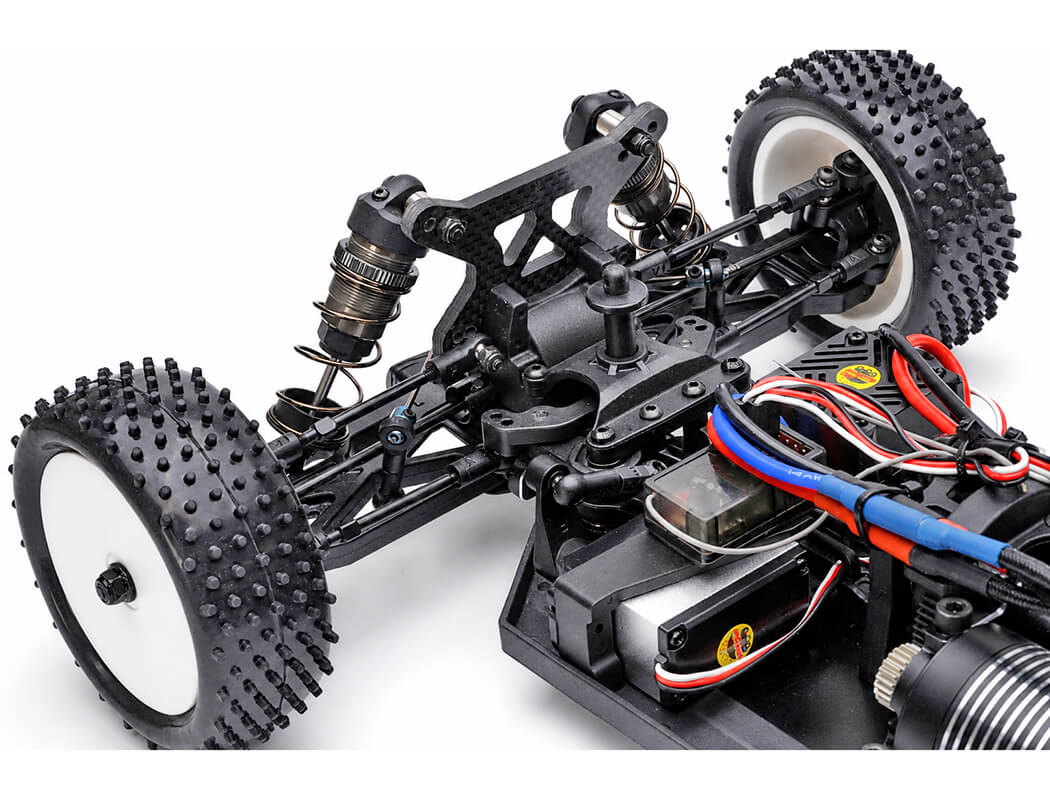

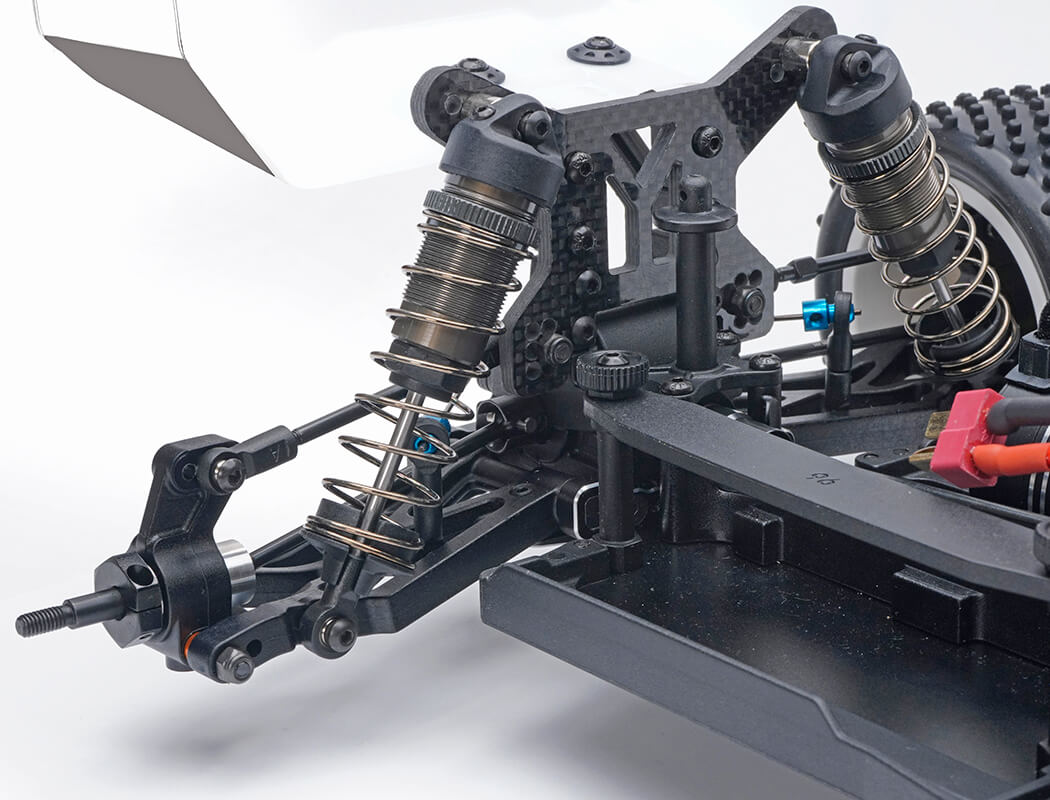

• Carbon fibre front & rear shock tower.

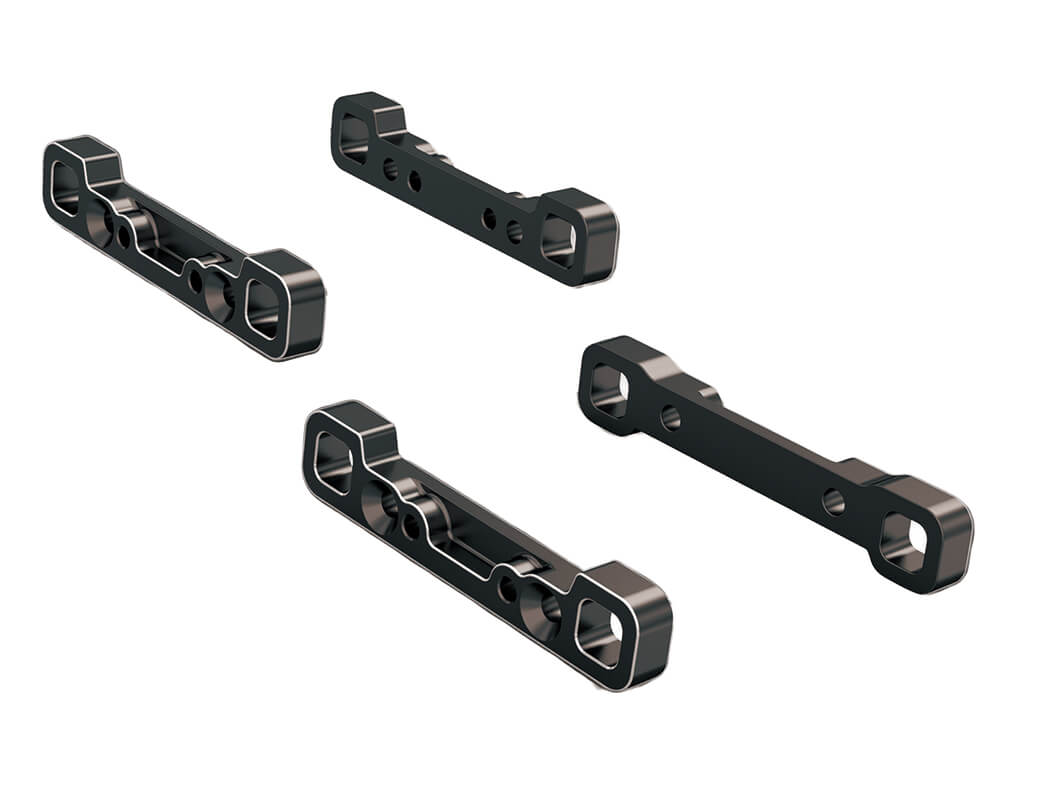

• CNC aluminium front & rear suspension mounts.
• Factory-finished 1mm polycarbonate body and wing.

Suspension & Handling

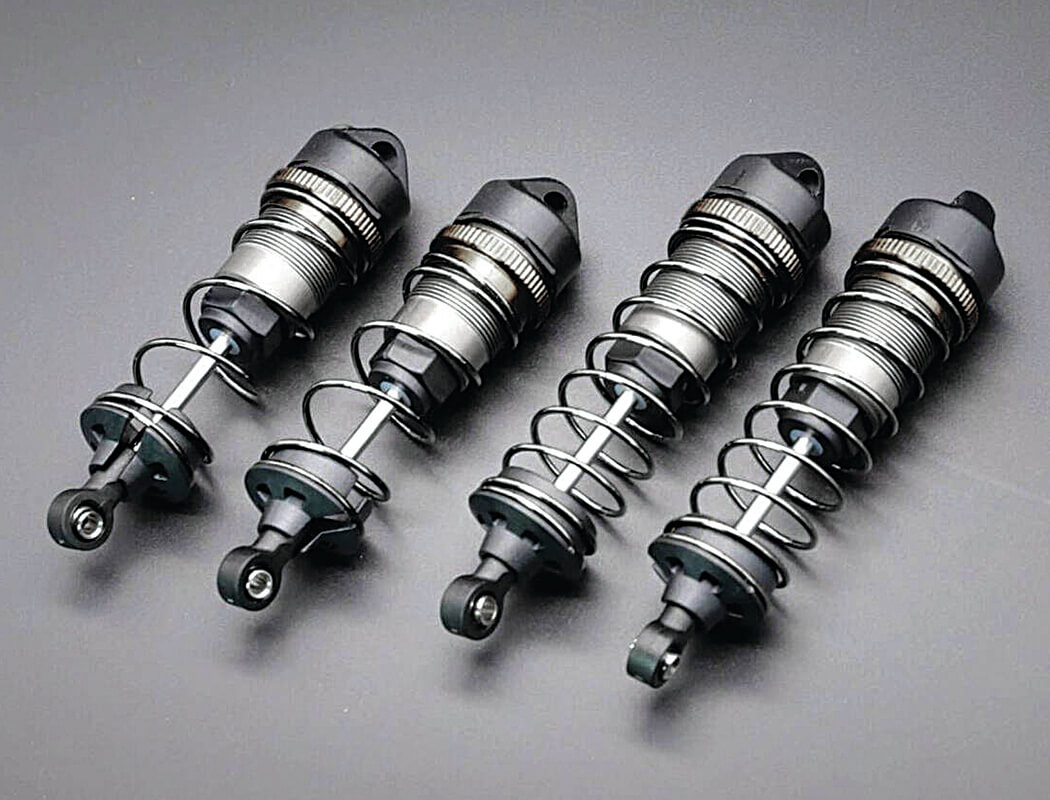

• CNC large-bore hard-anodised aluminium shock absorbers.
• Adjustable suspension geometry.
• Variable pill inserts for:
  - Toe-in adjustment.
  - Anti-squat adjustment.
  - Roll centre adjustment.
  - Kick-up adjustment.
  - Track width adjustment.

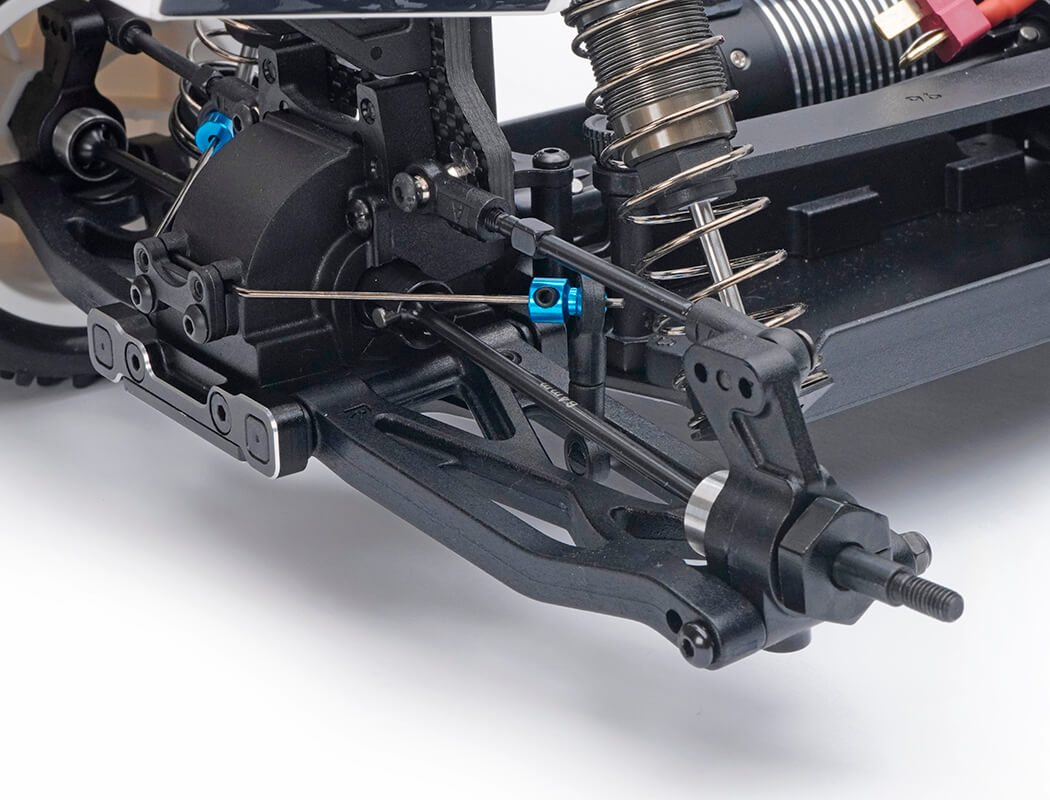

• Front and rear anti-roll bars.
• Adjustable turnbuckles.

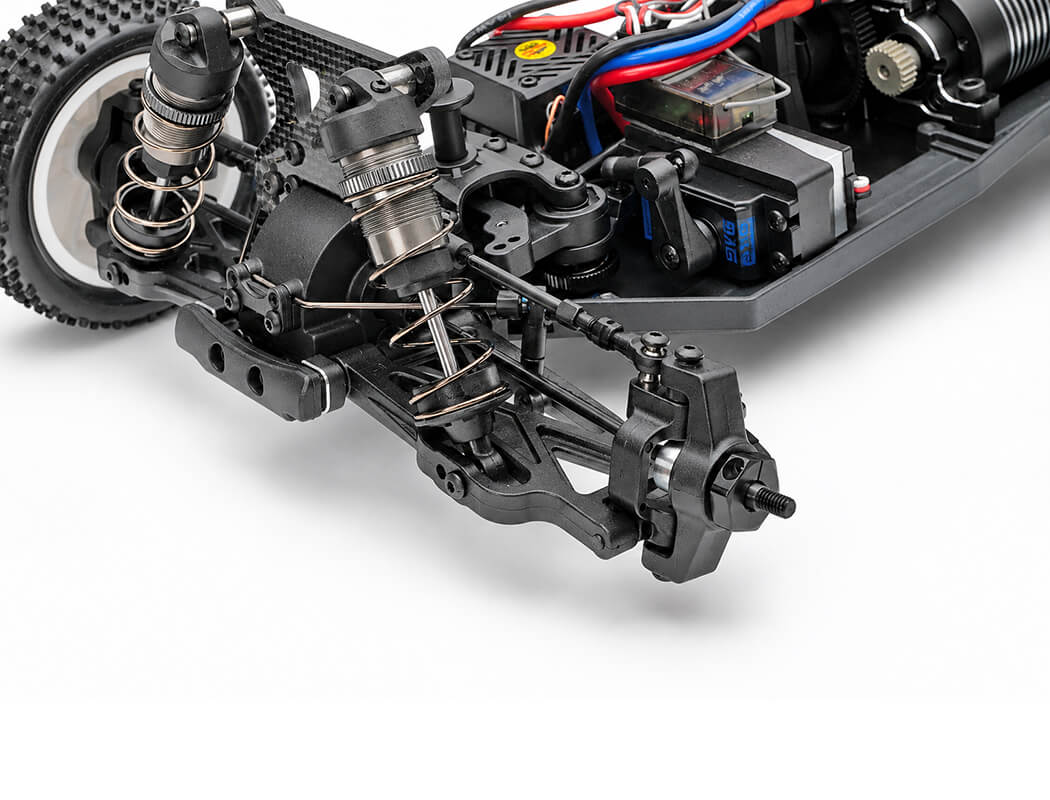

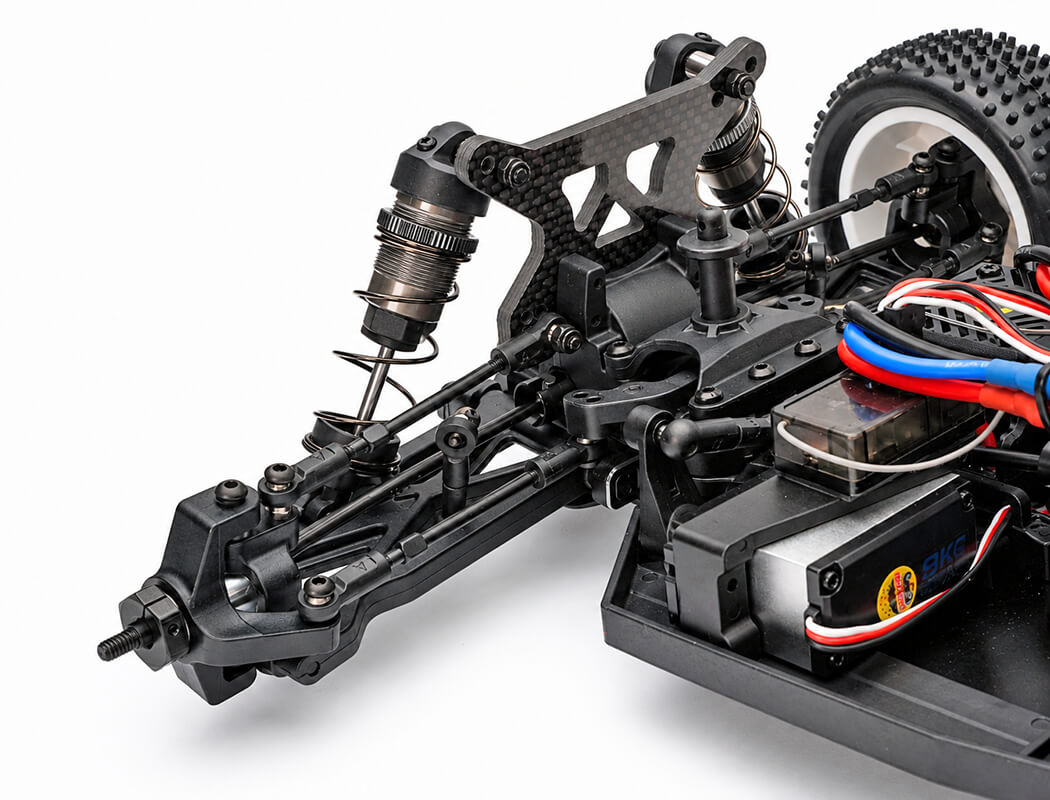

• C-Hub front steering system.

Electronics

• Etronix 3652 4000KV brushless motor.
• HobbyWing WP-10BL60 brushless ESC with Deans/T-Plug connector.
• Supports 2S and 3S shorty LiPo batteries.
• Etronix 9kg metal-geared digital steering servo.
• Etronix 2.4GHz radio system included.

Ready-To-Run Package

• 90% Ready-To-Run.
• Simple final assembly required.
• Ideal for club racing, practice and high-performance bashing.

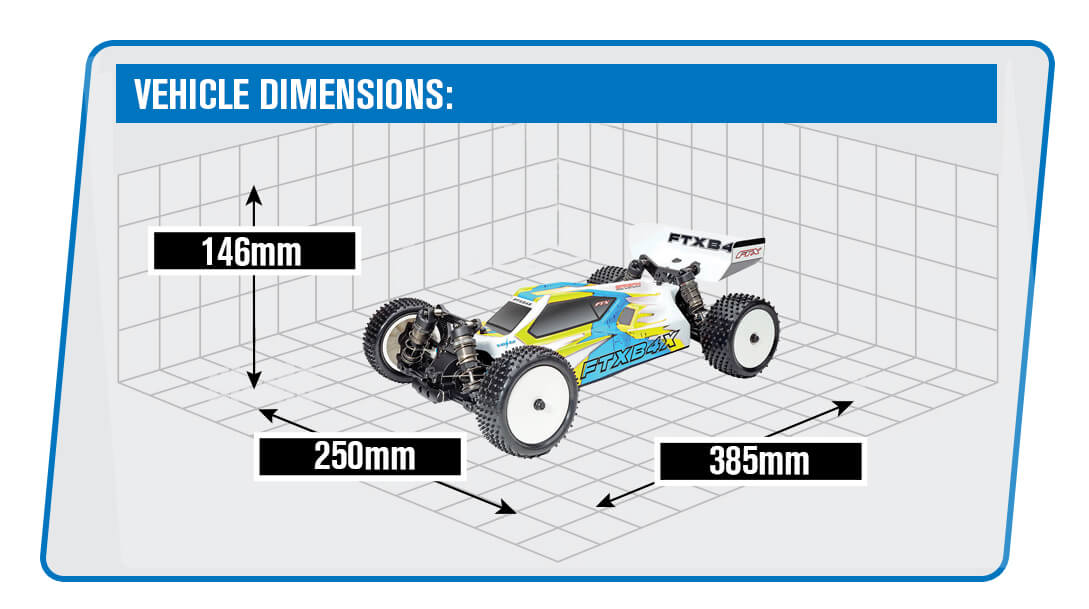

Specifications

Scale: 1/10
Length: 385mm
Width: 250mm
Height: 146mm
Wheelbase: 278mm
Ground Clearance: 25mm
Gear Ratio: 8.7:1
Weight: 1600g (without battery)

Required To Complete

• 4 x AA transmitter batteries.
• 1 x Shorty LiPo battery with Deans/T-Plug connector.
• 1 x LiPo balance charger.
