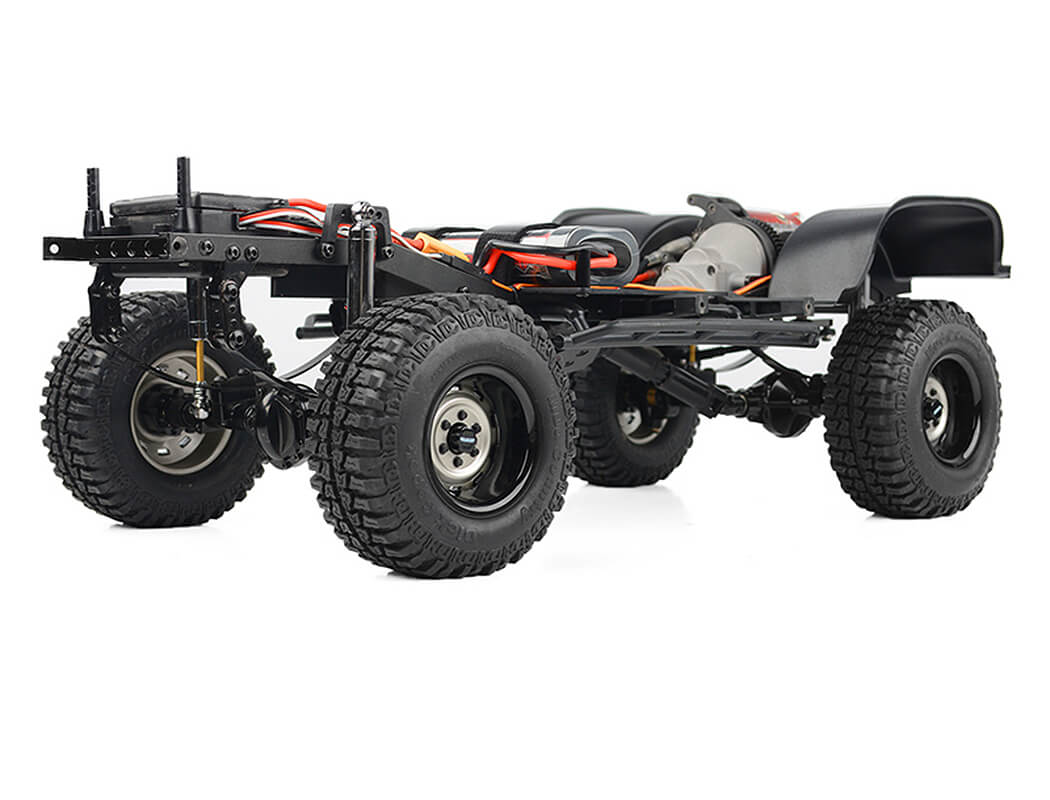

RC4WD TRAIL FINDER 2 1/10 SCALE BUILDERS KIT (K44)

The Trail Finder 2 masterfully blends style with aggressive off-road performance. Designed to deliver both scale detail and powerful functionality, it features an R3 Scale Single Speed transmission, a 4WD drivetrain, a rugged Bulletproof Transfer Case, and durable metal components for unmatched smoothness and control. Upgraded XVD front axles enhance durability and offer a superior steering angle compared to standard models. A testament to innovative engineering, the Trail Finder 2 stands out with its impressive looks and performance capabilities. Additionally, it offers extensive compatibility with a wide range of upgrades and performance enhancements, elevating the authenticity and user experience of this 1/10-scale off-road truck.

Drivetrain

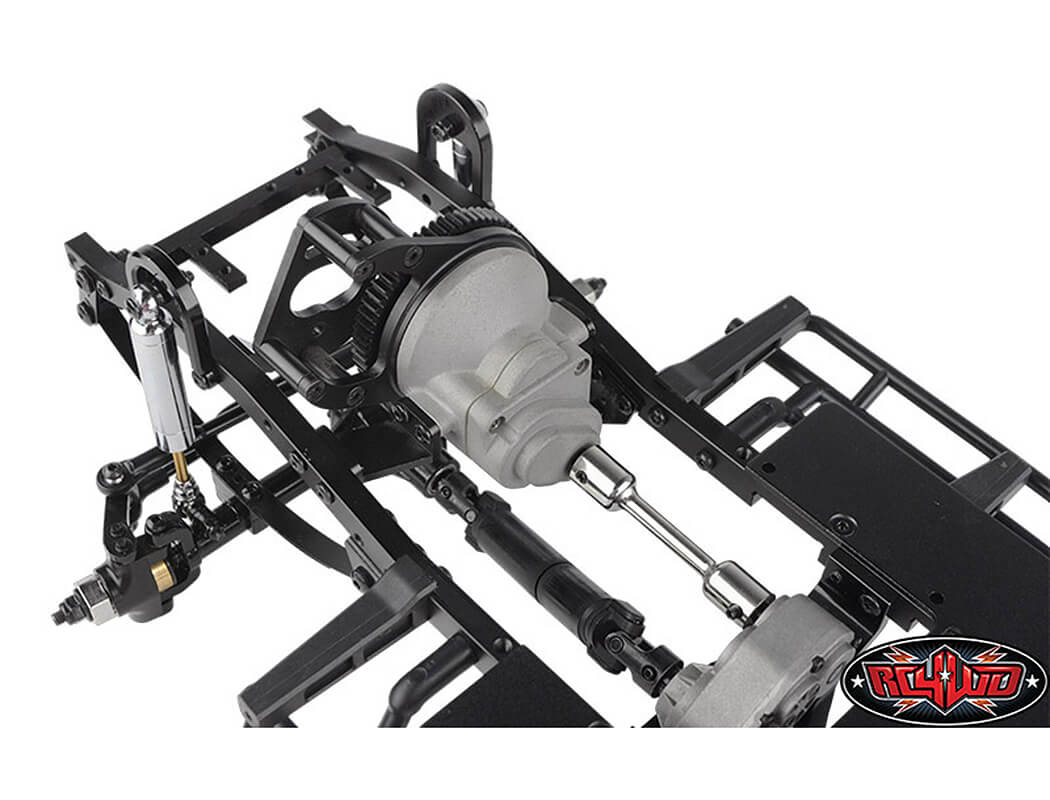

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

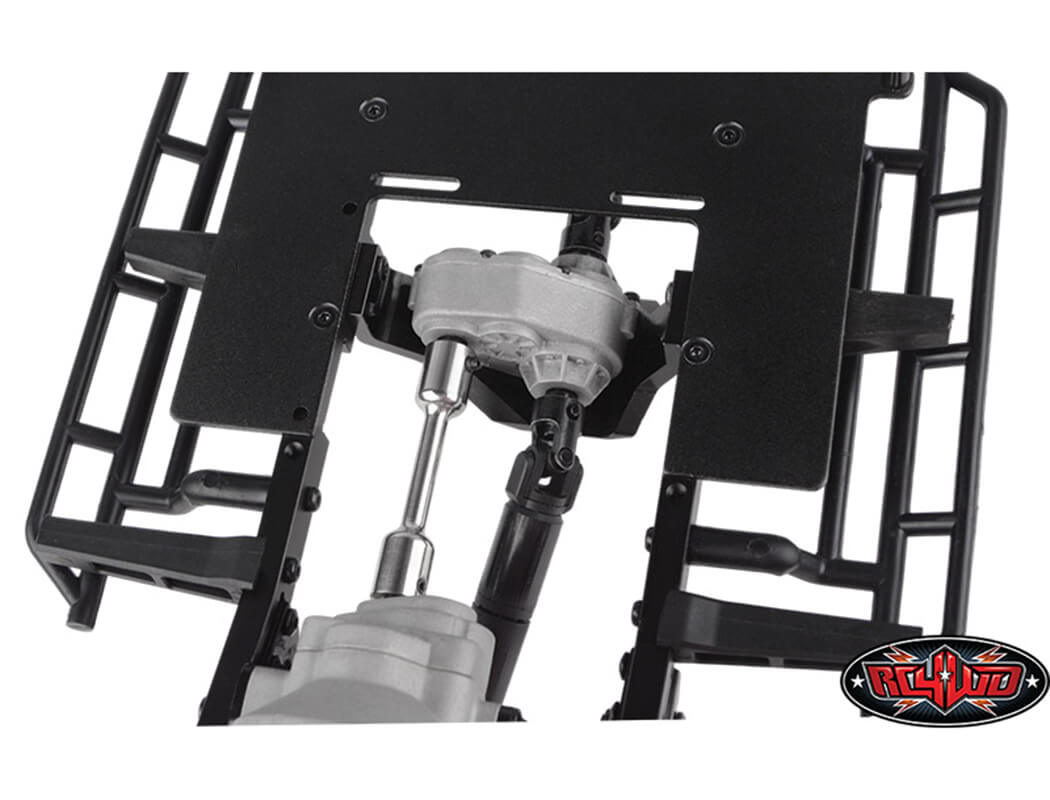

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

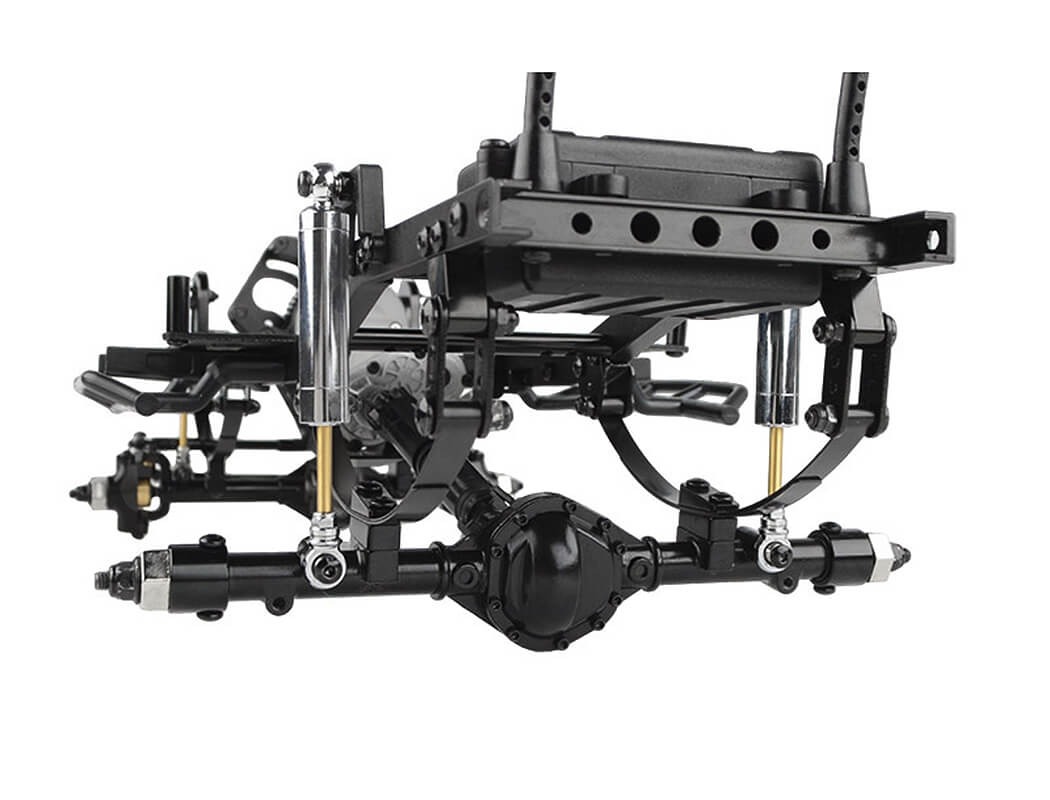

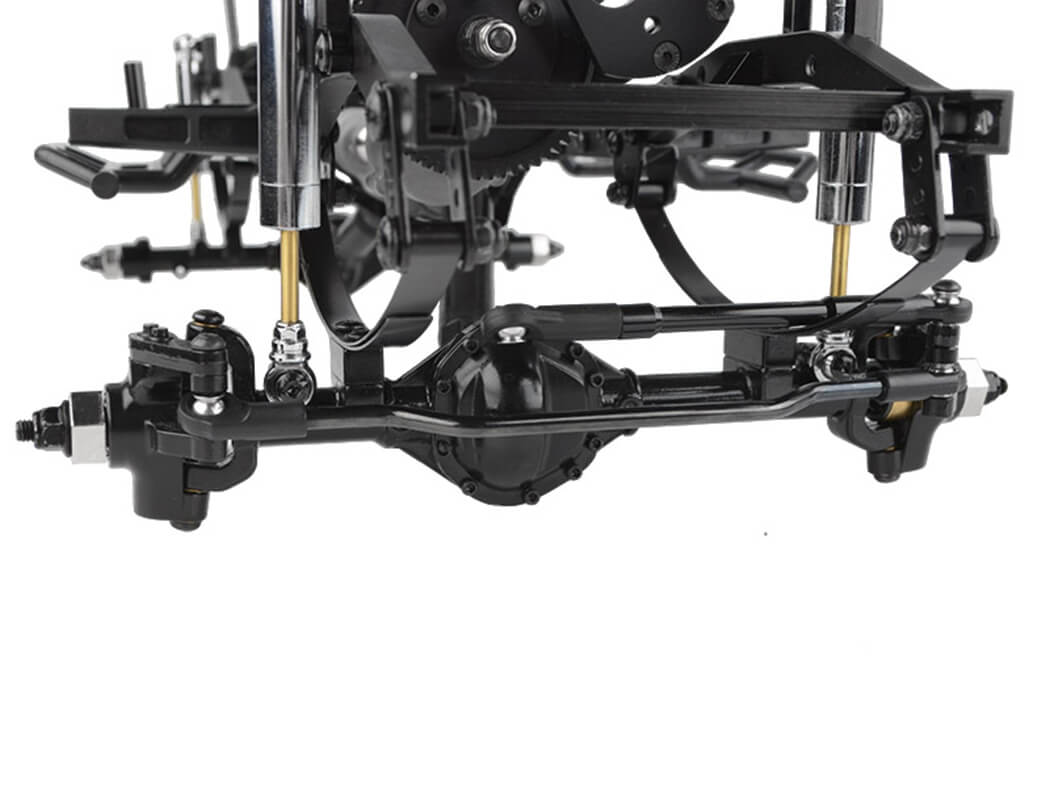

The most scale-accurate axles in the market, the RC4WD K44 Ultimate Scale Cast Axles feature innovative high steer knuckles, lower mounting points, compact pumpkins, as well as XVDs & offset pumpkin for the front.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

This chassis comes with new body mount brackets and rear shock hoops that fit the RC4WD Chevrolet Blazer Hard Body Set; paired with the lift kit you can instantly transform your truck into a mini lifted beast.

The Trail Finder 2 includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

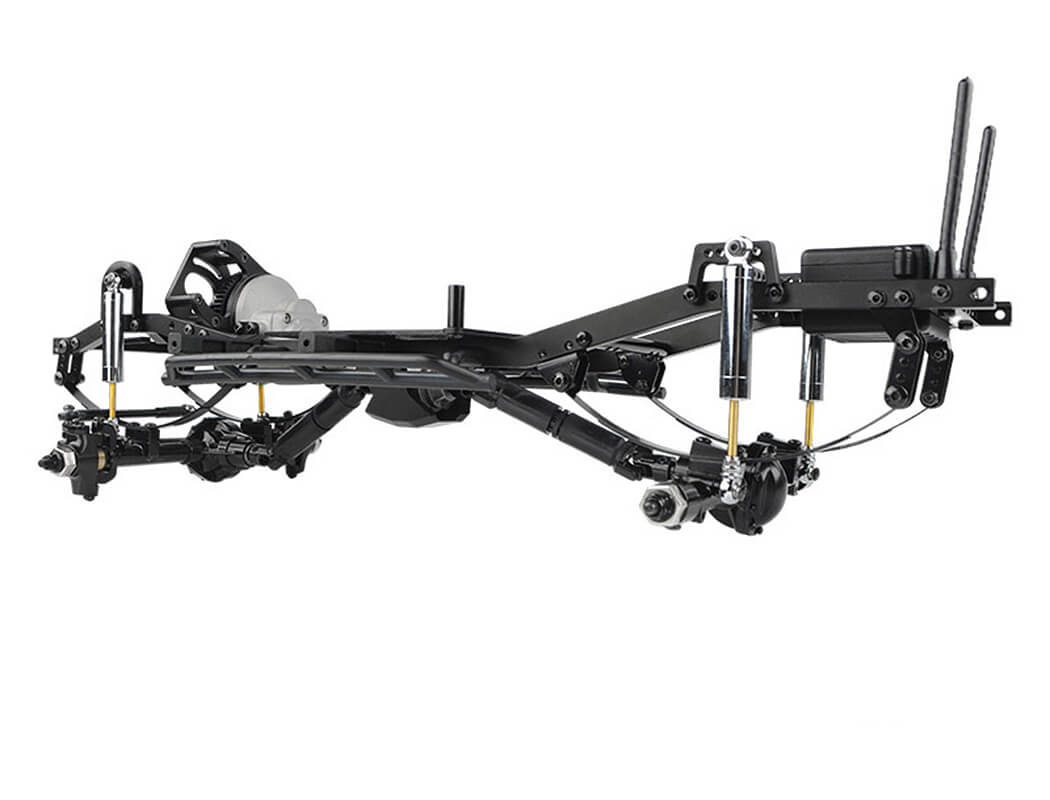

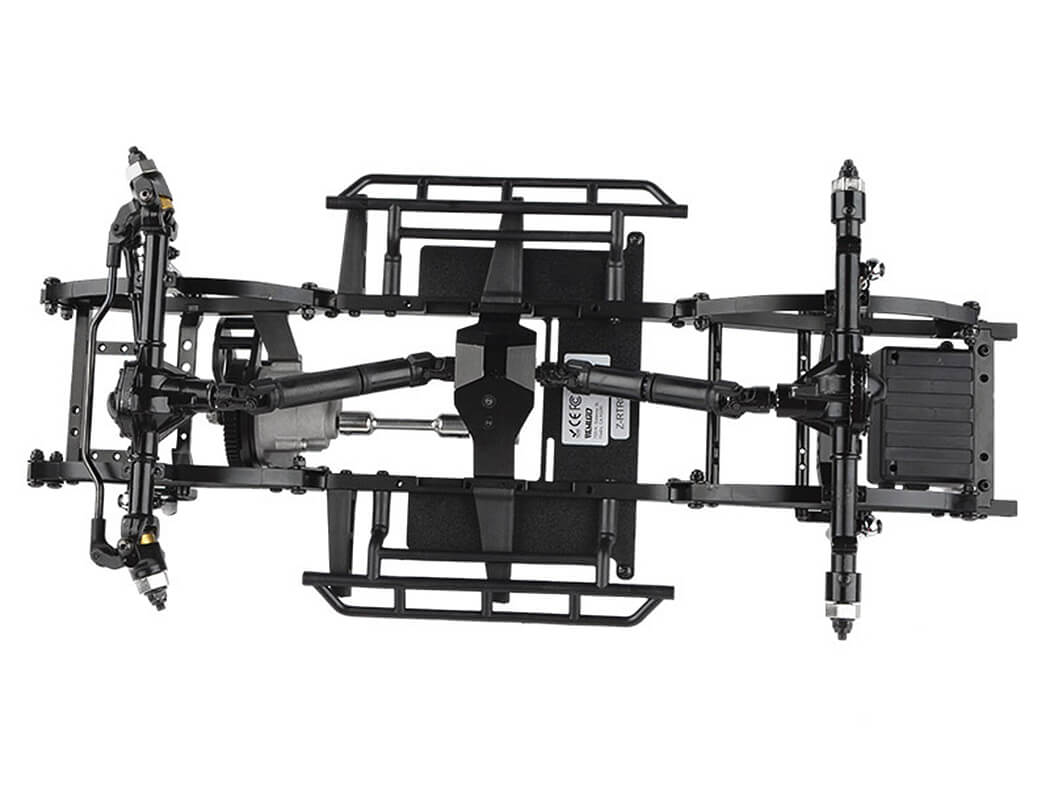

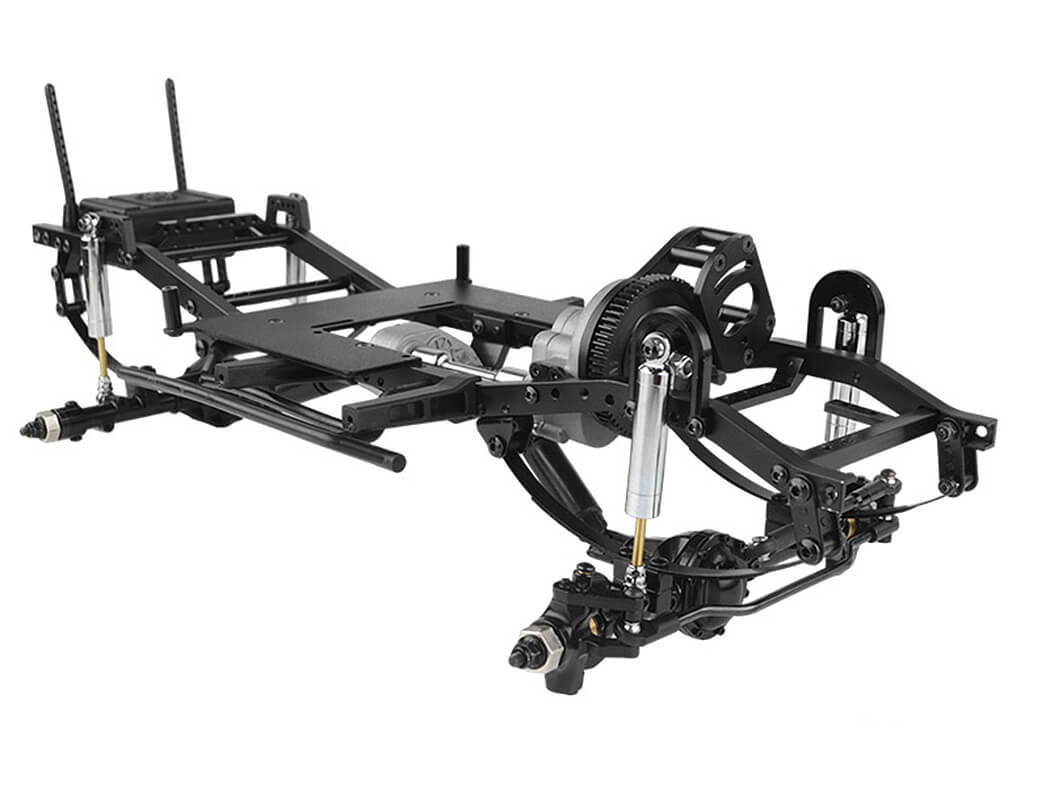

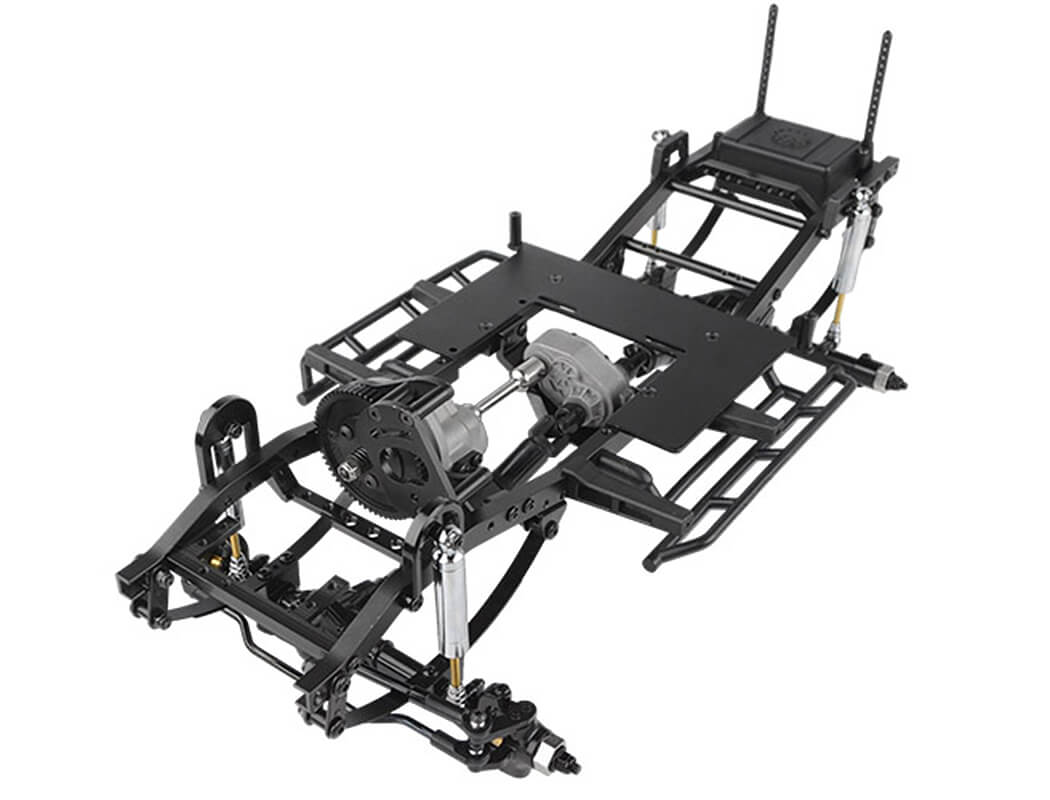

With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

Features

• Realistic Billet Aluminium Ladder Frame Chassis
• R3 Scale Single Speed Transmission
• Hammer Transfer Case (1.47/1)
• K44 Ultimate Scale Cast Axles
• RC4WD Bilstein SZ Series Shock Absorbers (80mm)
• RC4WD Lift Blocks for Yota and K44 Axles
• RC4WD Body Mounts and Shock Towers for Chevrolet Blazer

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 1:4.57
• Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles

• Ratio: 2.67:1
• Width at Hex: 177mm (6.96")

Trail Finder 2 Chassis

• Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

• High Quality Plastic Material, Durable Steel Yokes

Specifications

Wheelbase: 285mm (11.2")
Width: 196mm (7.7")
Height: 148mm(5.8")
Final Drive Ratios: 31.9:1

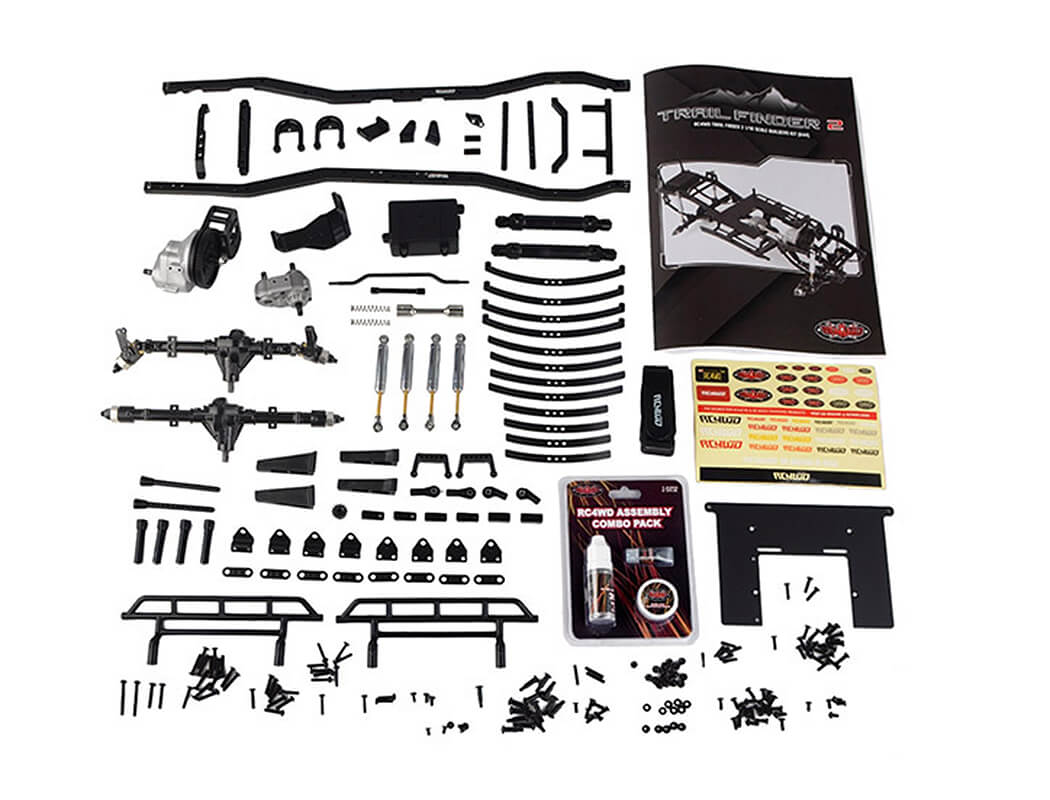

What's Included

1 x RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

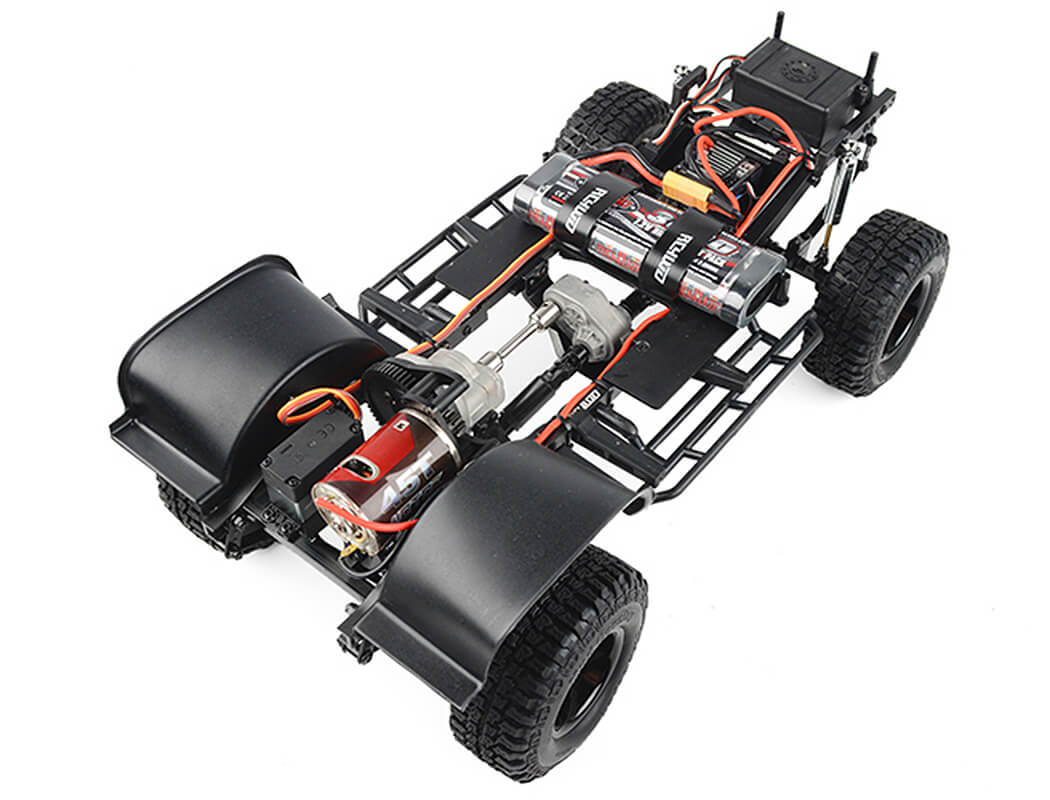

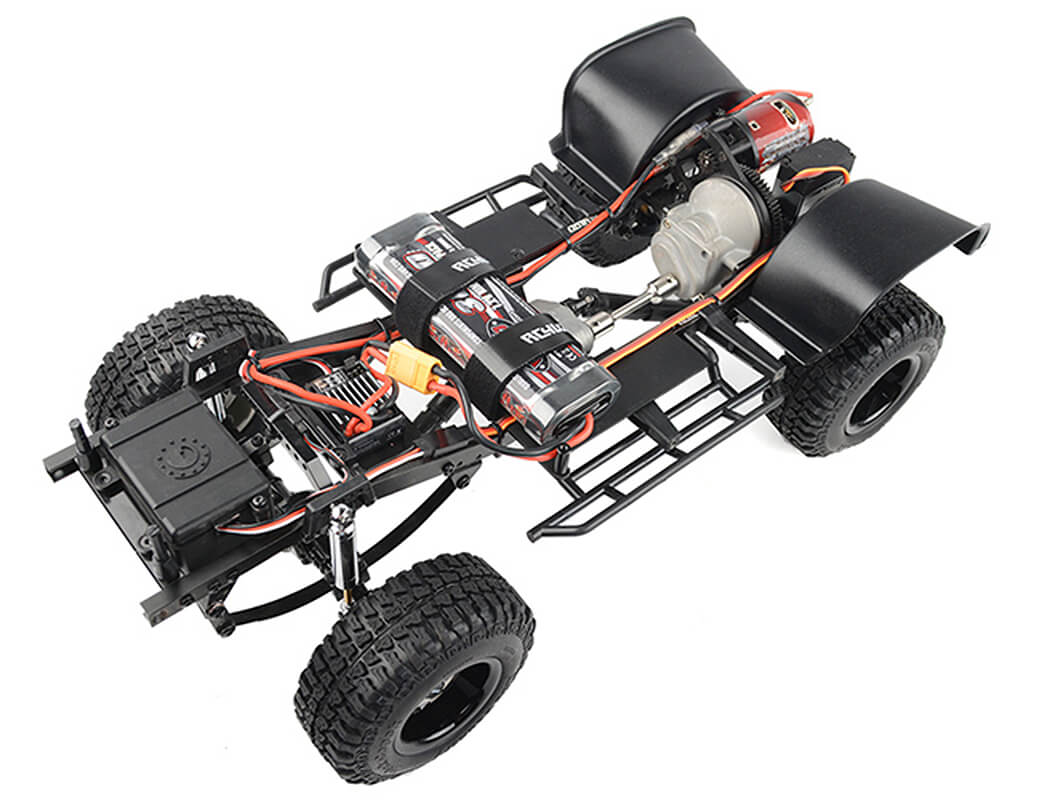

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery Z-E0090 or Lipo battery
• Charger

Suggested Bodies

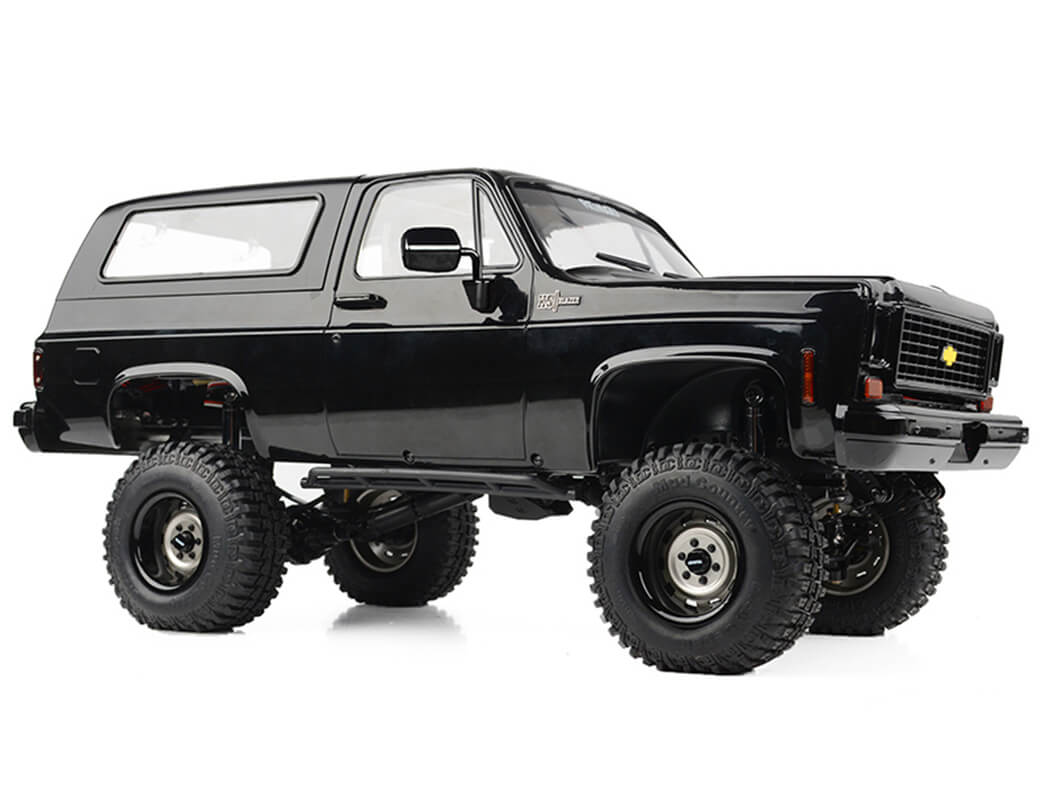

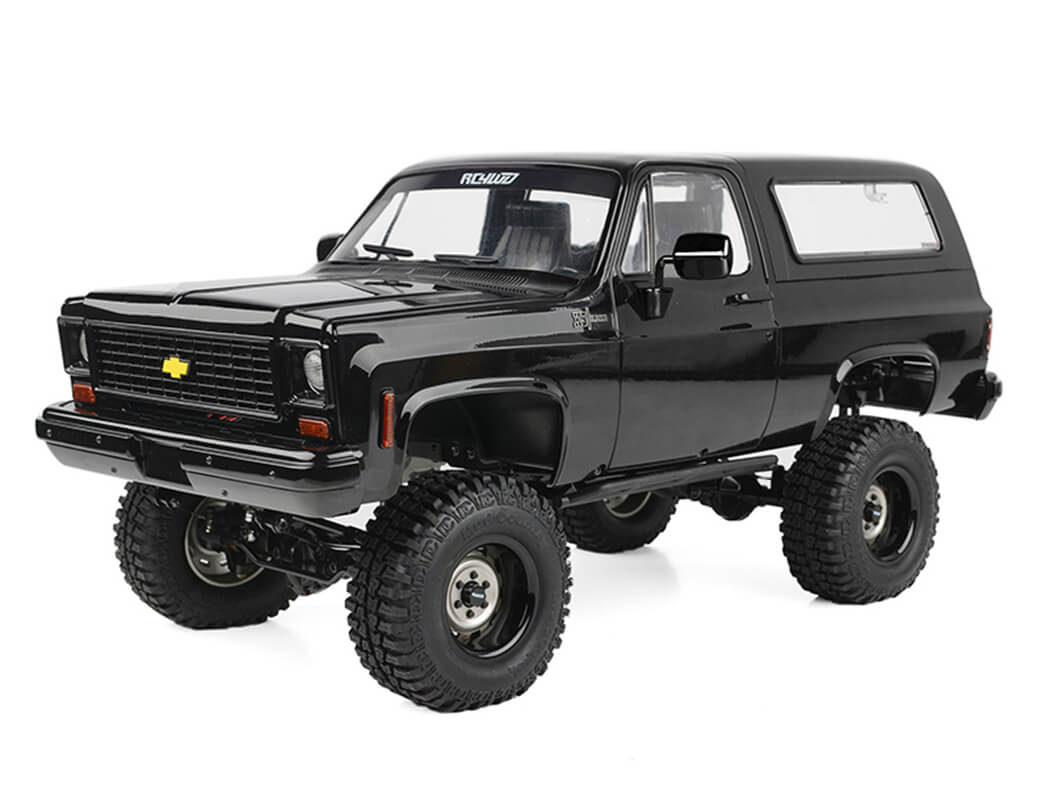

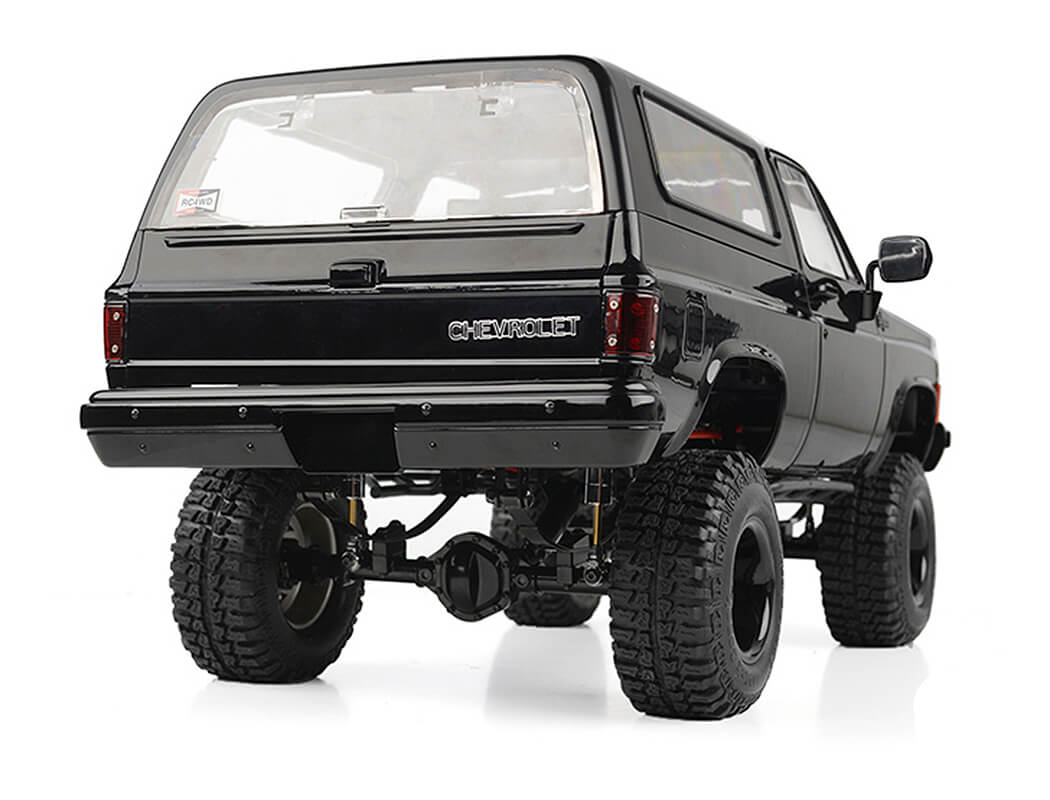

• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
• RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)

Notes

• This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
