XFLY X1200 VTOL FIXED WING FPV PLANE WITH GYRO,GPS,AIRSPEED SENSOR

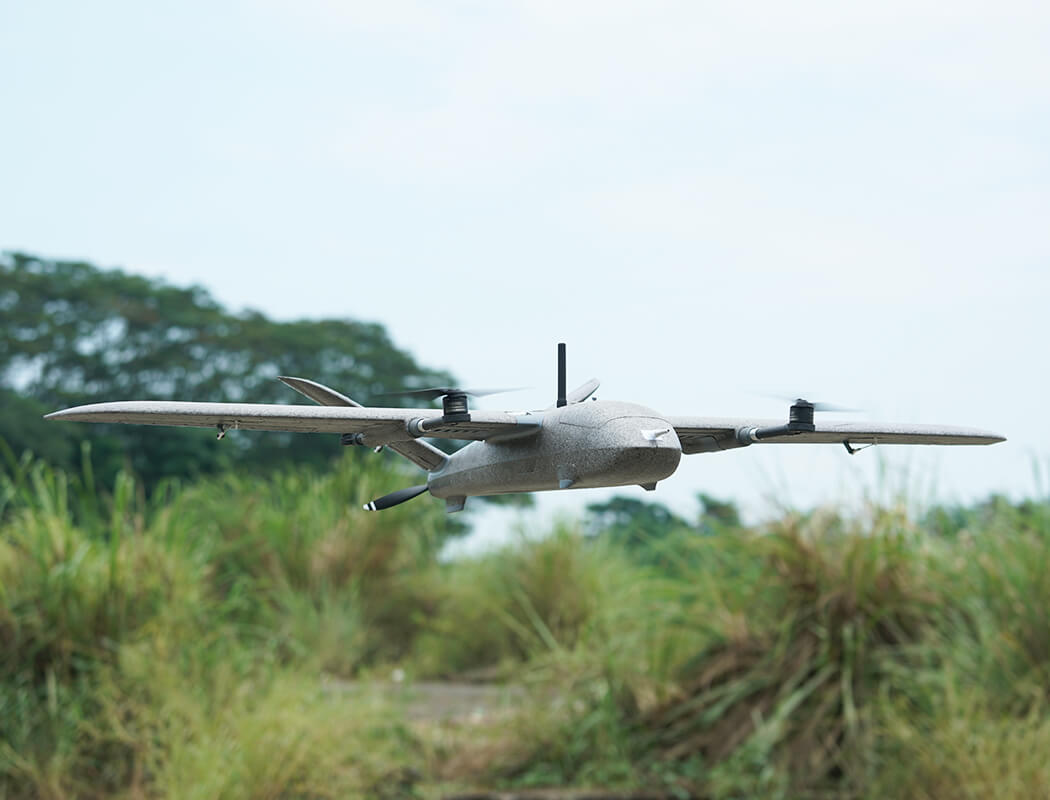

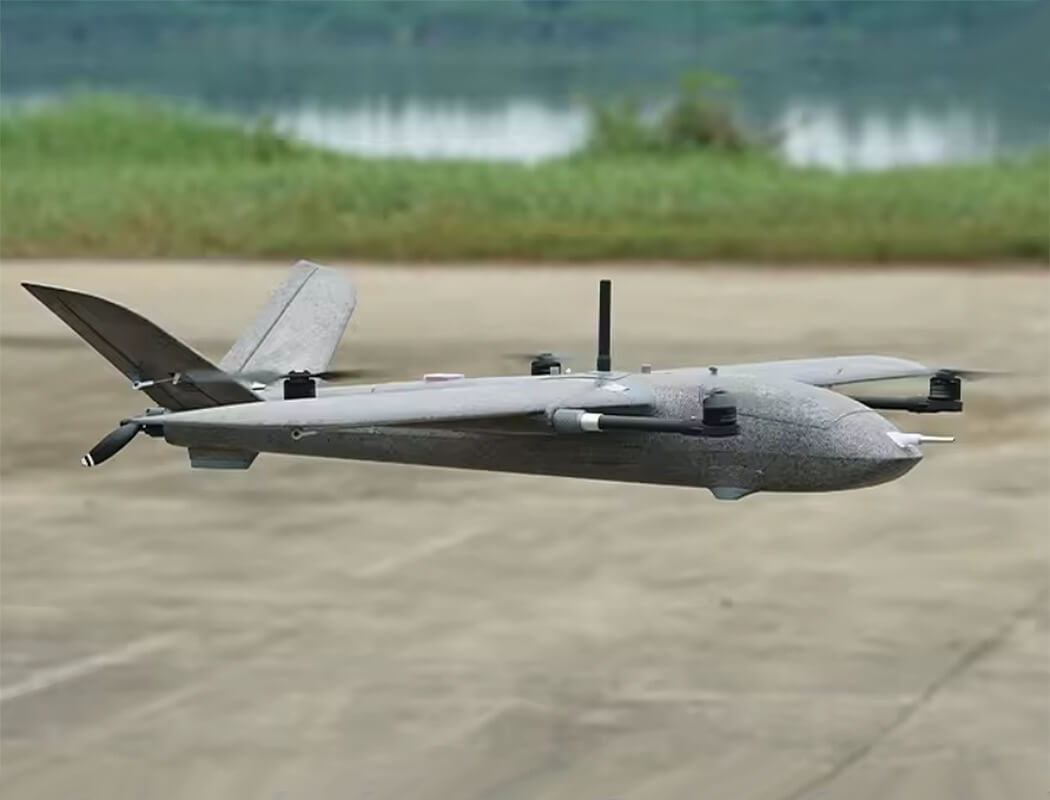

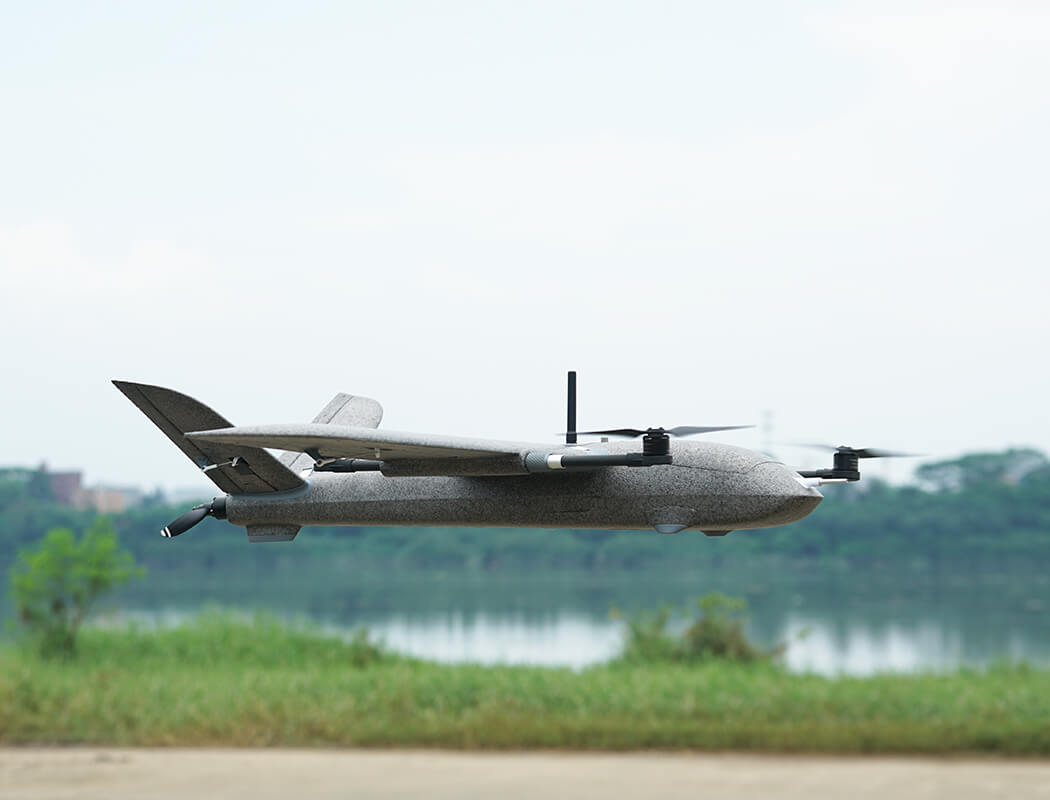

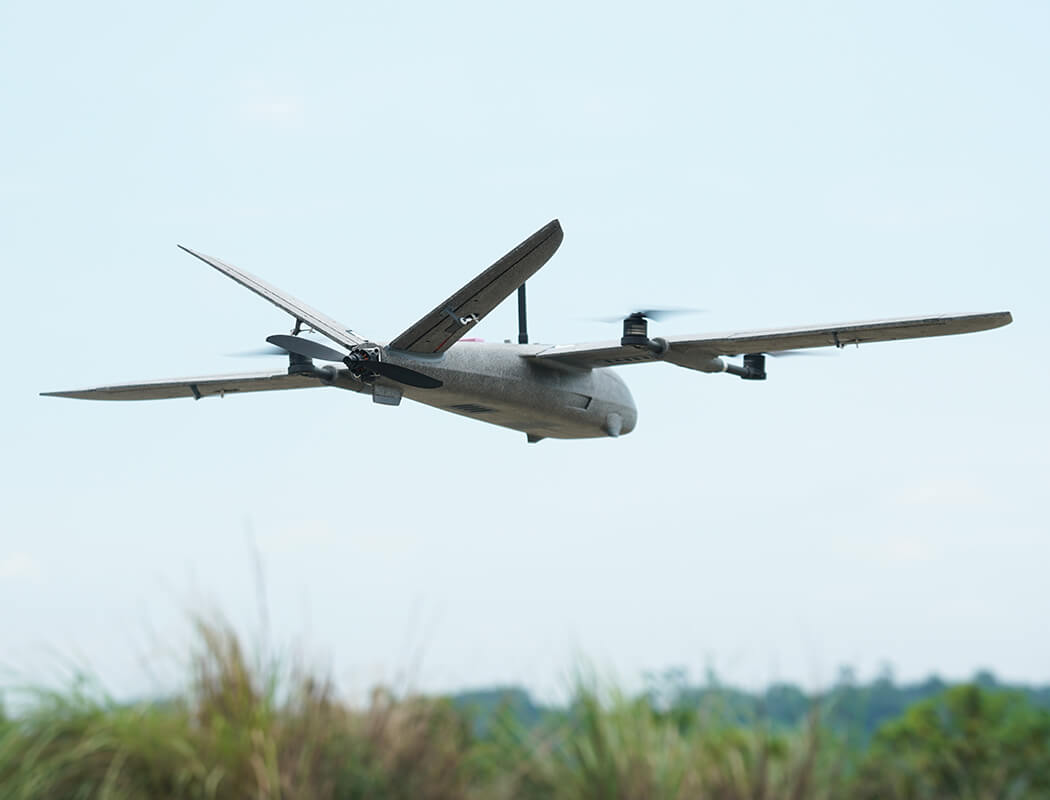

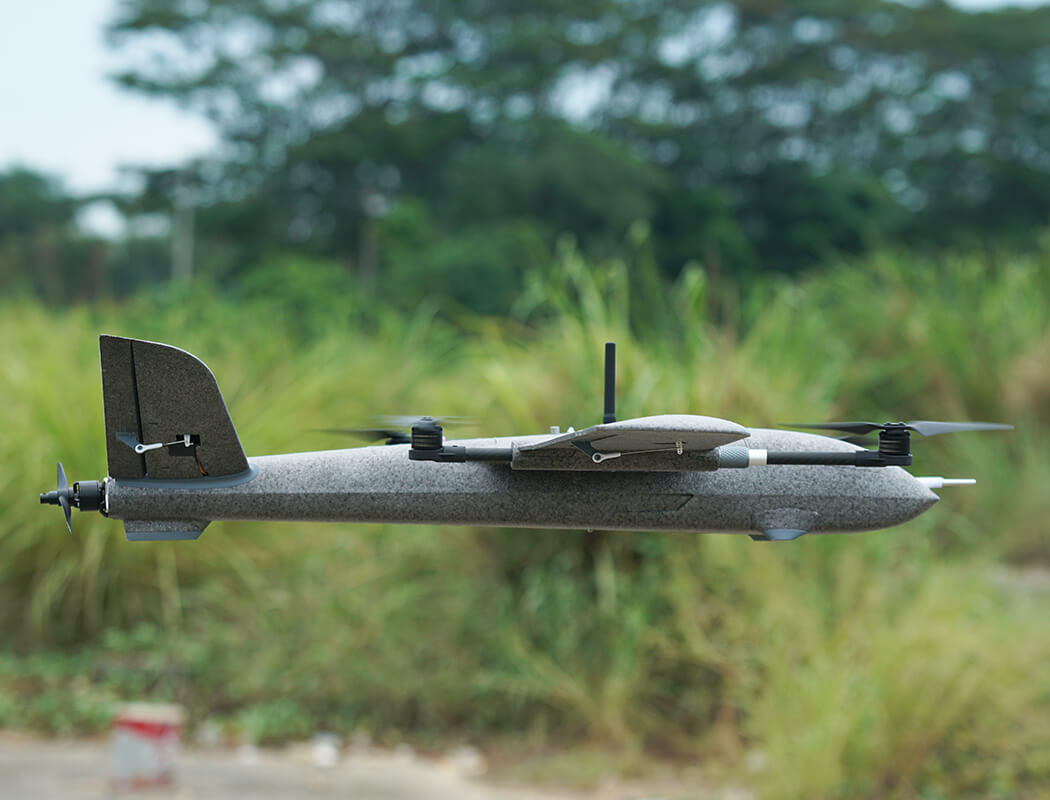

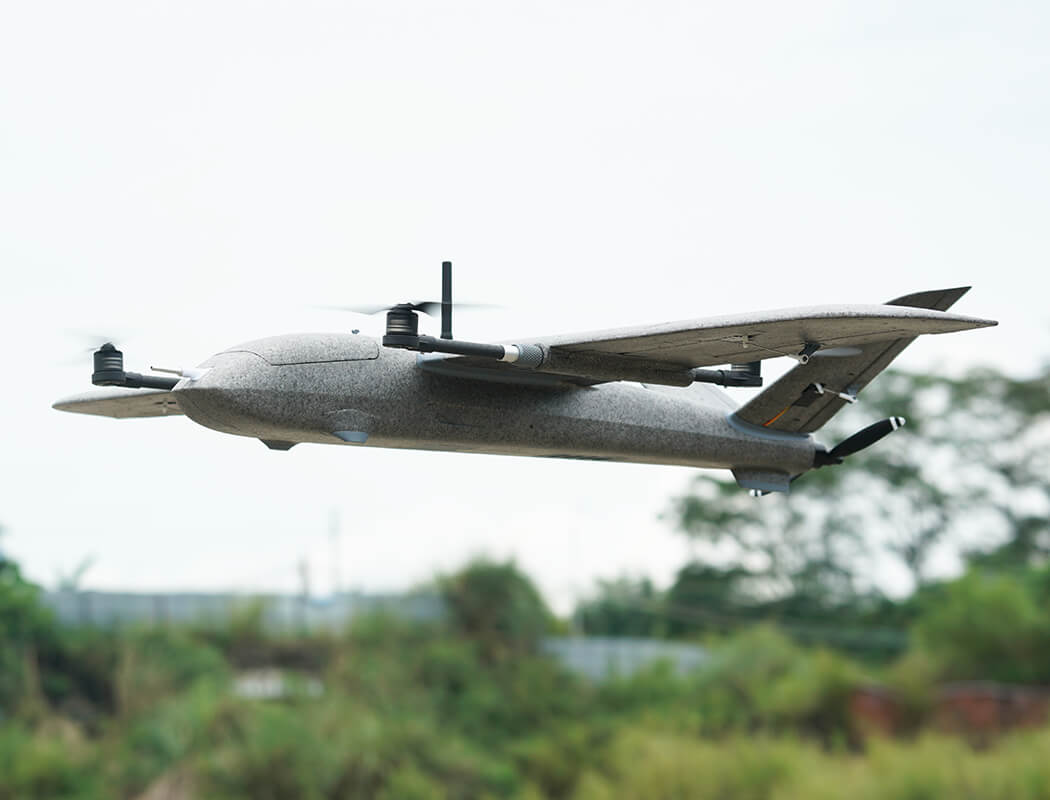

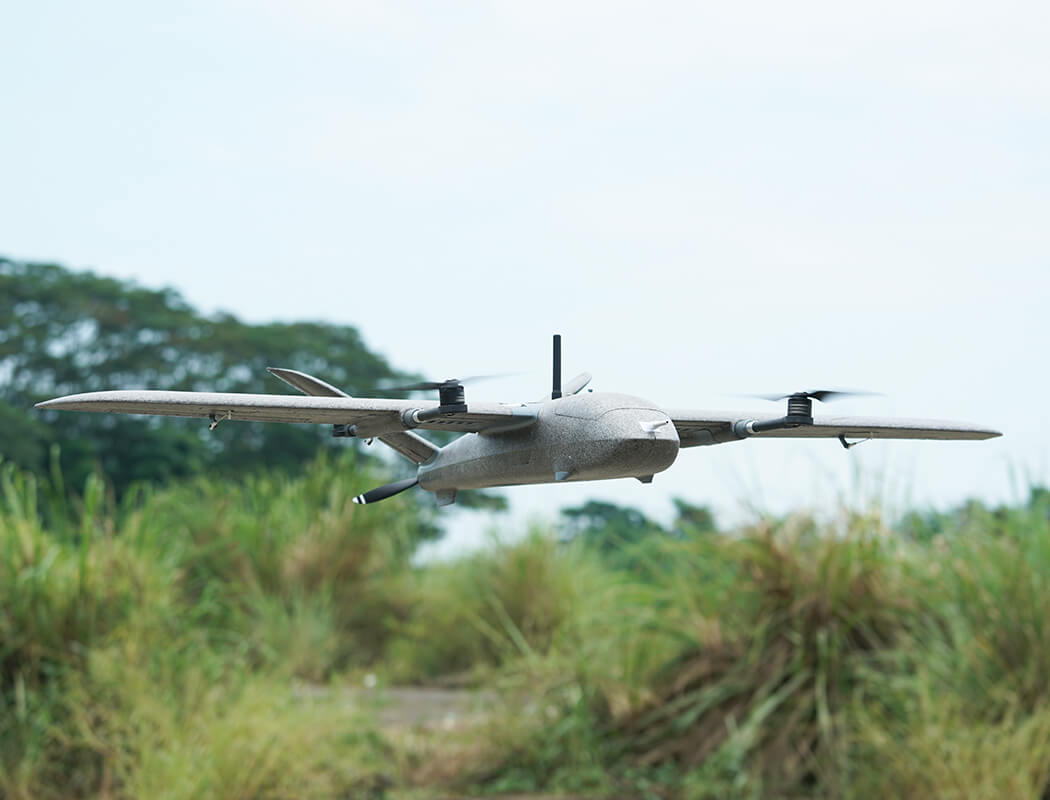

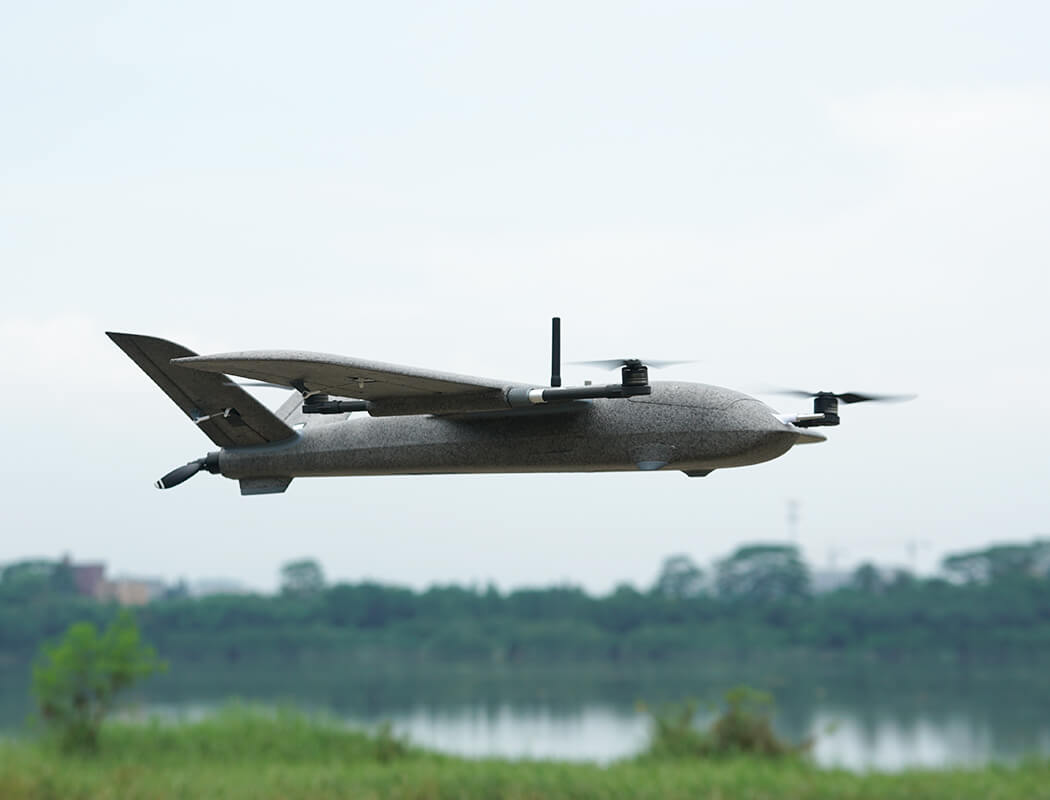

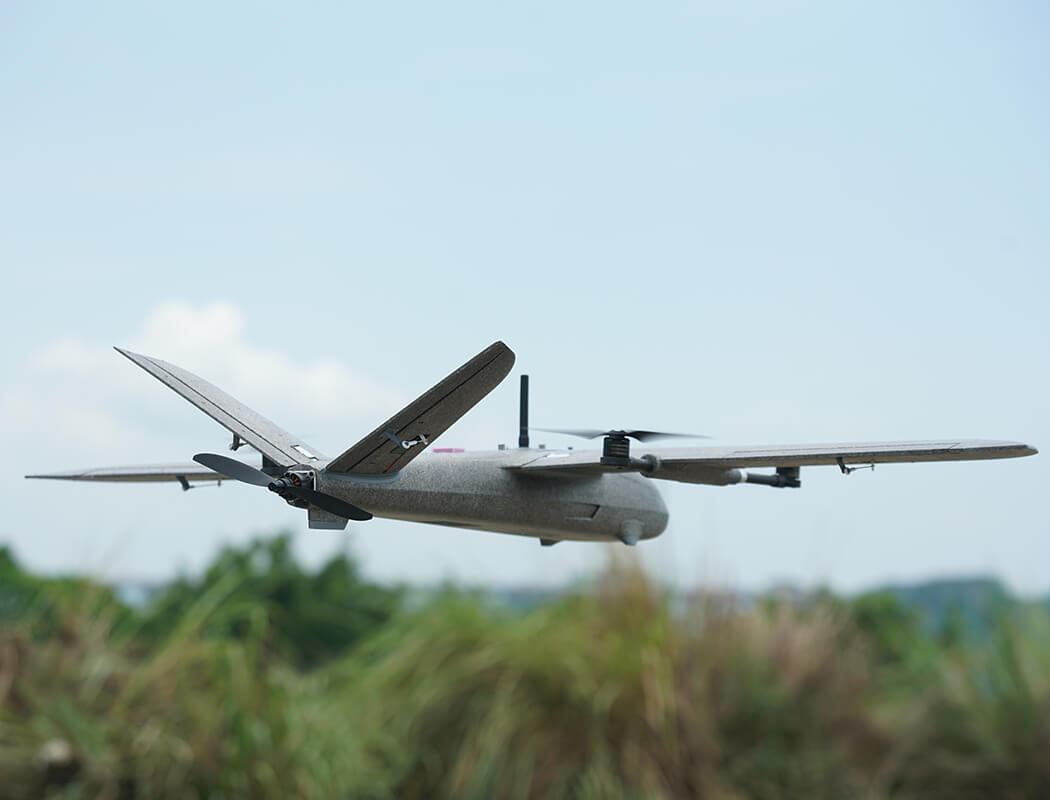

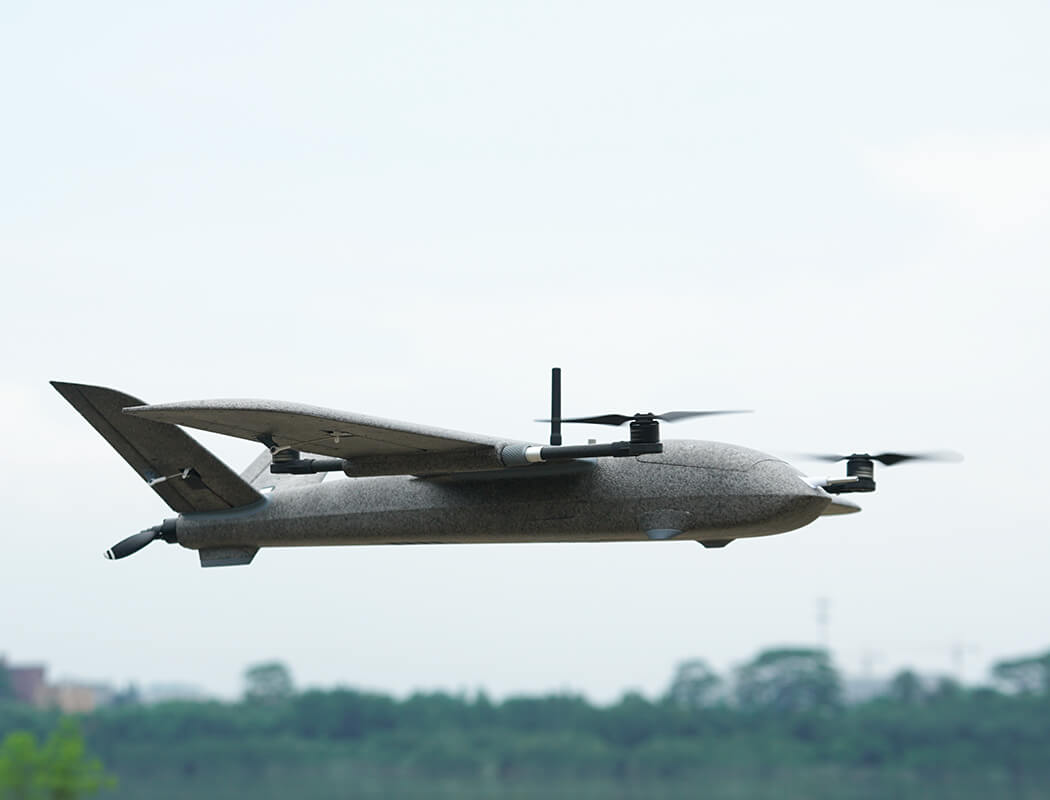

The X1200 is a vertical takeoff and landing (VTOL) fixed-wing model aircraft designed by Skyward Studio specifically for entry-level FPV enthusiasts who are just getting into VTOL flying, and is manufactured by XFLY-MODEL. Built with durable and wear-resistant EPP foam reinforced with composite materials and engineering plastics, the airframe achieves an excellent balance of lightweight construction and structural integrity, with a premium fit and finish throughout.

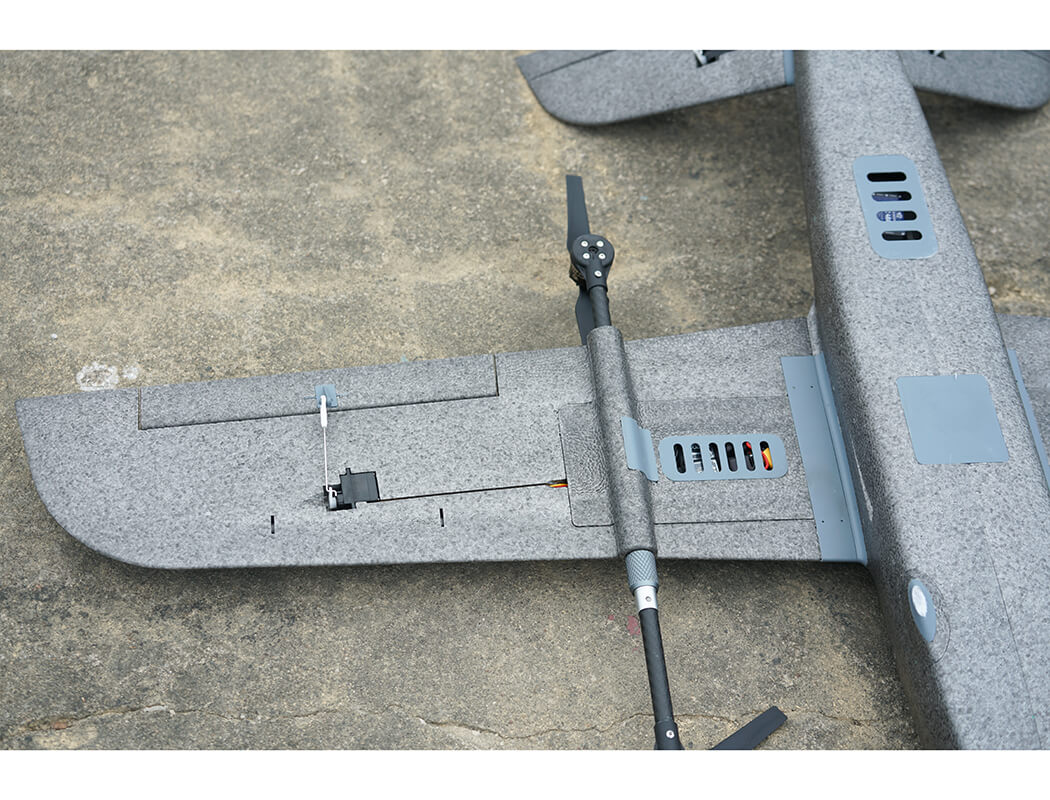

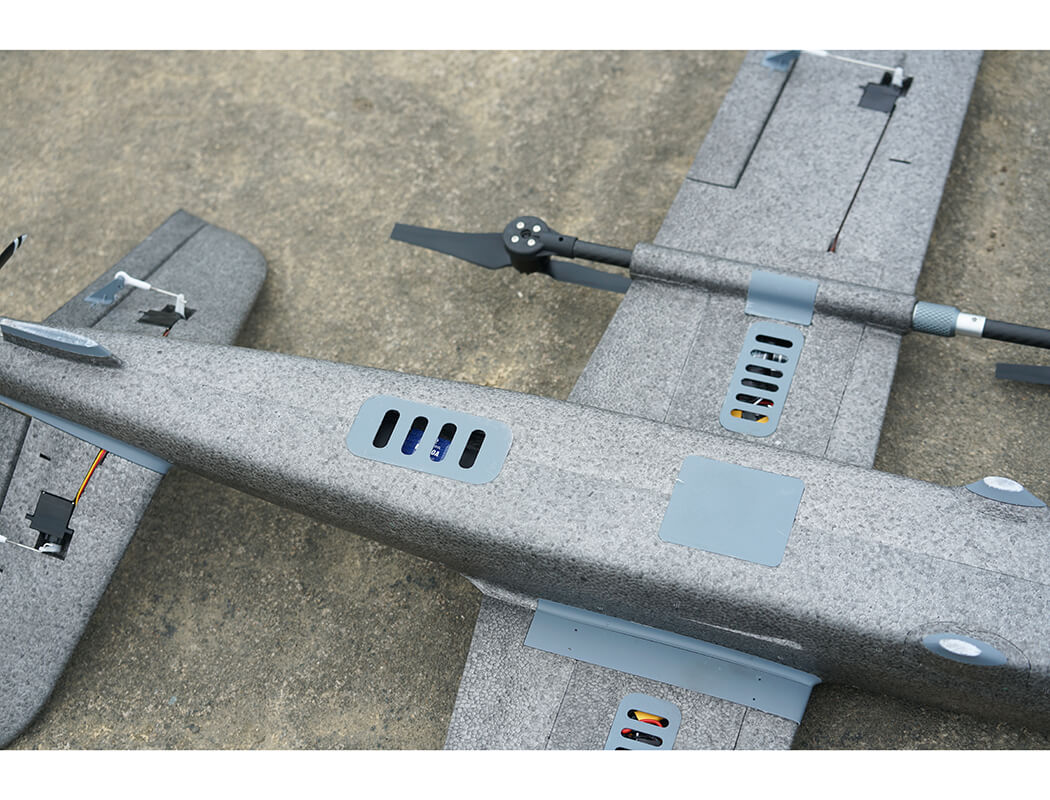

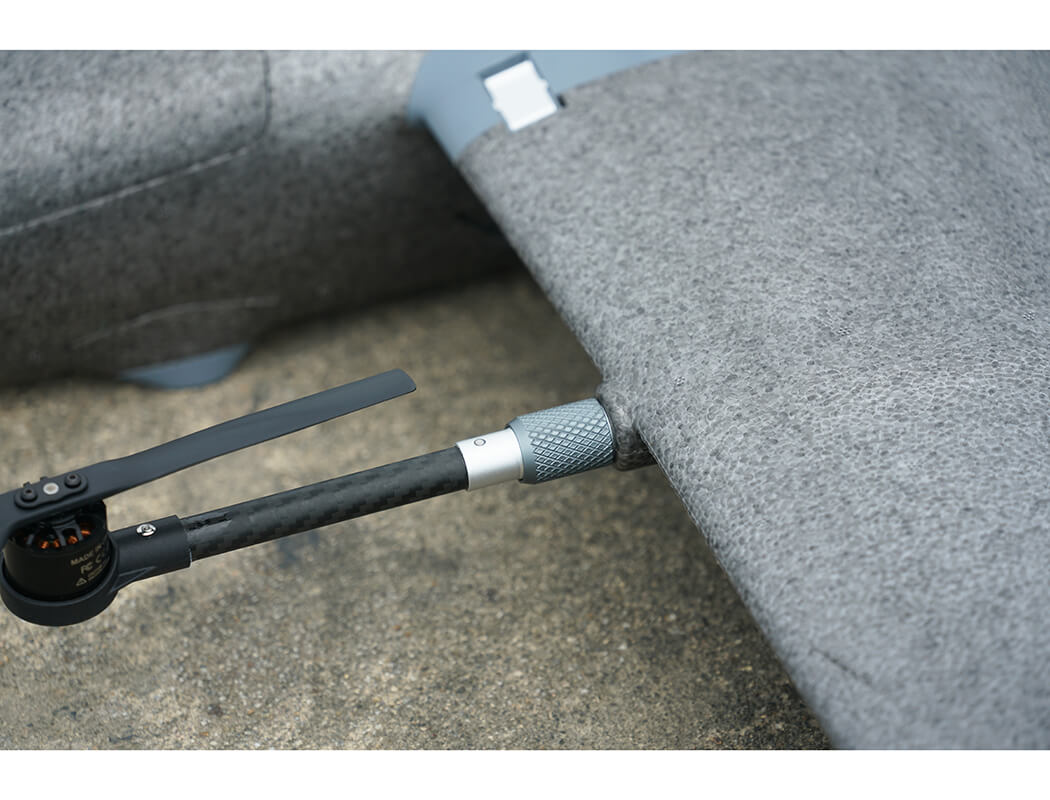

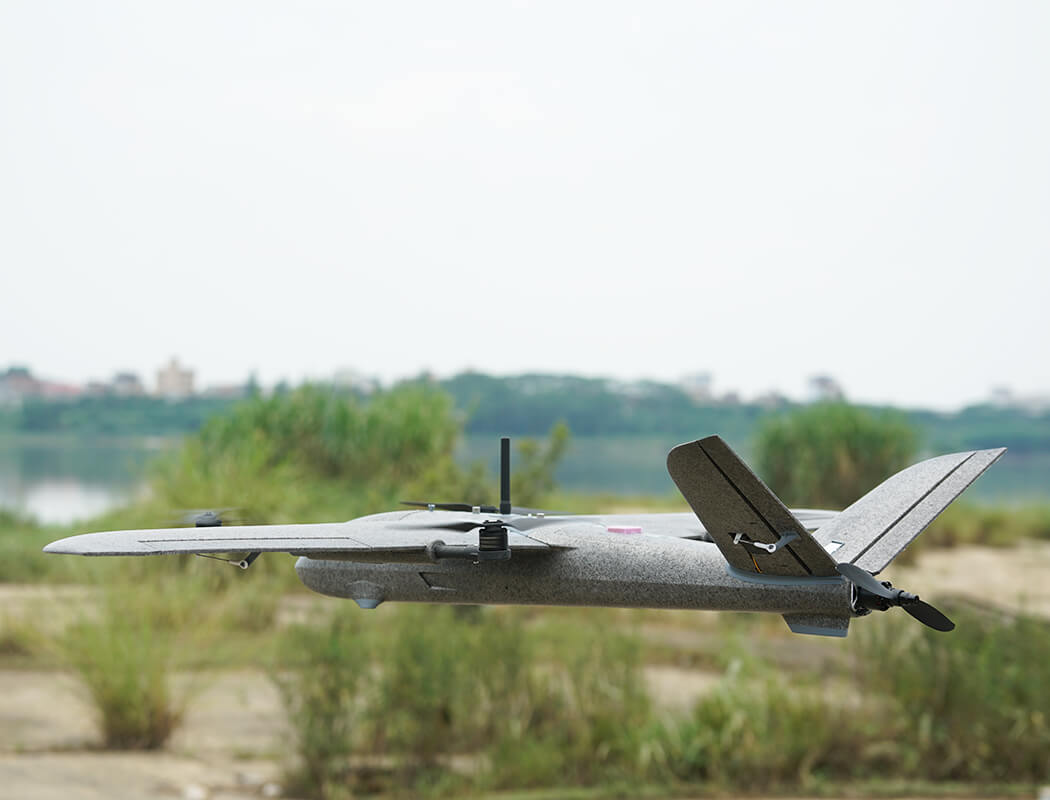

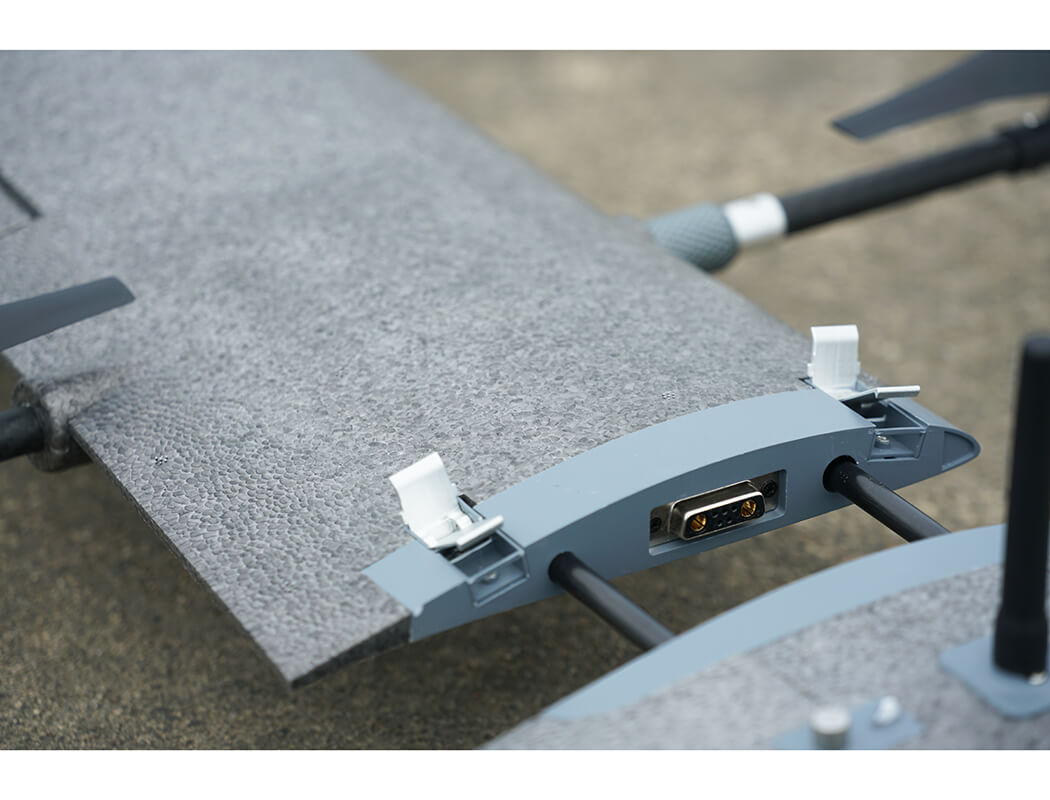

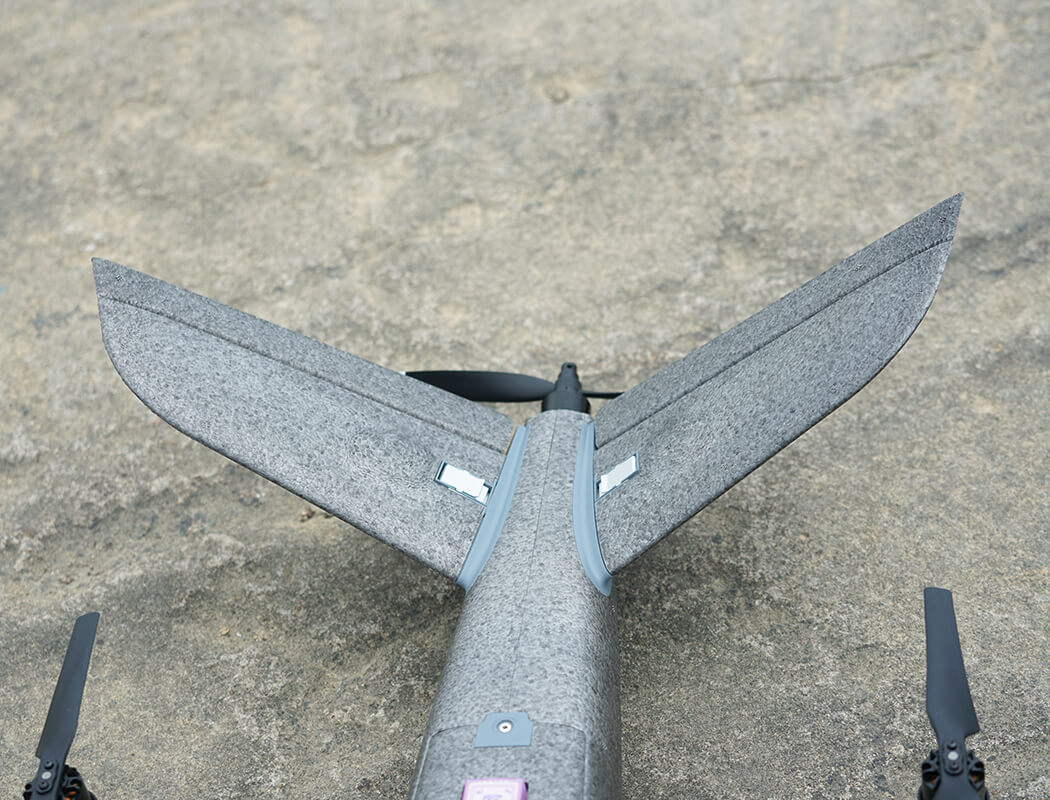

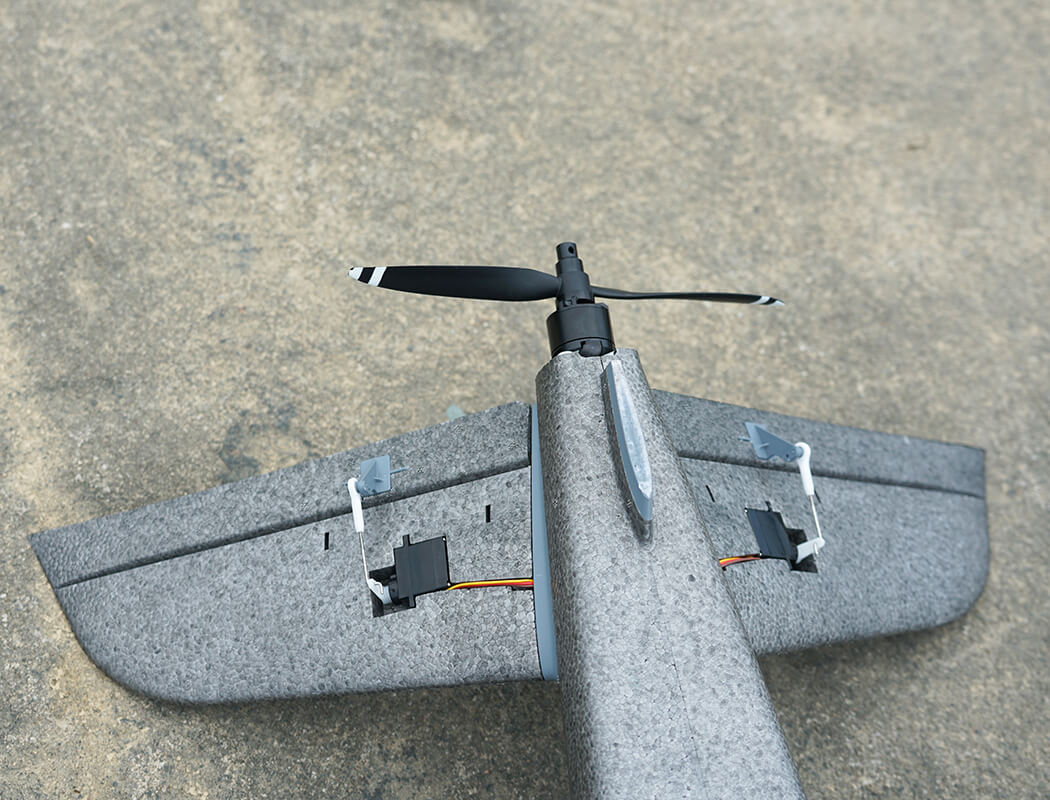

The aircraft features a modular, glue-free quick-assembly design that allows for full deployment in under two minutes. It utilises the most proven 4+1 VTOL configuration, with four rotor power systems delivering ample thrust during vertical takeoff and landing phases. The forward rotor arms are designed to fold, which makes the aircraft much more compact for storage and easier to transport. The fixed-wing propulsion adopts a pusher layout for superior cruise efficiency. Both the main wing and tail assembly are equipped with newly designed locking mechanisms that ensure a secure fit while enabling rapid attachment and detachment. The spacious battery bay accommodates a variety of 6S battery packs to suit different endurance requirements, and the battery hatch comes with designated mounting points for video transmitter and camera units, making it compatible with mainstream systems.

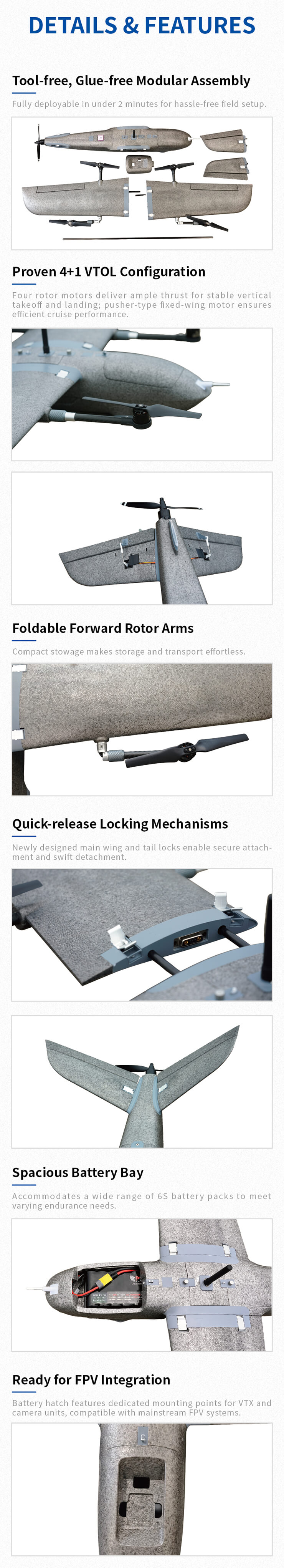

Features

• Durable yet lightweight construction.
• Glue-free modular assembly.
• Proven 4+1 VTOL configuration.

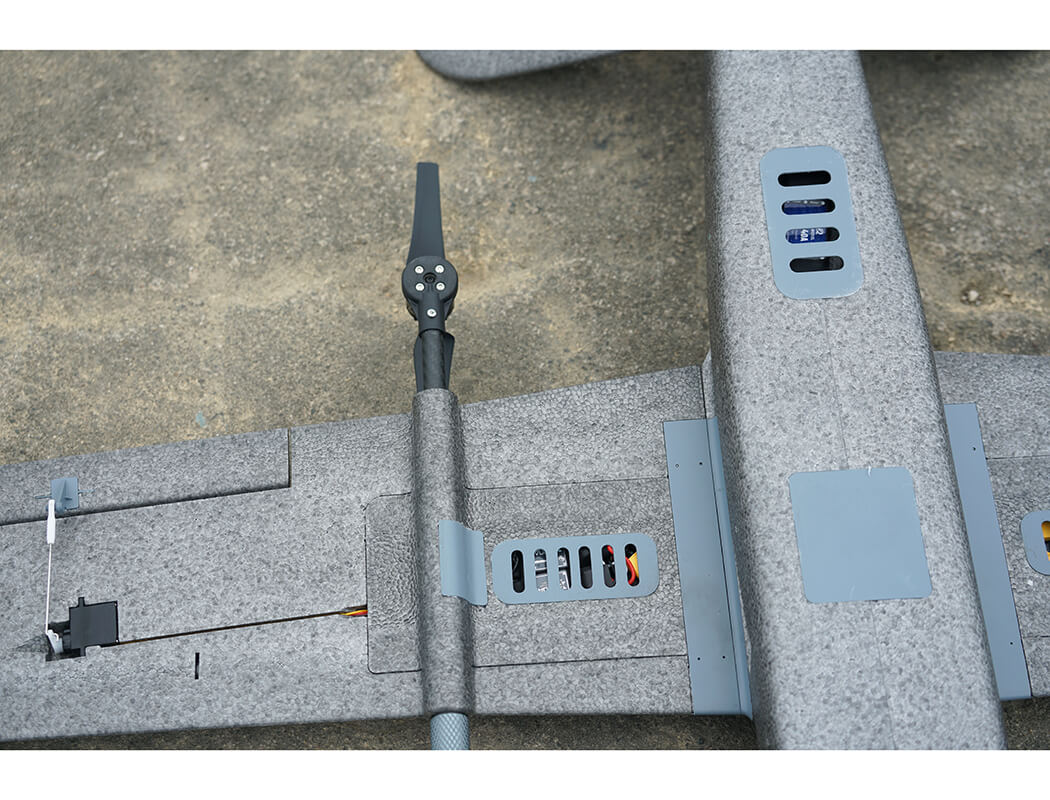

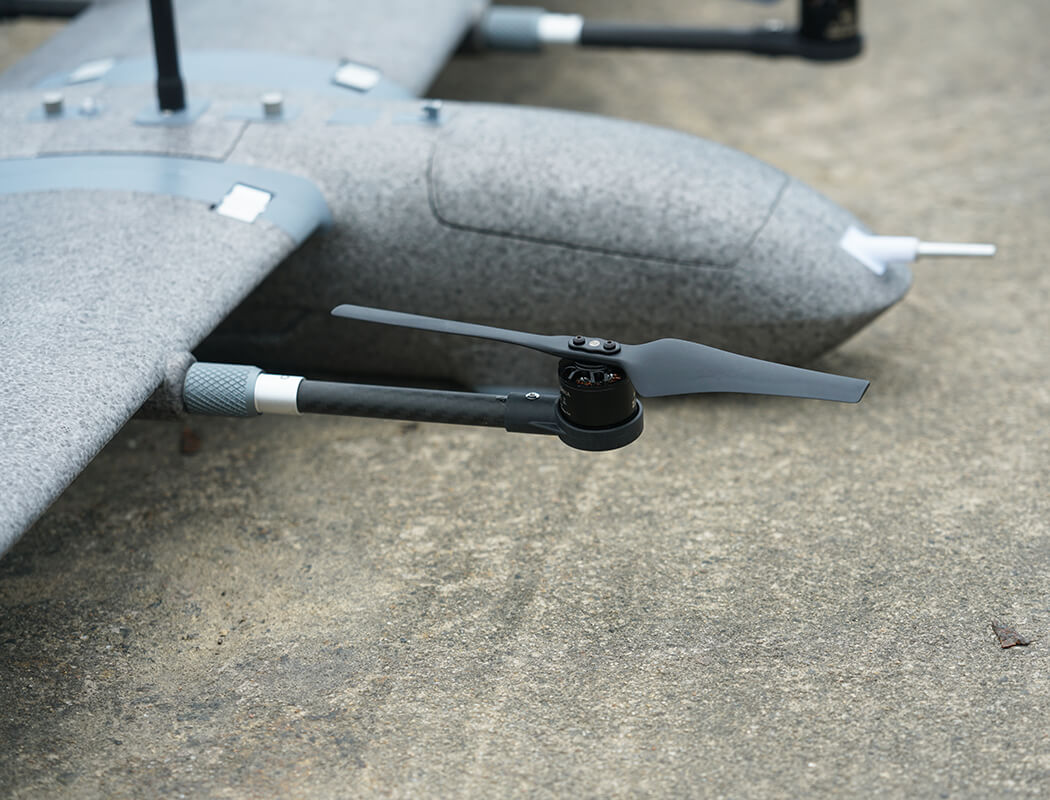

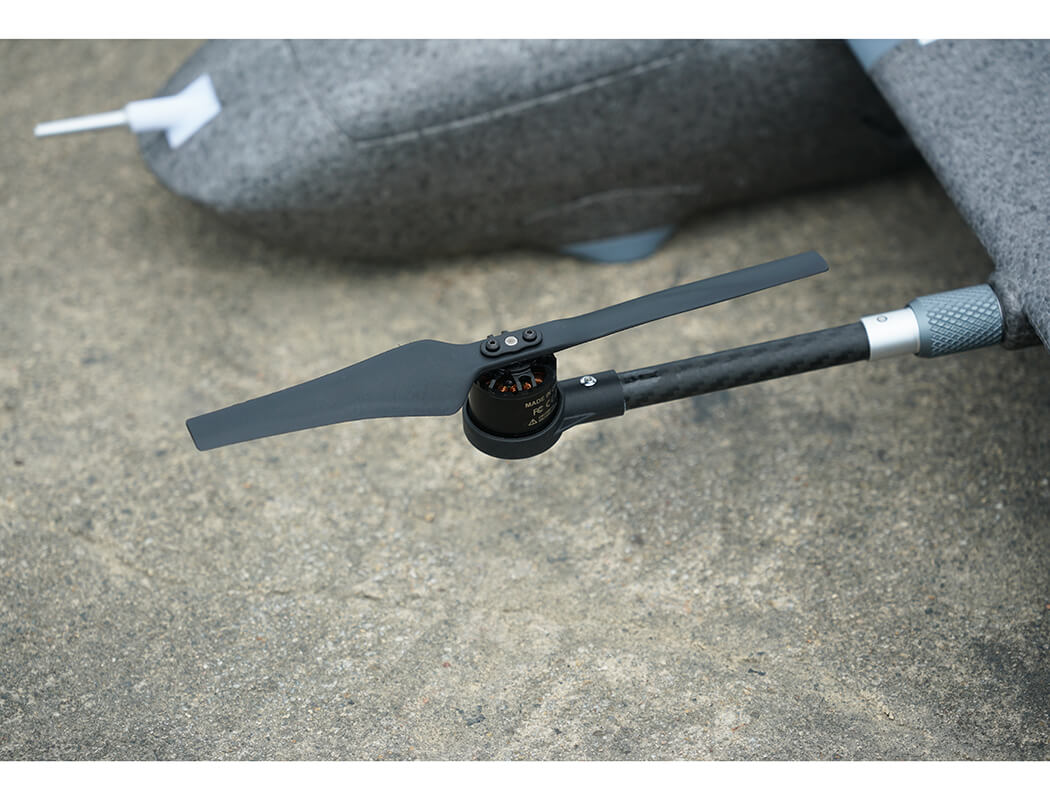

• Foldable forward rotor arms.

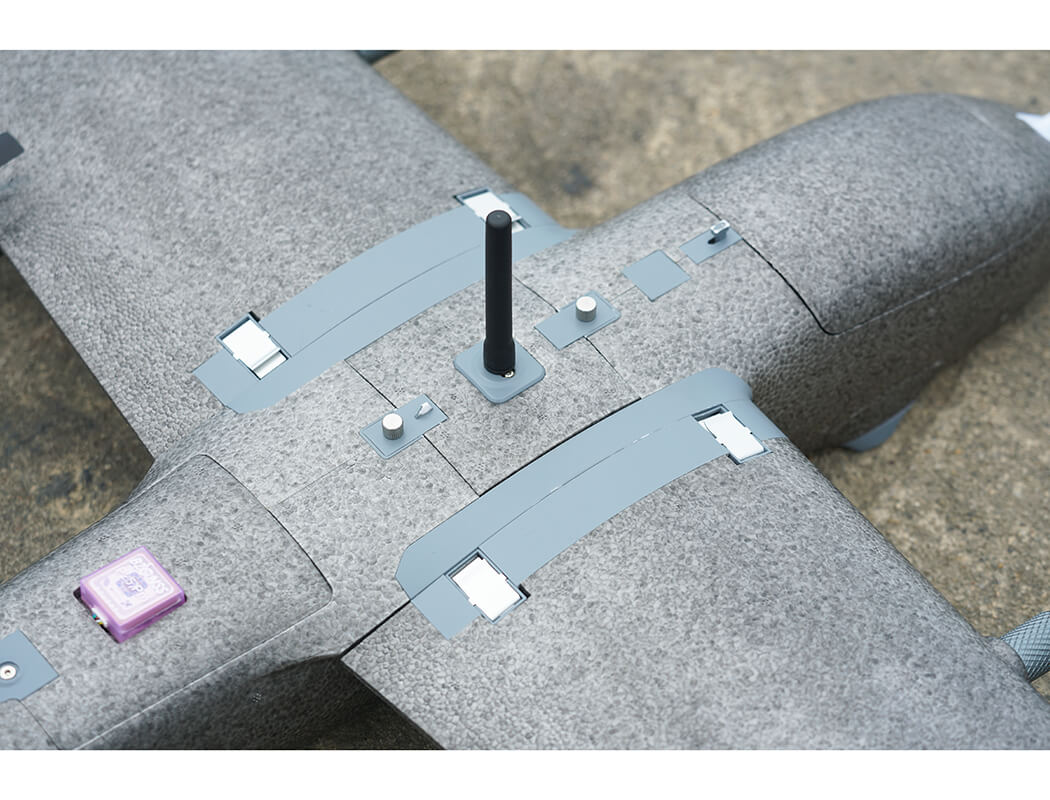

• Quick-release locking mechanisms.
• Spacious battery bay.
• Ready for FPV integration.

Specifications

Material: EPP foam
Wingspan: 1200mm
Body Length: 1050mm
Motor: Rotor X2212-KV900 * 4/fixed wing 2212-KV900 * 1
Electric Tuning: 20A * 4,40A * 1
Servo: 9g metal servo * 4
Propeller: 8x4 forward and backward, 8x5 forward and backward
Suggested Battery: 6S10000mAh (21700)
Hover Endurance: 24min
Takeoff Voltage: 25.2V
Voltage Drop: 20V
Maximum Load Weight: 300g
Maximum Takeoff Weight: 2.4KG
Economic Cruising Speed: 50km/h
Maximum Flight Speed: 130k/m
Maximum Wind Resistance: Level 4
