XFLY TWIN 40MM F-14 TOMCAT EDF 700MM JET WITHOUT TX/RX/BATTERY

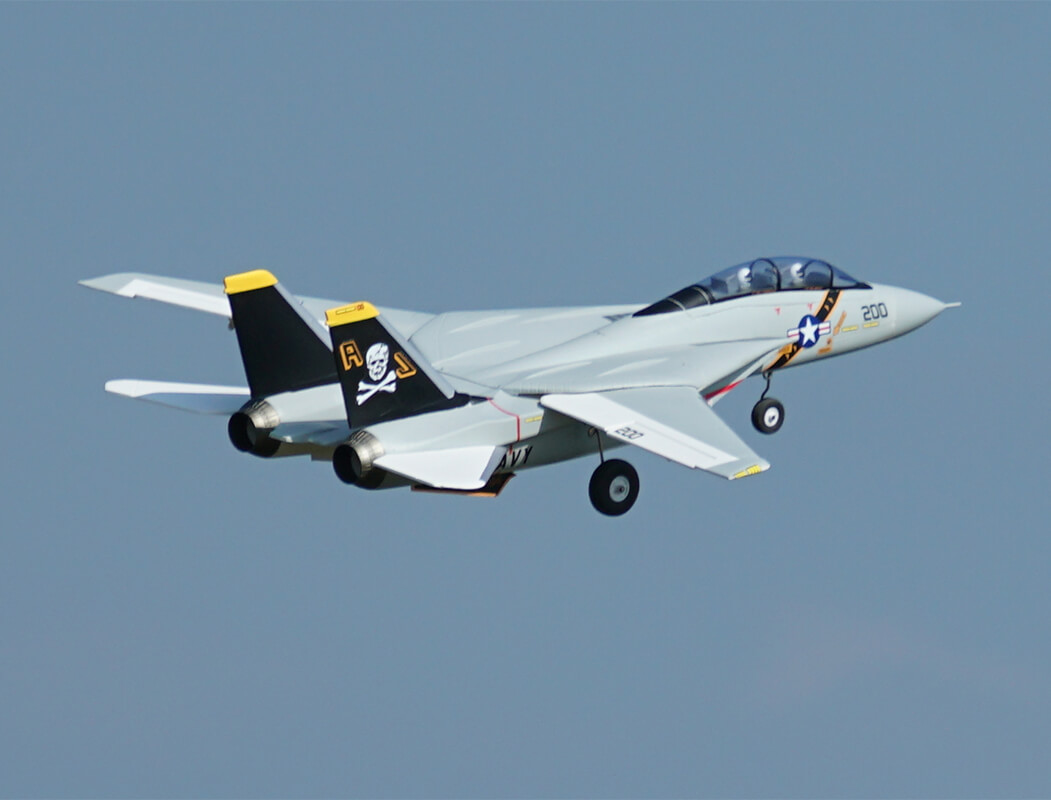

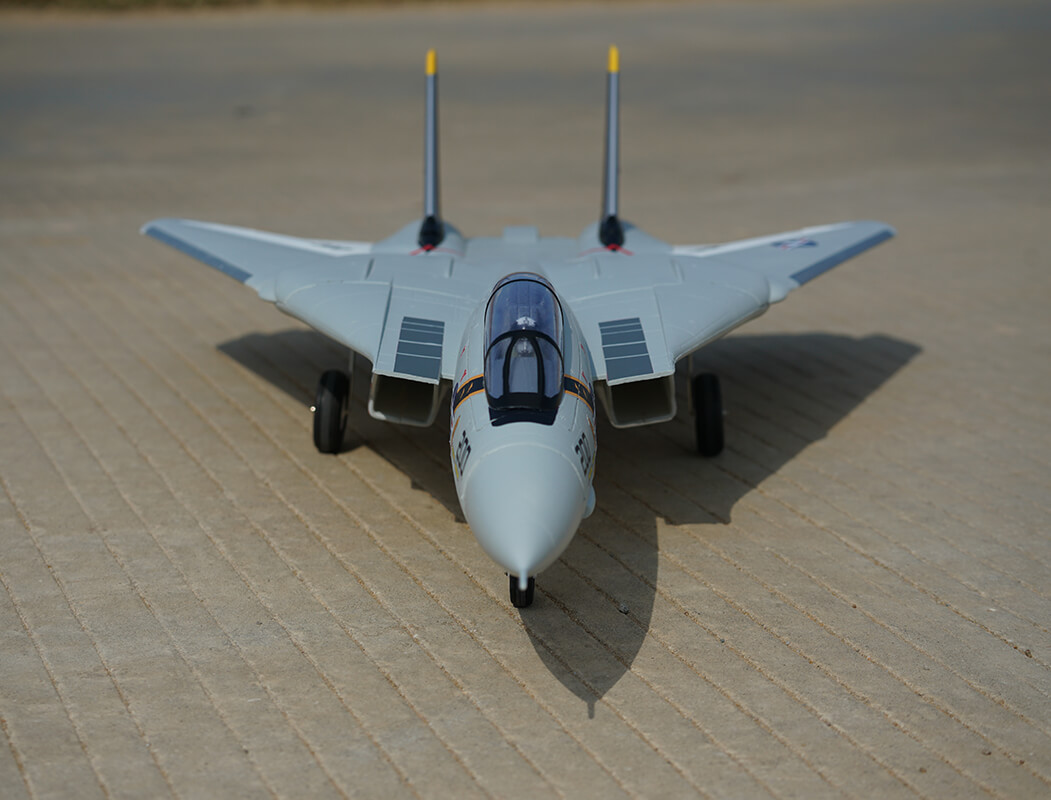

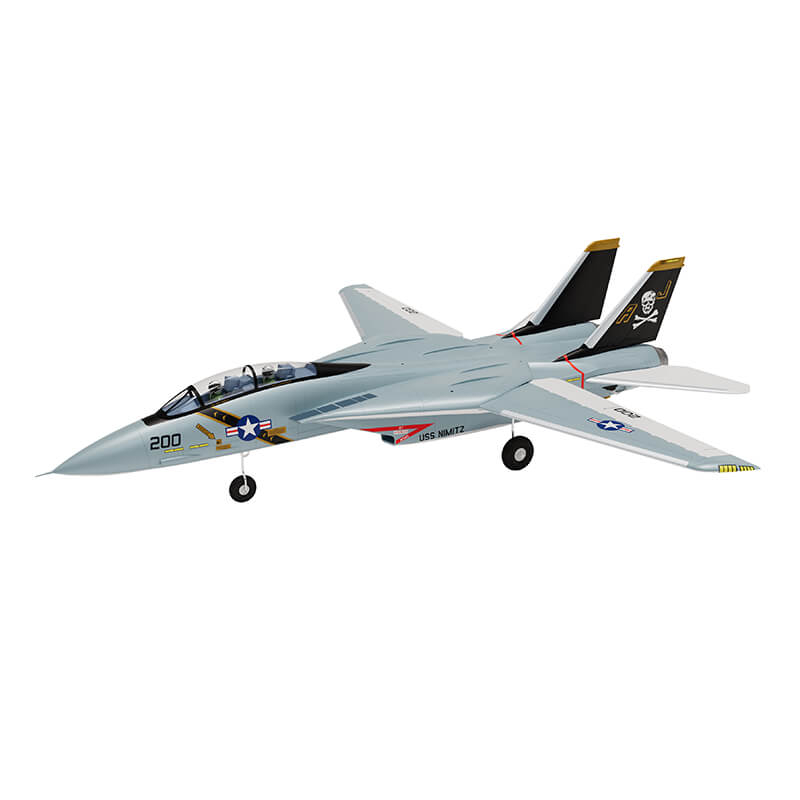

XFly Model is excited to bring the F-14 Tomcat, one of the most iconic jets in history, to market in a twin 40mm EDF size. Featuring functional variable-sweep wings, full-flying stabilizers and a livery based on the Jolly Rogers F-14’s, the XFly F-14 is designed for RC enthusiasts seeking an
authentic and engaging flying experience.

With the combination of low wing loading and full-flying stabs, powered by two 1413-KV5500 motors, two 12-blade 40mm fans and two 20A ESCs, the F-14 has plenty of power to perform fast climbs and loops whether the wings are extended or retracted. With popular 4S 1300-2200mAh batteries, this factory-installed twin power system setup is capable of providing a wide range in performance and flight times of around 3-6 mins. High-torque efficient servos deliver crisp and precise control to the variable-sweep wings, making the sweep wing transition accurate and smooth.

The XFly F-14 comes with fixed landing gear with steerable nose wheel to taxi, take off and land on smooth surfaces. Assembly is a breeze with no glue required, making this jet a hassle-free addition to your collection.

Features

• Functional variable-sweep wings and full-flying stabilizers.
• A classic livery based on the Jolly Rogers F-14’s.
• Efficient twin power system setup delivers plenty of power to perform fast climbs and loops.
• High-torque efficient servos deliver crisp and precise control to the variable-sweep wings.
• Fixed landing gear with steerable nose wheel.
• Extended flight time of 3-6 mins when using recommended 4S 1300-2200mAh LiPo battery.
• Quick assembly with no glue required.

Specifications

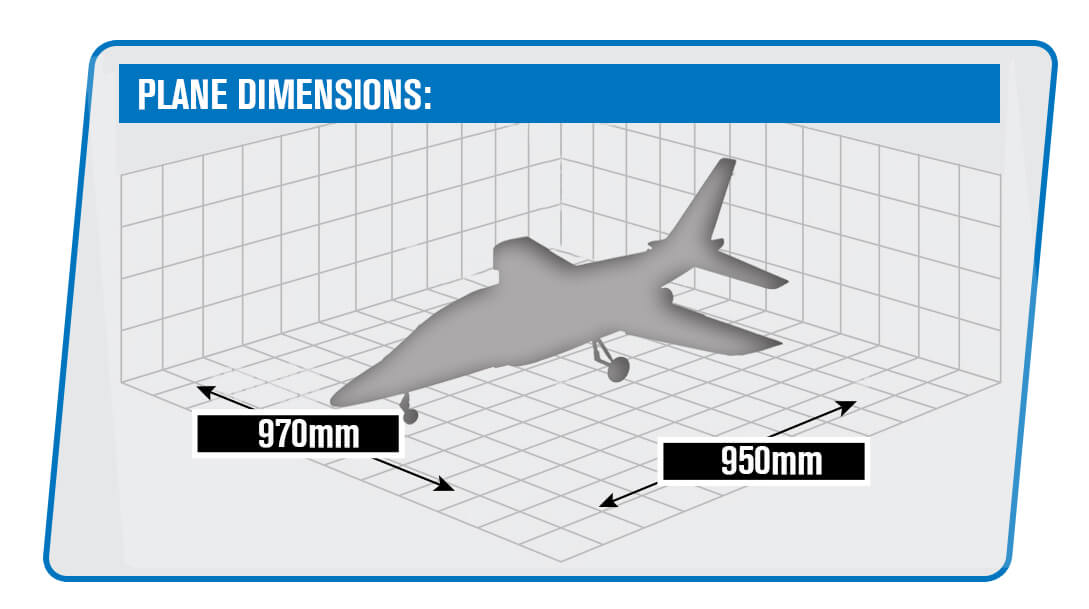

Wingspan: 970mm/38.2in(extended)
Overall Length: 950mm/37.4in
Flying Weight: 1150g
Motor Size: 1413-KV5500 *2
ESC: 20A *2
Servo: 4.3g servo*2, 9g servo*3, 13g servo*2
Channels: 5CH- aileron, elevator, throttle, steering, sweep wing
CG: 15-20mm from the leading edge
Wing Load: 115g/dm²
Wing Area: 10dm²
Recommended Battery: 4S 1300-2200mAh
Approx Flying Duration: 3-6 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: No
Retract: No
Landing Gear: Fixed main landing gear, steerable nose gear
EDF Size: 40MM EDF 12-Blade *2

Needed To Complete

• Trasmitter and Receiver
• Battery (Recommeneded 4S 1300-2200mAh) and Charger

Safe flying is YOUR responsibility.

Update 01/01/26: The laws have changed regarding operating drones and model aircraft in the UK.

What you need to do:
You must take a theory test and register with the CAA before flying most drones or model aircraft outdoors in the UK.
There are two requirements and you may need to meet both:

• Pass a theory test to get a Flyer ID.

This makes sure you know how to fly safely and legally.

• Register with the CAA for an Operator ID.

This registers you as someone who is responsible for a drone or model aircraft.
Most people get their Flyer ID and Operator ID at the same time.

It is against the law to fly a drone or model aircraft without having the required IDs.
You can also be fined for breaking the law when flying. In the most serious cases, you could be sent to prison.

The requirements are based on the weight or class of your drone or model aircraft.

Registration requirements for drones and model aircraft:

See:
UK Civil Aviation Authority.

For full details please visit:
https://www.caa.co.uk/drones/getting-started-with-drones-and-model-aircraft/drone-code/drone-code-overview/

Be Safe - Be Lawful - Be Drone And Model Aircraft Aware!

We fully encourage safe and responsible flying

We recommend you visit the CAA website for full information on safe and responsible flying.
