XFLY TWIN 40MM SU-57 EDF 700MM JET WITHOUT TX/RX/BATT

New V2 - Upgraded 1511-KV5850 Motors with 30A ESCs for Faster Climbs and Improved Aerobatics.

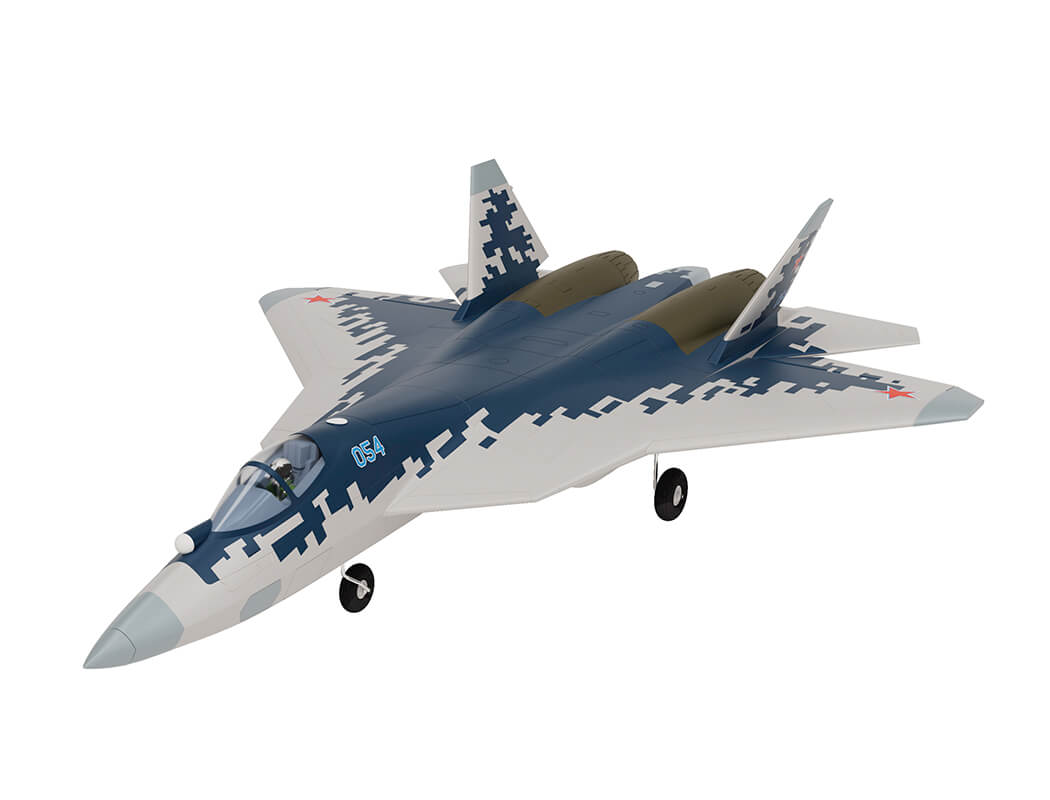

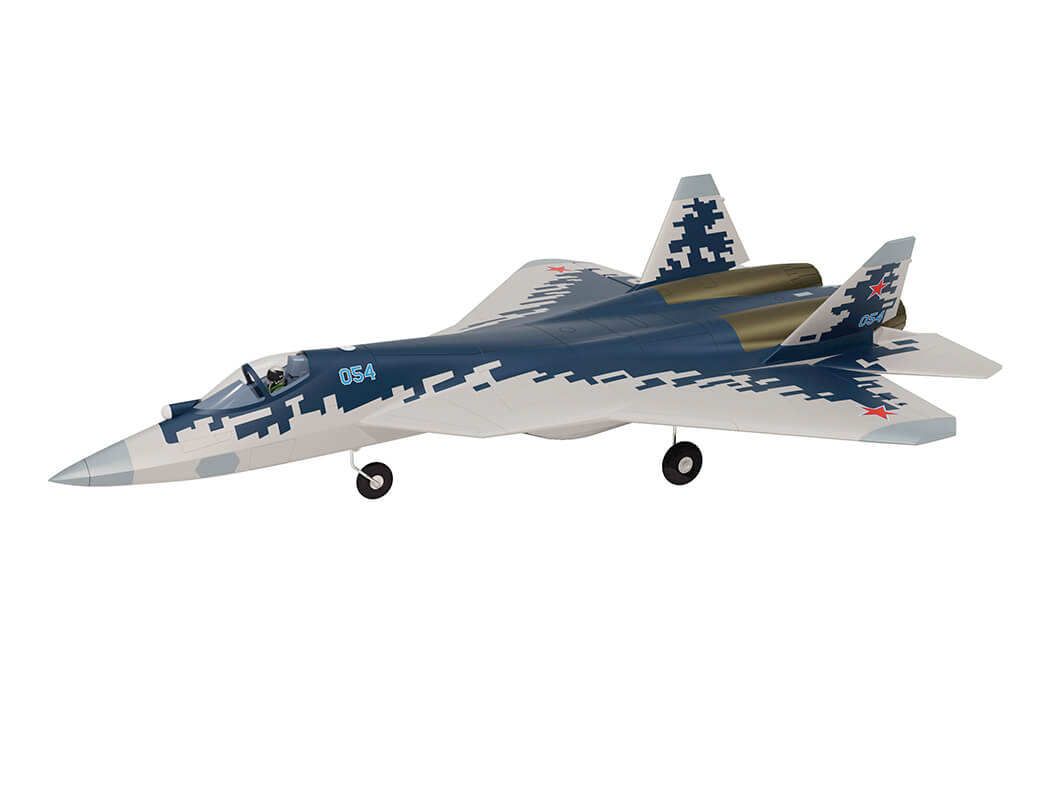

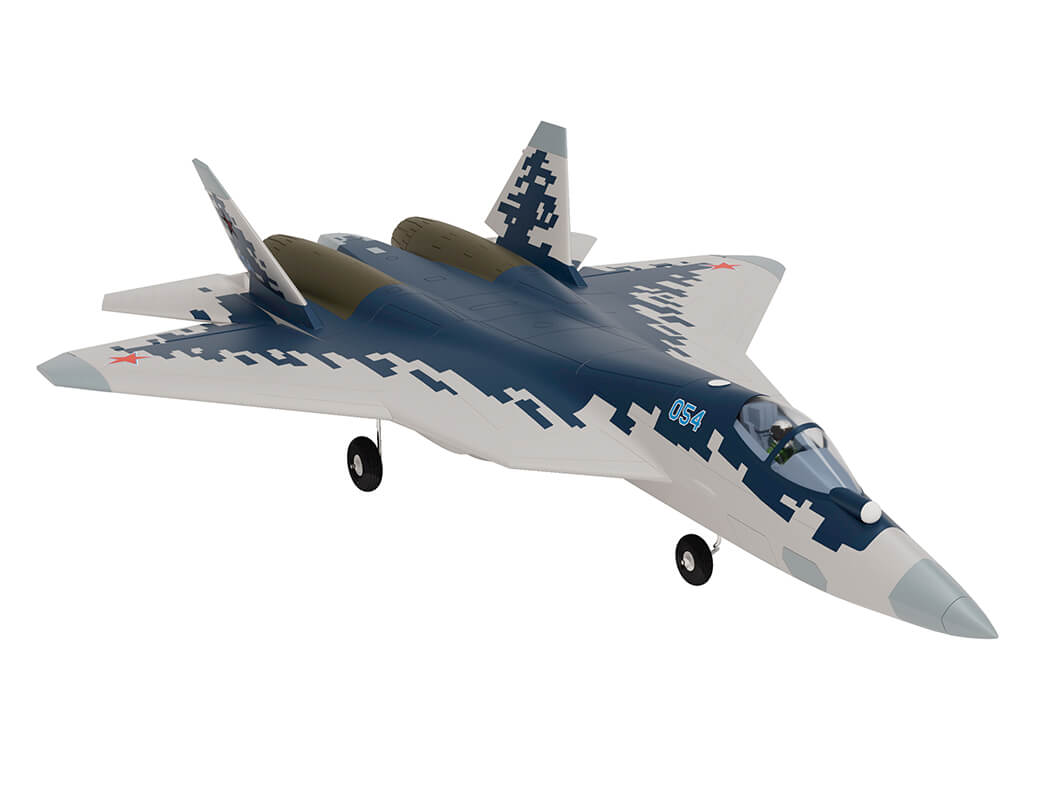

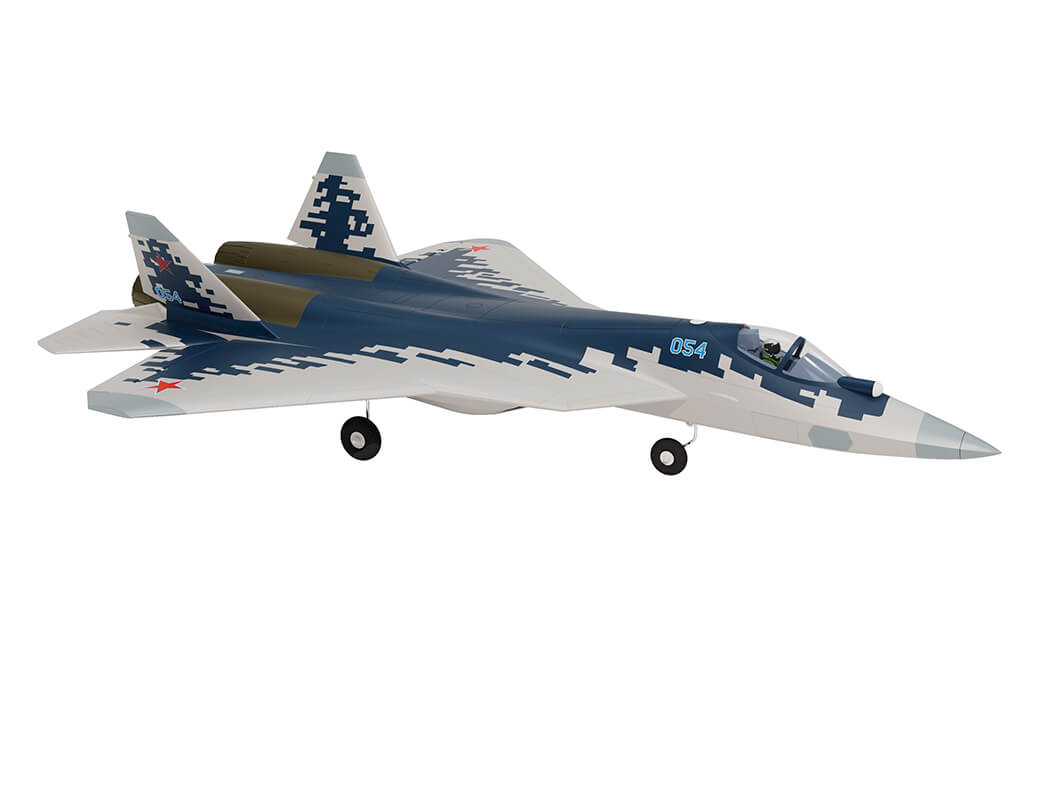

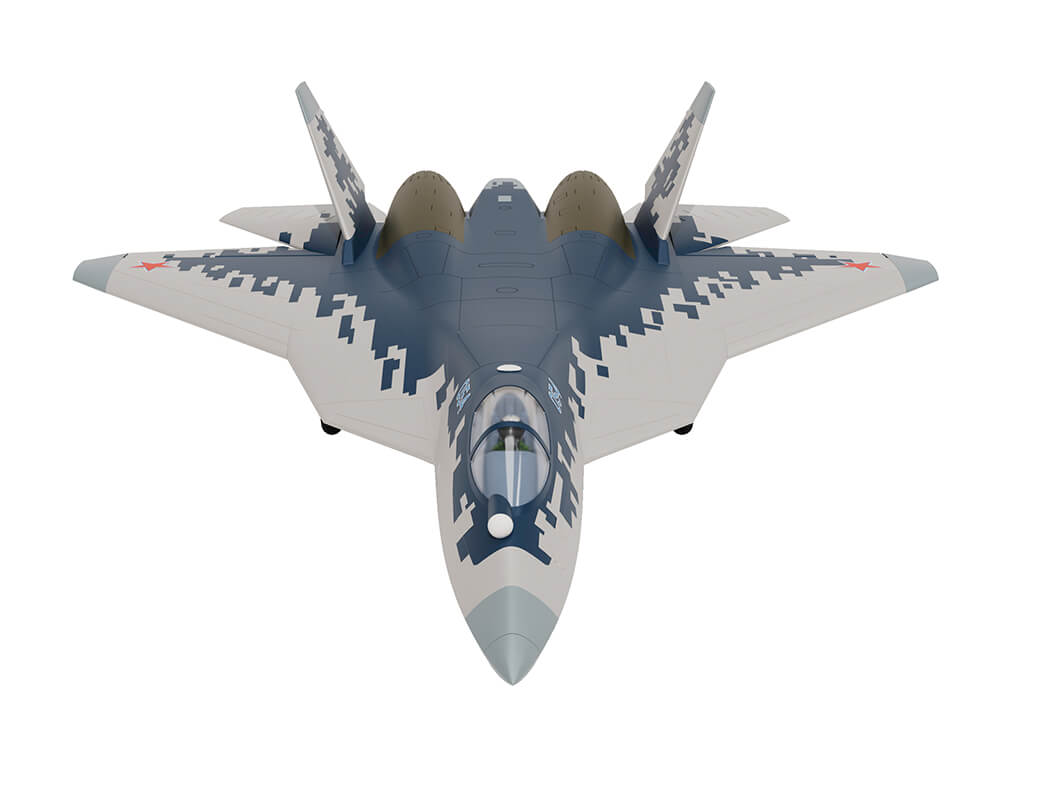

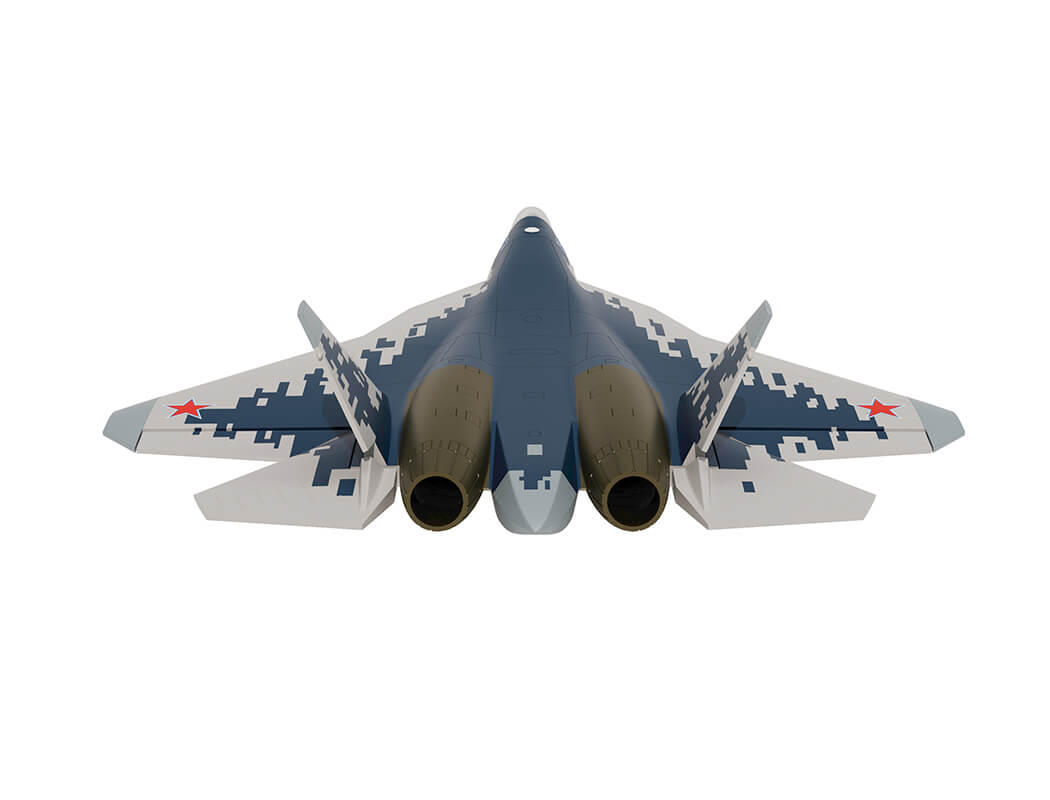

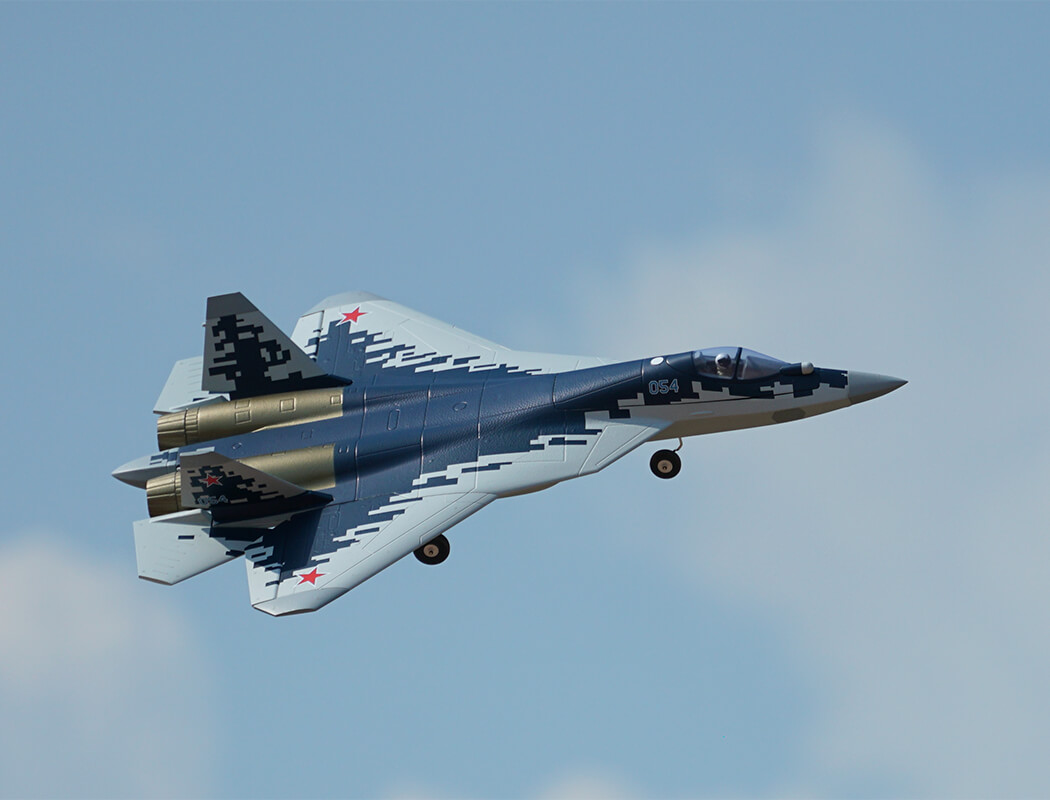

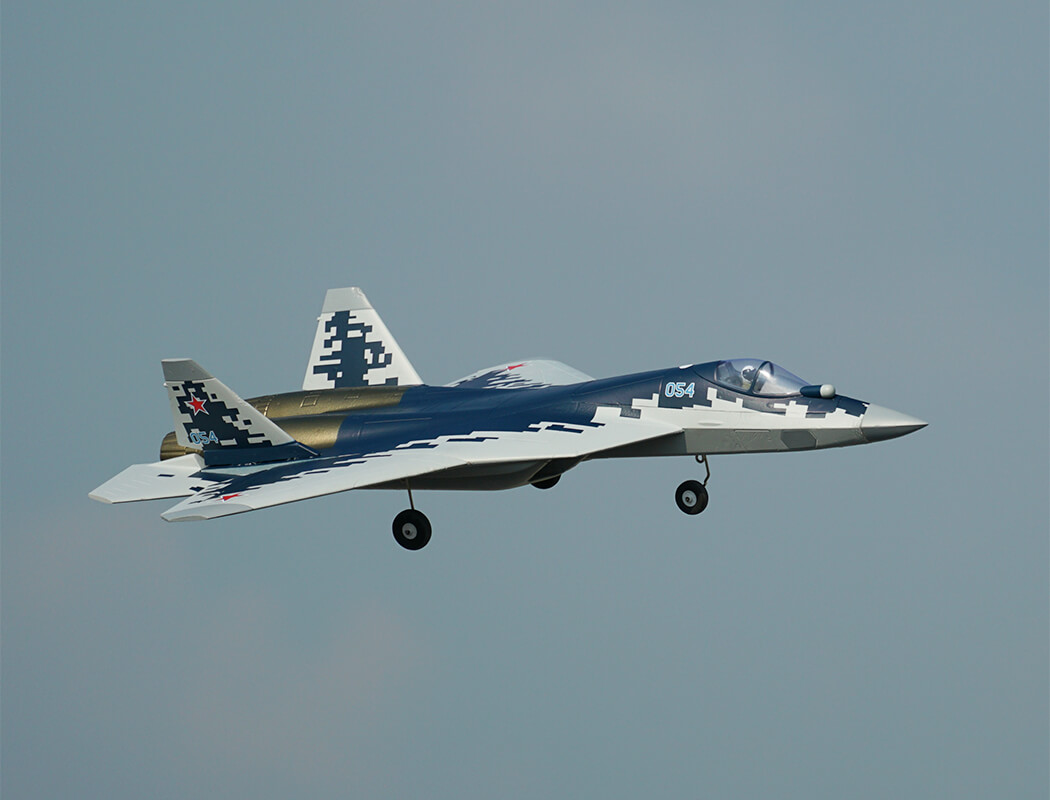

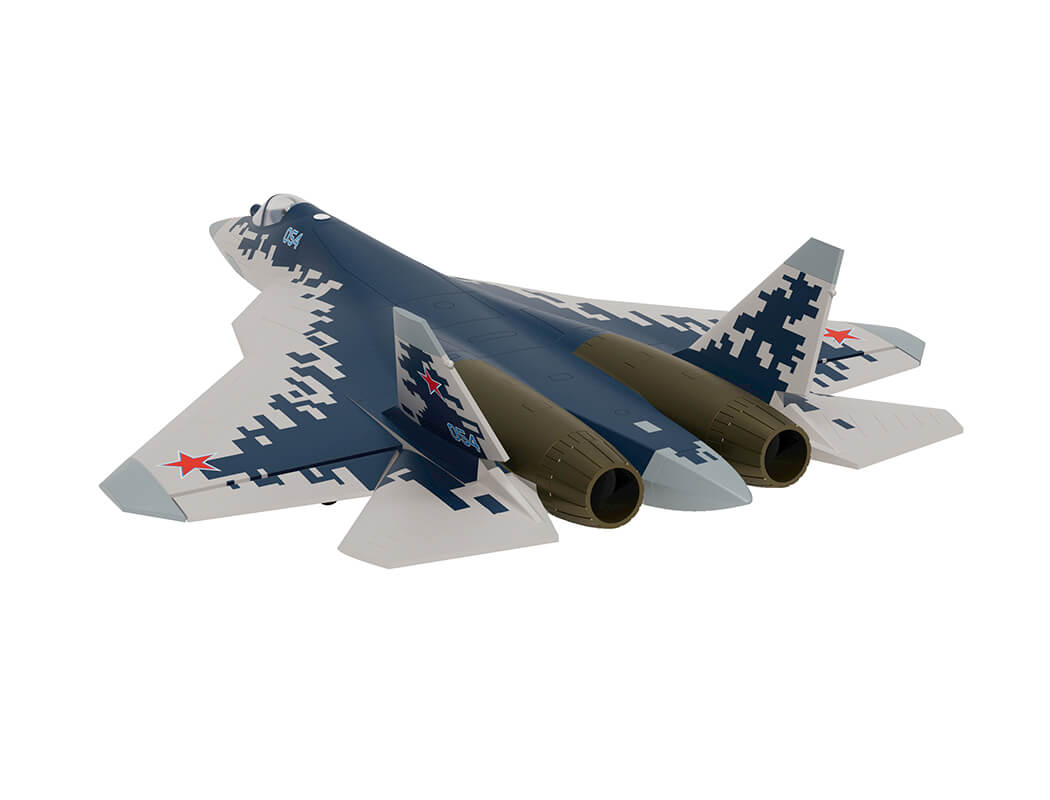

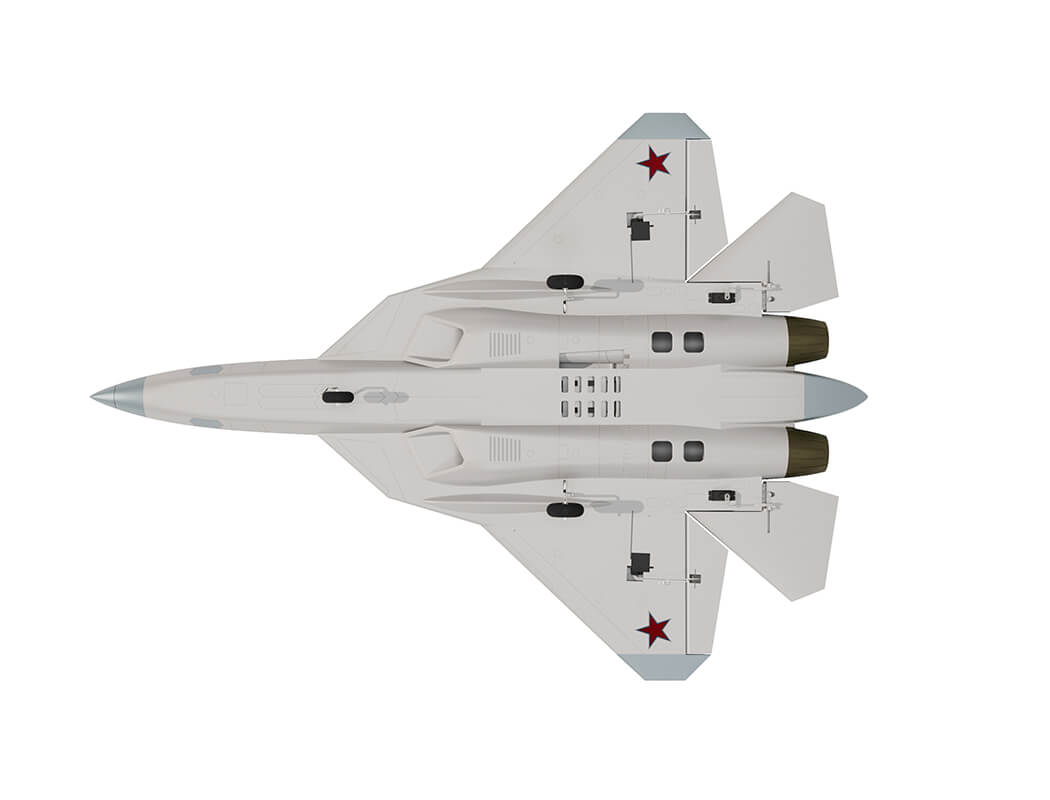

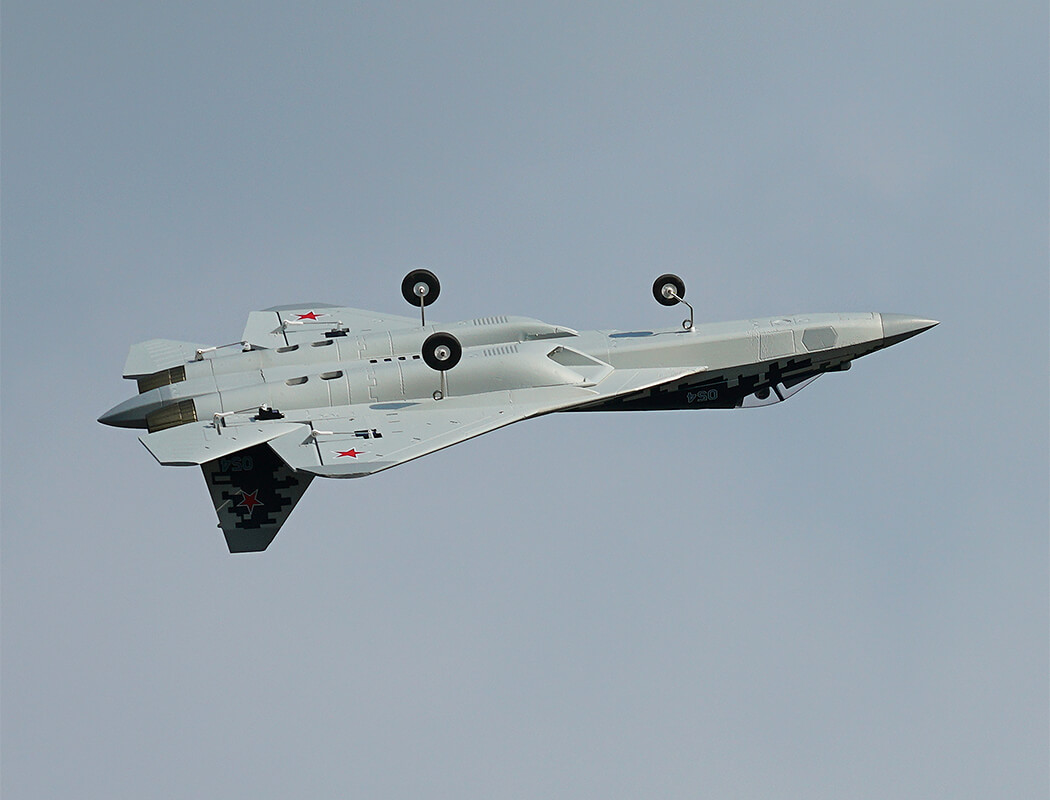

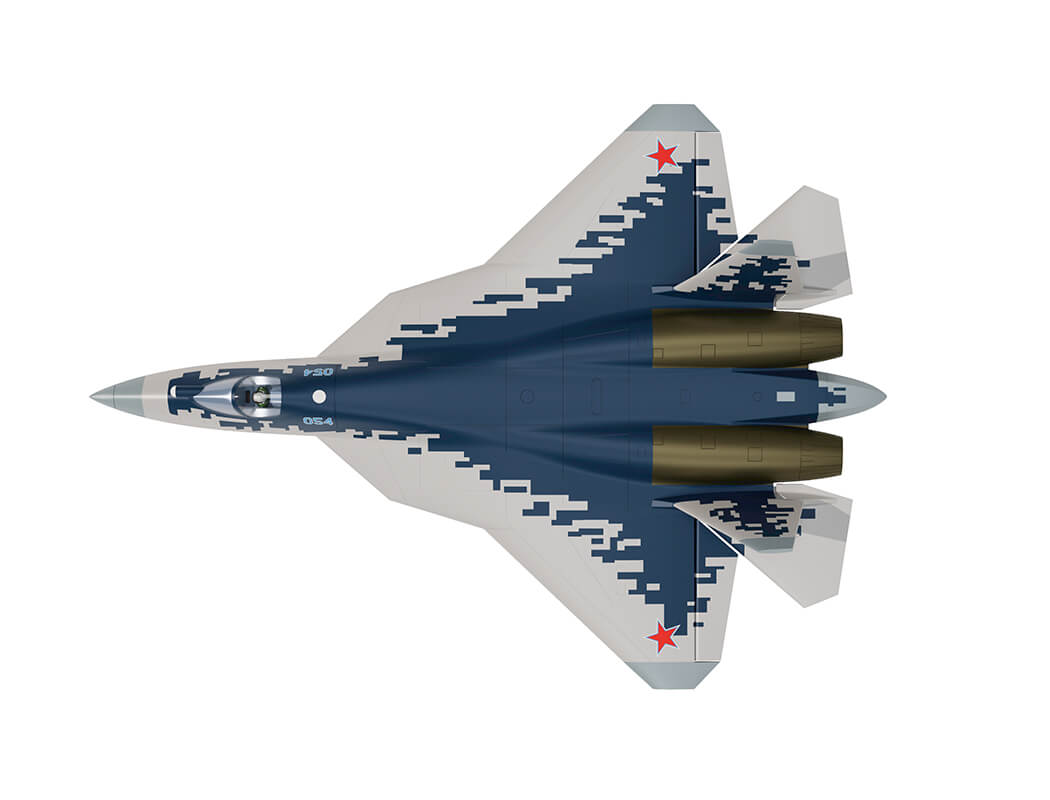

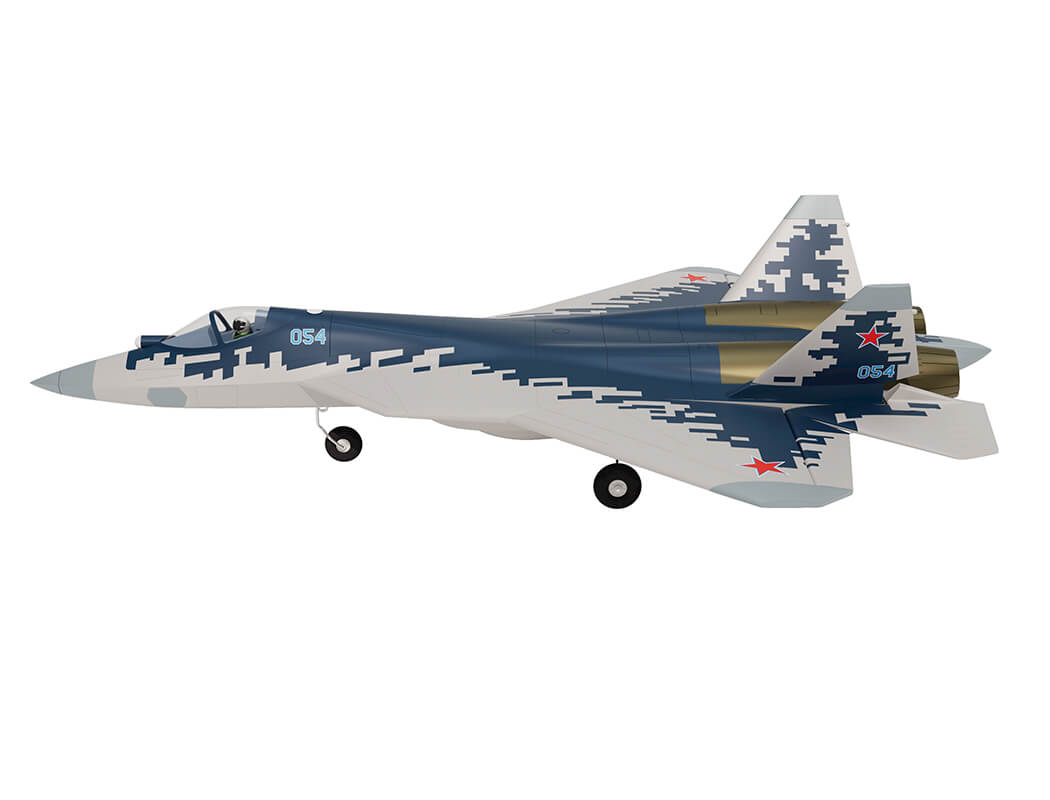

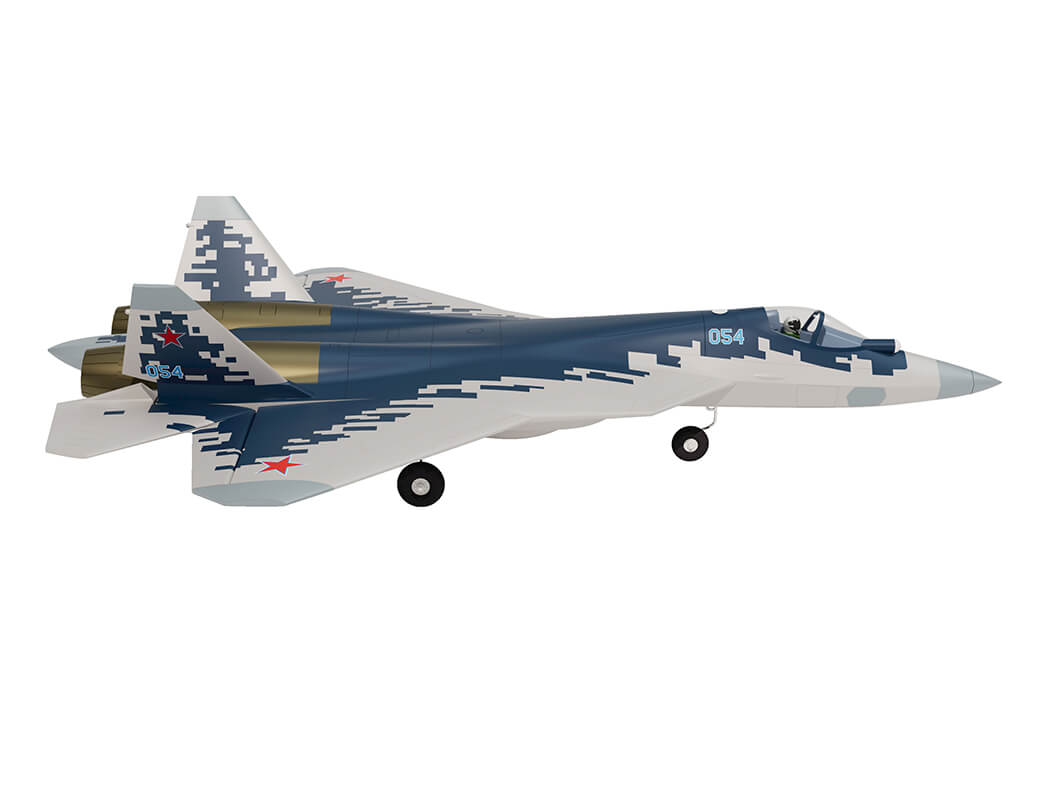

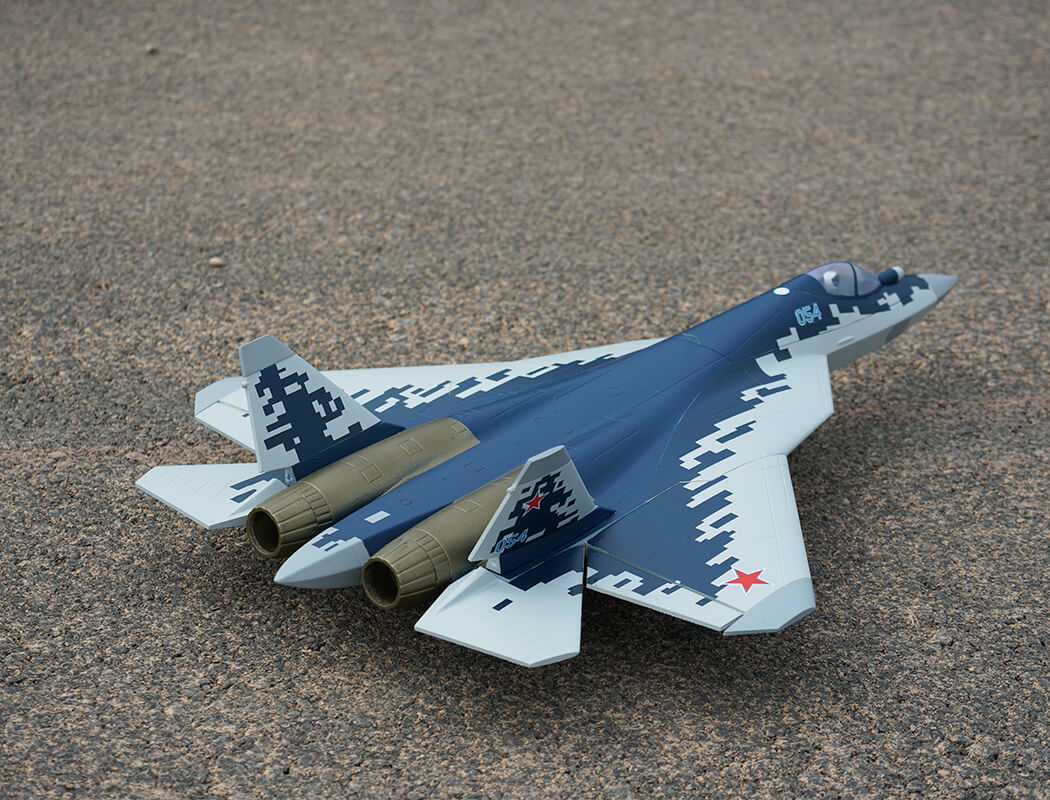

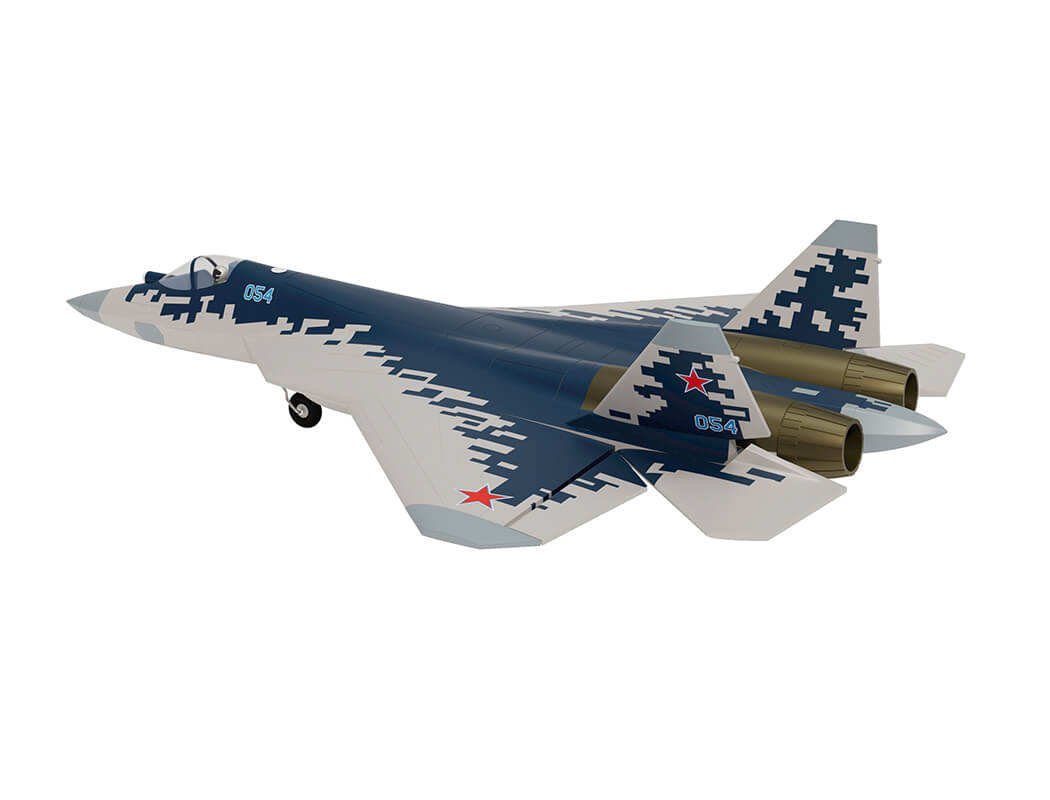

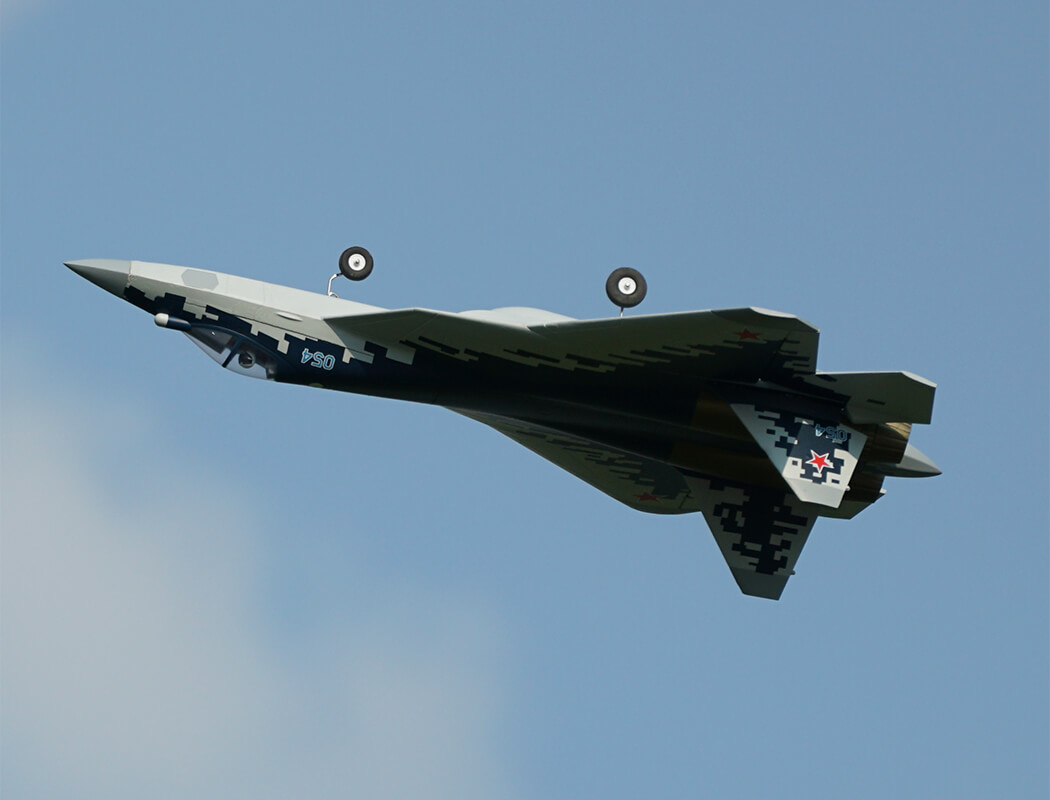

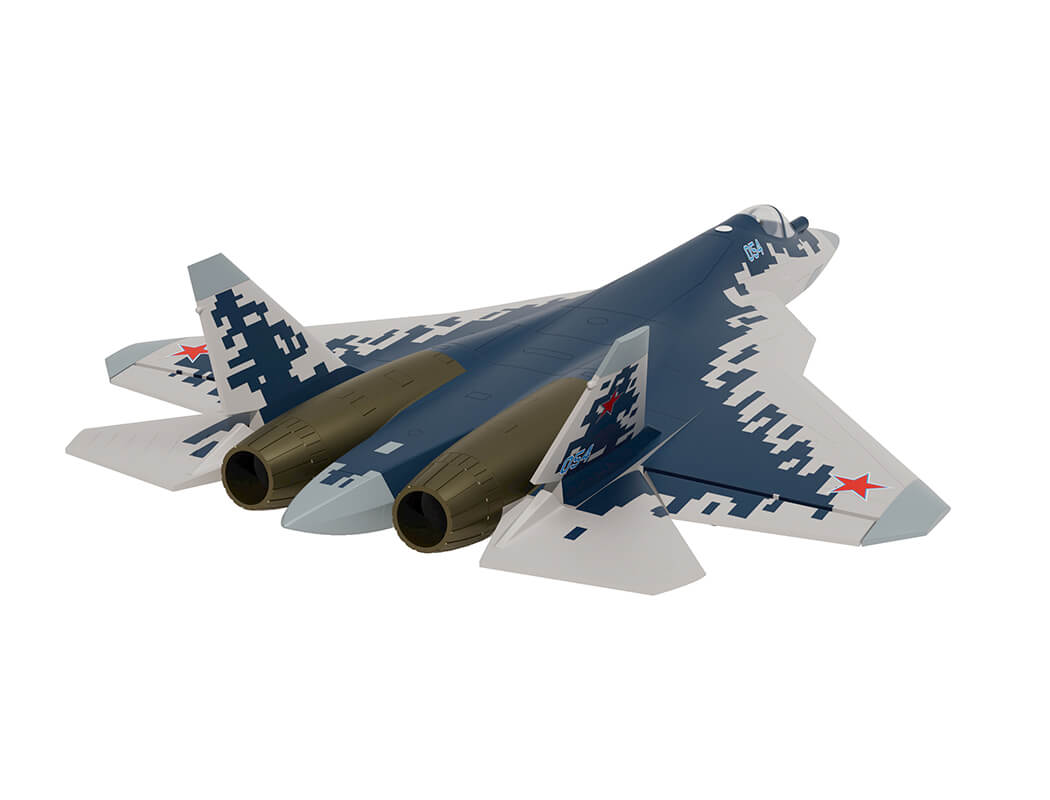

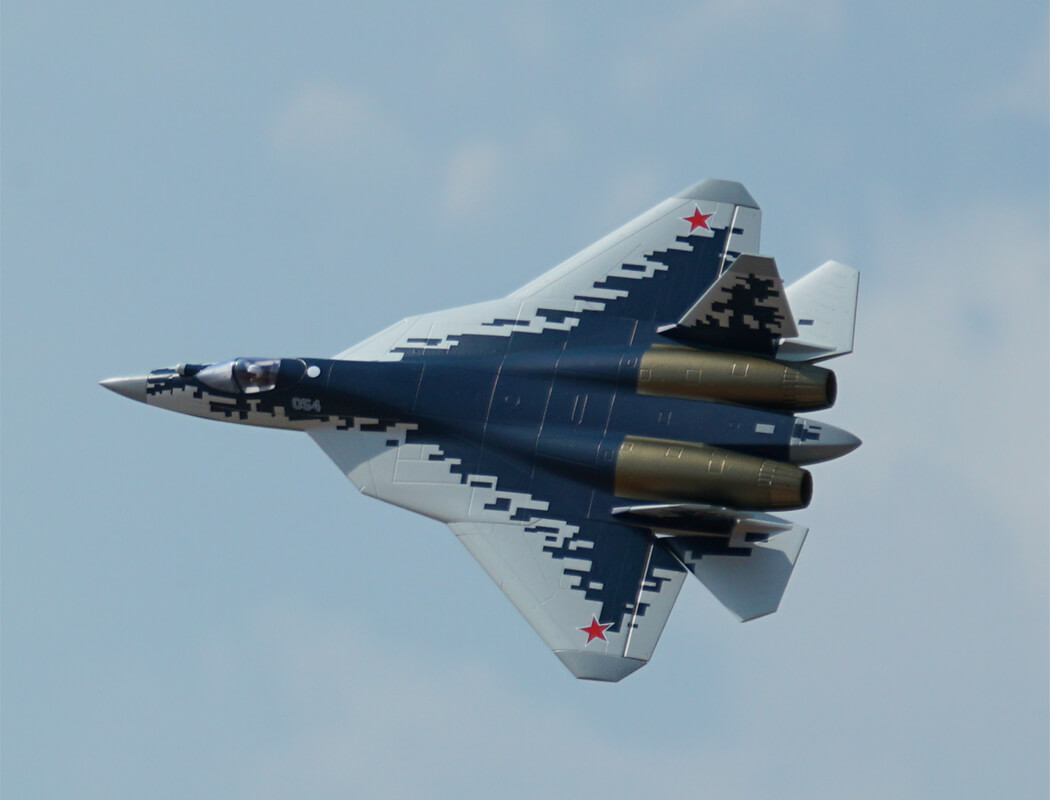

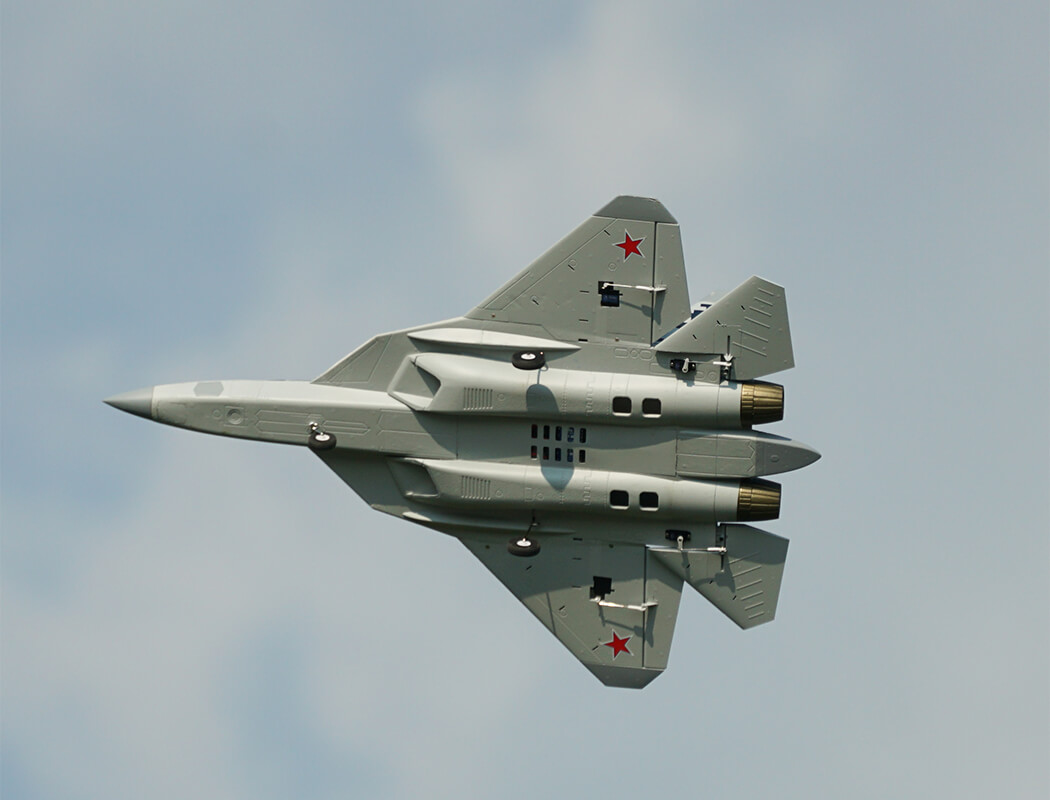

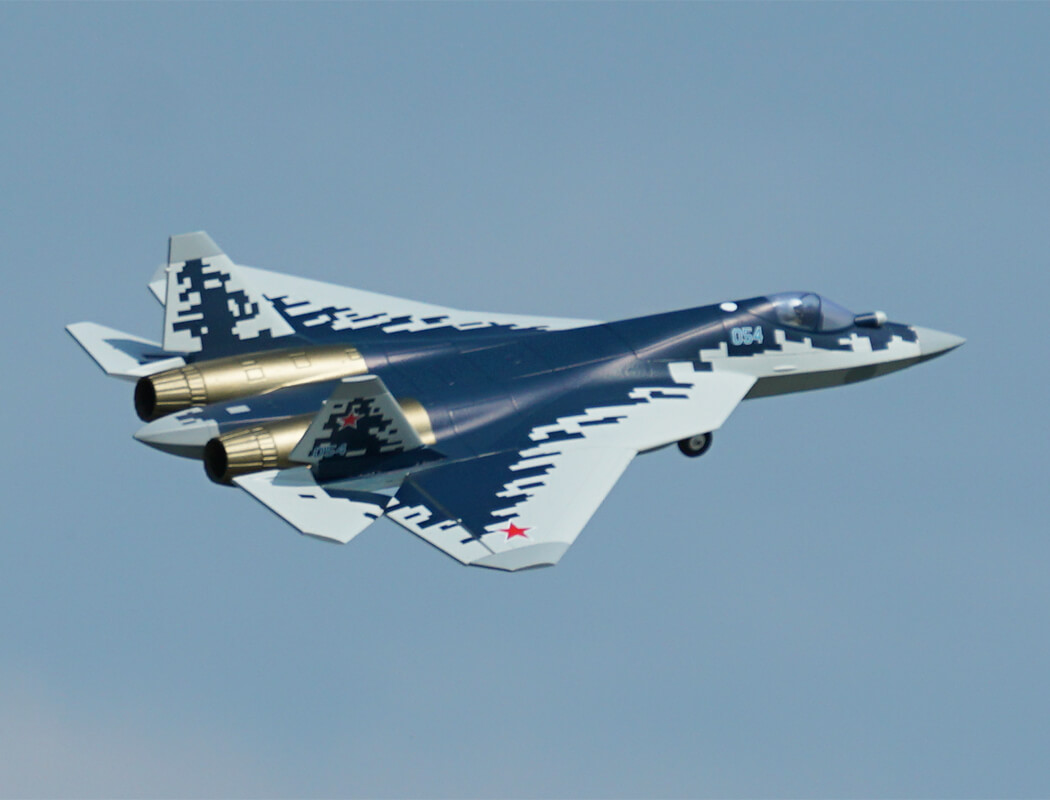

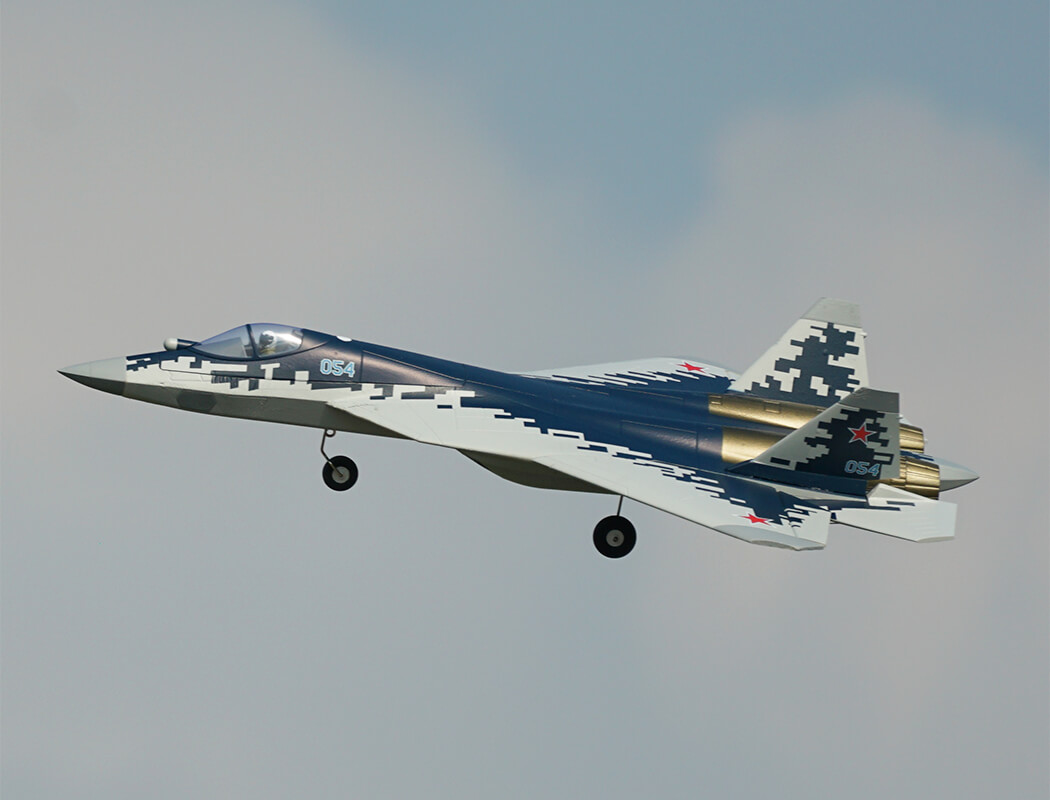

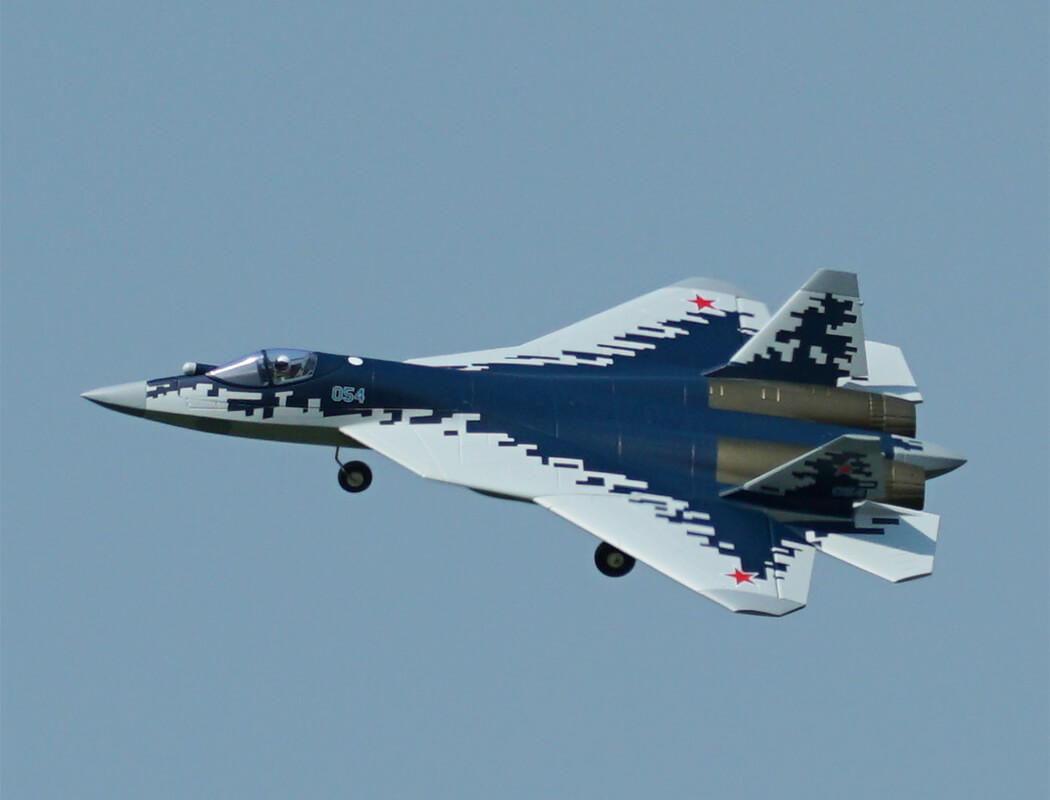

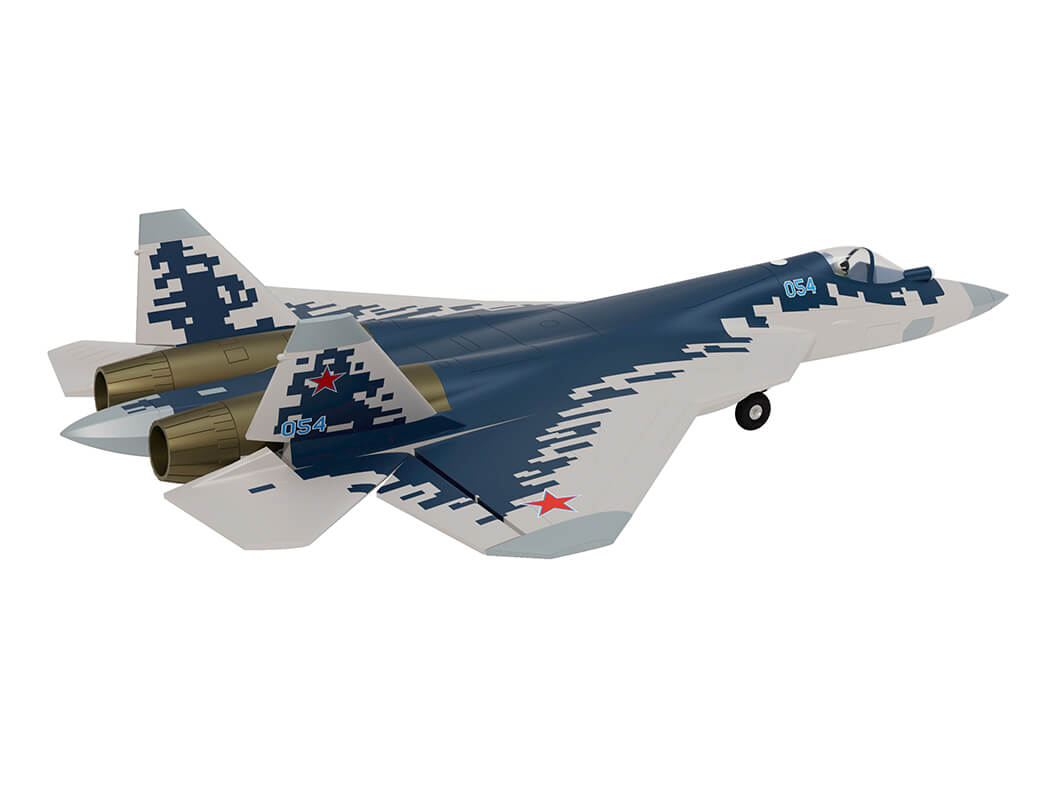

Following the release of F-22 Raptor, F-18 Hornet and F-15 Eagle, XFly Model is continuing to expand its incredible twin 40mm EDF range with Sukhoi Su-57. The full-size Su-57 is a twin-engine stealth multirole fighter aircraft capable of aerial combat as well as ground and maritime strike. XFly's Su-57 is a scale replica that not only includes scale details in air intake, cockpit, nozzle and full-flying horizontal stabs, but also has excellent performance in power, speed and maneuverability.

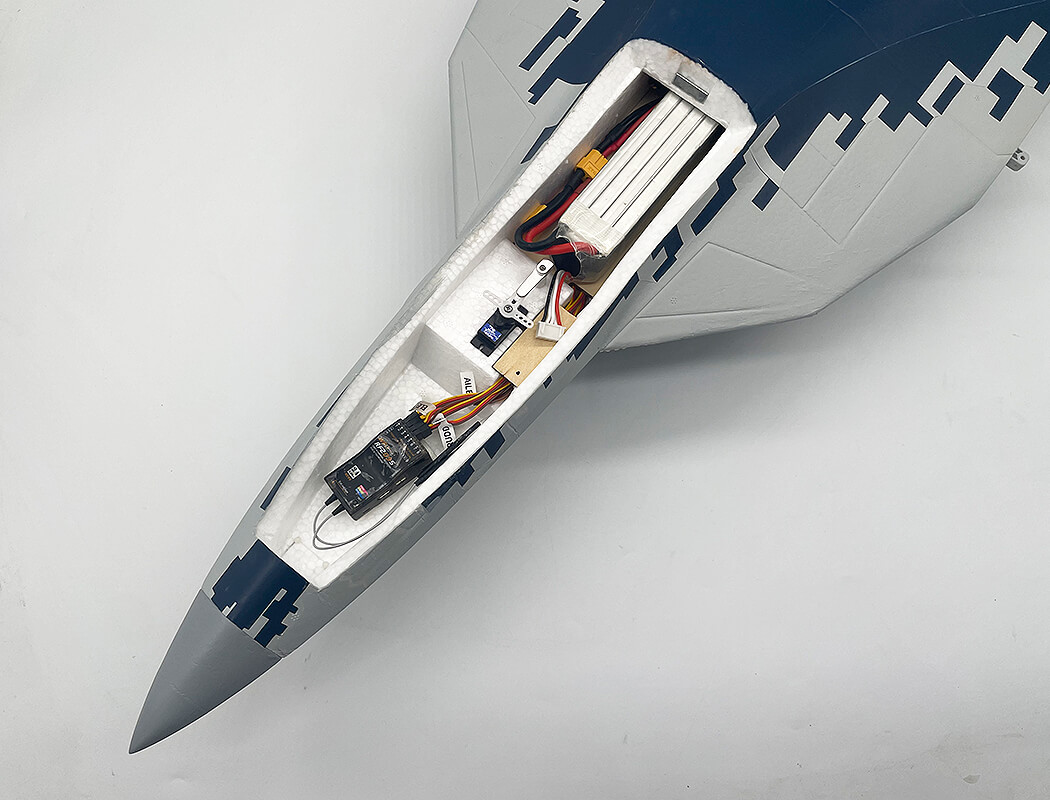

The factory-installed power system, including twin 12-bladed 40mm PRO fan units with 1511-KV5850 brushless motors and twin 30A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying. A flight time of around 3-8 mins can be achieved with proper throttle management.

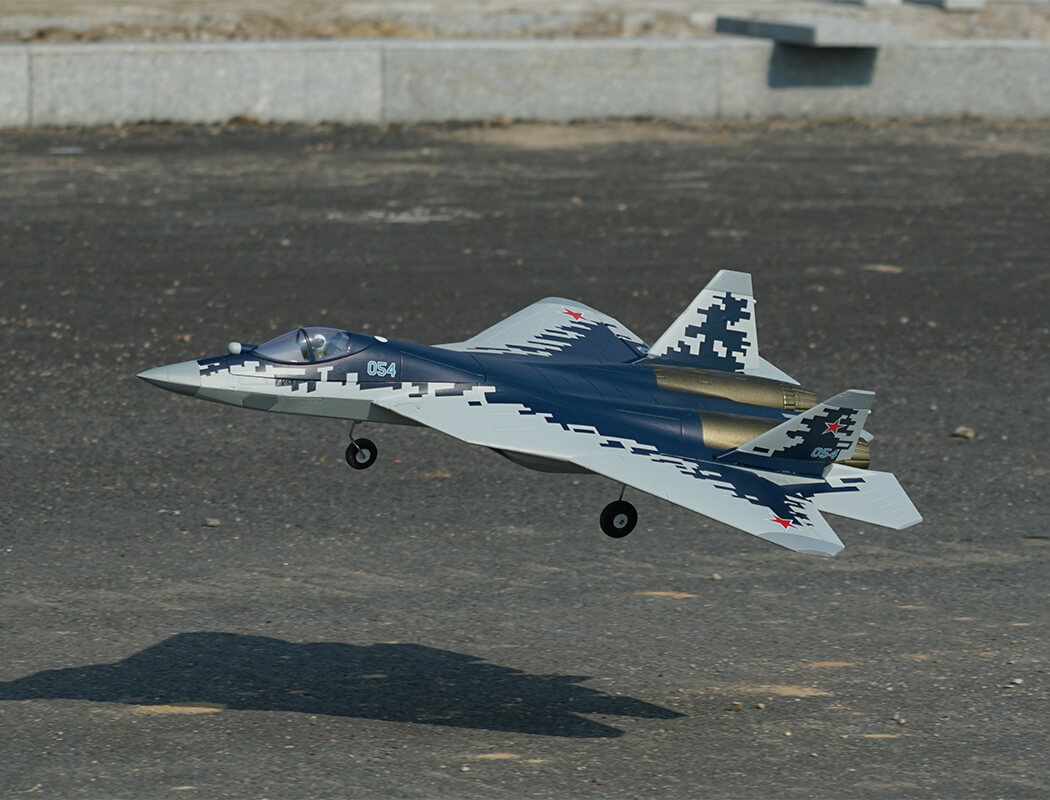

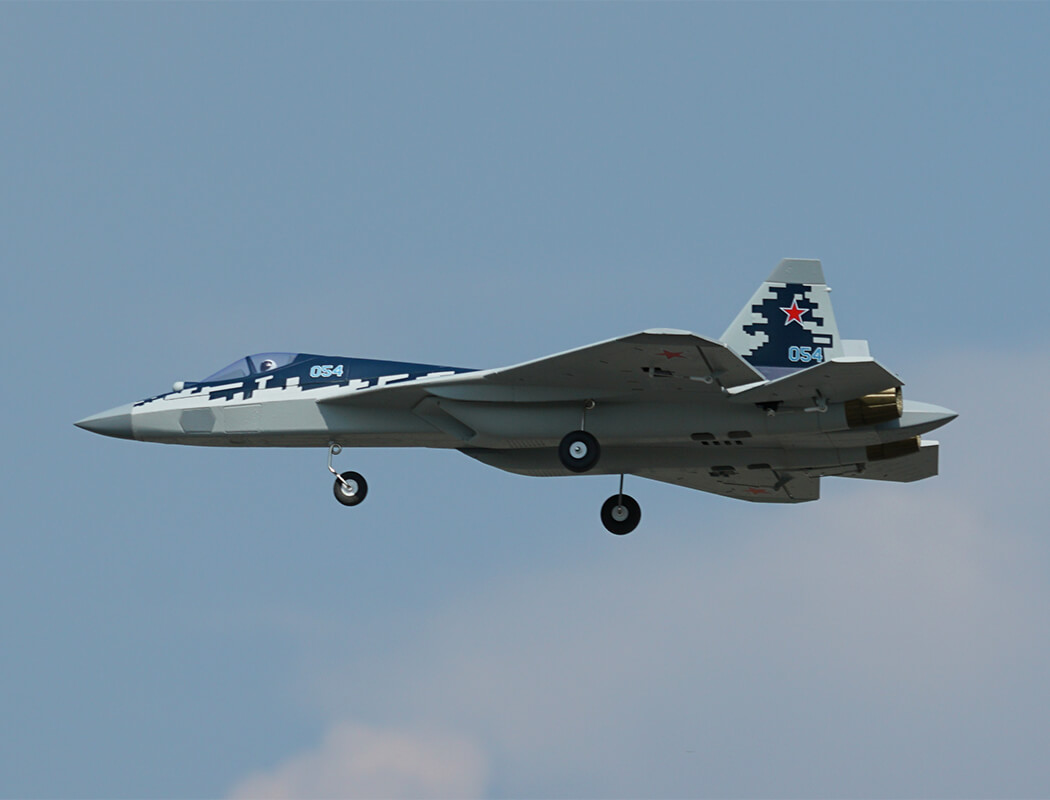

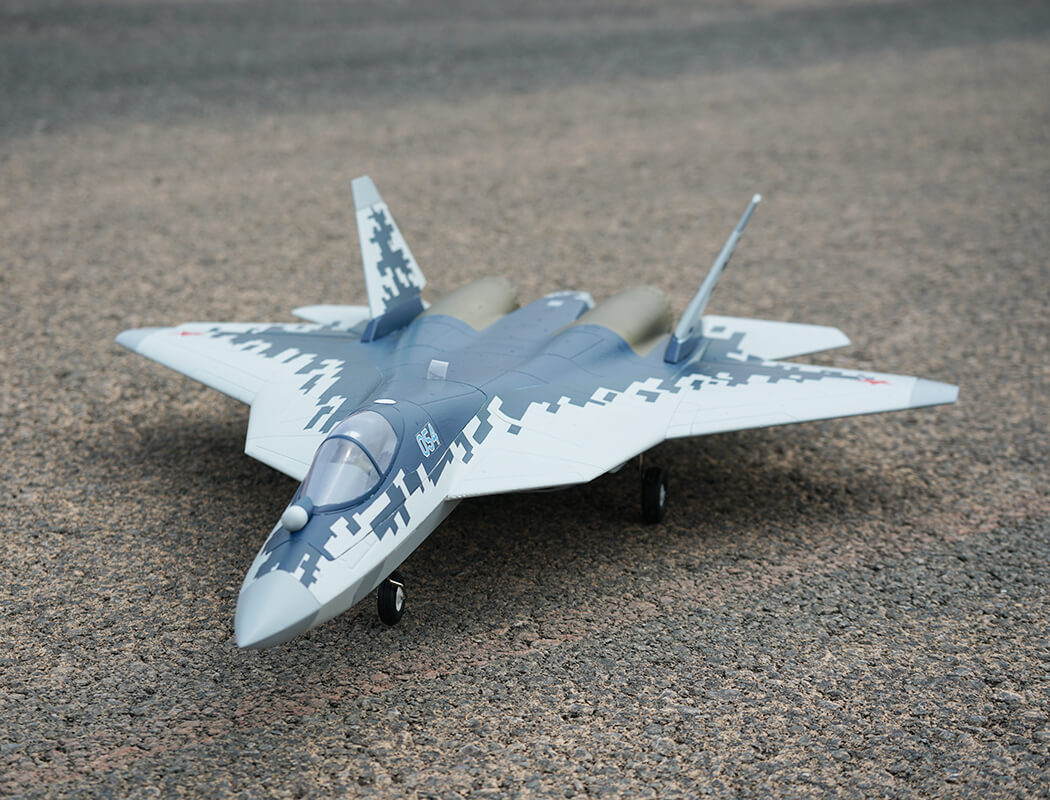

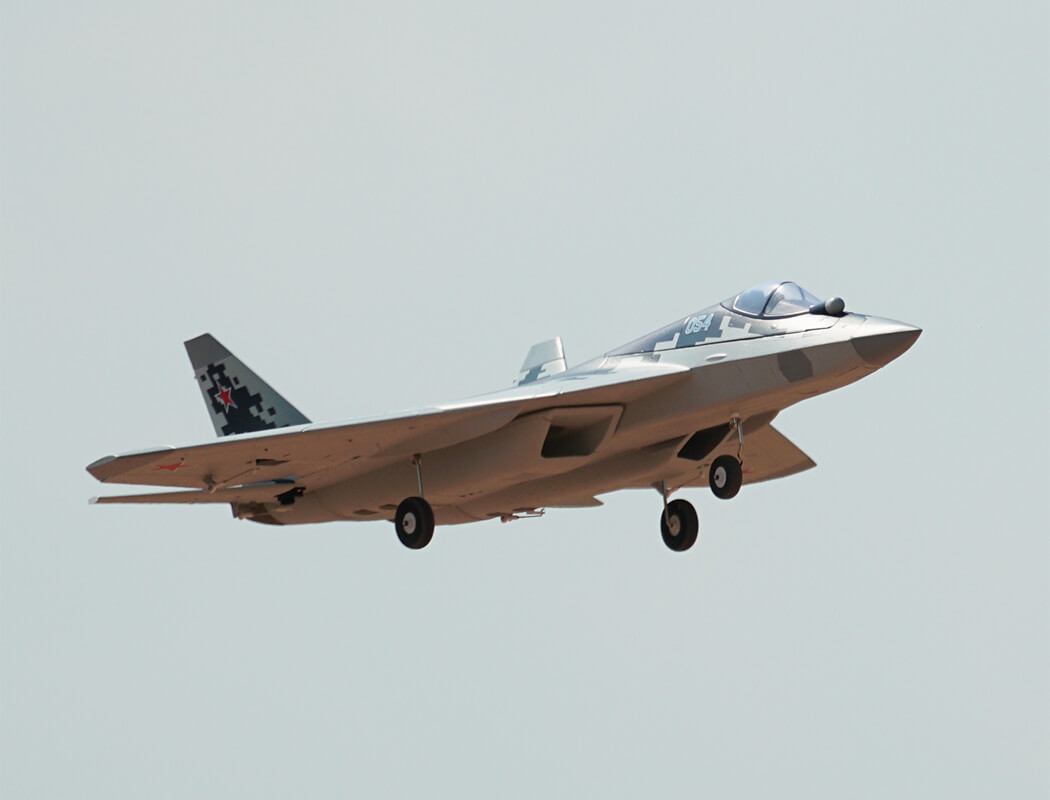

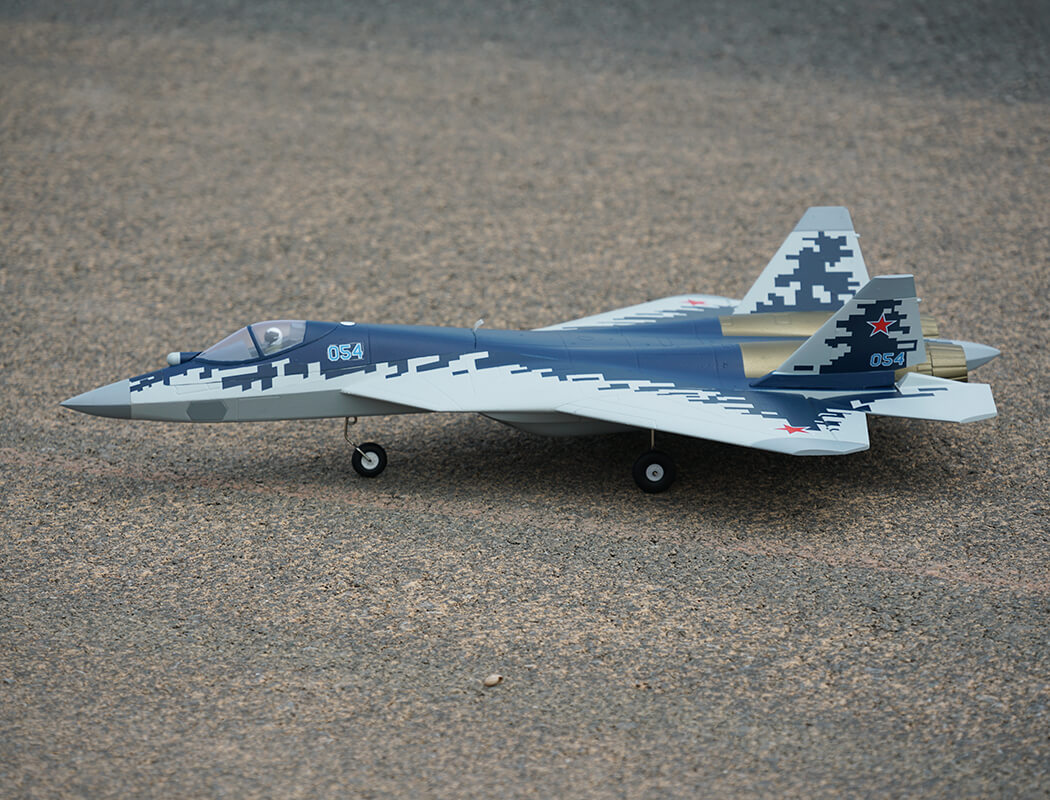

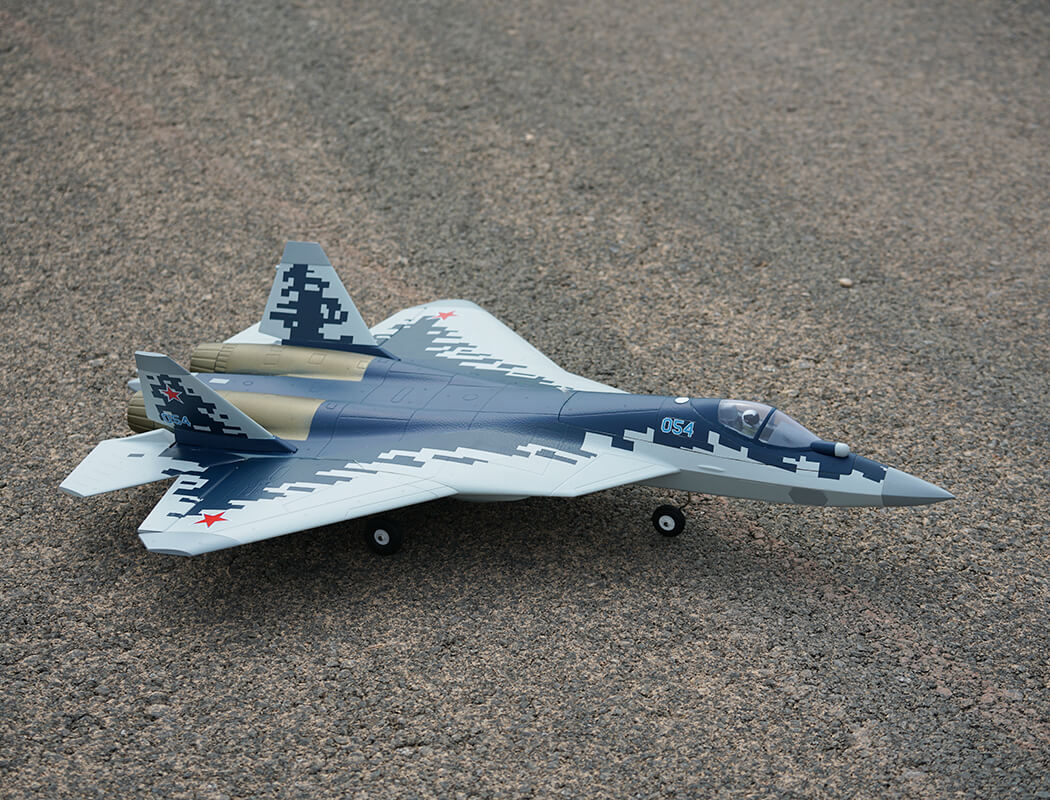

Perfectly fitted landing gear design helps keep the plane lightweight and make take off & landing smooth. Landing gears can be easily removed for hand launches to get more speed and better vertical performance.

Features

• New V2 - Upgraded 1511-KV5850 Motors with 30A ESCs for Faster Climbs and Improved Aerobatics.
• 4 operable channels (Aileron, Elevator, Throttle, Steering).
• Scale replica of the Sukhoi stealth multirole fighter aircraft Su-57.
• Full flying stabs designed for excellent high alpha capability.
• Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops.
• Perfectly fitted landing gear design for smooth takeoff and landing .
• Extended flight time of 3-8 mins when using recommended 4S 1800-2600mAh LiPo battery.
• All components can be assembled quickly without glue needed.
• Robust EPO construction.

Specifications

Wingspan: 700mm (27.5 in)
Length: 960mm (37.8 in)
Wing Load: 98g/dm2
Wing Area: 10dm2
Flying Weight: Approx 980g (2.2 lb)
CG (Center of Gravity): 50mm from the leading edge
Drive System: Two 1511-KV5850 brushless motors
EDF Diameter: Two 40mm (12-blade impeller) Galaxy X-4
Landing Gears: Fixed main landing gears, steerable nose gear
Servo: Five 9g
ESC: Two 30A (XT-60 battery connector)
Approx Flight Time: Up to 8 mins
Assembly Time: Approx 15 mins
Recommended Battery (Not Included): 14.8V 1800mAh~2600mAh ≥35C Li-Po

What's Included

• Airplane (most components preinstalled, some assembly required).
• User manual.

Needed To Complete

• 4 channel transmitter and receiver (not included).
• 4S Li-Po battery balance charger (not included).
• Recommded 4S 1800mAh~2600mAh 35C Li-Po battery (not included).

Safe flying is YOUR responsibility.

Update 01/01/26: The laws have changed regarding operating drones and model aircraft in the UK.

What you need to do:
You must take a theory test and register with the CAA before flying most drones or model aircraft outdoors in the UK.
There are two requirements and you may need to meet both:

• Pass a theory test to get a Flyer ID.

This makes sure you know how to fly safely and legally.

• Register with the CAA for an Operator ID.

This registers you as someone who is responsible for a drone or model aircraft.
Most people get their Flyer ID and Operator ID at the same time.

It is against the law to fly a drone or model aircraft without having the required IDs.
You can also be fined for breaking the law when flying. In the most serious cases, you could be sent to prison.

The requirements are based on the weight or class of your drone or model aircraft.

Registration requirements for drones and model aircraft:

See:
UK Civil Aviation Authority.

For full details please visit:
https://www.caa.co.uk/drones/getting-started-with-drones-and-model-aircraft/drone-code/drone-code-overview/

Be Safe - Be Lawful - Be Drone And Model Aircraft Aware!

We fully encourage safe and responsible flying

We recommend you visit the CAA website for full information on safe and responsible flying.
