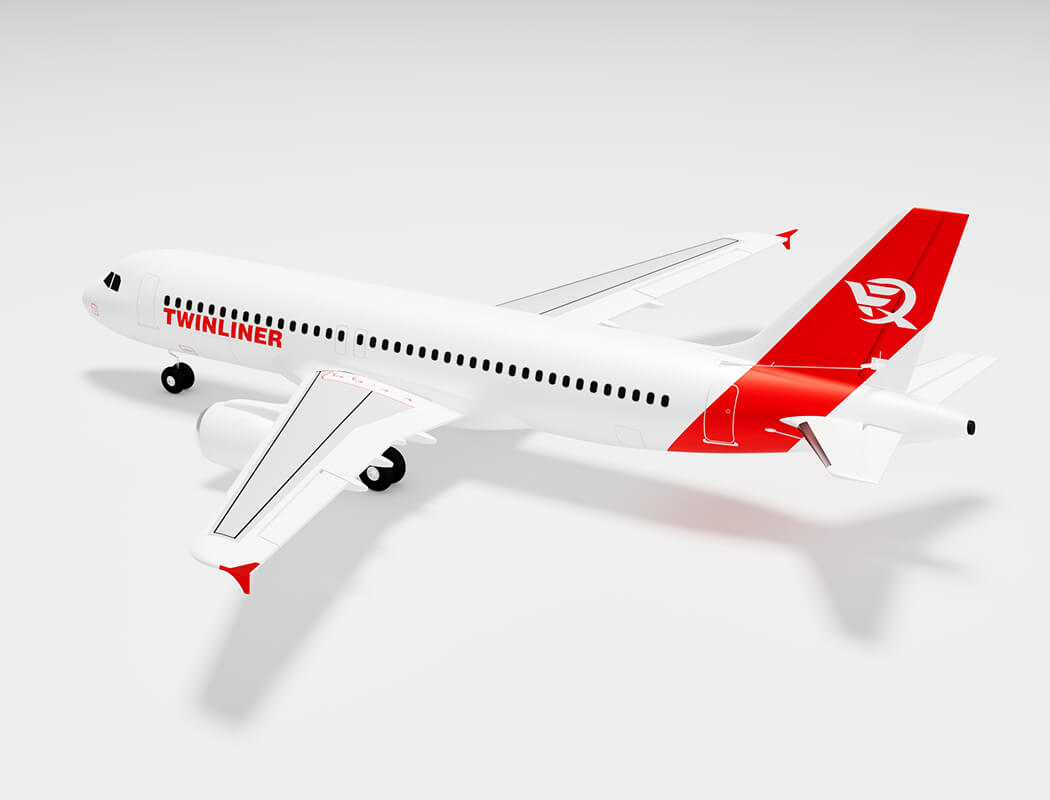

XFLY TWINLINER 40MM EDF JET w/o TX/RX/BATT

XFly Model is excited to announce its first passenger EDF jet Twinliner in the twin 40mm EDF lineup. The Twinliner features a scale outline and details of a classic airliner including twin efficient engines and landing gears with dual wheels. The factory-installed power system, twin 40mm fans with 1413-KV5000 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for vertical climbs, rolls, loops and other maneuvers. With sensible throttle management, the Twinliner features a potential flight time of 5-10 minutes.

Both front and rear landing gears are fitted with dual wheels, which equips the plane with a strong grip to maintain accuracy and stability while taxiing on the ground before takeoff or after landing. The battery compartment is located in the middle of the fuselage, which allows the plane to easily achieve a proper Center of Gravity. Assembly is quick and simple with no glue required. The model is conveniently sized for flying at large parks, sports fields, or traditional RC flying fields and so it can be stored and transported without disassembly. It can fit fully assembled in just about any vehicle. The Twinliner is fully painted and available in two versions, decals pre-applied or NOT pre-applied (but included in the box) which is ready for any further painting or customisations.

Features

• Scale outline and great presence in the air
• Efficient twin 40mm EDF power system setup delivering an abundance of thrust for for vertical climbs, rolls, loops and other maneuvers
• Landing gears with dual wheels designed for strong grip, accuracy and stability
• Battery compartment designed to easily achieve a proper C.G.
• Extended flight time of 5-10 mins when using recommended 4S 1300-2600mAh LiPo battery
• Quick and simple assembly without glue needed

Specifications

Wingspan: 1010mm/39.8in
Overall Length: 990mm/39in
Flying Weight: 750g
Motor Size: 1413-KV5000 *2
ESC: 20A *2
Servo: 9g servos*2, 4.3g servo*2
Channels: 4CH- aileron, elevator, throttle, rudder/steering
CG: 93mm from the leading edge
Wing Load: 75g/dm²
Wing Area: 10dm²
Recommended Battery: 4S 1300-2600mAh
Battery Connector: XT60
Approx Flying Duration: 5-10 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: No
Retract: No
Landing Gear: Fixed main landing gear, steerable nose gear
EDF Size: 40MM EDF 12-Blade *2

Required To Complete

• Transmitter
• Receiver
• Battery
