XFLY TWIN 40MM F-22 EDF 702MM JET WITHOUT TX/RX/BATT

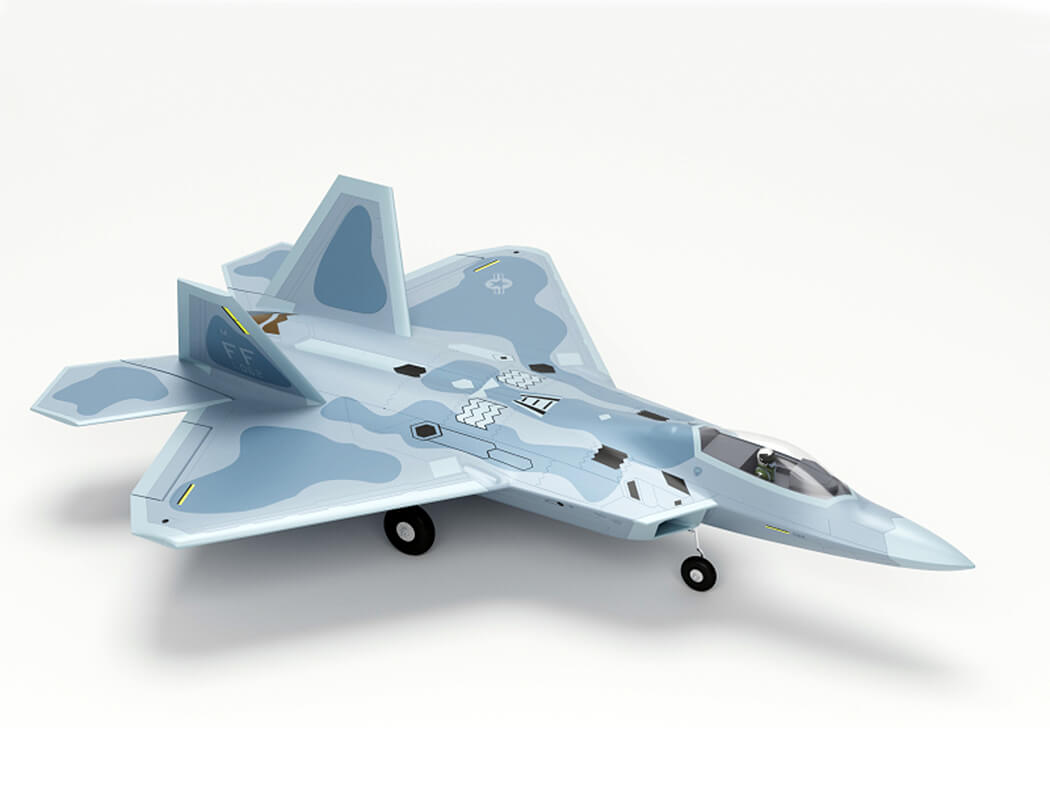

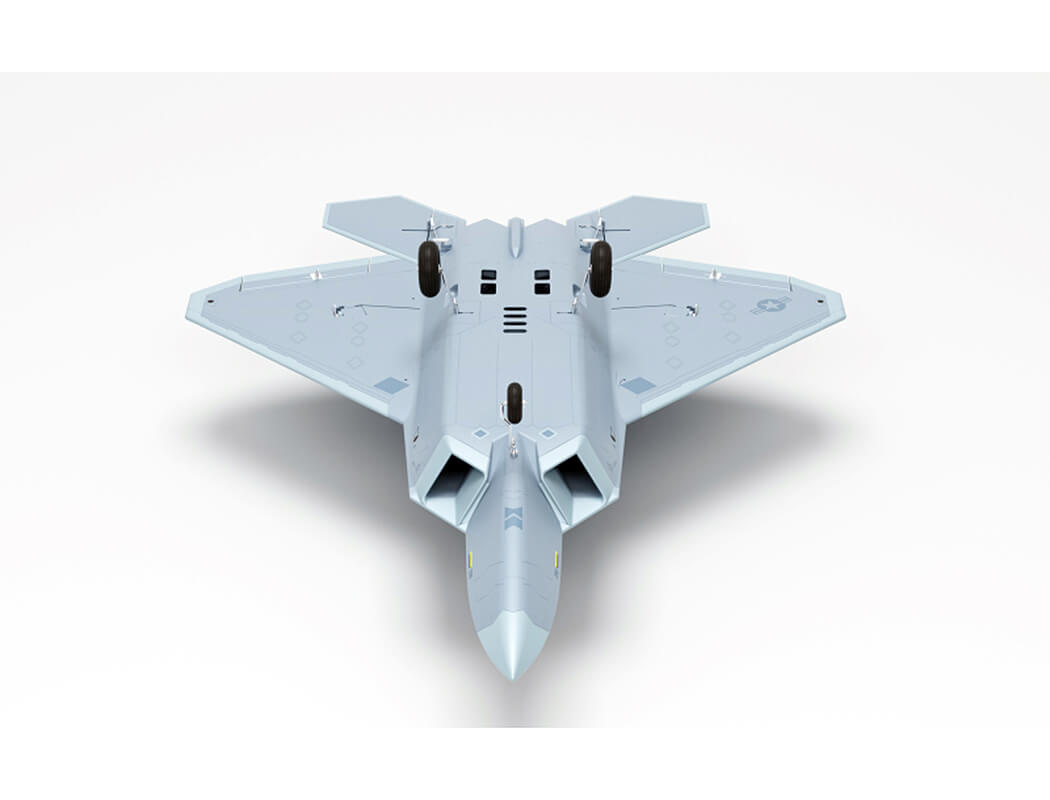

XFly Model is proud to announce its first scale jet F-22 Raptor in the twin 40mm EDF lineup. For the purpose of making it as most streamlined and true-to-scale as possible, XFly team equips the F-22 with twin power system setup and reserves scale details including air inlet, cockpit, nozzle and full-flying horizontal stabs.

The factory-installed power system, including twin efficient 1413-KV5000 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying due to the F-22’s low wing load and full flying stabs. A flight time of around 3-8 mins can be achieved with proper throttle management.

Perfectly fitted landing gear design helps keep the plane lightweight and make take off & landing smooth. Landing gears can be easily removed for more speed and vertical performance while utilizing the molded-in finger grips. Thanks to the F-22’s high alpha capability, you can even get hold of the plane by hand with an ease when landing.

Features

• Streamlined and true-to-scale design
• Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops
• Low wing load and full flying stabs design for excellent high alpha capability
• Perfectly fitted landing gear design for smooth takeoff and landing
• Extended flight time of 3-8 mins when using recommended 4S 1300-2600mAh LiPo battery
• 5 x 9g Servos
• 2 x 20A Brushless ESC
• 2 x 1413-KV5000 Brushless Motors
• 2 x 40mm EDF Fan Units
• All components can be assembled quickly without glue needed
• Molded-in finger grips for easy hand launch

Specifications

Wingspan: 702mm/27.6in
Overall Length: 955mm/37.6in
Wing Load: 89g/dm²
Wing Area: 10.6dm²
Flying Weight: 950g
Motor: 2 x 1413-KV5000
ESC: 2 x 20A
Servos: 5 x 9g servos
CG: 80mm from the leading edge
EDF Size: 2 x 40MM EDF 12-Blade
Retract: No
Flap: No
Landing Gear: Fixed main landing gear, steerable nose gear
Recommended Radio: Minimum 5 channels
Recommended Environment: Outdoor
Battery Capacity: 4S 1300-2600mAh
Battery Connector: XT60
Flying Time: 3-8 mins
Mounting Duration: Around 10 minutes
Skill Level: Intermediate
Age Level: 14 years +

Required To Complete

• Minimum 5 channels Radio
• 5 channels Receiver
• 4S 1300-2600mAh Battery
• 4S Battery Charger

Safe flying is YOUR responsibility.

Update 01/01/26: The laws have changed regarding operating drones and model aircraft in the UK.

What you need to do:
You must take a theory test and register with the CAA before flying most drones or model aircraft outdoors in the UK.
There are two requirements and you may need to meet both:

• Pass a theory test to get a Flyer ID.

This makes sure you know how to fly safely and legally.

• Register with the CAA for an Operator ID.

This registers you as someone who is responsible for a drone or model aircraft.
Most people get their Flyer ID and Operator ID at the same time.

It is against the law to fly a drone or model aircraft without having the required IDs.
You can also be fined for breaking the law when flying. In the most serious cases, you could be sent to prison.

The requirements are based on the weight or class of your drone or model aircraft.

Registration requirements for drones and model aircraft:

See:
UK Civil Aviation Authority.

For full details please visit:
https://www.caa.co.uk/drones/getting-started-with-drones-and-model-aircraft/drone-code/drone-code-overview/

Be Safe - Be Lawful - Be Drone And Model Aircraft Aware!

We fully encourage safe and responsible flying

We recommend you visit the CAA website for full information on safe and responsible flying.
