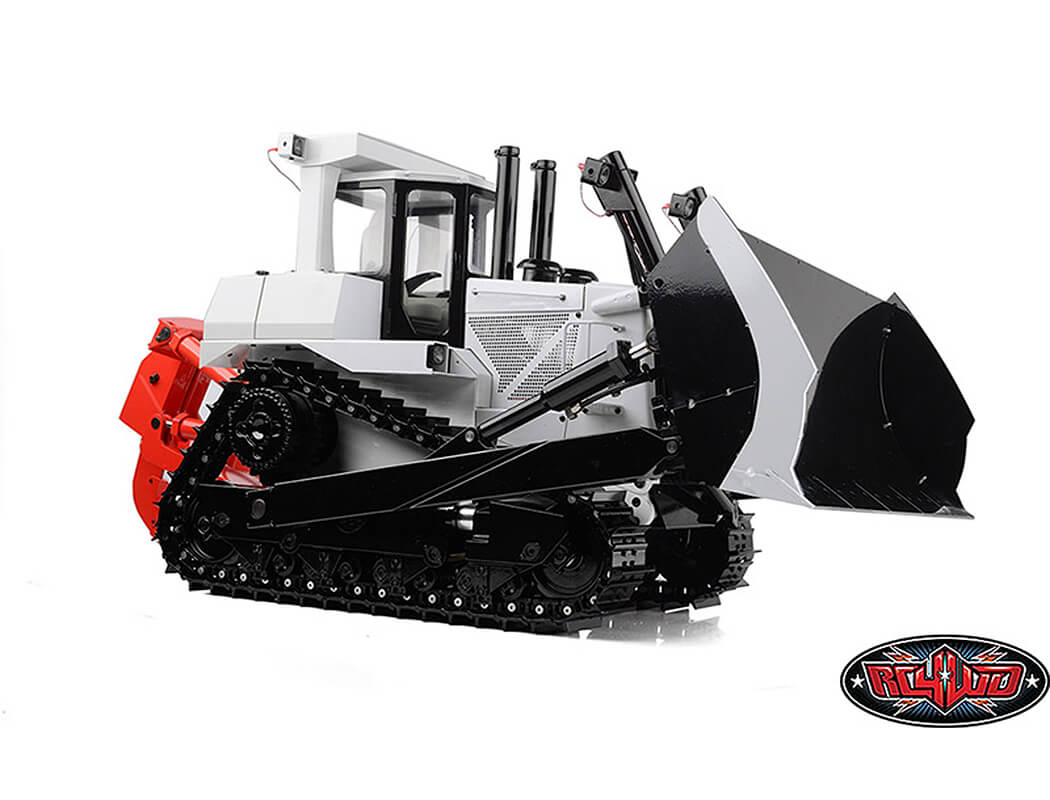

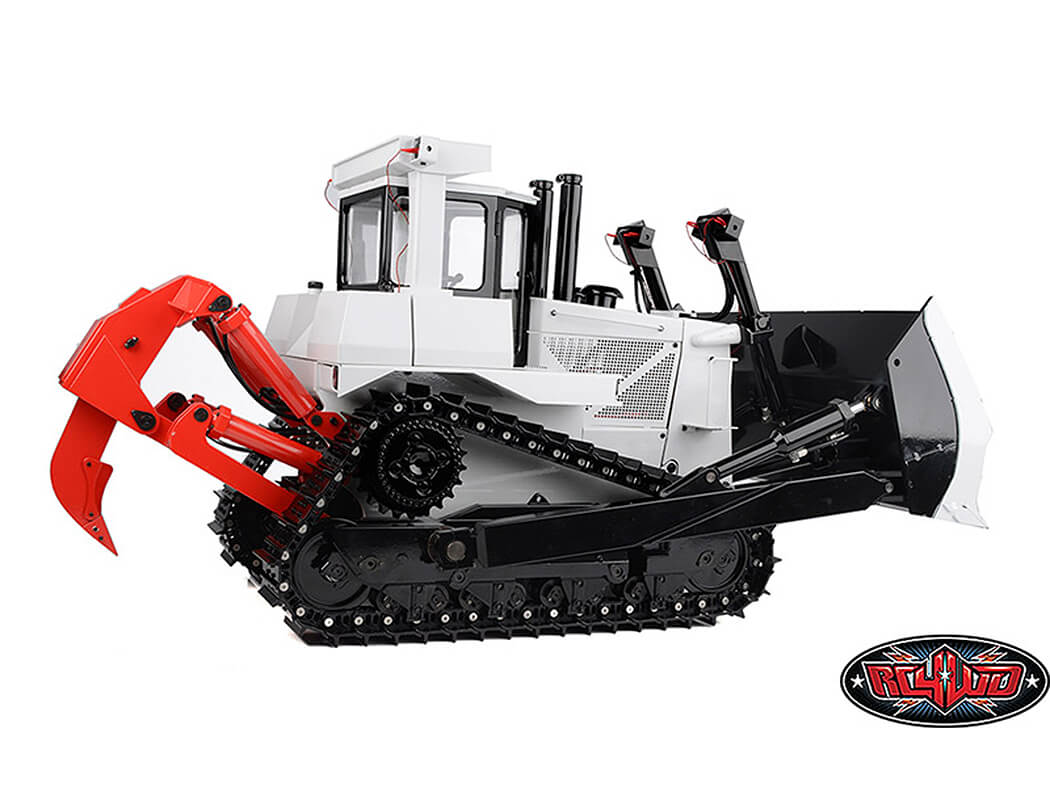

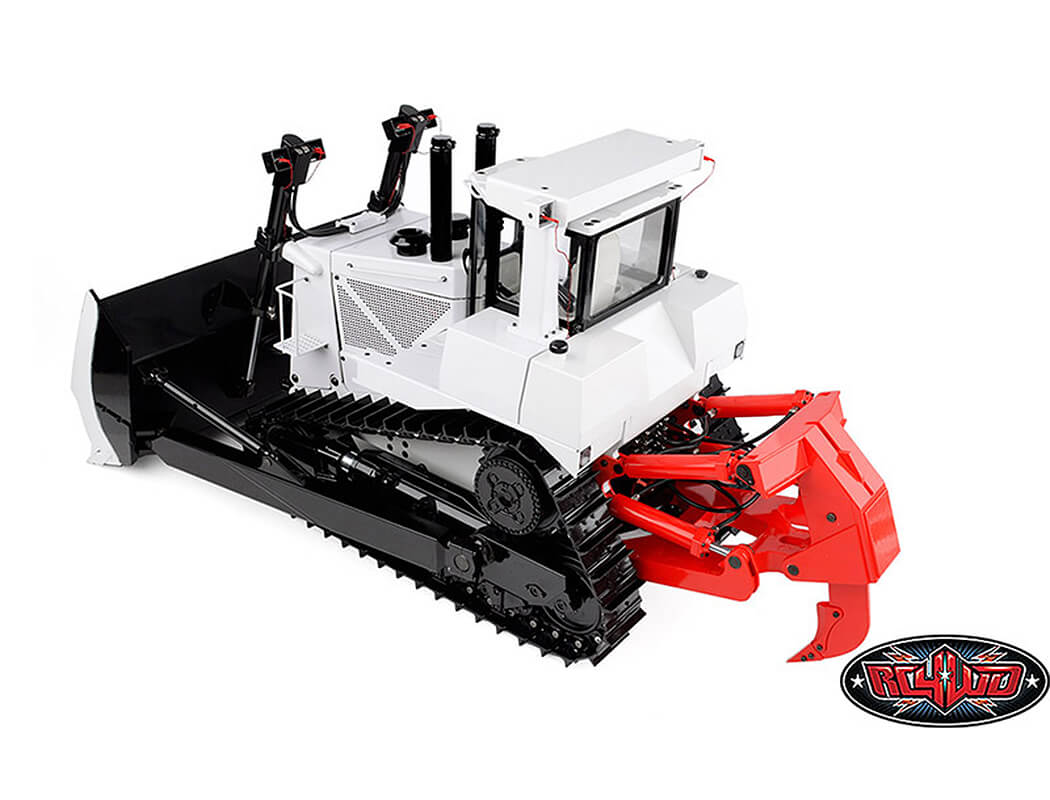

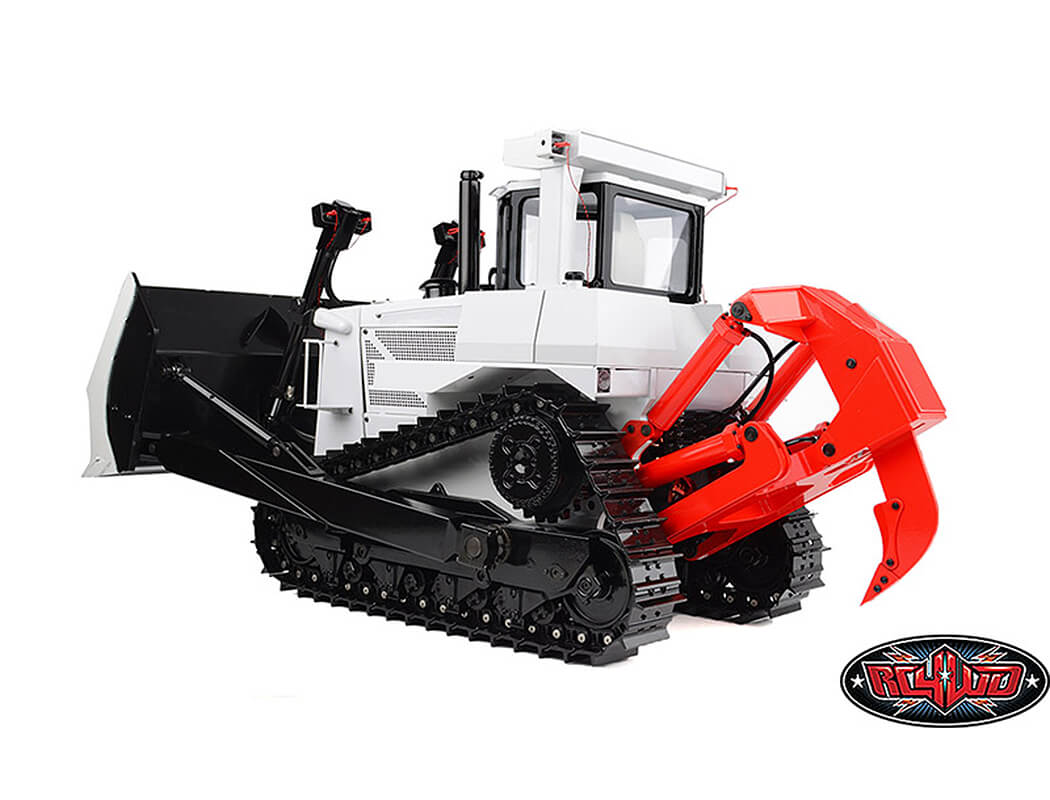

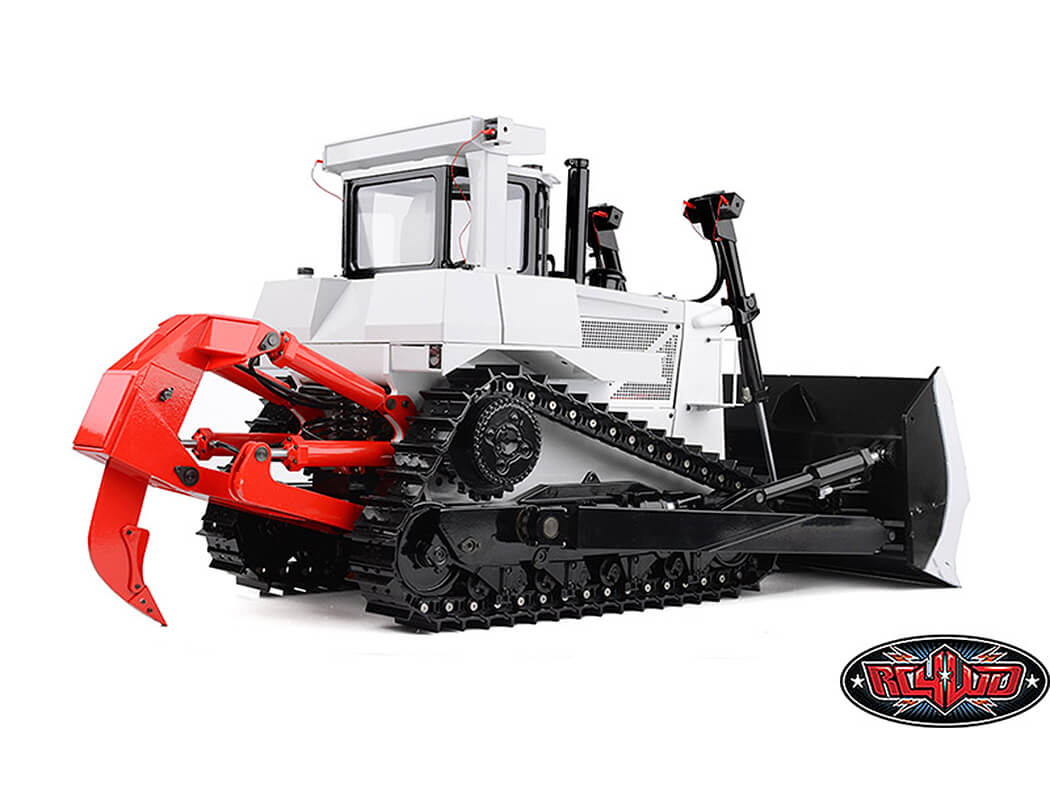

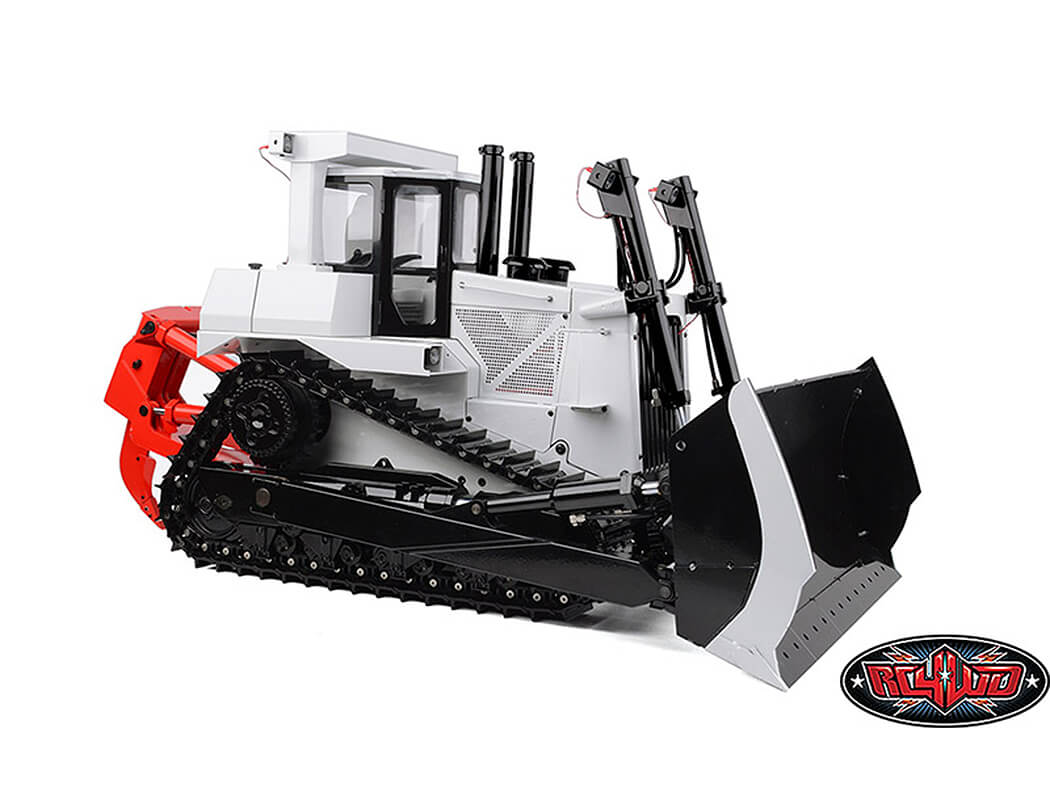

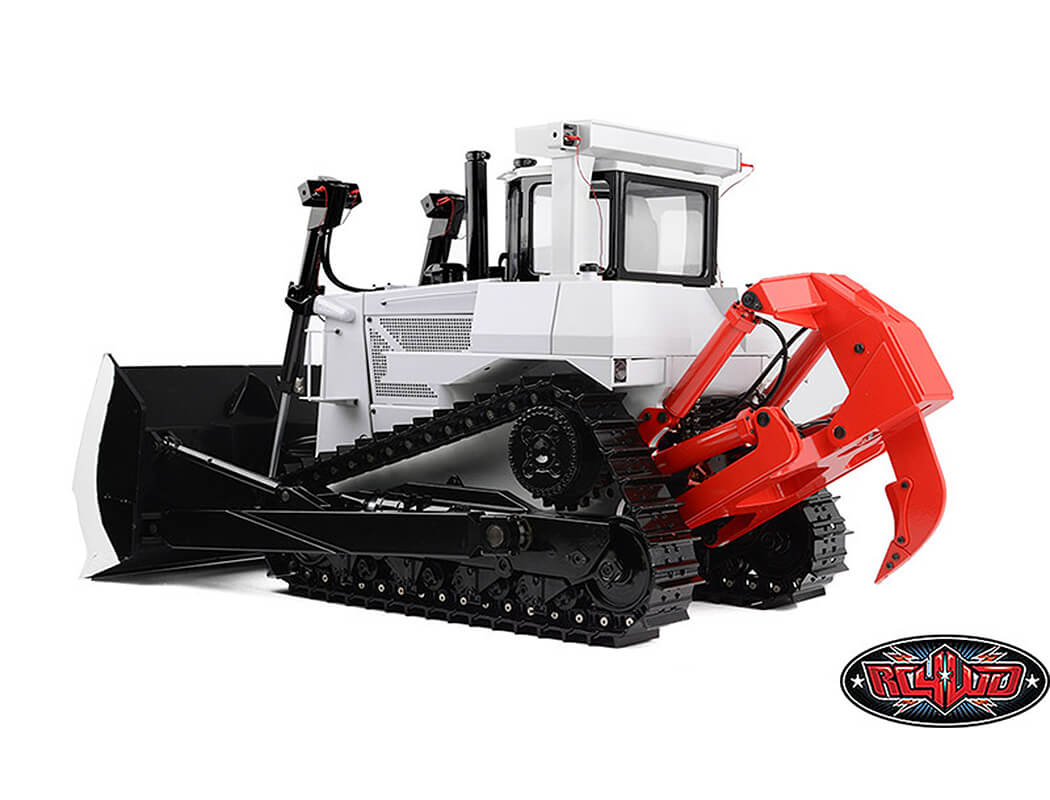

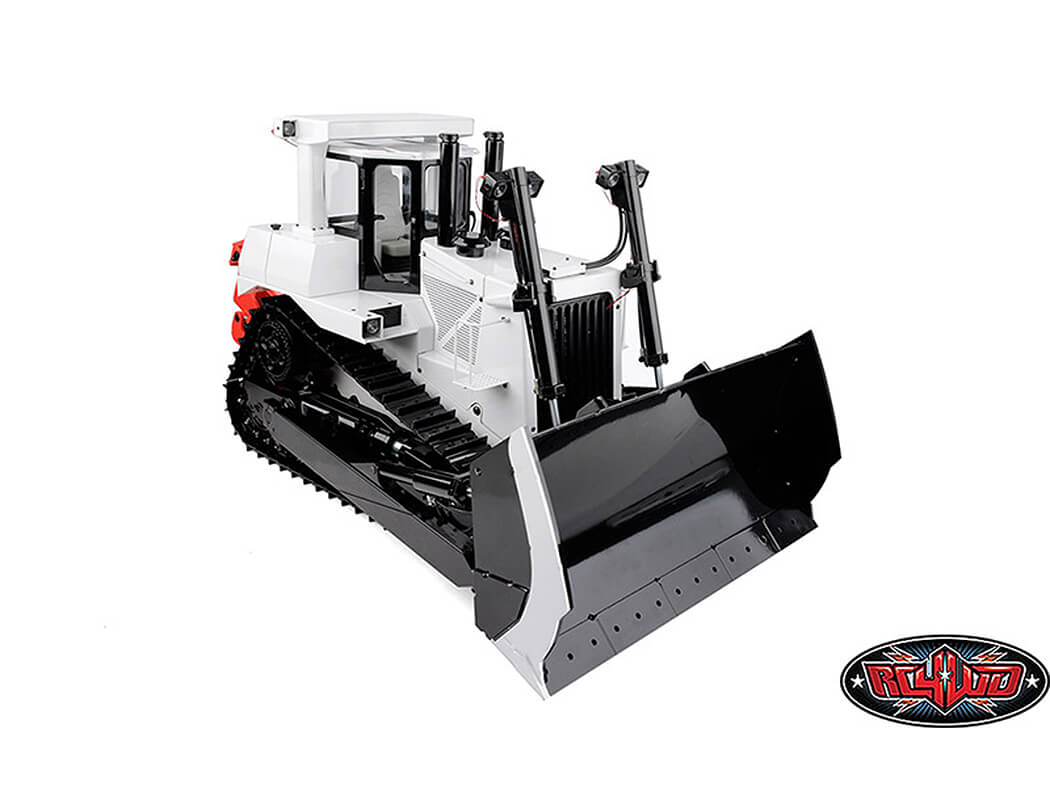

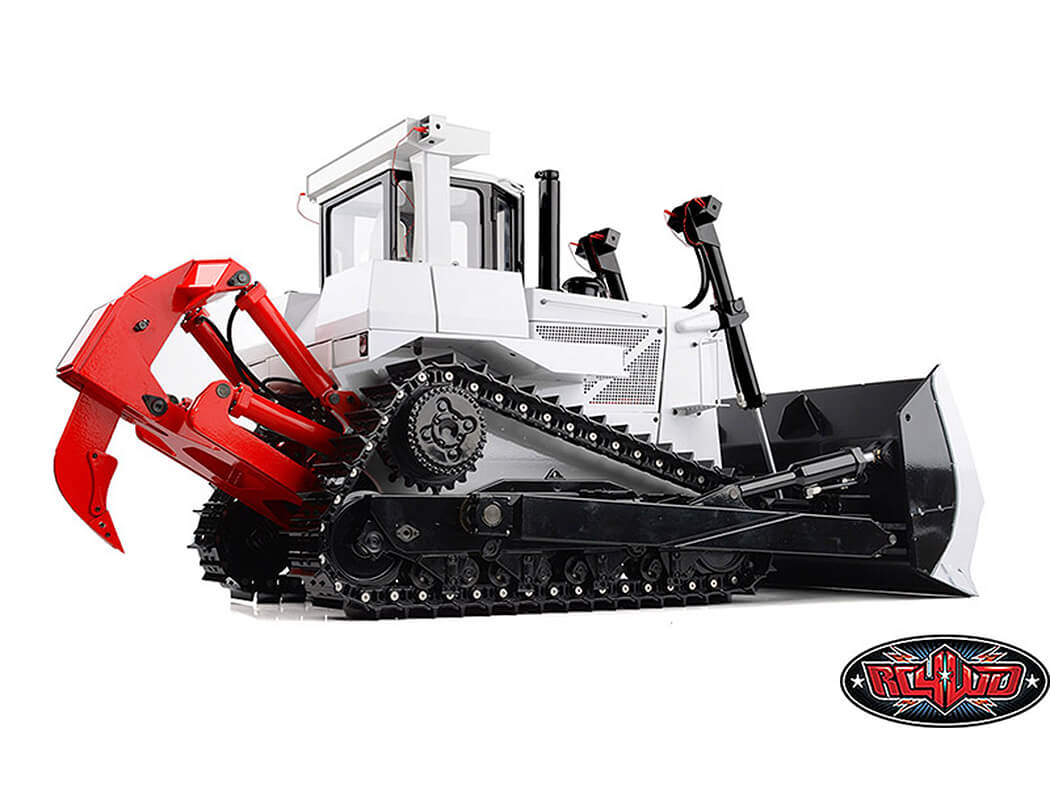

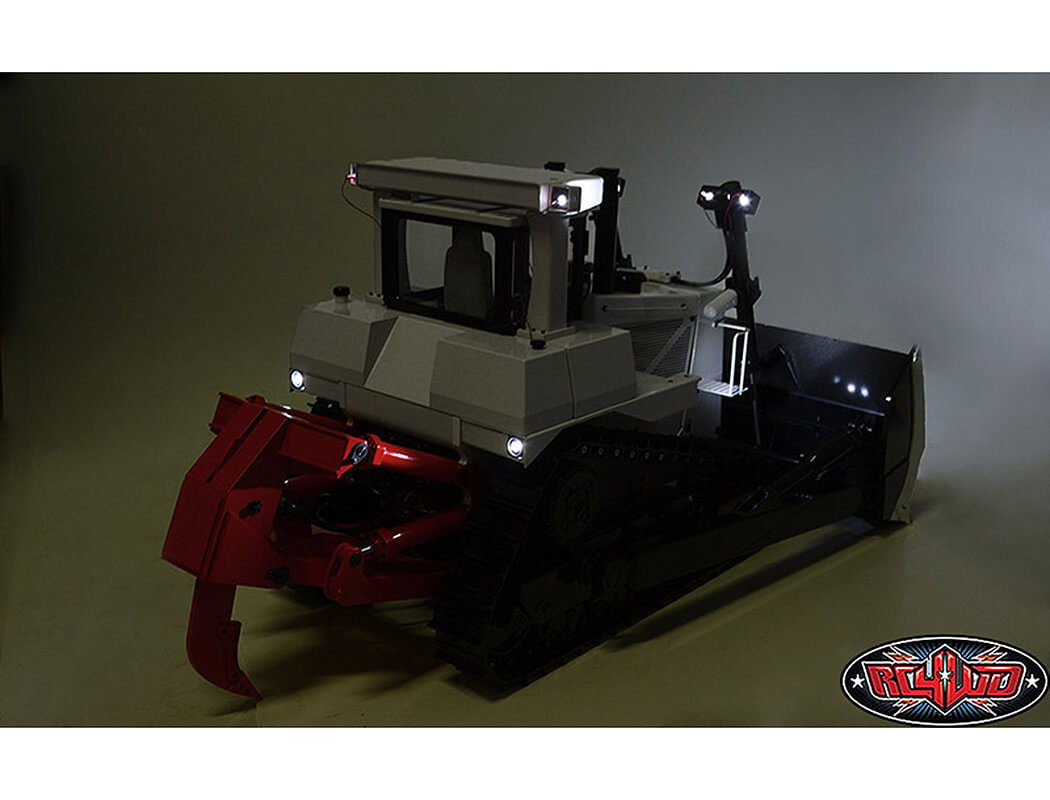

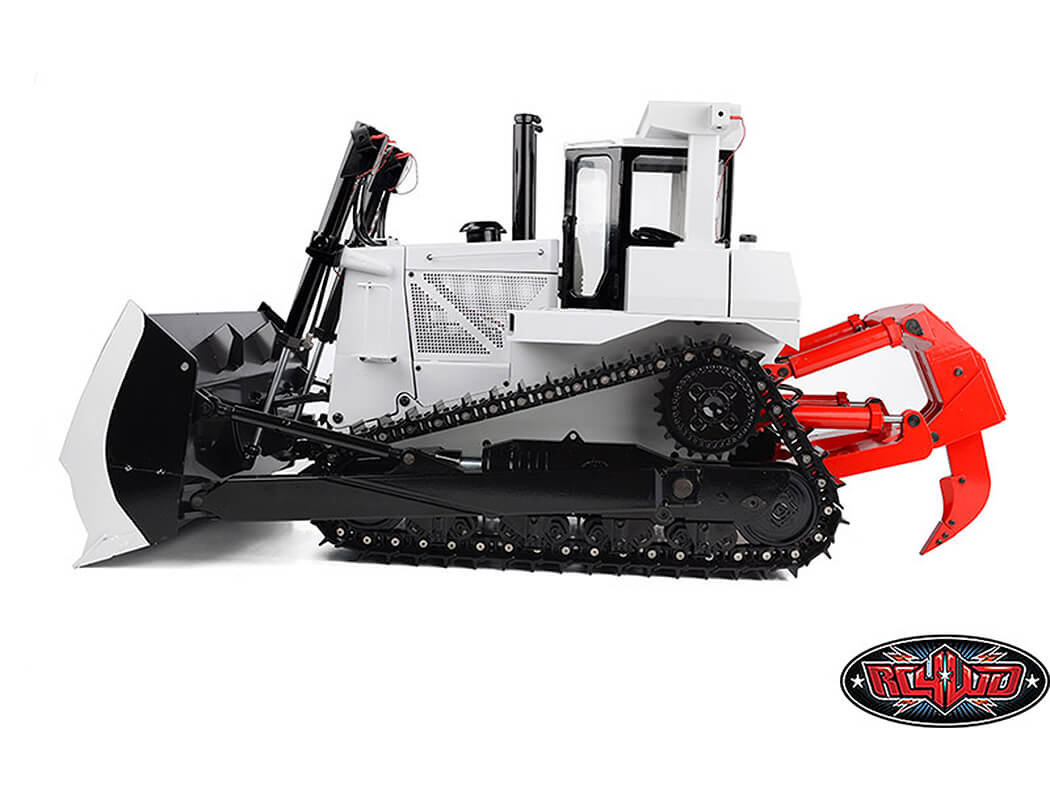

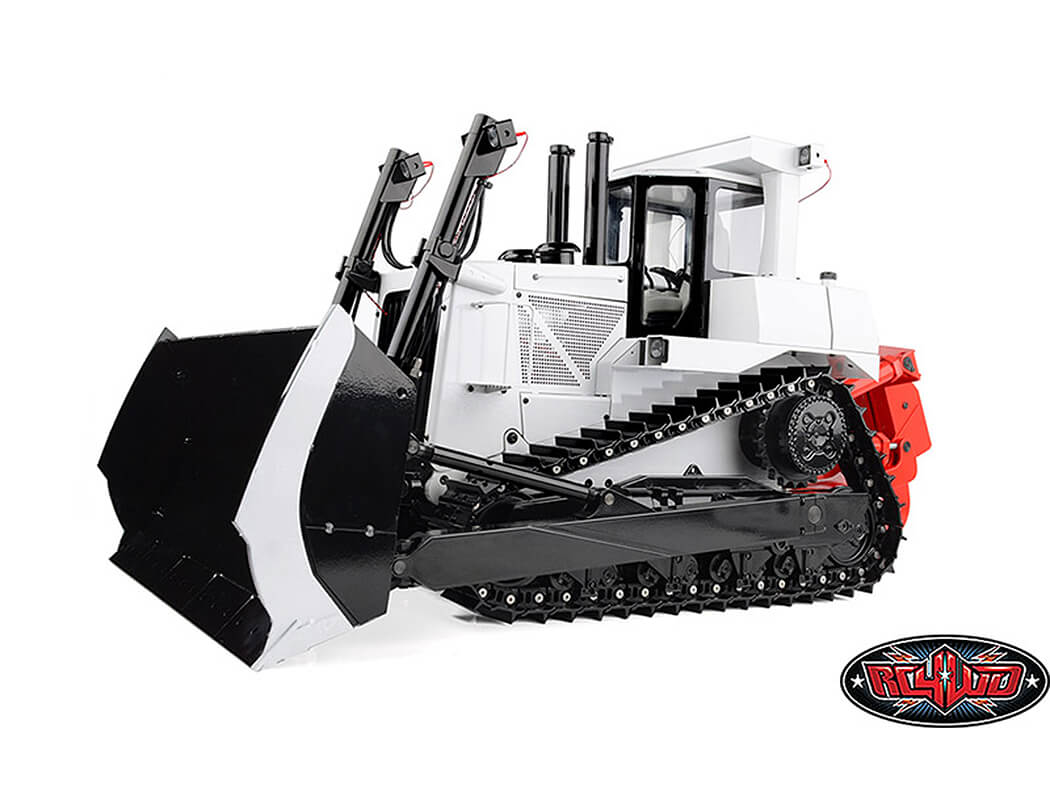

RC4WD 1/14 SCALE DXR2 HYDRAULIC EARTH DOZER RTR (WHITE)

Features

• Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
• Weld Steel Bucket
• 9 Channel 2.4GHZ Radio
• Heavy Duty Hoses (OD 3.2mm Nylon, ID 2.2mm)
• Main Heavy Duty Hoses (OD 4mm Nylon, ID 2.5mm)
• Optimized Steel Hydraulic System
• Reliable Hydraulic Valve and Adjustable Pump
• Brushless Hydraulic System
• Lipo Cutoff
• Full Metal Scale

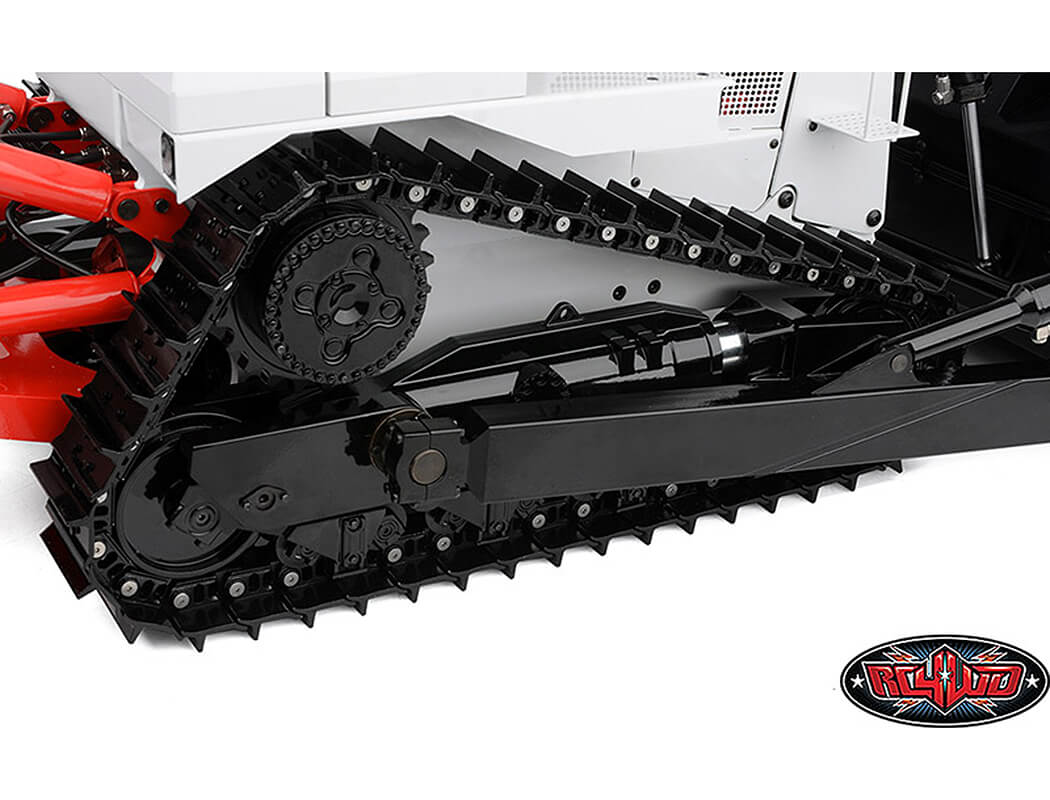

• All Terrain Metal Crawler
• 540 Brushed Monster Torque Motor
• Full Metal Transmission (1:256 Gear Ratio)
• Run Time is: 38 Minutes (5300mAh Battery)
• Chrome Steel Oil Pump (47.5mm x 35mm x 36mm)
• Large Bucket Capacity
• Maximum Bucket Force (Down): 76kg / 167pounds
• Maximum Bucket Force (Up): 50kg / 110pounds
• Maximum Bucket Force (Thrust): 50kg / 110pounds
• Driving Speed: 408 Meter Per hour

Specifications

Scale: 1:14
Length: 27in / 685mm
Width: 13.8in / 351mm
Height: 12.7in / 323mm
Bucket Height: 6.87in / 174.6mm
Maximum Bucket Up and Down Angle: 29 degrees
Maximum Bucket Tilt Angle (Left and Right): 9 degrees

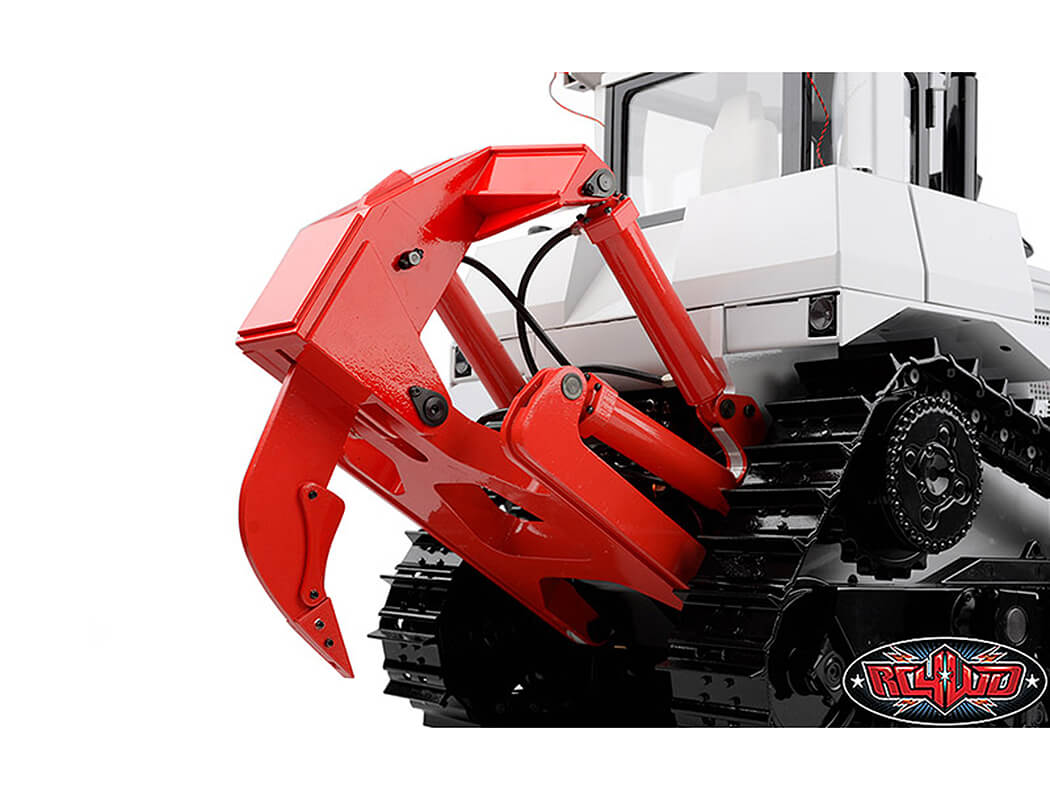

Maximum Ripper Depth of the Ground: 1.97in / 50mm
Total Mass Load: 37kg / 82lbs
Operating Oil Pressure: 25Bar, 362.5psi
Dead Weight: 26kg / 57lbs

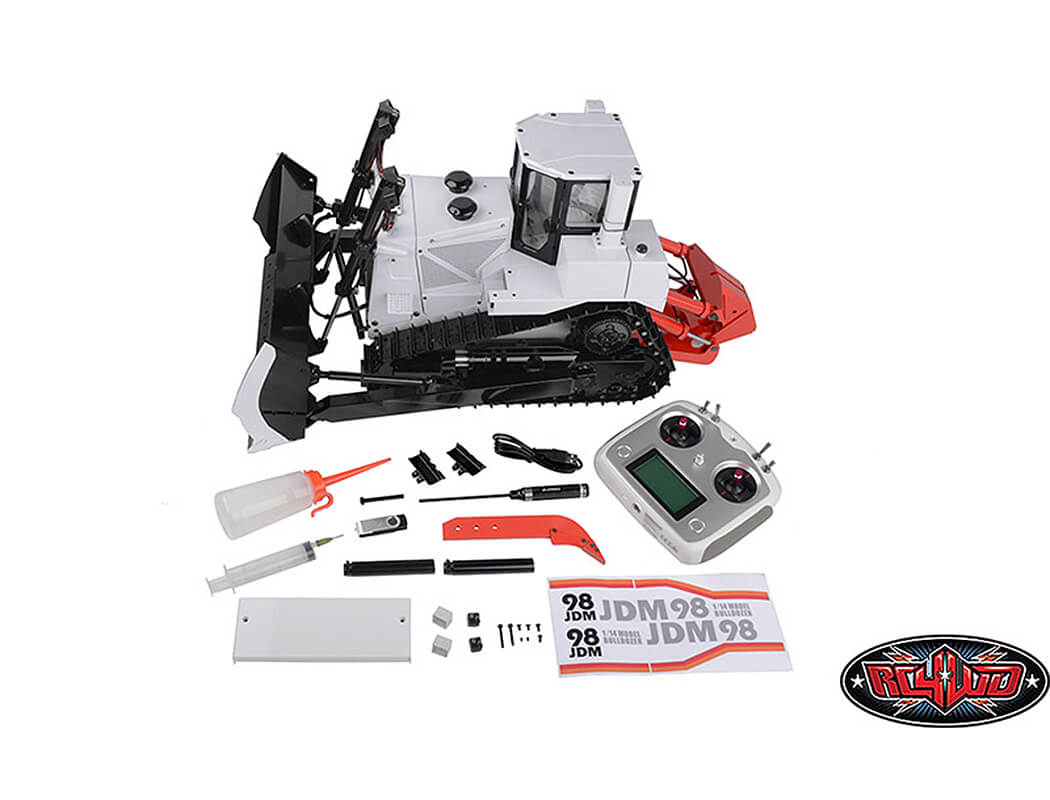

What's Included

• 1 x 1/14 Scale DXR2 Hydraulic Earth Dozer RTR (White)

Notes

• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.

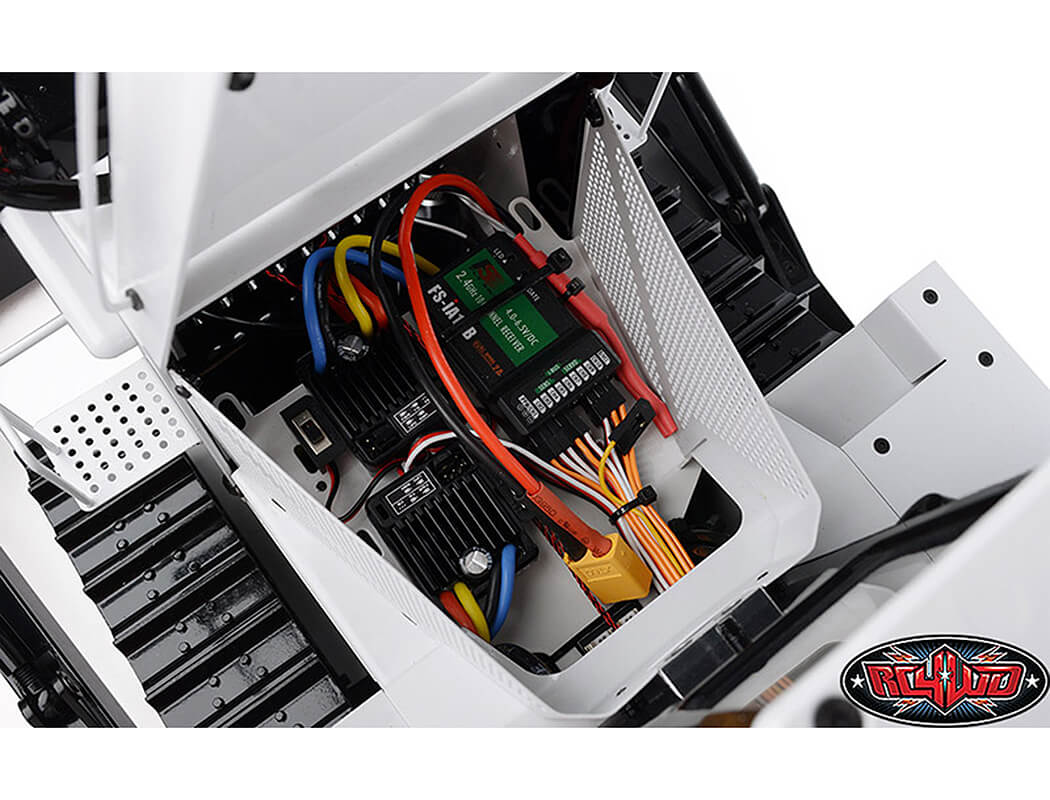

• ESC Supports Bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Do not adjust the oil pressure switch.
• Each unit is professionally assembled, adjusted and tested.
• Oil pressure may drop as you operate over time.
• Battery Size should be within 140x40x44MM (LxWxH)
• Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
