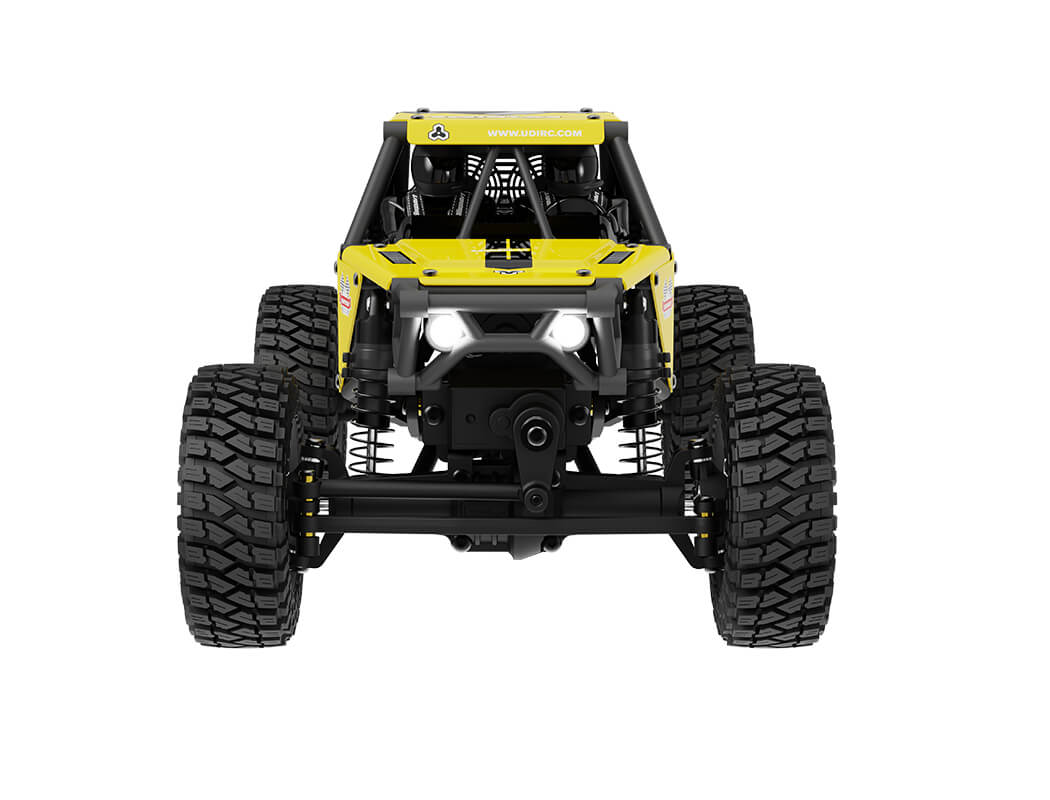

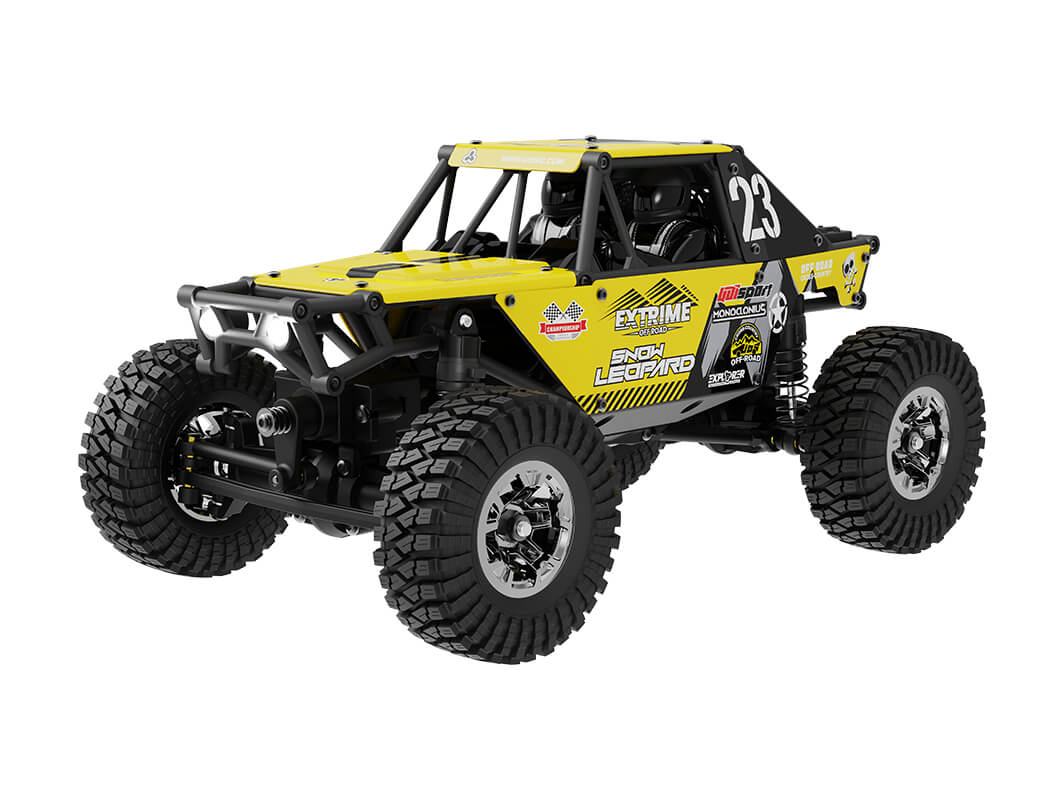

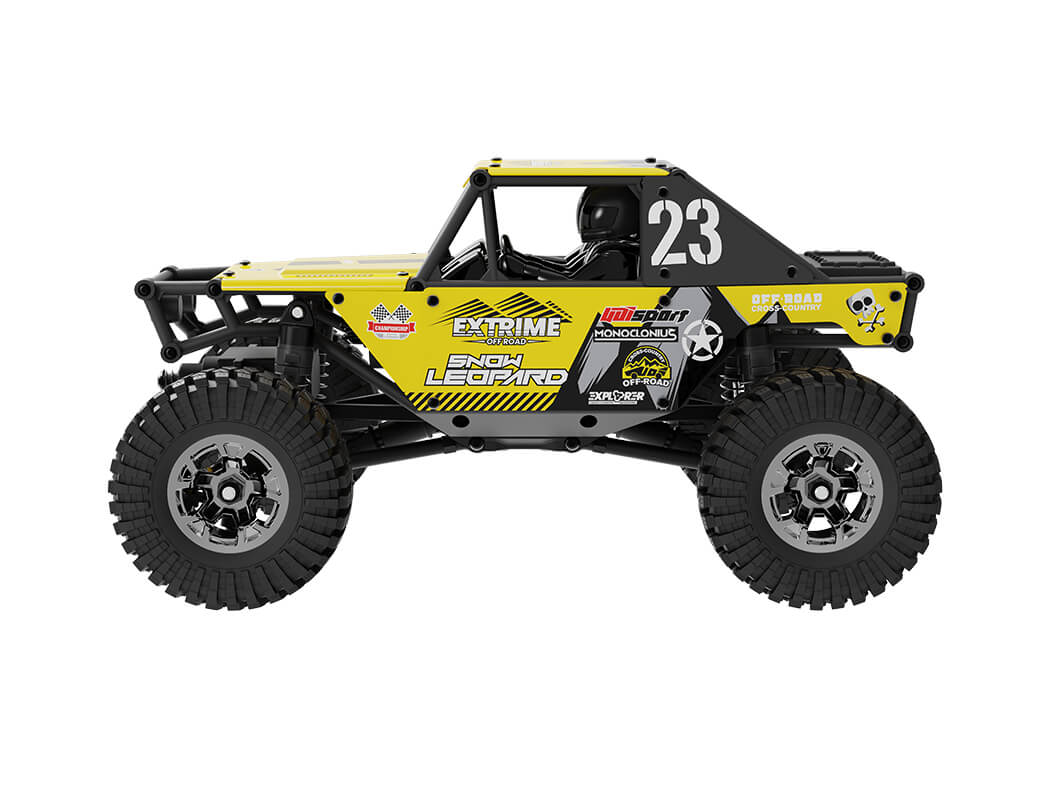

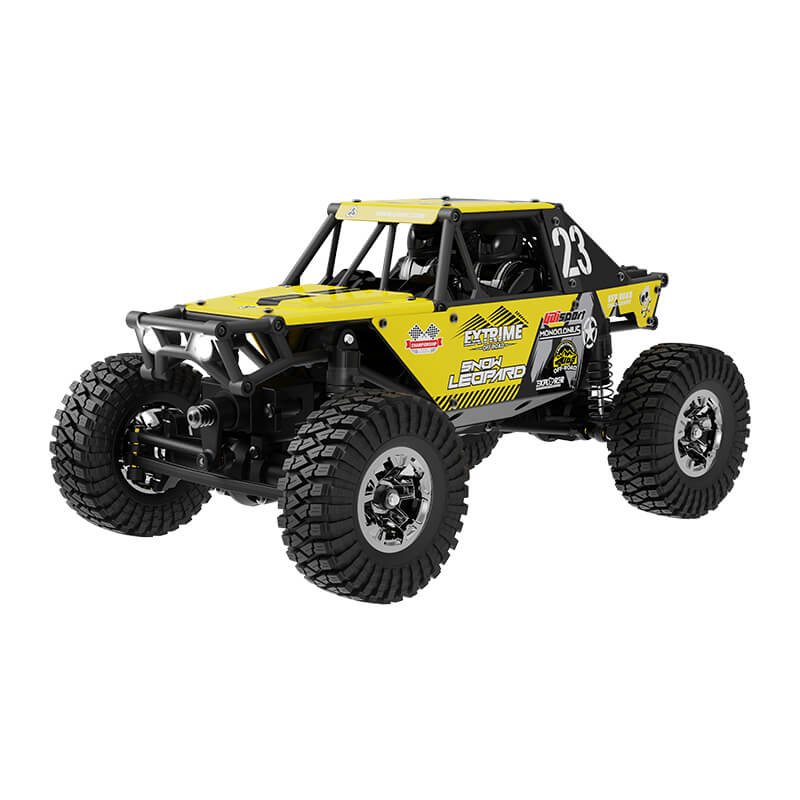

UDI RC UCX24 SNOW LEOPARD 1/24 CRAWLER RTR BRUSHED - YELLOW

Features

High Bright LED Lights

• Headlights.
• Taillight.
• Upgradeable (Taillight/Turn lamp/Backup light).

Decoration

• Molded simulation fan.
• The age is molded from impact Nylon.

Wheels And Tyres

• 55mm All terrain tyres.

Equipped With High-Speed Sealed Ball Bearings

Metal Transmission

Metal mechanical variable speed

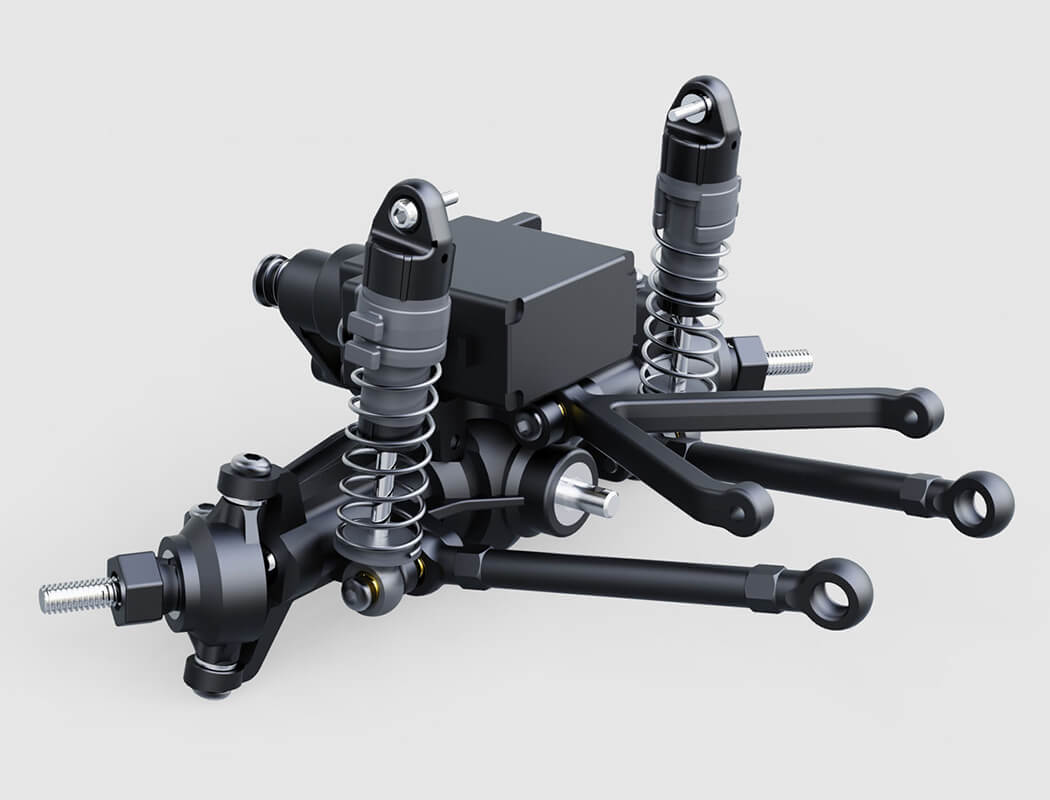

Suspension

• Provide proportional appearance and realistic off-road driving dynamics.
• Front and rear independent suspension damping system.
• Front and rear independent axles.

Steering

• 0.5kg digital Steering Servo.
• Upgradeable to front and rear steering.

Drivetrain

• Shiftable central gearbox.
• Upgradeable to differential.
• Front and rear universal drive shaft.
• Upgradeable to brushless motor.

Specifications

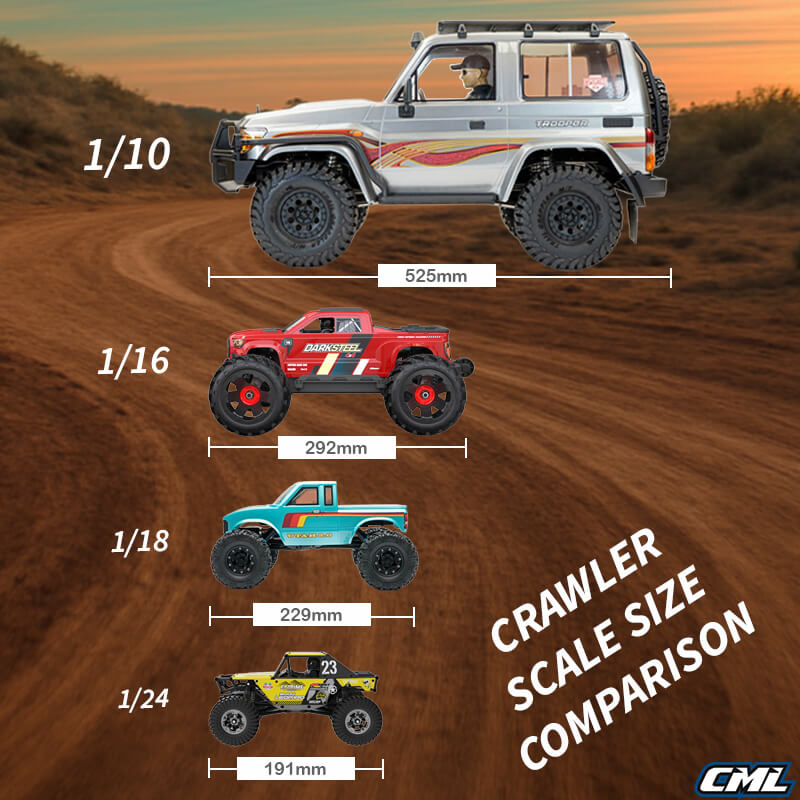

Model Scale: 1/24
Model Type: Off-road
Assembly Time: Installing the battery
Completion Level: RTR

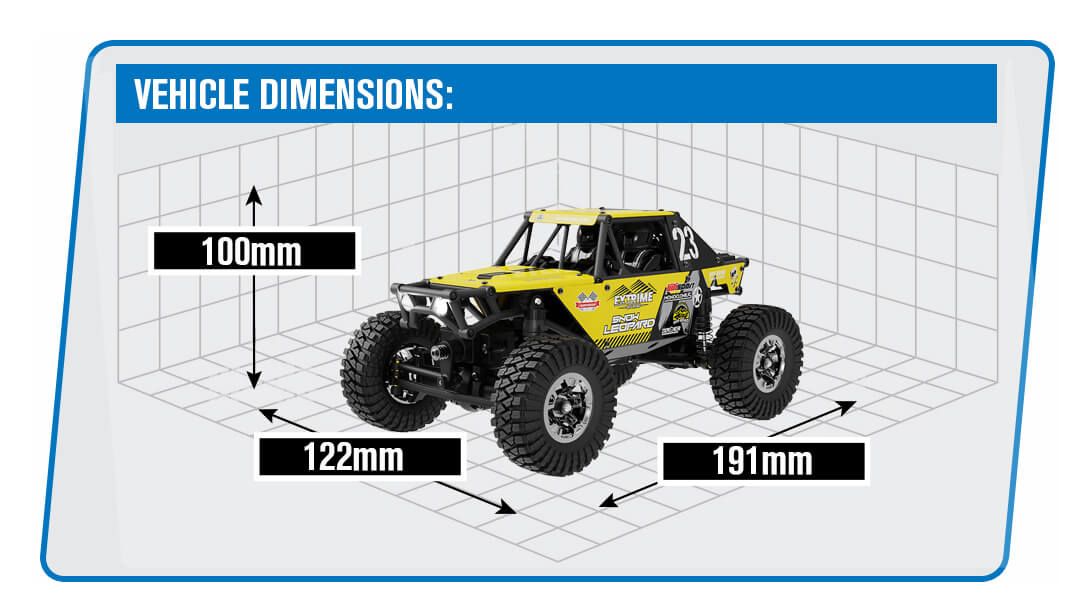

Length: 191mm
Width: 122mm
Height: 100mm
Weight: 352g (Included battery)
Front Wheel Track: 102mm
Rear Wheel Track: 102mm
Wheelbase: 135mm
Ground Clearance: 27mm
Transmission Distance: About 50m
Power Type: Electric
Motor Type: Brushed
Differential: None (upgradable)
Drive System: 4 wheel drive
Drive Type: R/N/D/S
Gear Ratio (High): 1:9.3
Gear Ratio (Low): 1:58.6
Tyre Diameter: 55mm
Wheel Hub Diameter: 28.5mm
Transmitters: UA37D
Receiver: Included
Servo: Included
Suspension: Independent
Car Lights: Including
Type: High-torque brushed motor
Weight: About 25.2g
Size: 130
Dimensions: 34mm overall length, 25.5mm can length, 20.2mm diameter
Output shaft: 2mm
Input Voltage: 2s LiPo
Case Size: L33.4mm × W30mm × H12.3
Weight: About 10.8g
Low Voltage Detection (LVD): supported
Weak Signal Detection (WSD): supported
BEC: 5V,1A
Waterproof Level: None
Crawl Mode: 4WD, Reverse, Changing gears, Front/Rear axle steering
Lighting Modes: Headlight, Turn lamp, Taillight, Backup lights, H/light, Fog lamp

Steering Servo
Case Size: 5g regular servo
Torque: 0.5kg

Gear shift servo
Case Size: 5g regular servo
Torque: 0.5kg

What's Included

• Snow-Leopard 2405
• The vehicle with SCR and motor
• 2.4GHz transmitter
• Operation Guide
• Body sticker (complimentary, non matching)
• 350mAh, 7.4V Lipo battery
• USB charger

Needed To Complete

• Battery for transmitter: 4 × 1.5V, AAA lkaline battery
