SAVOX 'HV' STD SIZE ULTRA TORQUE 35KG/0.11S@7.4V-UPDATED

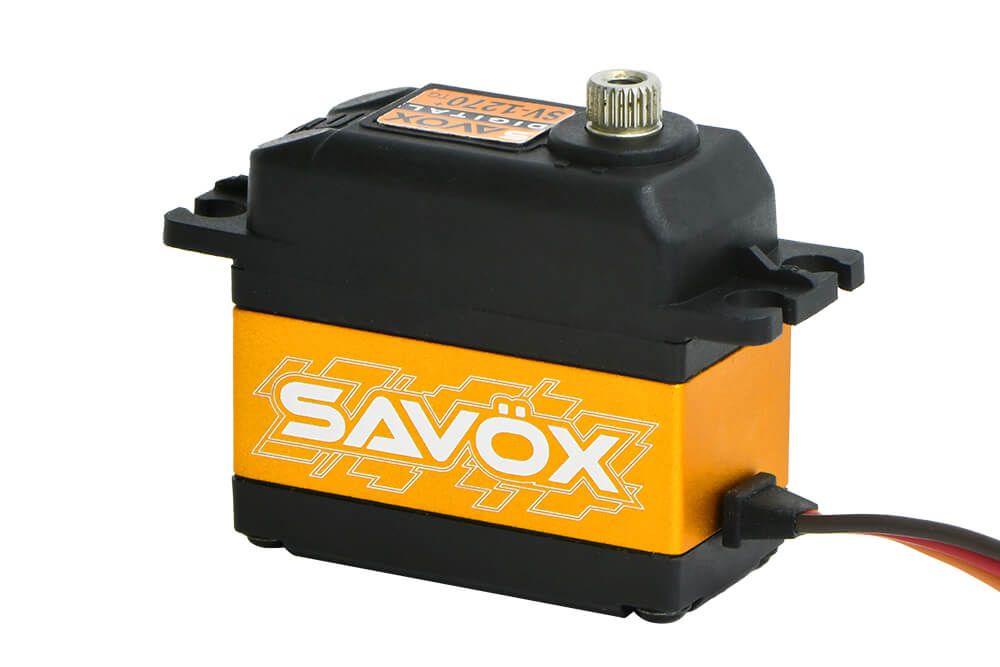

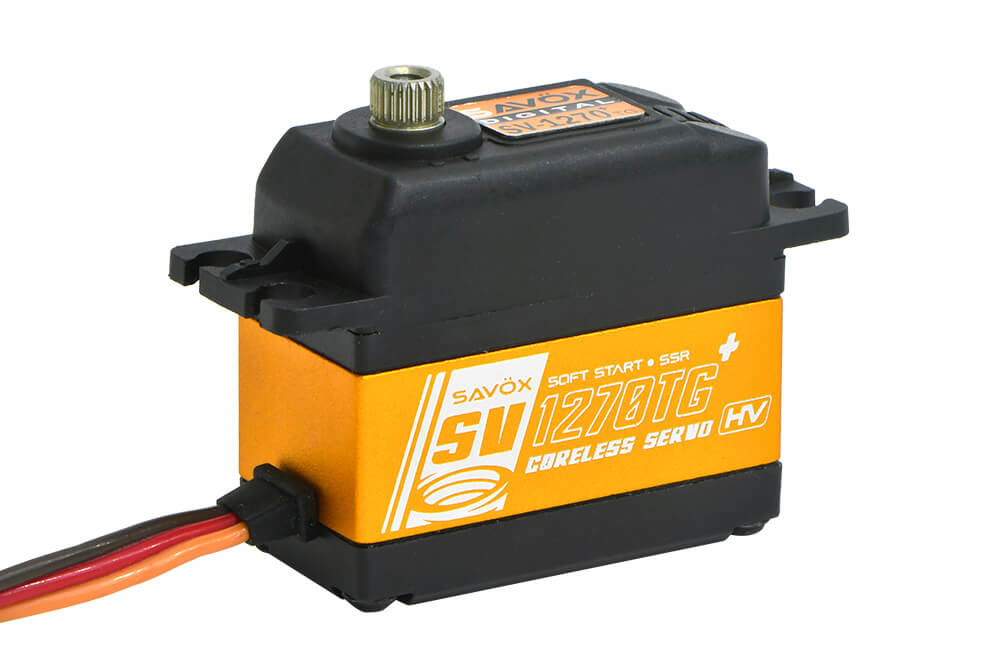

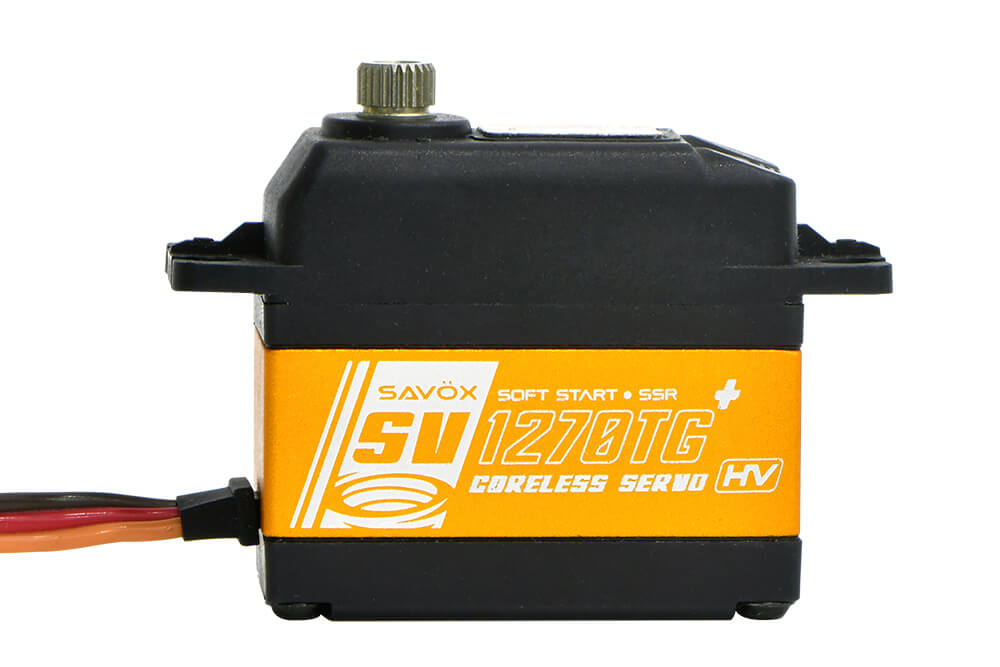

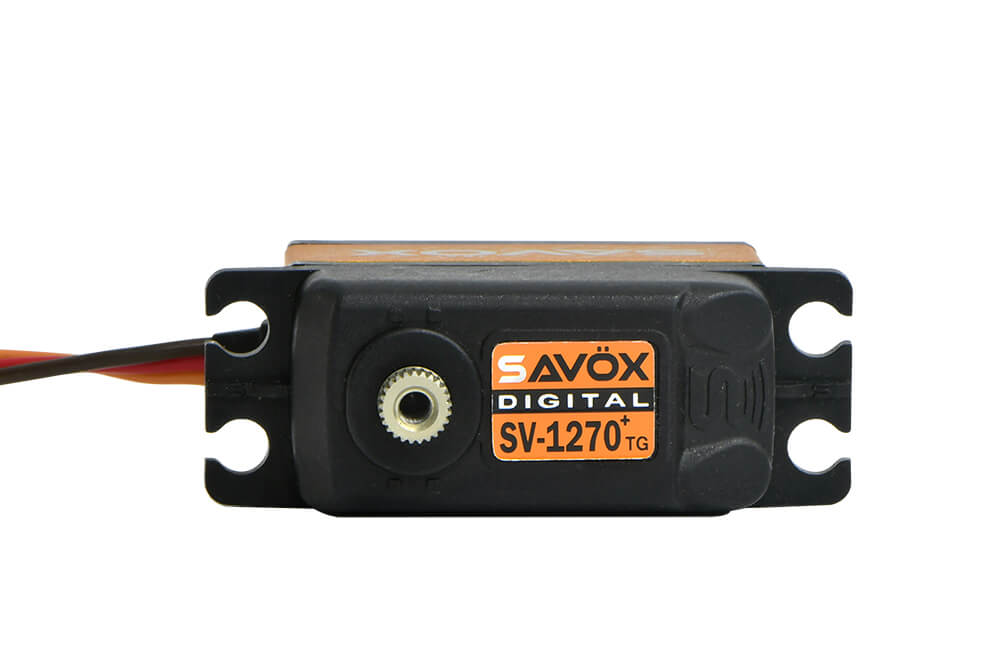

The Savox SV1270TG+ Digital High Voltage 'Monster Torque' Titanium Gear Servo is totally green - from materials to production, these servos are environmentally friendly. Ideal for large-scale airplane, jet, and 1/5th scale surface.

Features

• Extremely powerful for its size pushing up to 45kg-cm of torque.

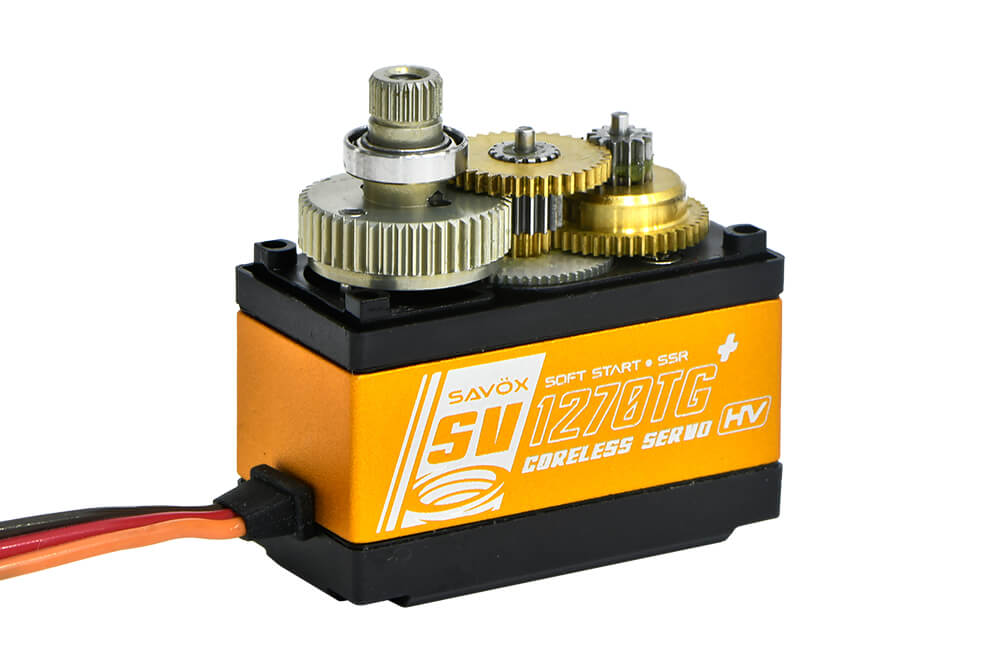

• Super strong and precision made titanium gears provide high level of durability that will survive heavy use.
• Coreless motor brings output performance to the top level – smoother, faster, and more efficient.
• Special design for high voltage 2s LiPo operation.

Specifications

• Dimensions (mm): 40.3 x 20.2 x 37.2
• Weight (g): 56
• Speed @6.0V (sec/60): 0.14
• Torque @6.0V (kg-cm): 30
• Speed @7.4V (sec/60): 0.11
• Torque @7.4V (kg-cm): 40
• Speed @8.4V (sec/60): 0.1
• Torque @8.4V (kg-cm): 45
• Gear: Titanium & Aluminium
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
