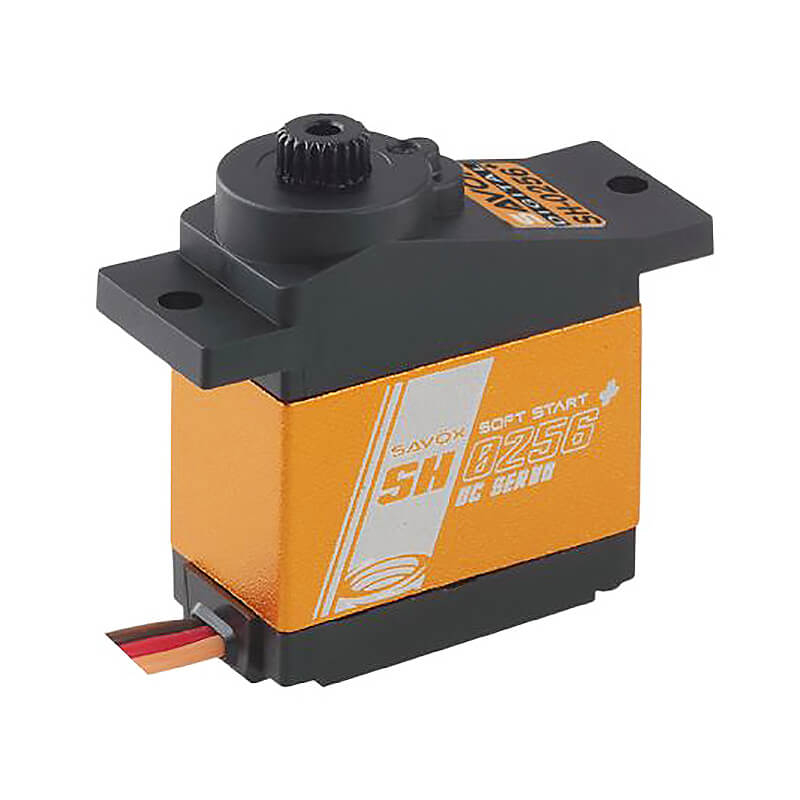

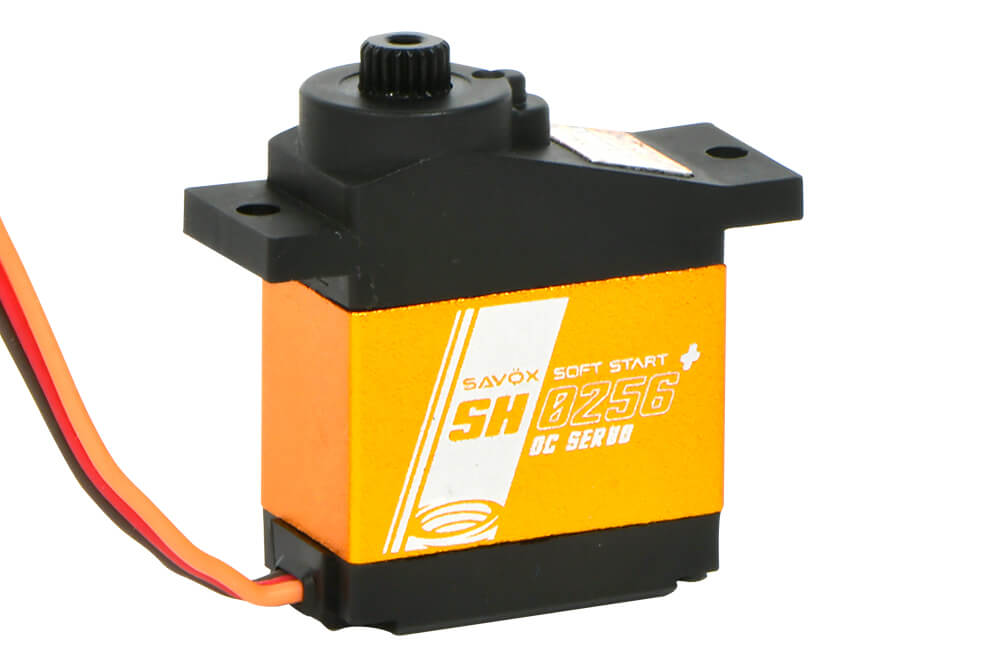

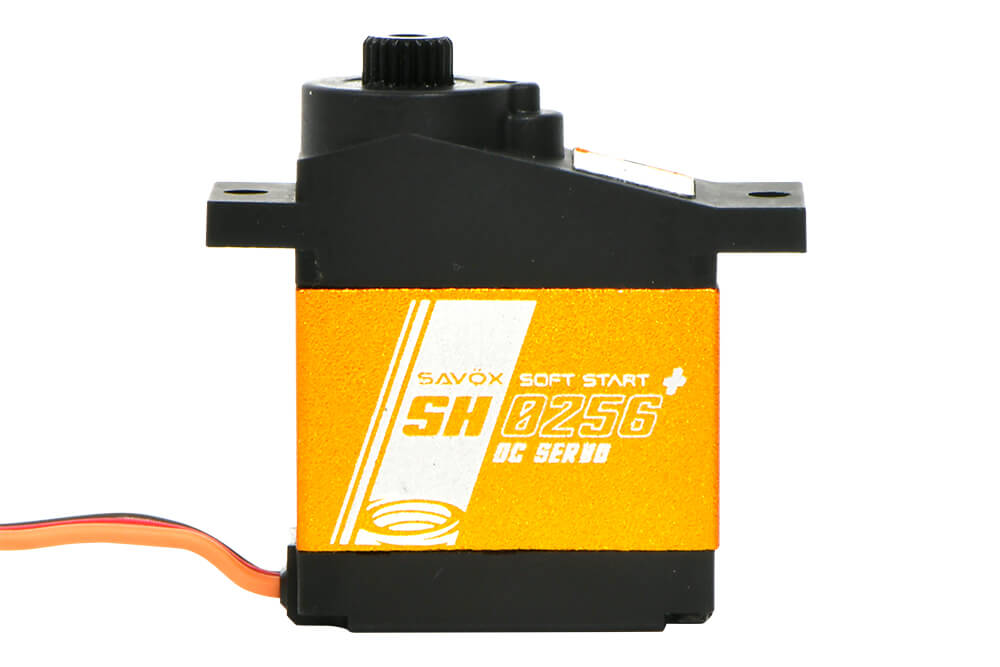

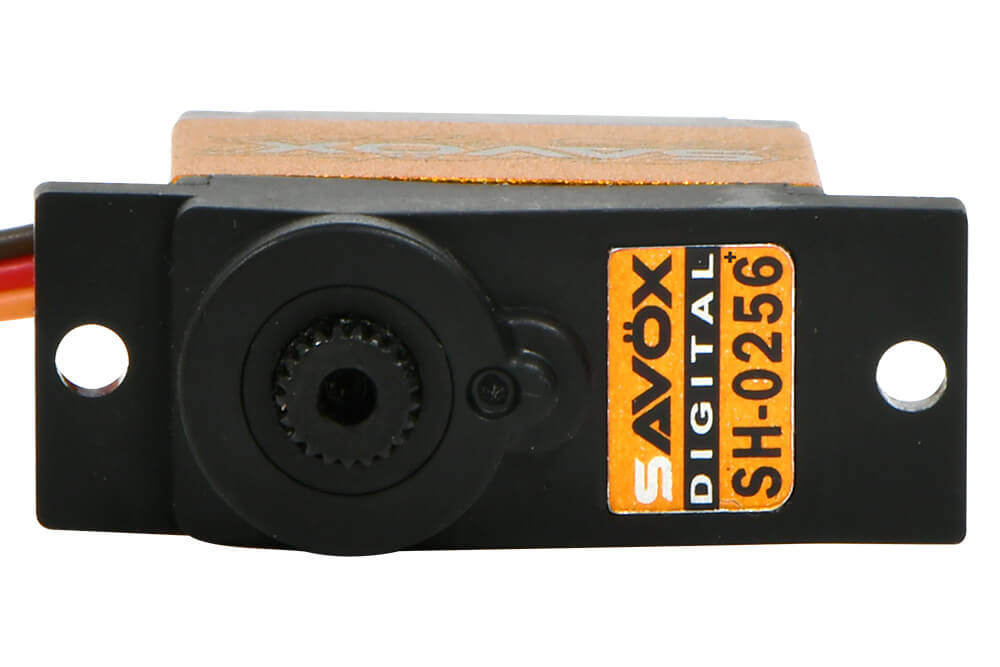

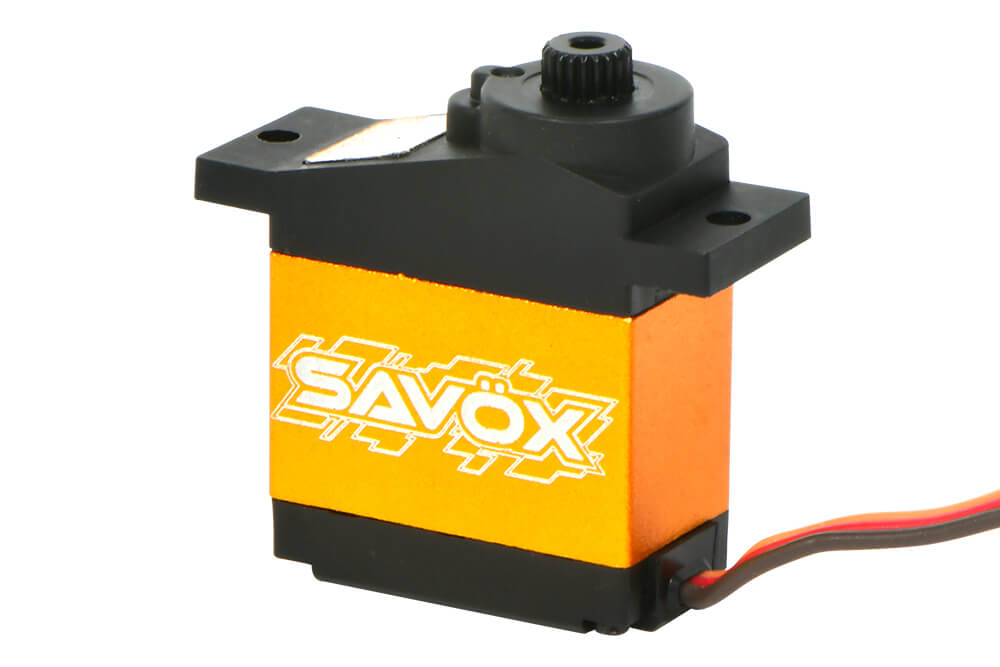

SAVOX MICRO SIZE DIGITAL SERVO 4.6KG@6V (HELI & PARKFLY) PLUS

Micro size digital servo - Refined design brings out extraordinary performance. Idea for CCPM and Rudder on 450 level heli and Park Fly Airplanes.

Features

• Over-spec refined design overturns output limitation of ordinary micro size servo.
• The metallic body design not only exudes an exquisite style but helps the operating to stay cool and smooth from the beginning to the end.
• Production and quality control of plastic component in our servos follow the standard of branded digital camera.

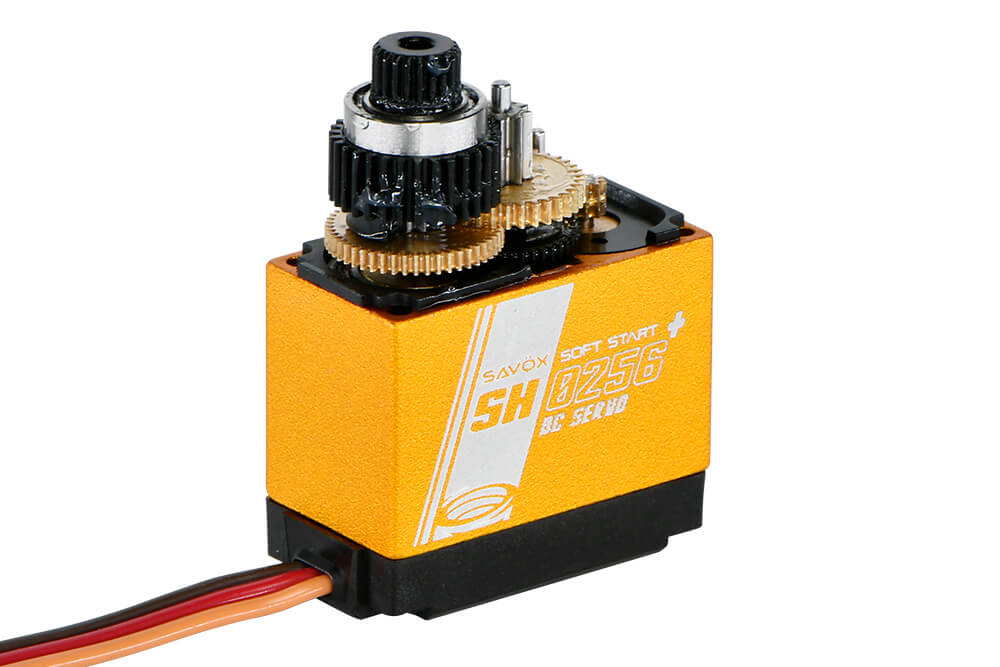

• Professional and exquisite design and made gears form as the solid framework of our servos. Our design will make Crumbled Gear history.
• Totally Green from material to production, our servos are environmentally friendly.

Specifications

Dimensions(mm): 22.8X12.0X29.4
Weight(g): 15.8
Speed(@4.8V sec/60): .21
Torque(@4.8V oz-in): 54.2
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 63.9
Gear: Metal & Plastic
Bearing: 1BB
Case: Aluminum
Spline: 21 Tooth Spline
Frequency: 200-250hz
Pulse Width Frequency: 1520
