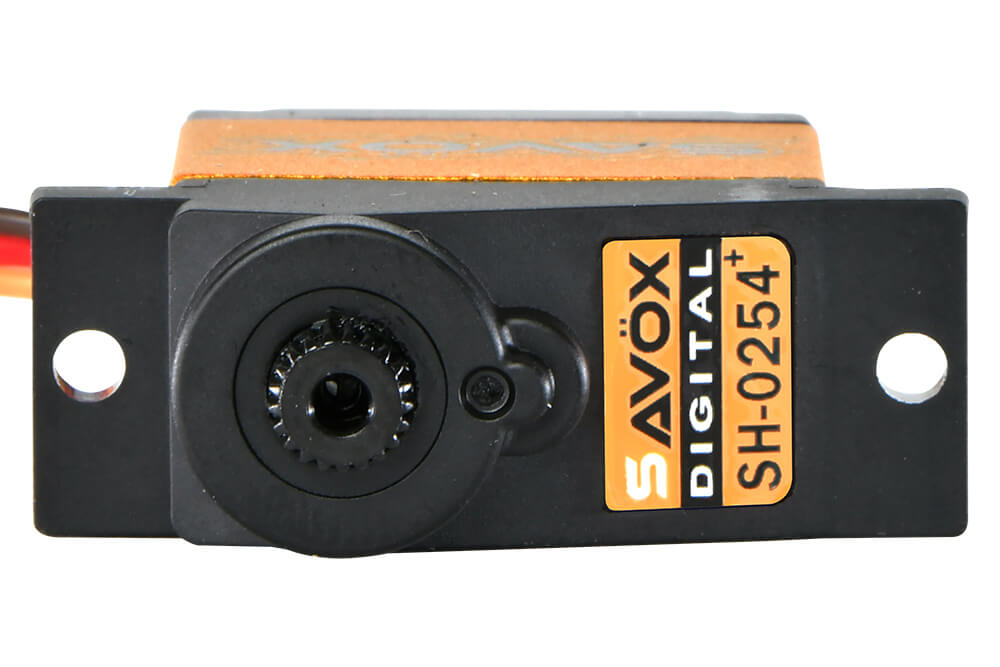

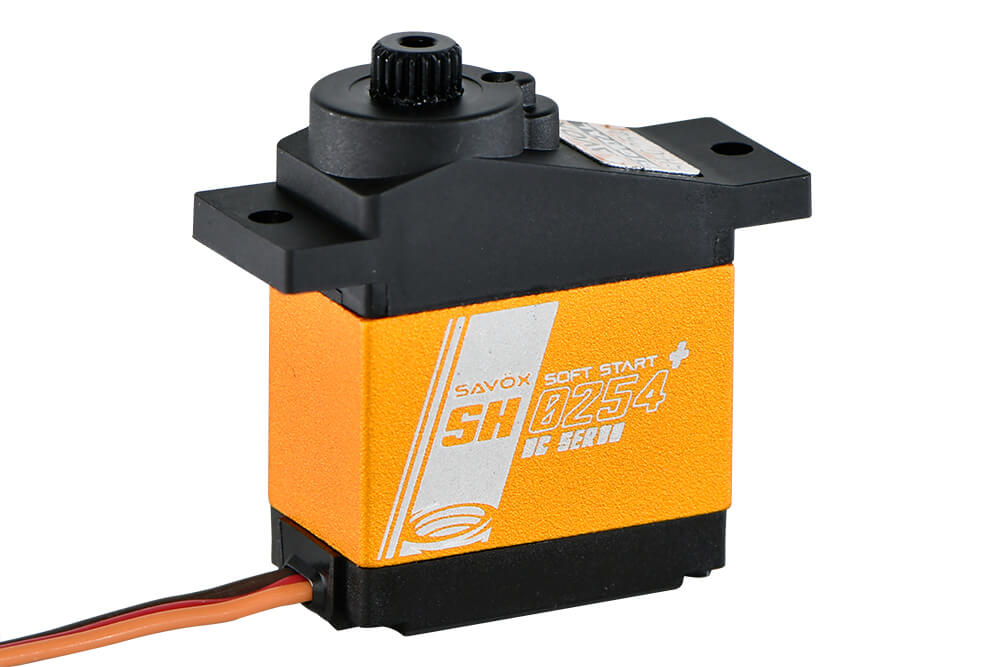

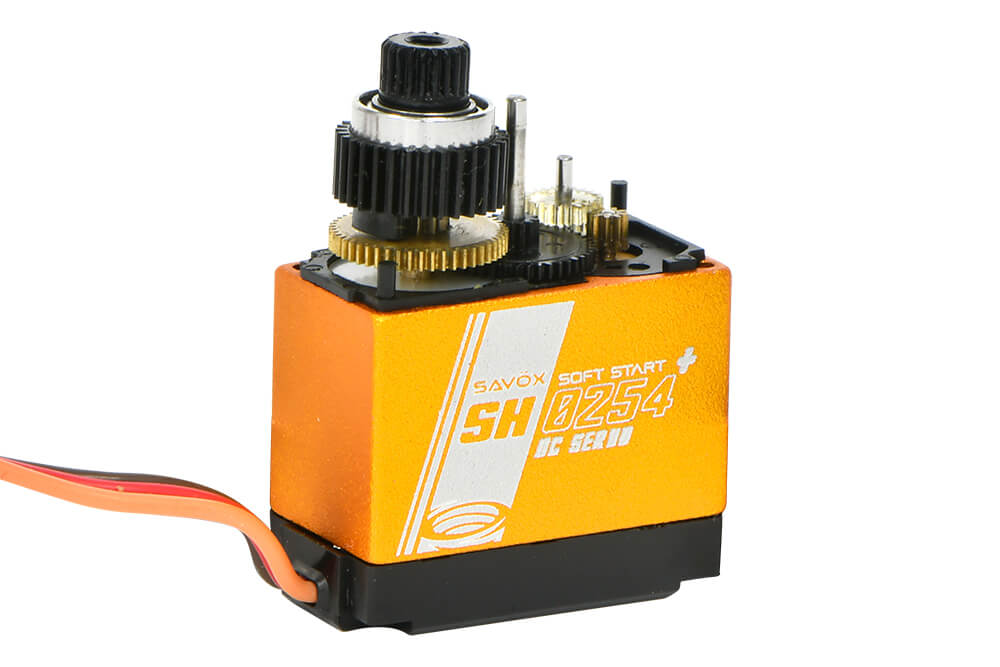

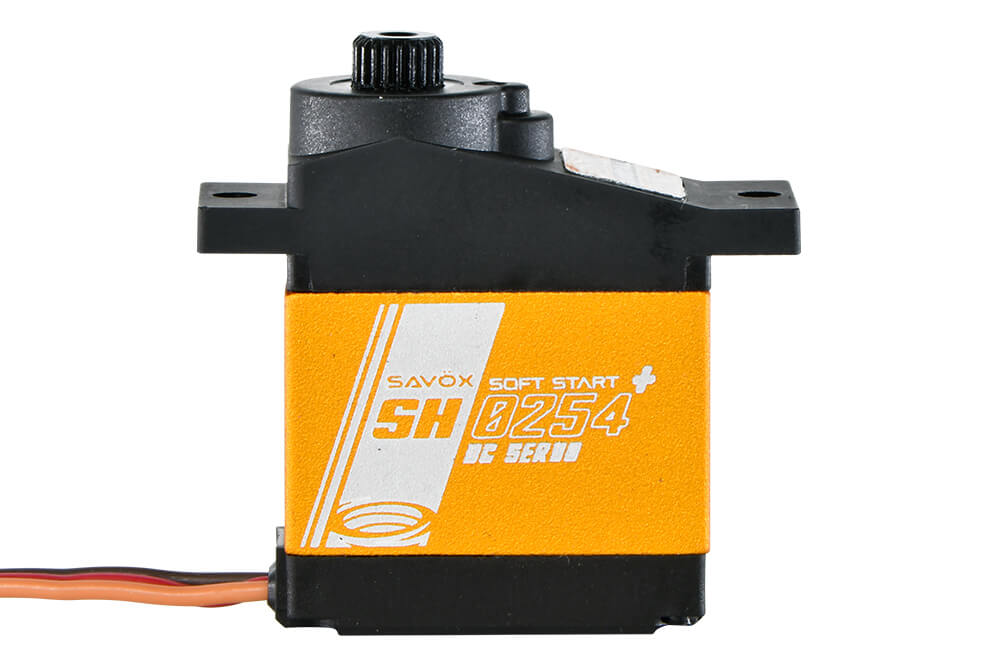

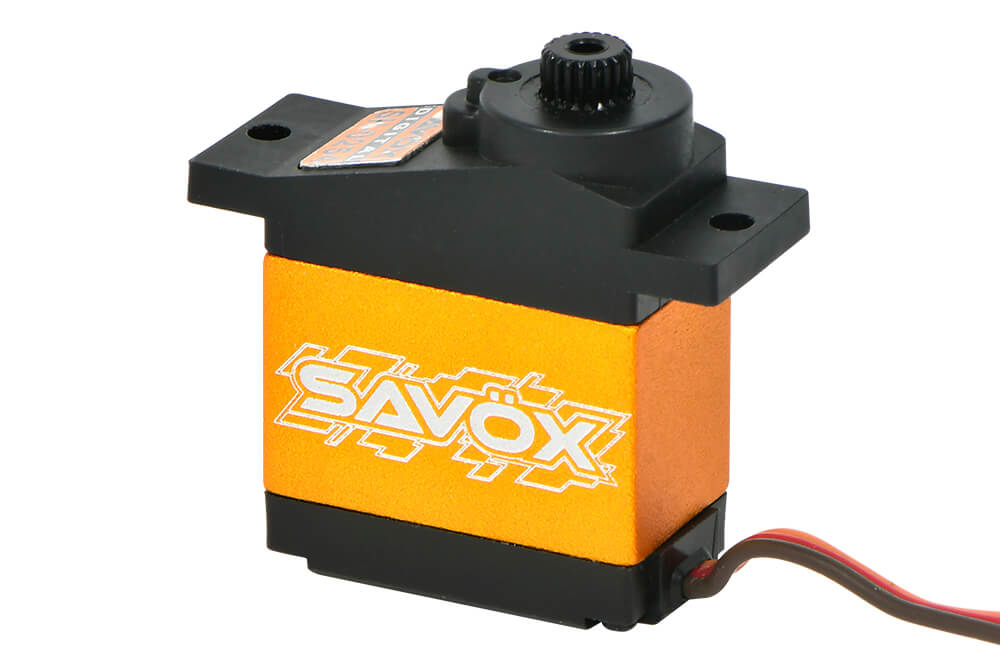

The servo SH0254+ is a micro digital servo with DC motor, 1 ball bearing and plastic gears. It can be used in helicopters, and airplanes, for example as swash plate servo for small helicopters. The delivery includes the servo as well as the servo arms and the mounting screws.
Scope: Airplanes, helicopters
Classification: Micro
Driving: Digital
High voltage: No
Ball bearings: Yes (one)
Gears: Plastic
Case: Partly metal
Length : 22.8 mm
Width : 12.0 mm
Height : 29.4 mm
Weight : 15.8 g
Input voltage : 4.8 - 6 Volt
Torque at 4.8V : 31 Ncm
Speed at 4.8V : 0.16 sec/60°
Torque at 6.0V : 39 Ncm
Speed at 6.0V : 0.13 sec/60°
Motor: DC
Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
