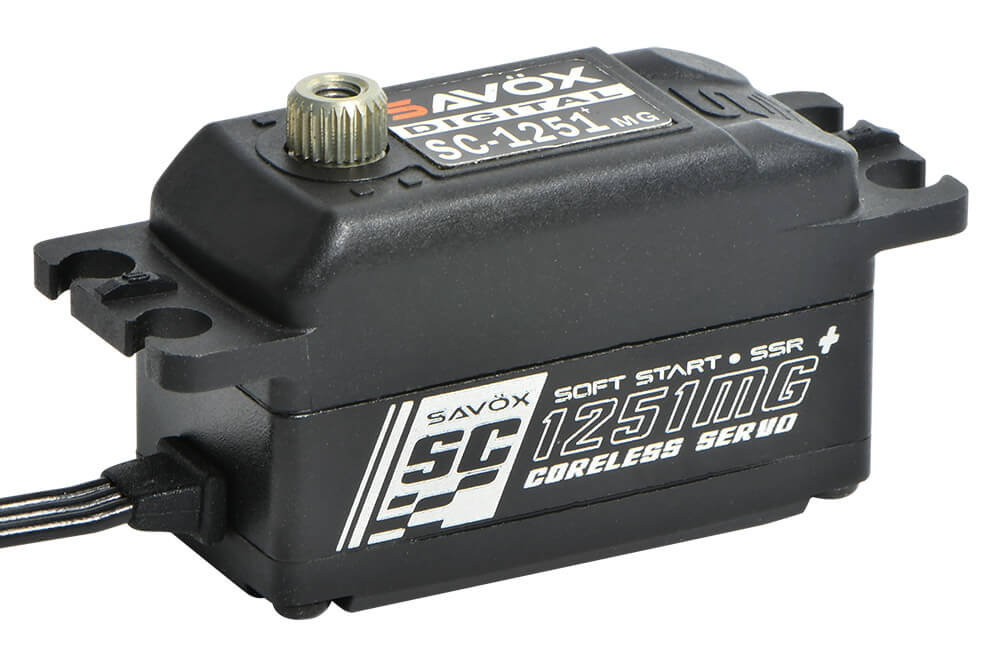

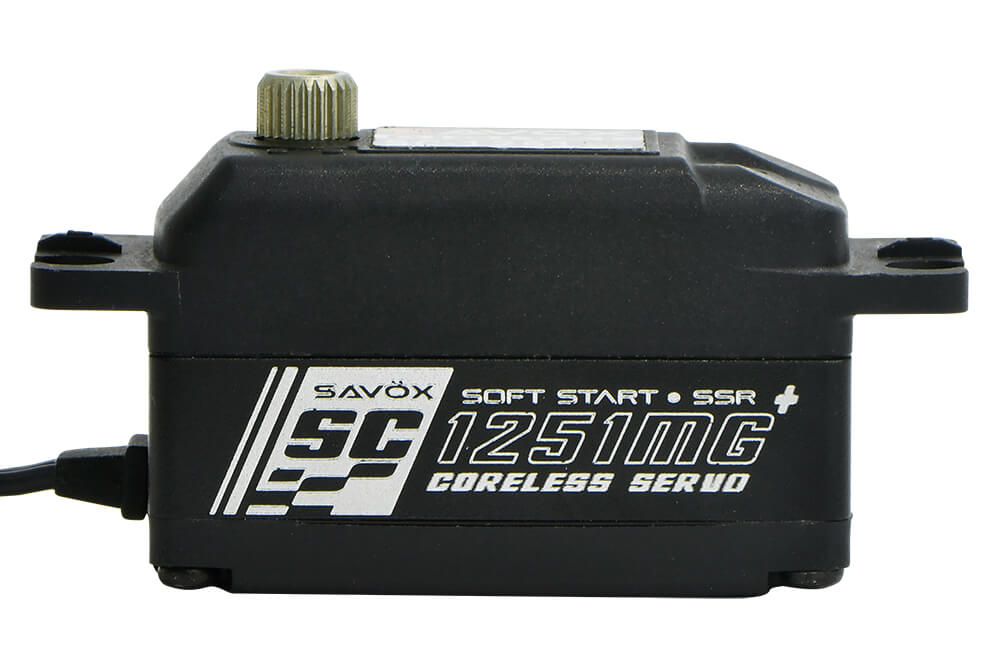

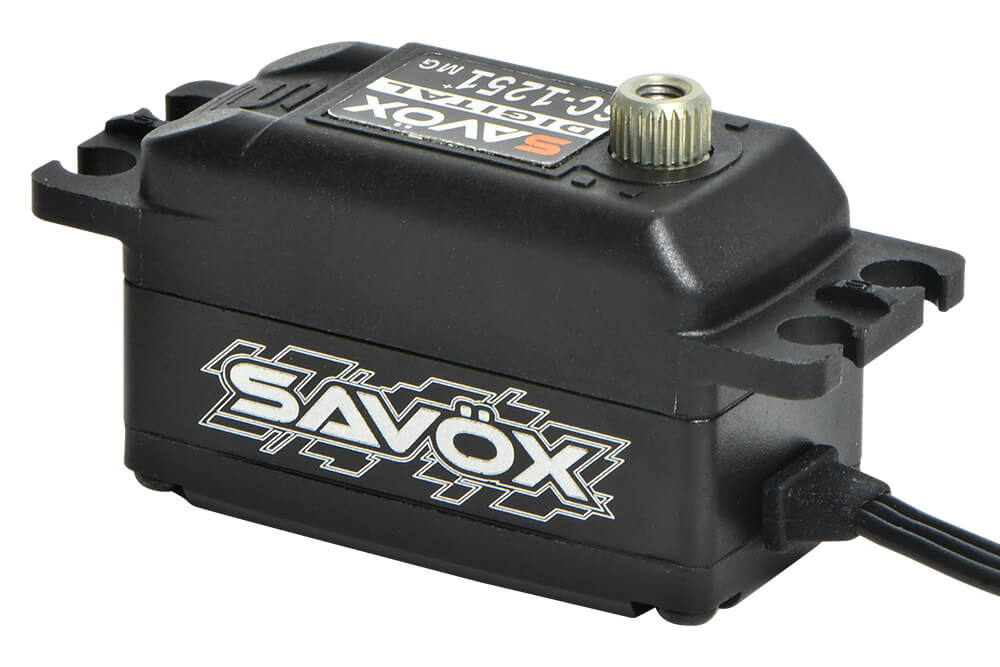

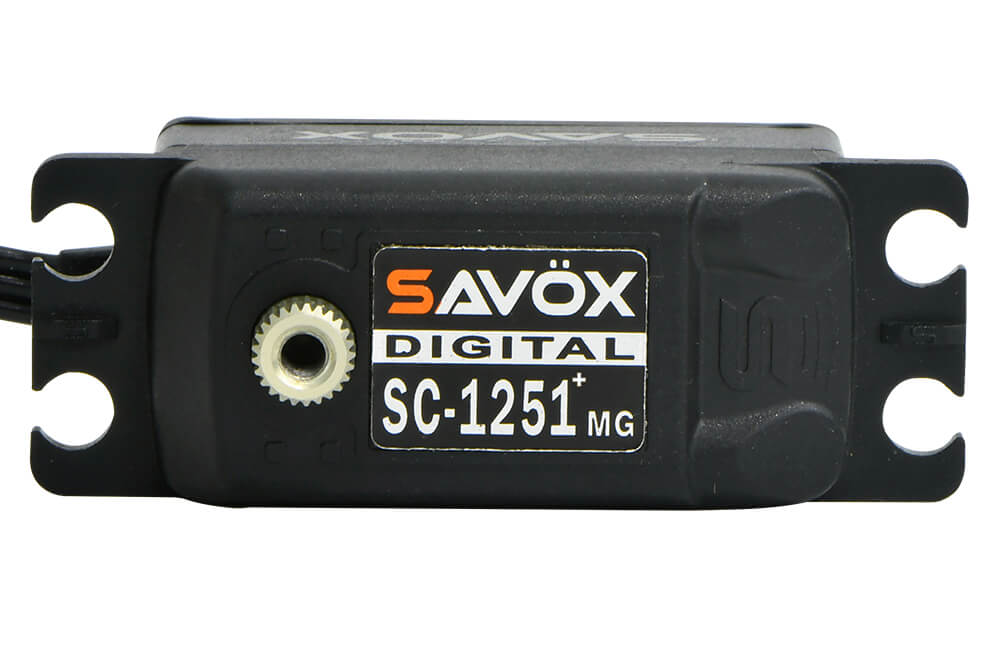

SAVOX DIGI LOW PROFILE SERVO 9KG @ 6V -BLACK EDITION - PLUS

Savox have listened to racers requests and released this Limited Edition range of ‘Black Edition’ servos primarily aimed at r/c car racers. With many race vehicles now sporting a stealthy all black appearance ranging from the moulded components, carbon chassis and black aluminium accessories racers have been looking to continue the theme with their electronics.

Savox have taken this onboard and released six servos from their range featuring a sleek black aluminium centre case with laser etched details, as well as a shorter 80mm long all black leaded wire.

When space is an issue or you are trying to get the perfect balance the reduced size and weight of the Low Profile servos makes a perfect fit. Limited space in large scale gliders or space saving size in 1/10th sedans modern ultra narrow chassis designs makes this servo a winner for users in these markets.

Features

• Black aluminium centre case.
• Shorter 80mm all black leaded wire.
• Combines leading edge technology with super high 12 bit (4096) resolution.
• Super light-weight.
• Coreless motor provides high speed, incredible efficiency, and low power consumption.

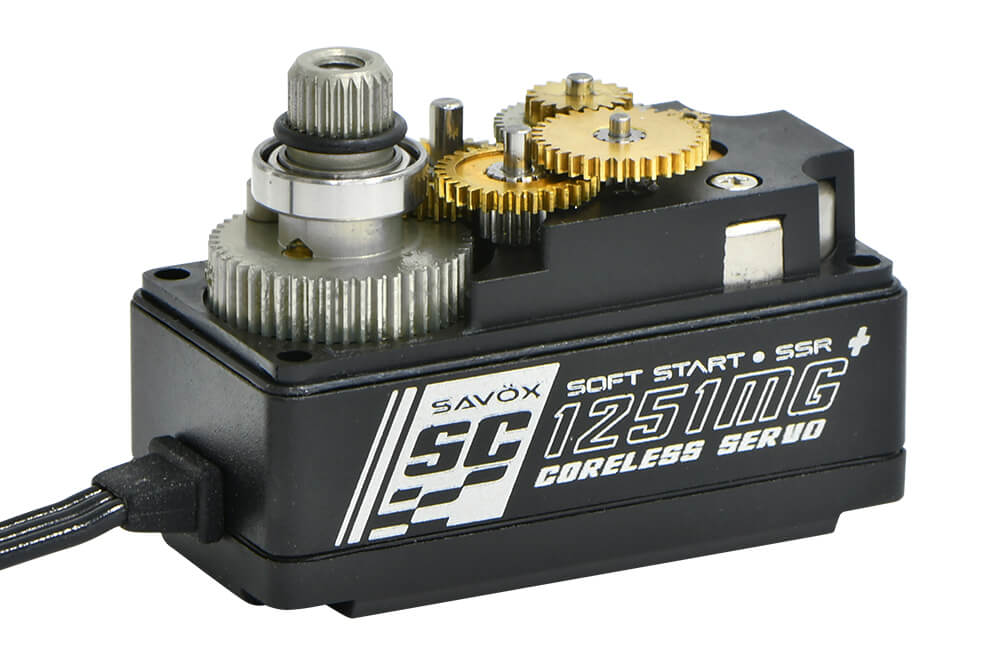

• Metal gear train ensures durability under harsh situations.
• The case design not only looks good but also allows for cooler operating temps.
• Ideal for 1/10 on road vehicles

Specifications

• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 44.5g
• Torque @ 4.8v: 7.0kg/97.2oz-in
• Torque @ 6v: 9.0kg/125.0oz-in
• Speed @ 4.8v: 0.10 sec/60 deg
• Speed @ 6v: 0.09 sec/60 deg
• Servo Horn: 25 Tooth Spline

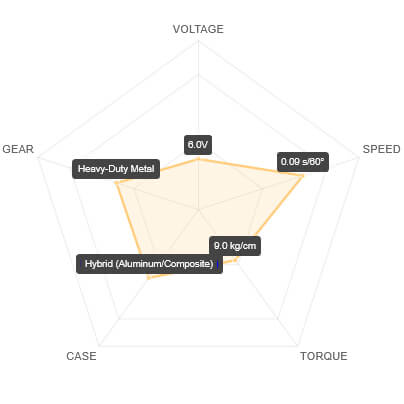

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

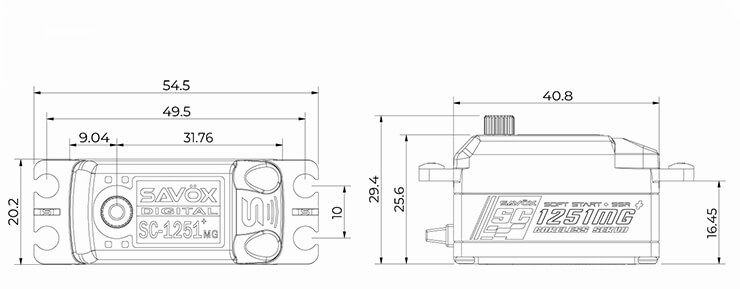

Dimensions
