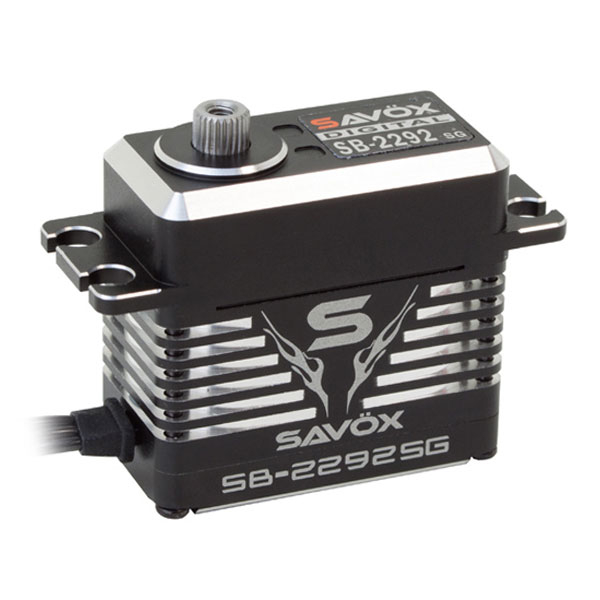

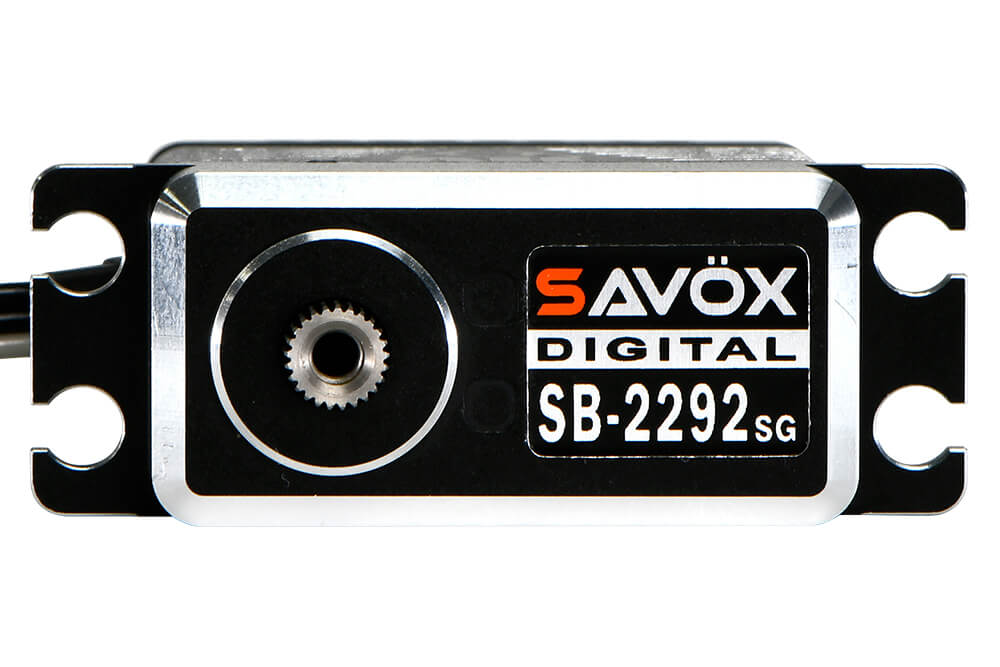

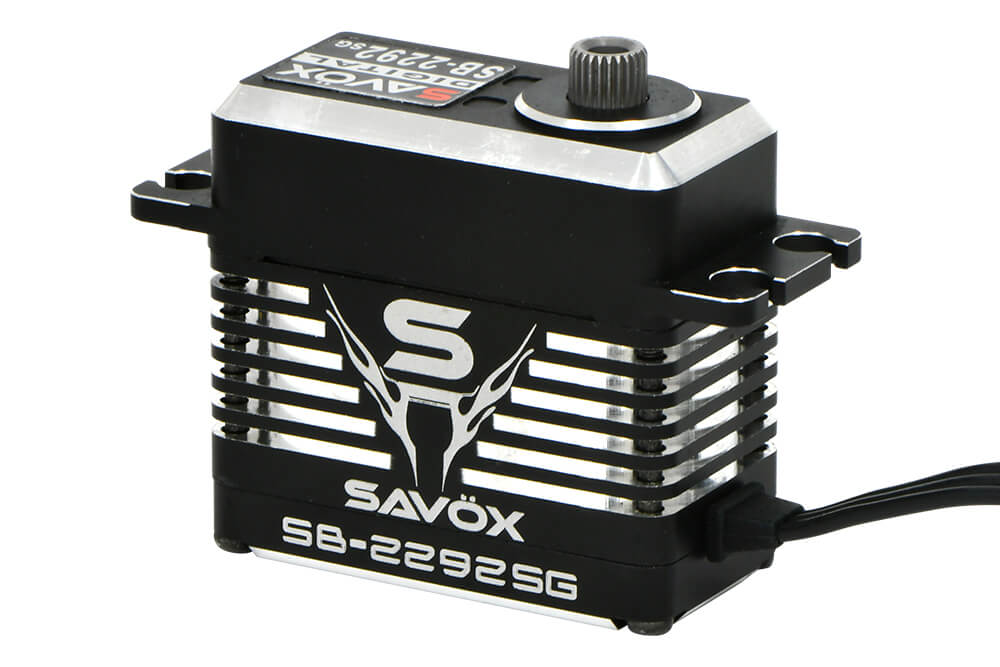

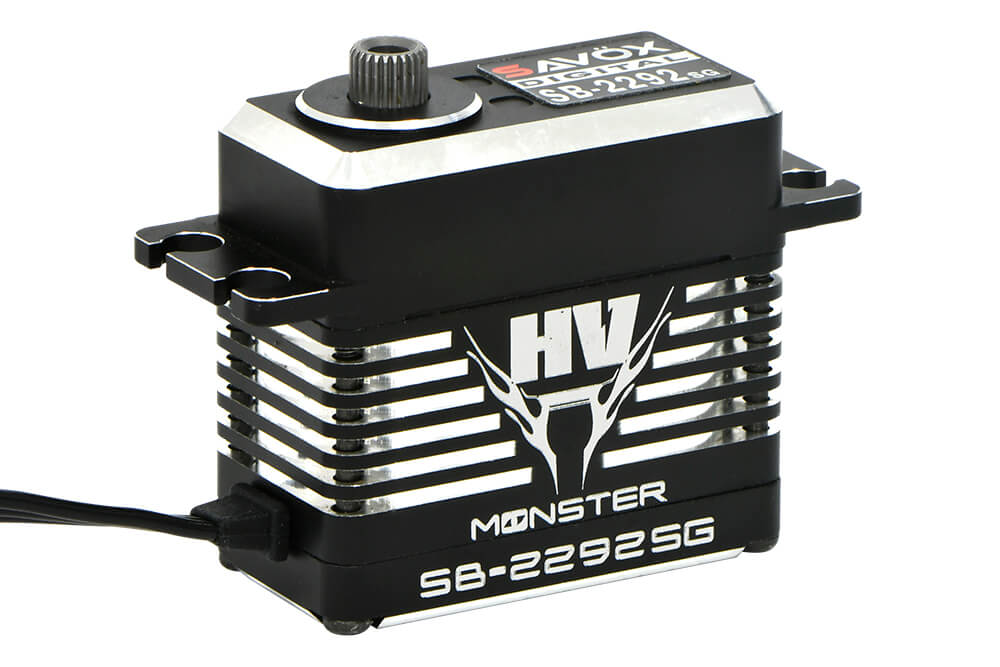

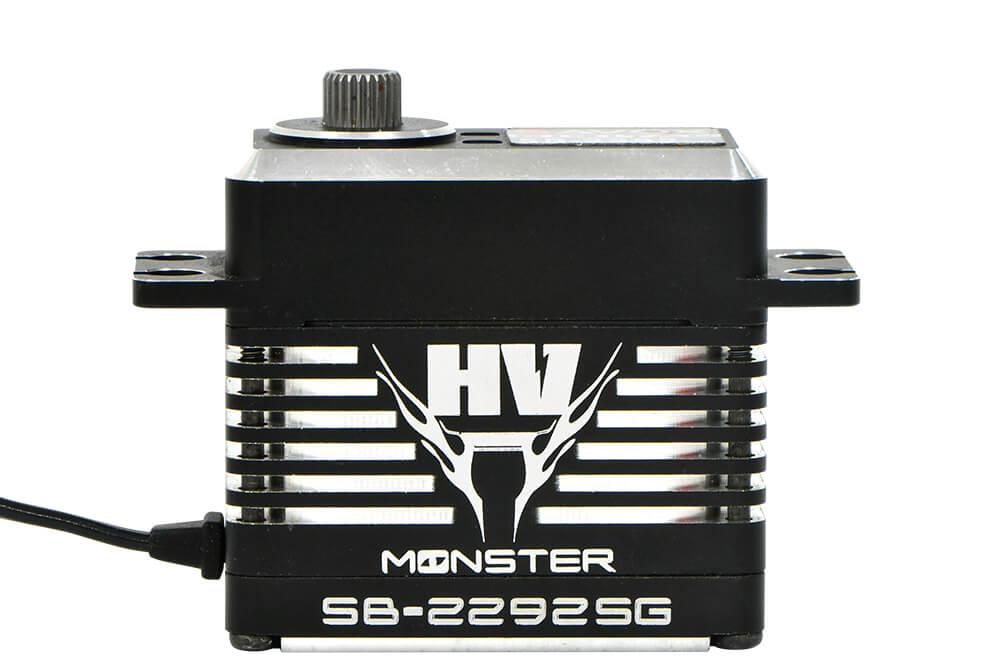

SAVOX HV CNC MONSTER BRUSHLESS SERVO 31KG/0.07s@7.4V

  • Part Number: SAV-SB2292SG
  • Brand: Savox
  • Availability: Very Low Stock
RRP : £134.99 Where To Buy?

Description

The powerful "Monster" performance series from Savox utilize an all aluminium case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features

  • Full Aluminum Case
  • 3 Precision Ball Bearings.
  • Unique Steel Gears

Specifications

Torque @ 6v: 22.0kg/305.5oz-in
Torque @ 7.4v: 31.0kg/430.5oz-in
Torque @ 8.4v: 45.0kg/624.9-in
Speed @ 6v: 0.085 sec/60 deg
Speed @ 7.4v: 0.07sec/60 deg
Speed @ 8.4v: 0.055sec/60 deg

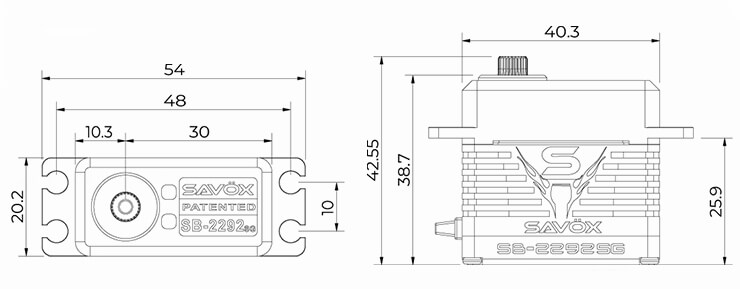

Dimensions: L x W x H mm: 40.3 x 20.2 x 38.7
Weight: 81g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
