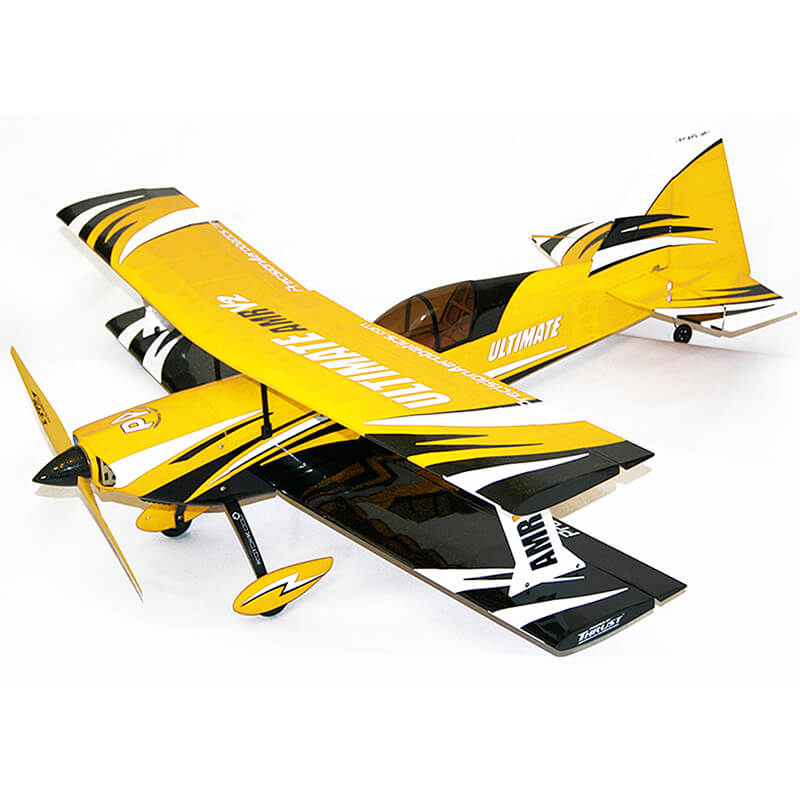

PRECISION AEROBATICS ULTIMATE AMR V3 - YELLOW

Ultimate AMR V3 – What’s New In This Version?

• More completed at the factory than ever before.
• Further refinements to our proven FiberFusion construction for even greater strength and lighter weight.
• Optimised internal layout for improved balance and flight efficiency.
• Factory-glued motor box ready for fast motor installation.
• Clear canopy for a clean, modern look.
• Secure mechanical hatch latch system , no magnets.
• Optimised linkage geometry to maximise servo efficiency and control authority for aggressive flight.
• Factory pre-installed and sealed aileron hinges.
• Elevator/stabiliser ready for installation (fully pre-hinged and hinge gap is sealed).
• Factory-glued rudder hinges for quick and easy tail installation.

If you demand high performance precision flying, high energy 3D/freestyle aerobatics, extremely light and rigid Biplane, the Ultimate AMR is the machine of choice for you.

Forget what you have heard about bipes..Hard to handle? Stalls easily? a handful to land? well certainly not with this one. Many months of design, testing and experimentation brought about this exceptional model.

The new Ultimate AMR features the revolutionary FiberFusion® construction making it the lightest electric built up Biplane produced to date in this size – about 38.45oz ready to fly (!) yet is rigid enough to withstand the most extreme high energy maneuvers we know you will be tempted to try!

FiberFusion® is an engineered construction method, combining carbon fibre, balsa and ply in a way never seen before, utilizing the strengths of the fibres within each raw material, with the end result being lighter, stronger, more rigid aircraft that fly like nothing else!

The Ultimate AMR is easily transportable and will fit in any backseat of a car without the hassle of removing the wings. The wings are still removable for convenience of storage if desired.

Many months of testing and experimentation led to the design of a new airfoil specifically created for this airframe in order to achieve the pre-determined performance we had set. The unique aileron design enhances aerodynamic airflow and control efficiency. To complement the Ultimate AMR performance and CG – we had to design a new brushless motor the PA Thrust 45 Revo. The combination of the AMR unique design, exclusively designed airfoil, and our new Thrust 45 Revo motor gives the feel of flying on a 4S pack with unlimited vertical performance although it is only using 3S 2200mAh Lipo pack, without making any compromises on any maneuver or on flight duration and without having to make a costly investment in expensive battery packs essential on other heavier biplanes!

The PA Ultimate AMR is built using finest grade material, all cut by state-of-the-art laser and CNC machines and pre-assembled by our own skilled factory staff. In order to attain uniform performance for each and every model produced, we produce the planes on highly precise jigs. Each set of wings are matched individually to each fuselage (this is something most factories don’t do even in giant scales production).

We assemble each airframe before shipping to ensure wing incidence, alignment and fit. All you need to do is bolt on the wings.

The ailerons (as well as the stab/elevators) are already pre-hinged with the gaps sealed and as such assembling the wing is quick and easy.

We have thoroughly researched full size Ultimate versions as well as experimental modified aircraft and although you will not find a similar full size Ultimate, the PA Ultimate AMR is an extremely scale looking Ultimate with a unique PA touch.

Although the Ultimate AMR looks stunning on the ground, its performance in the air will be the one that will simply blow your mind. From quick paced high energy, jaw dropping aerobatics all the way down to slow graceful 3D, the AMR does it all and it really up to you to set the pace.

On high rates, the handling is crisp and lightning quick response. It will lock in Knife Edge at any angle of attack and at any speed. Both upright and inverted harriers (a disability in many other bipes) are stable and rock-free while the hovers are vertical and easy to control. Torque rolls are simply beautiful to watch and the 4 huge ailerons provide adequate authority to torque in the opposite direction on demand. As for the flat spins:- How’s flat for you?

On high rates the PA Ultimate AMR is an excellent tumbling machine able to perform extremely tight waterfalls, spins, violent snaps etc that is would make it a hot pilot’s dream come true. The lightning fast axial roll rate provided by the 4 huge ailerons coupled with the rigid construction of the airframe give the Ultimate AMR the ability to execute violent axial Knife edge spins, high speed blenders, lomcevaks and insane tumbles that will bring your excitement to a whole new level.

Although the Ultimate AMR is an unlimited 3D/Freestyle beast, switching the dual rates onto low rates sets it’s personality to smooth, precision IMAC or sports style flying you would get the distinct impression that it’s flying on rails. Rolls are axial, well balanced and could be easily performed slow and persistent. Long fast turns are very accurate and without adverse yaw or loss of attitude and beautiful straight lines. Four point rolls and eight point rolls are simply beautiful.

Worried about of landing? Forget what you have heard before about bipes. The PA Ultimate AMR is probably the easiest biplane to land. It practically lands itself at any speed without the risk of wing stall. It is easy to grease a landing without the need for speed or long runways. You can even land during a harrier.

In the words of the Ultimate AMR designer: This plane will challenge you and allow you to perform many new maneuvers that other planes just don’t allow. It’s you getting used to the plane, squeezing the juice out of it that makes it so exciting.

In line with PA’s tradition, this fine model spells QUALITY from the design to the construction, the hardware and the level of finish – the attention to detail is second to none.

Available in three striking colours the Ultimate AMR looks simply awesome in the sky. The two wings allow easy orientation in flight.

This plane is nearly complete and has very little left for you to do:

• We assemble each airframe before shipping to ensure wing incidence, alignment and fit. All you need to do is bolt on the wings!!
• Wings and ailerons are pre-hinged and sealed in the factory!
• Horizontal stabiliser and elevator are pre-hinged and sealed in the factory!
• CNC machined CF cabane and struts tabs are pre installed in the wings accurately in the factory.
• CA hinges already pre-glued on the rudder side.
• Horizontal stabiliser with the elevator pre-hinged and sealed.
• Fibreglass cowling is pre cut and is reinforced with carbon fibre. Its aerodynamic design allows air to flow in and cool the motor, battery and ESC for maximum setup efficiency. Two air scoops are also included in the kit.
• Prefabricated and pre-painted clear canopy and hatch as one integral unit attached to the model with a spring loaded hatch latch.
• Pre-drilled robust Carbon Fibre landing gear and pre-installed blind nuts in the fuselage for quick installation.
• Pre-installed motor box – no glue required! / correct thrust angles already built in (taking away the guess work).
• Pre-drilled FiberFusion® firewall is ready for Thrust 45 Revo motor installation.
• Pre-cut painted fibreglass wheel pants .
• Supplied with ball links and carbon fibre pushrods for zero slop and maximum accuracy.
• Pre-drilled Carbon fibre control horns.
• Pre-installed battery and RX Velcro fasteners.
• Pre-assembled tail wheel.

The brief assembly is a joy and most modellers will have it set up in one evening in-spite of the two wings! We have also included a deflection gauge to ensure precise control deflection is easily achieved to attain the designed handling characteristics.

Features

• Airfoiled vertical stabiliser.
• Will fit in the backseat of your car without the need of removing the wings!
• All new Fiberfusion® technology.
• The lightest Biplane in its class (top performance and most economic set up!)
• Huge control surfaces.
• State of the art laser cut light ply, balsa and carbon fibre construction.
• 2 striking colour schemes to choose from.
• Top quality hardware kit.
• Easily accessible battery tray (no need to turn the model upside down to change the pack).
• Tail servos location to you choice (left or right).

Carbon Fibre Features

Our carbon fibre is imported from Japan and all parts produced in-house.

• CF FiberFusion® construction throughout.
• CF CNC machined wing cabane.
• CF heavy duty pushrods and aileron ganging rods.
• CF firewall locker.
• CF Leading edge.
• CF reinforced cowling.
• CF CNC machined battery tray.
• CF CNC machined control horns.
• CF pre installed elevator trailing edge reinforcement.
• CF reinforcement in the wing servo bays.
• CF quality pre-drilled landing gear.
• CF anti-rotation wing pins (pre-installed in the factory).
• Wings feature state of the art construction with double spar CF reinforced.
• CF CNC machined cabane and struts tabs (pre installed accurately in the wings).

Specifications

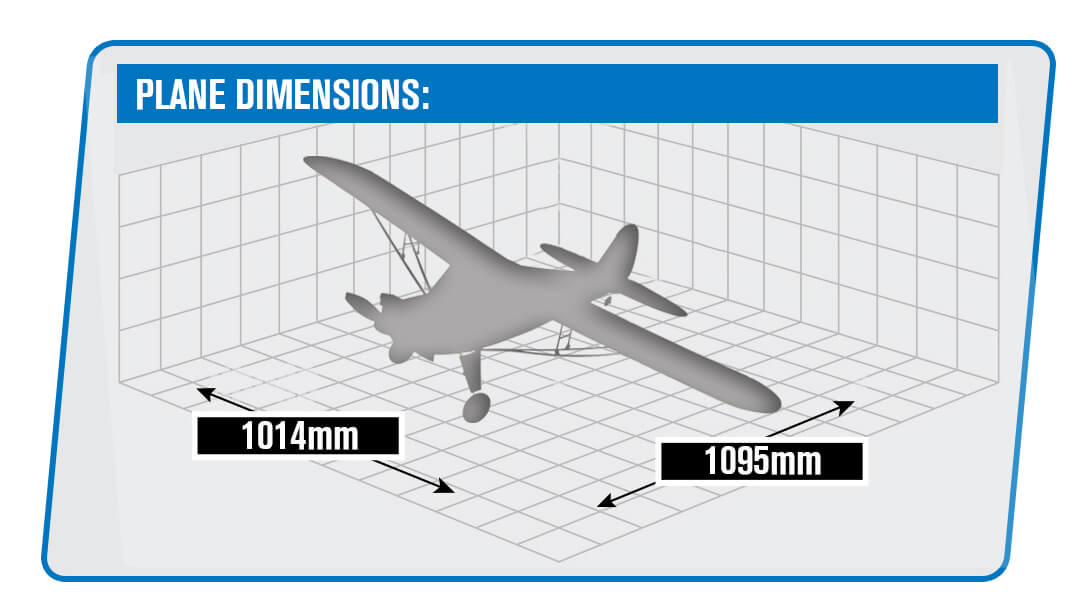

Wing span – 40 inch / 1014mm
Length – 43.08 inch / 1095mm
Wing area – 582.4 sq inch
AUW (ready to fly including battery) ~ 38.45oz / 1089gr
Wing loading – approx 9.5oz sq ft

Please Note: Vortex Generators and Carbon fibre spinner are not included in the kit.

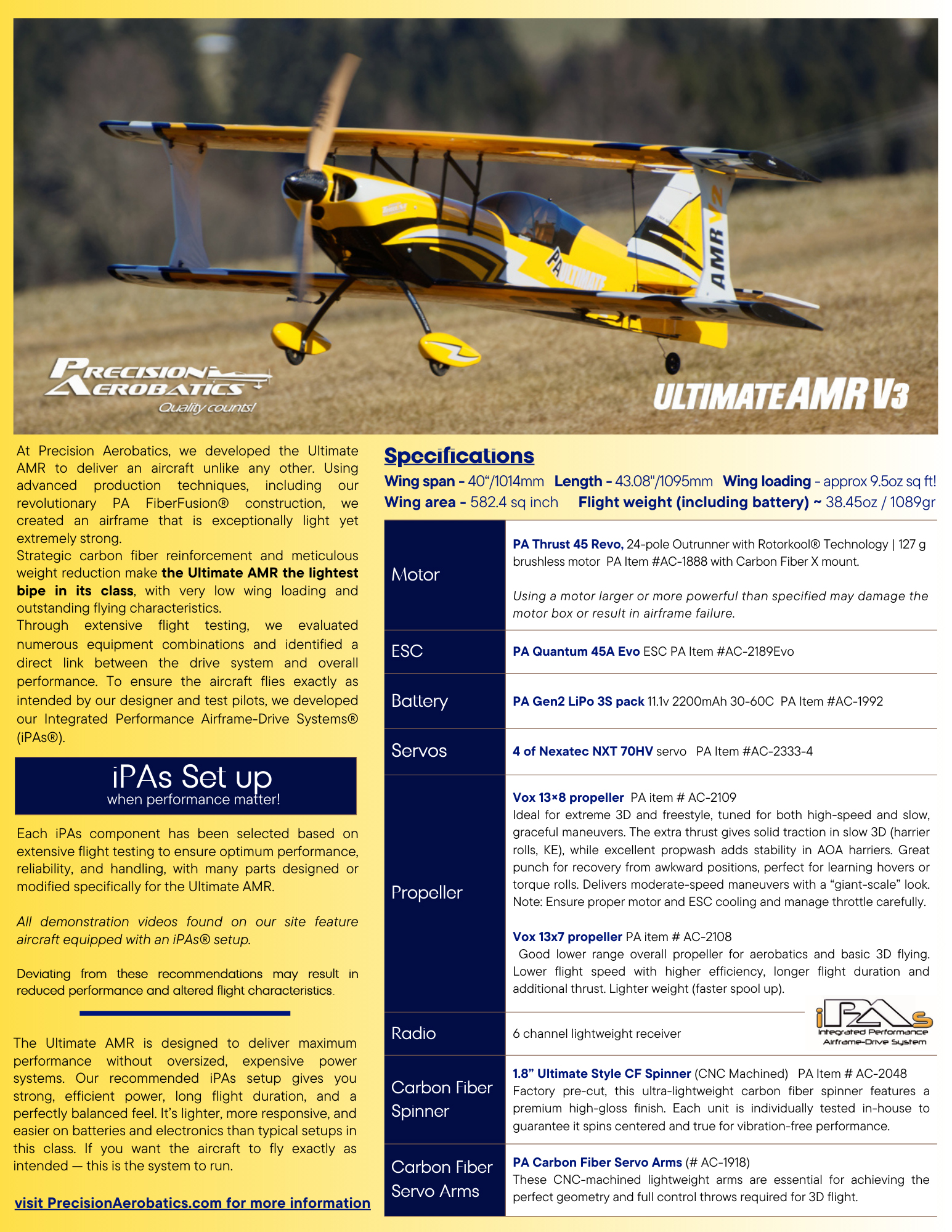

Required To Complete

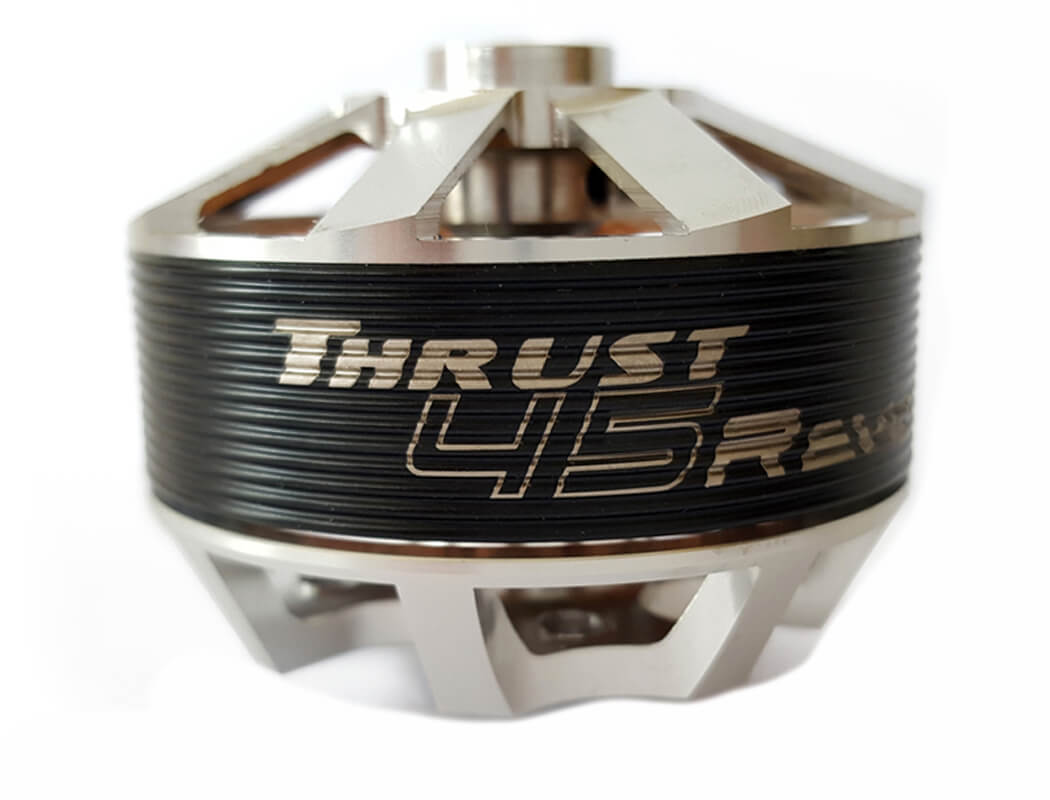

Motor: PA Thrust 45 Revo 24 poles outrunner motor.
ESC: PA Quantum 45A Evo ESC.
Servos: 4 Nexatec NXT 70HV servo.
LiPo: PA Gen2 11.1V 2200mAh.
Prop: VOX 13×8 or 14×7 wooden.

Optional Upgrades

• CNC machined carbon fibre Ultimate style spinner (super lightweight specially designed for the Ultimate AMR).
• CNC machined carbon fibre servo arms for full deflection and correct linkages geometry.
