HOBBYWING QUICRUN COMBO ESC G2 WP10BL60/3652SL 3250KV G2 MOTOR

QUICRUN 3652 SL Brushless G2 Motor

Features

• Explosive output power - 10% increase in maximum output power.
• Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
• Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
• Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
• The QUICRUN 3652 SL brushless G2 motor is ideal for off-road or on-road hobbiests, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
• QUICRUN motors feature an explosion-proof rotor design with reinforced aluminium end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
• This QUICRUN 3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminium, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200°C high-temperature-resistant enameled wire for strong performance and longevity.
• The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.

Specifications

KV: 3250kv
LiPos: 2S-3S
No-Load Current (A): 4.0A
Diameter / Length (mm): ø=36mm (1.42") L=52mm (2.05")
Shaft Diameter / Length (mm): ø=3,175mm (0.13") L=15mm (0,59")
Bearing Size (mm):
Front: D13*D5*T4
Rear: D13*D5*T4
Poles: 4
Weight (g): 223g
Application: 1/10On-Road / Buggy / Truck (light Load)

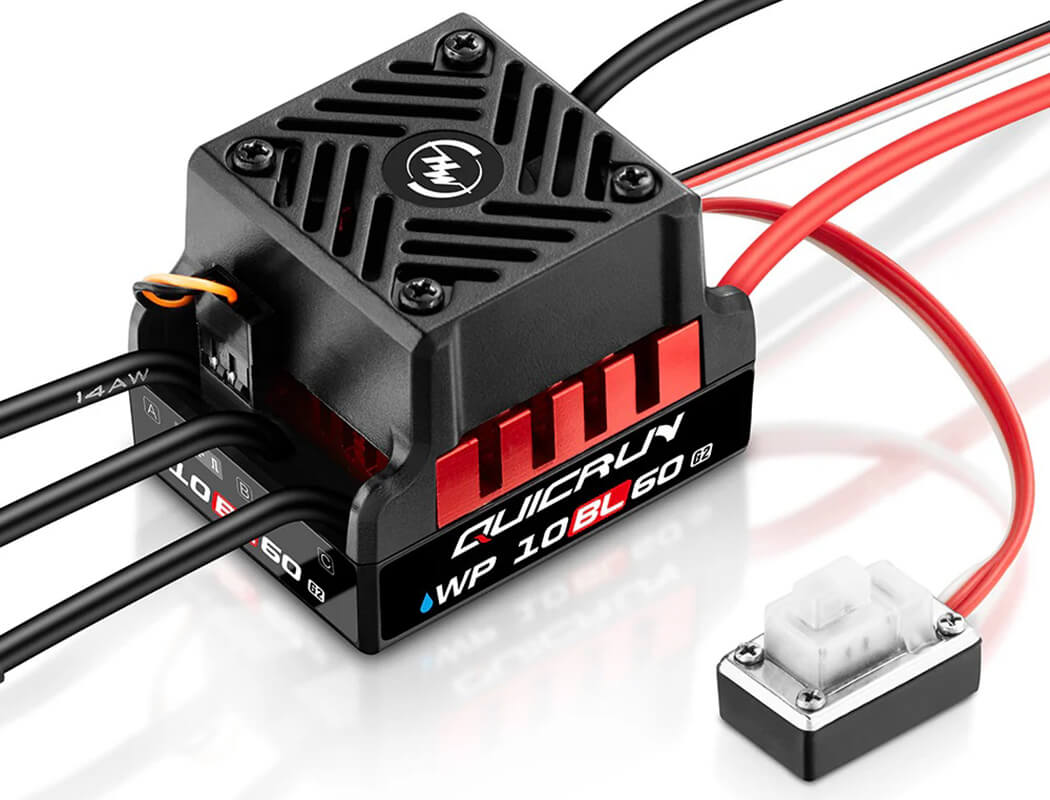

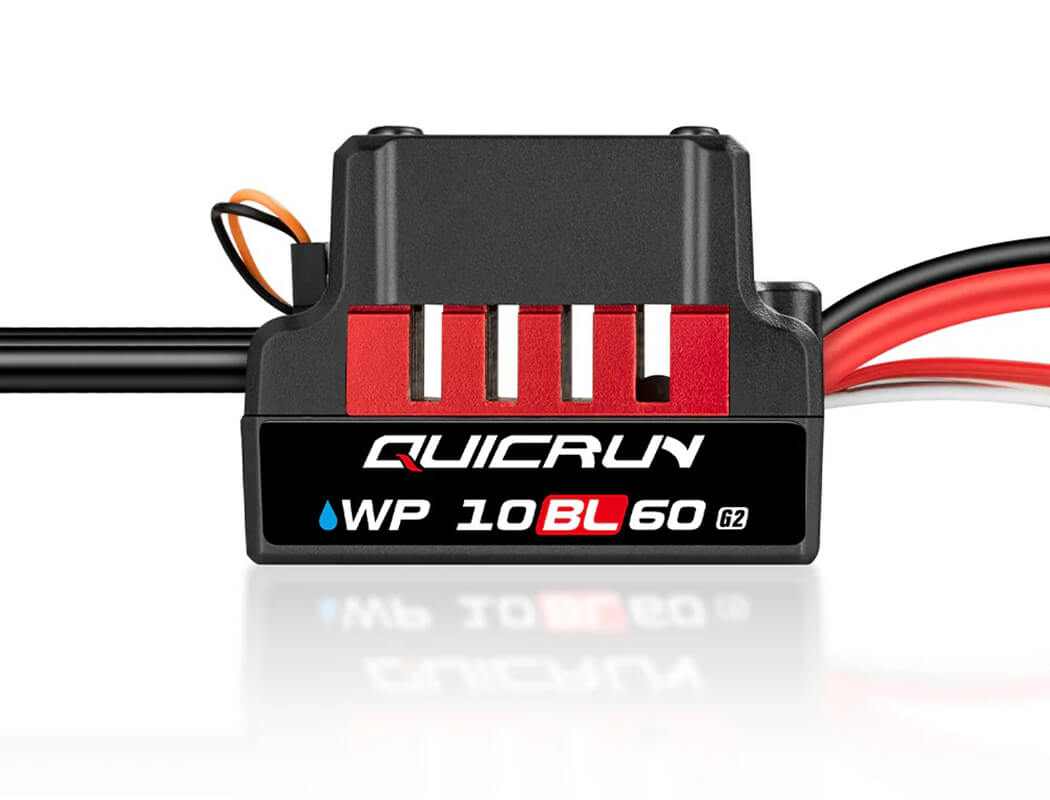

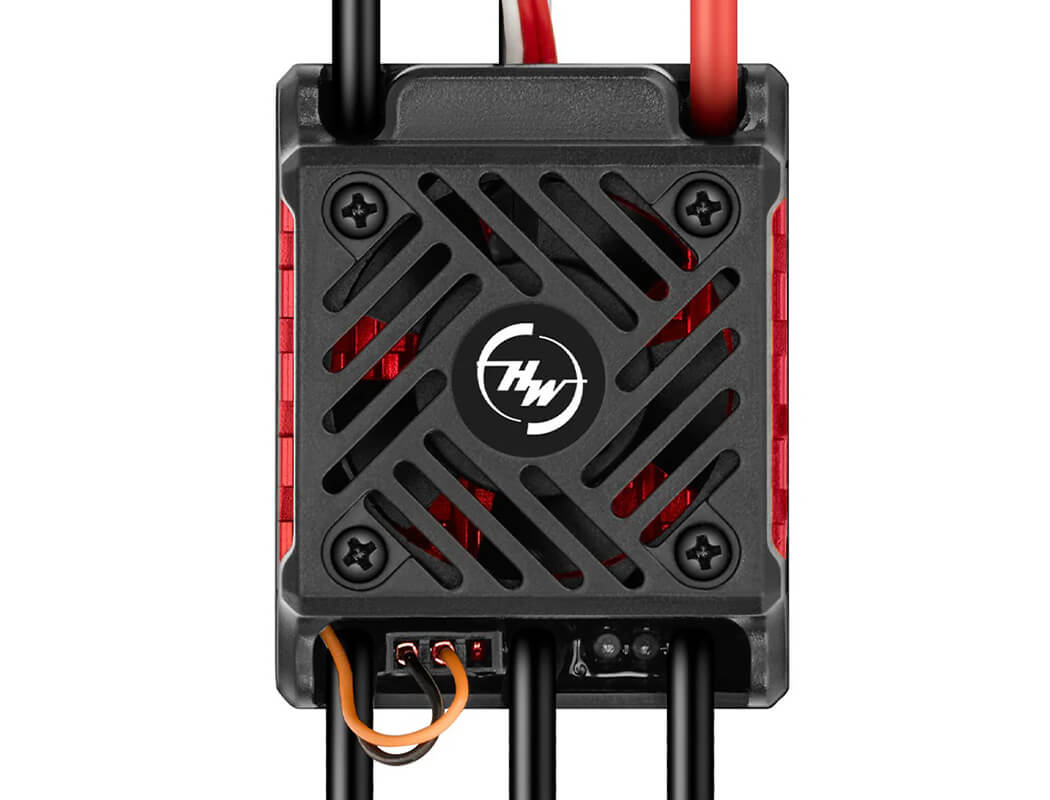

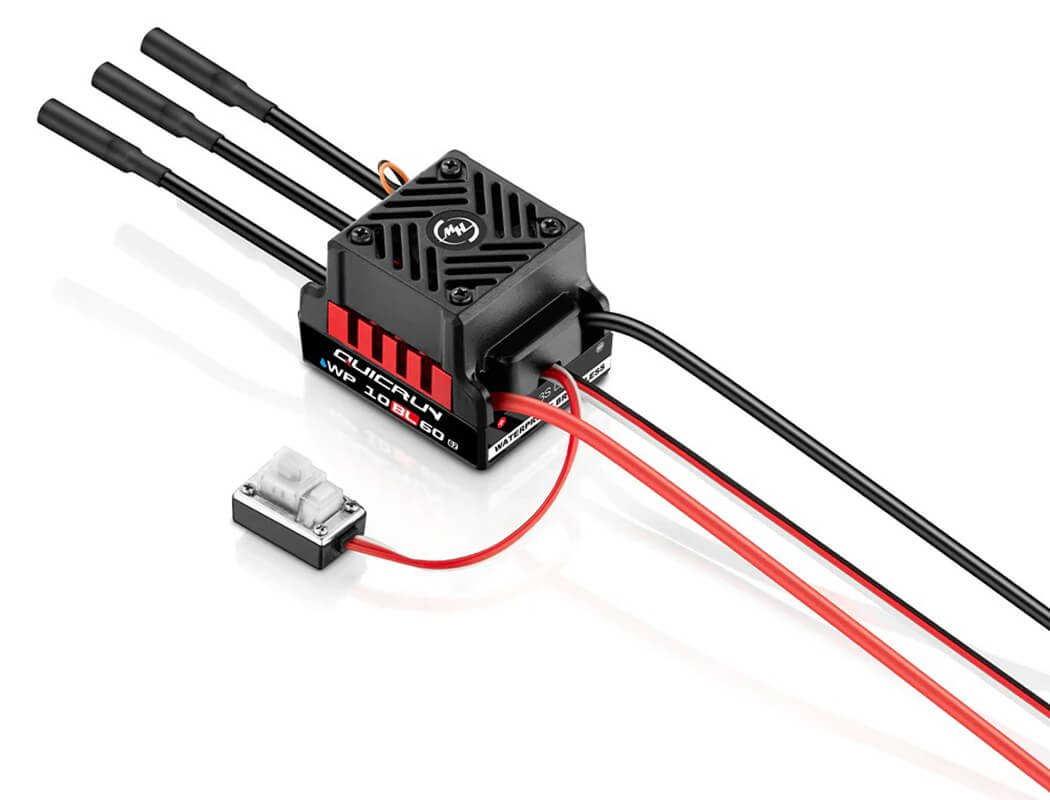

QuicRun WP 10BL60 G2 ESC

Features

• Intelligent Freewheeling Technology: The intelligent freewheeling technology enables the ESC to achieve higher driving efficiency at lower operating temperatures, improving stability and reliability.
• Small and Compact: The new QuicRun WP 10BL60 ESC is more compact than its predecessor, reducing length by 2.5mm and width by 1.5mm, enhancing layout and wiring convenience.
• Efficient Cooling System: The heat sink's mesh design efficiently cools the ESC. Copper thermal bars on each phase enhance cooling, while a fan ensures optimal operating temperatures.
• Capacitor Overheating Protection: A mesh-type heat sink design rapidly conducts internal heat to the heat sink. Copper thermal bars on the power board further aid heat dissipation. A fan maintains efficient cooling conditions.
• All-Weather Operation Capability: With an IP67 protection level, the ESC excels in various environments, including rain, dust, and sand, thanks to its excellent waterproof and dust-proof features.
• Versatile Programming Methods: Supporting three programming methods—Multi-function LCD PRO programming box, LED programming box, and SET key—the ESC allows users to easily adjust parameters according to their preferences.
• Exceptional Value and Ease of Use: Designed for entry-level users, this high-quality product is simple to use and install, offering great value and convenience.

Specifications

Cont. / Peak Current: 60A / 360A
Motor Type: Sensorless / Sensored Brushless Motor (only in sensorless mode)
Applications: 1/10 On-Road, Buggy, Short Course Truck
Motor Limit:
With 2S LiPo: KV < 6000
With 3S LiPo: KV < 3500 3652/3660 size motor
LiPo Cells: 2S-3S LiPo
BEC Output: 6V/3A
Cooling Fan: Powered by built-in BEC
Size / Weight: 46mm(L) x 36.5mm(W) x 34.3mm(H) / 82.6g (included wires)
Programming Port: Shared with fan port

What's Included

• 1 x QUICRUN WP 10BL60 SL G2 ESC (Waterproof, Sensorless).
• 1 x QUICRUN 3652SL G2 brushless motor w/ your choice of KV.
• HOBBYWING decals.
• Accessories.
