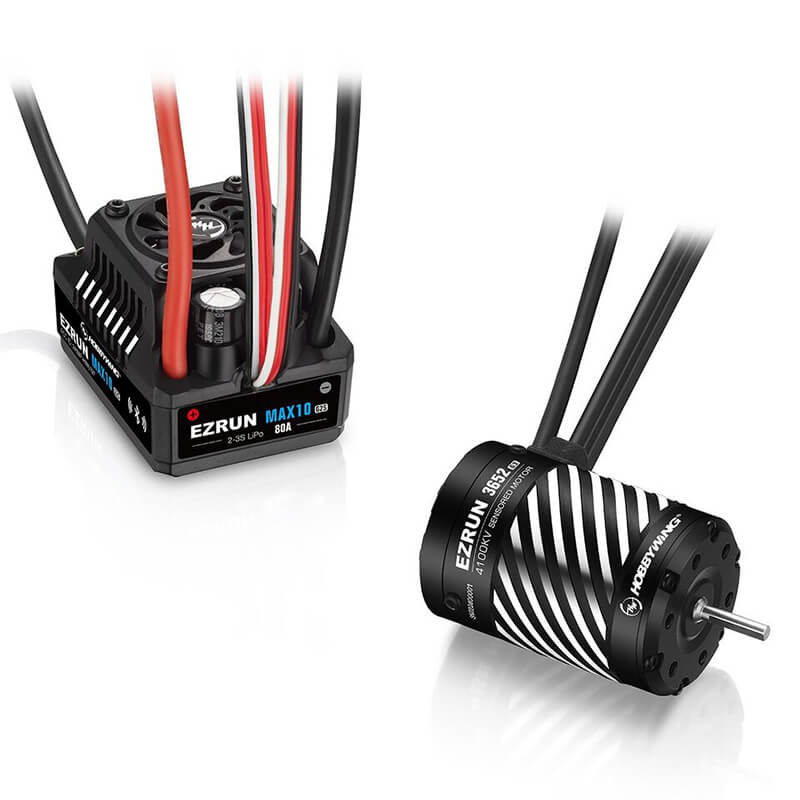

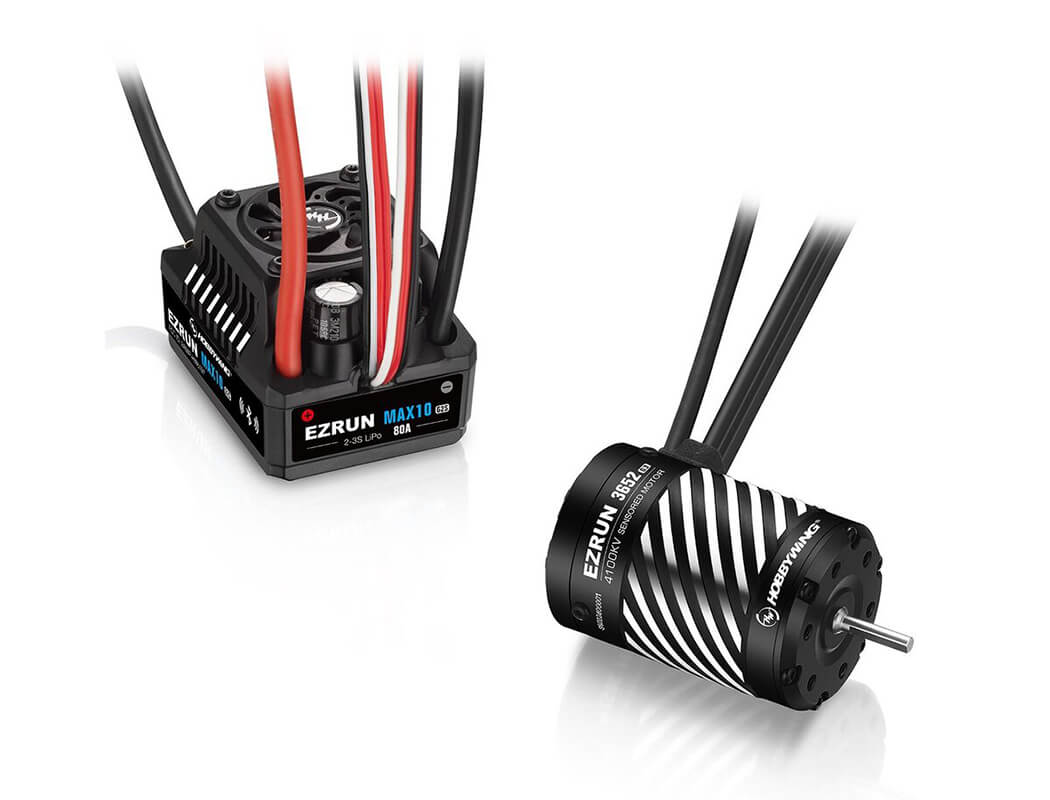

HOBBYWING COMBO MAX10 G2s 80A ESC 3652SD 4100KV BLK G3 MOTOR

Hobbywing Ezrun MAX10 G2S 80A Brushless Combo with 3652SD 4100kV G3 Motor combines the Ezrun MAX10 G2S 80A ESC and the matching Ezrun 3652SD G3 4100kV motor into a perfectly matched 1:10 scale brushless power system.

The MAX10 G2S is an advanced evolution of the MAX10 G2 ESC: same power specifications and housing, but now featuring an integrated Bluetooth module in the switch, allowing seamless adjustment without any additional devices. Connection to your smartphone is established via the HW-LINK app, enabling easy programming, data logging, and firmware updates. New enhancements compared to the G2 include internal data recording and a third BEC voltage setting of 8.4V for high-voltage servos.

This combo especially takes advantage of the ESC’s strengths: Turbo Timing can be exclusively activated with Hobbywing motors, increasing the maximum RPM by up to 25%. The motor overheating protection also functions only with supported Hobbywing motors. Both features come ready to use with the included Ezrun 3652SD G3 motor.

Features

• Integrated Bluetooth module for direct smartphone programming without extra devices.
• Internal data logging with graphical analysis of the last 10 minutes via HW-LINK app.
• Turbo Timing up to 20°, boosting max speed by approximately 25% with the supplied motor.
• Three-stage BEC: 6V / 7.4V / 8.4V switchable, delivering 5A continuous current.
• Frameless, temperature-controlled cooling fan with side air outlet.
• Dust and waterproof ESC and motor rated to IP67, including waterproof sensor cable.
• Overheat protection for capacitors and multiple safety functions including low voltage, temperature, and signal loss.
• 4-pole rotor motor designed for high torque, quick acceleration, and stable power delivery.
• CNC-machined aluminum housing and precision bearings for motor durability.

Specifications

ESC (Ezrun MAX10 G2S 80A)

Type: 1/10 brushless, sensored and sensorless
Current: 80A continuous / 520A peak
Input Voltage: 2-3S LiPo
BEC: adjustable 6V / 7.4V / 8.4V, 5A continuous (switch mode)
Motor limits: 2S LiPo ≤ 6000 KV, 3S LiPo ≤ 4200 KV (for 3652/3665 motors)
Turbo Timing: up to 20 degrees
Fan: powered via BEC, temperature-controlled
Programming: Bluetooth (HW-LINK app), LCD box, OTA module, separate 3-pin port
Waterproof: IP67 rated
Connectors: XT60 input, gold bullet motor output
Dimensions: 53 x 39.5 x 37.2 mm; Weight: 125 g (including cables and connectors)
Application: 1/10 On-Road, Buggy, Rally, and Short Course Truck

Motor (Ezrun 3652SD G3)

Type: Brushless, sensored
KV rating: 4100kV
Idle current: ≤ 5.0A
Compatible LiPo: 2-3S
Poles: 4
Dimensions: 53 mm length, 37 mm diameter
Shaft diameter: 3.175 mm
Weight: 228 g
Waterproof: IP67 rated
Application: 1/10 On-Road / Off-Road Light-Duty Short Course Truck

Please Note: Using the 7.4V or 8.4V BEC settings requires at least a 3S battery. The built-in Bluetooth range is approximately 5 meters.
