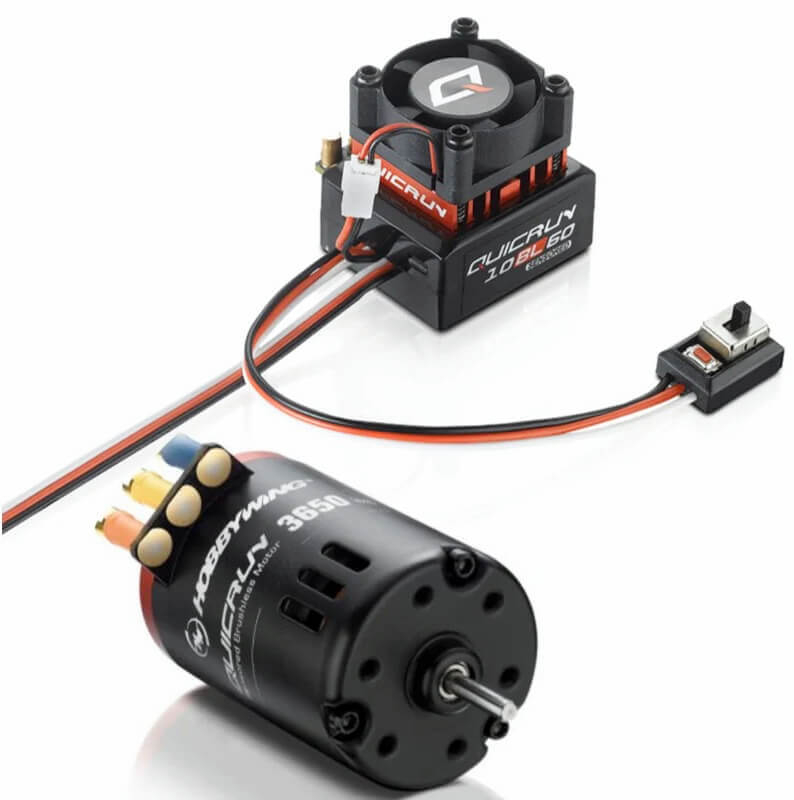

HOBBYWING QUICRUN COMBO ESC G2 10BL60/3650SD 10.5T G2 MOTOR

Info

HobbyWing Logo

HOBBYWING QUICRUN COMBO ESC G2 10BL60/3650SD 10.5T G2 MOTOR

  • Part Number: HW30803200
  • Brand: HobbyWing
  • Availability: Out of stock
    Expected On: TBC
    Email me when in stock
    Check our Shop Finder for local RC shops
RRP : £99.99 Where To Buy?

Description

QUICRUN 10BL60 Sensored G2 ESC Features

  • Outstanding quality, amazing price.
    - Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.
  • Powerful built-in BEC.
    - Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V.
    - It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
  • Support Boost/Turbo timing technology.
    - With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
  • High reliability and durability.
    - Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
  • Support multiple programming methods.
    - The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
  • Support Motor Rotation Adjustment.
    - This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: NO

Relevant Parameters:

Cont./Peak Current: 60A/200A
Input Voltage: 2S Lipo
BEC BEC Output: Switch Mode 6V/7.4V @4A

Wires & Connectors:

Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No

ESC Programing via:

SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Shared with Fan port

Data Recording:

Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported
Firmware Upgrade: Not Supported

Size & Weight:

Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires & connectors)

Applications:

Motors: Sensored/Sensorless Brushless motor
Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2

QuicRun-3650SD-10.5T G2 Motor Features

  • Linear & Smooth Control.
    - The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
  • Plug-and-Play.
    - Customised 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
  • Re-buildable Design.
    - The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
  • Compatible (with QuicRun-10BL60-Sensored ESC).
    - When pairing the QuicRun3650 G2 motor with the Hobbywing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.

Specification

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters:

KV Rating: 3600
LiPo Cells: 2-3S
No-load Current(A): 2.8

Size & Weight:

O.D.(mm): 36
Length (mm): 52.8
Shaft Diameter (mm): 3.17
Weight (g): 186
Front Bearing: D9.525*D3.175*t3.967
Rear Bearing: D9.525*D3.175*t3.967
