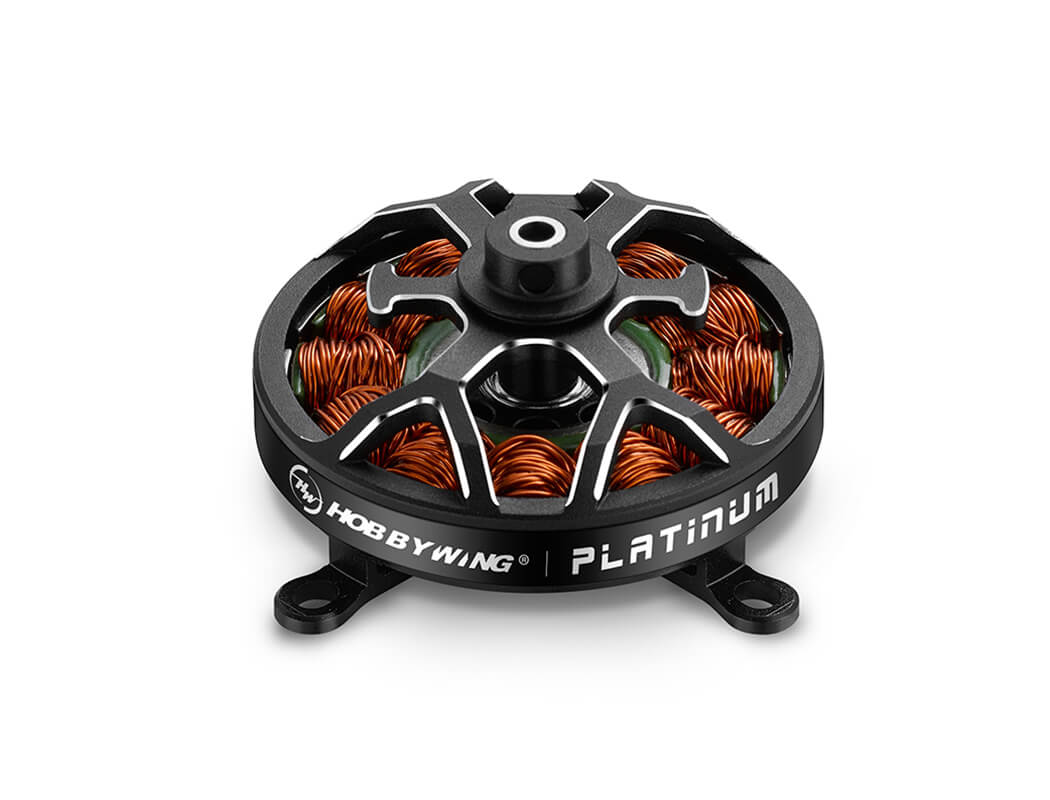

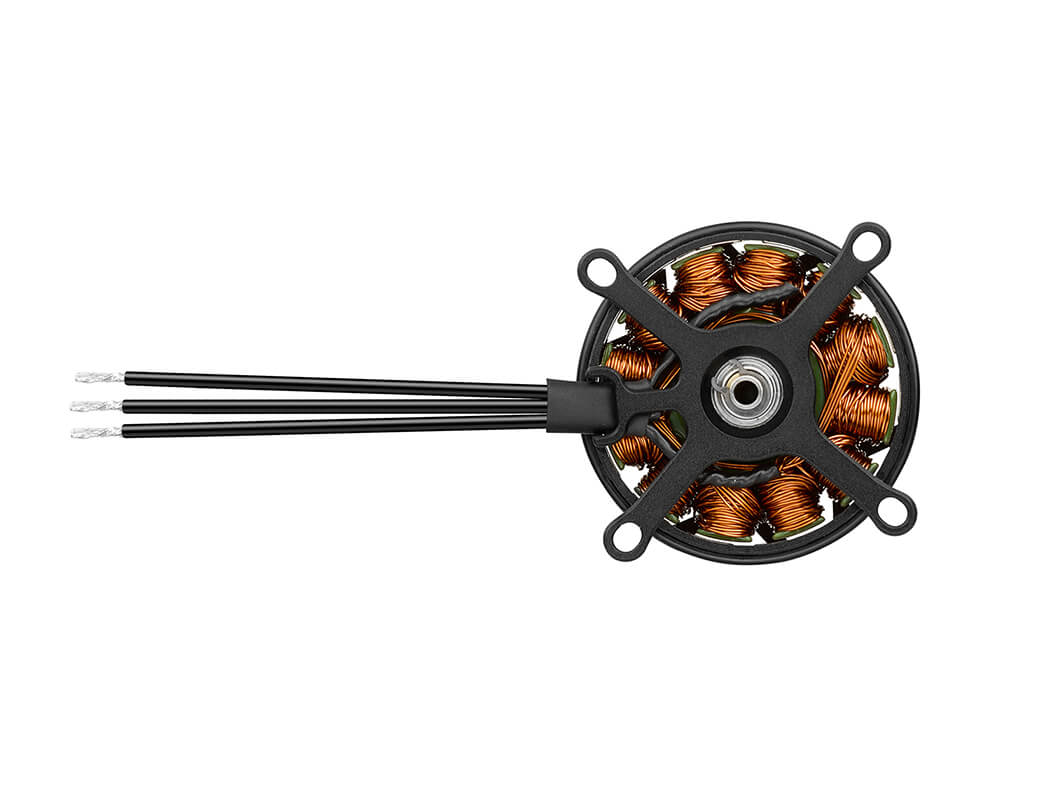

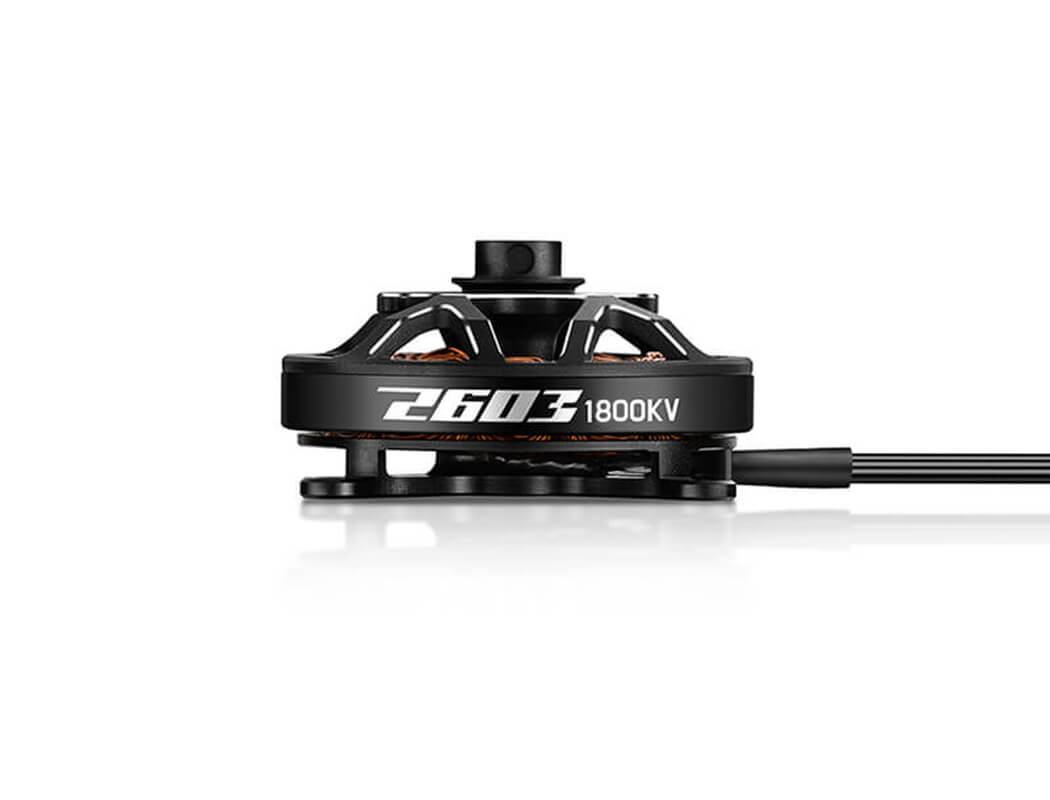

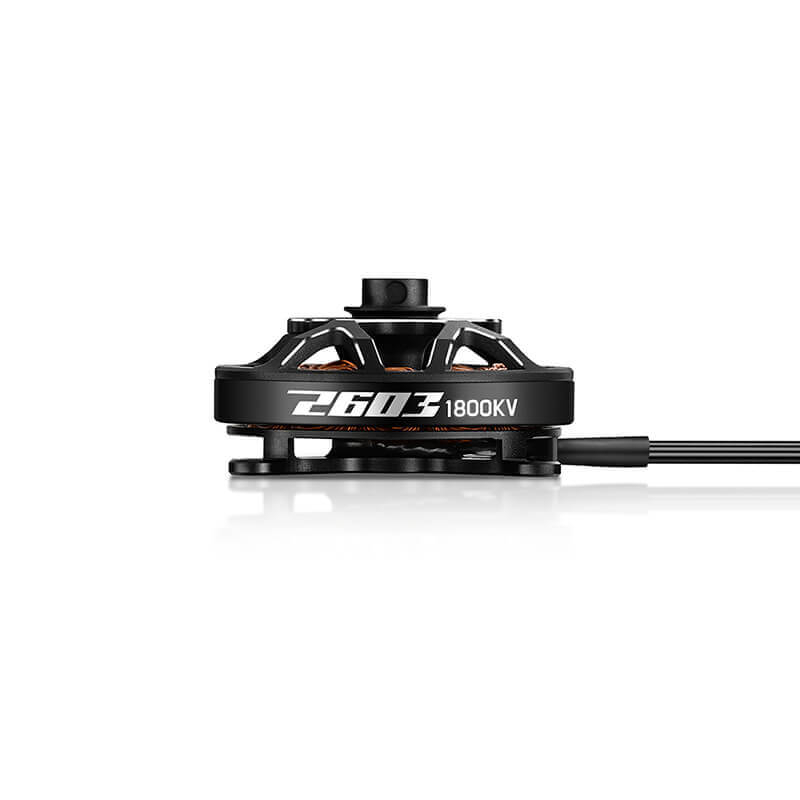

HOBBYWING PLATINUM 2603SL 1800KV MOTOR (F3P)

Specifications

Model: Platiunm 2603SL 1800KV
Motor size: Φ30*H16.2mm
Stator size: Φ26*H2.6mm
Stator process: High standard silicon steel sheet
Enamelled wire: 220?
Isolation test: 500V AC high voltage resistance test
Propeller: UP8338
Slot & pole: 12N14P
Dynamic balance: ≤5mg
Bearing: 630ZZ
Motor axle diameter: ?5.5 x t2.4mm
Shaft material: Titanium alloy
Motor mounting dimensions: 4×Φ2.1@D33
KV: 1800
Battery(LiPo): 2S Lipo
No-load current: 0.5A/8V
Maximum current (Non-hermetic Ambient Temperature ≤ 25?): 14A/42s
Max power: 114W/42s
Max thrust: 526g
Resistance: 204mΩ
Wire Size: Enamelled Wire Outlet
Wire length: 45mm
Weight(With wire): 18g

Recommended application combinations:
Motor: Platinum 2603SL 1800KV
Propeller: UP8338,TP8038
ESC: Platinum 18A V5 F3P
Battery: 2S LiPo
