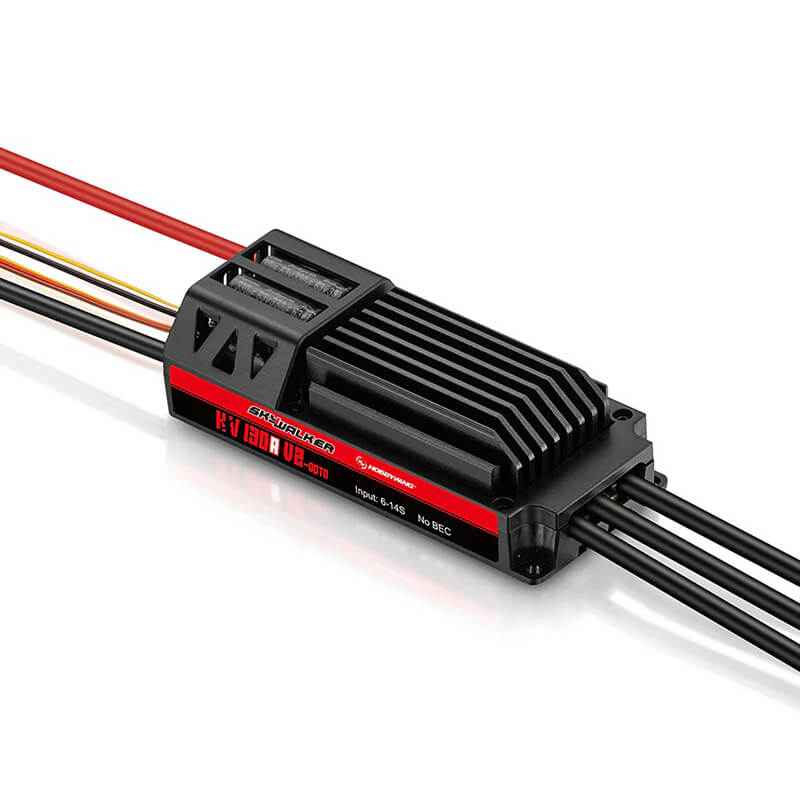

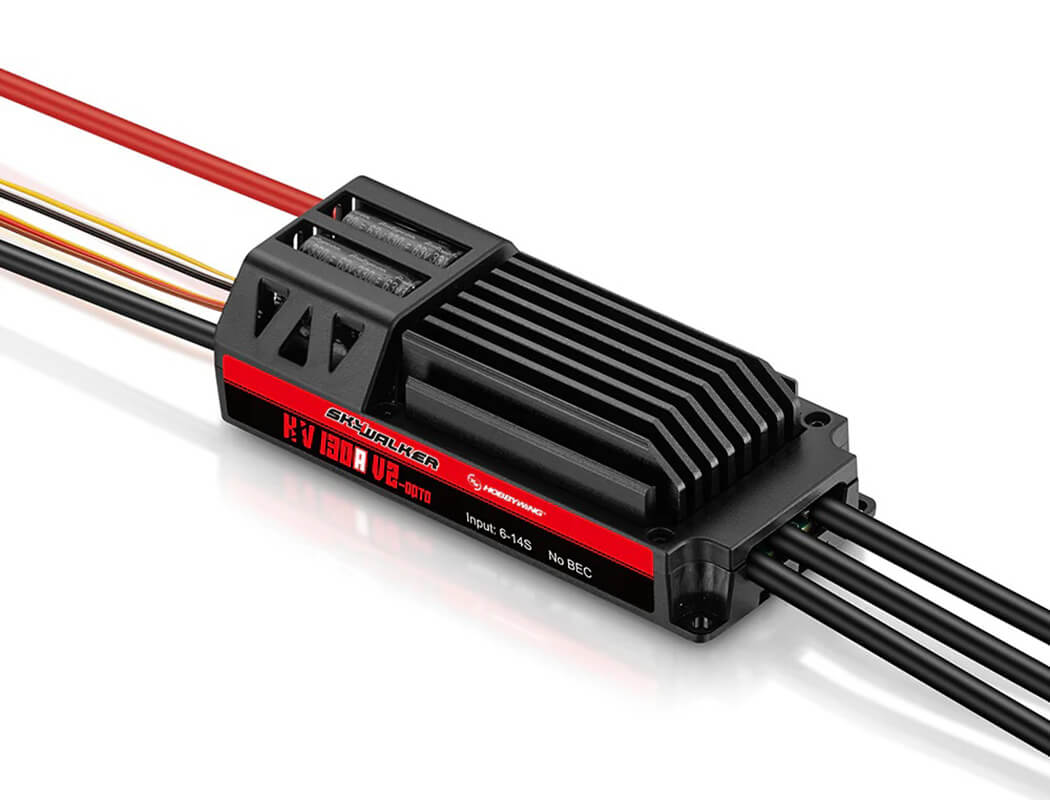

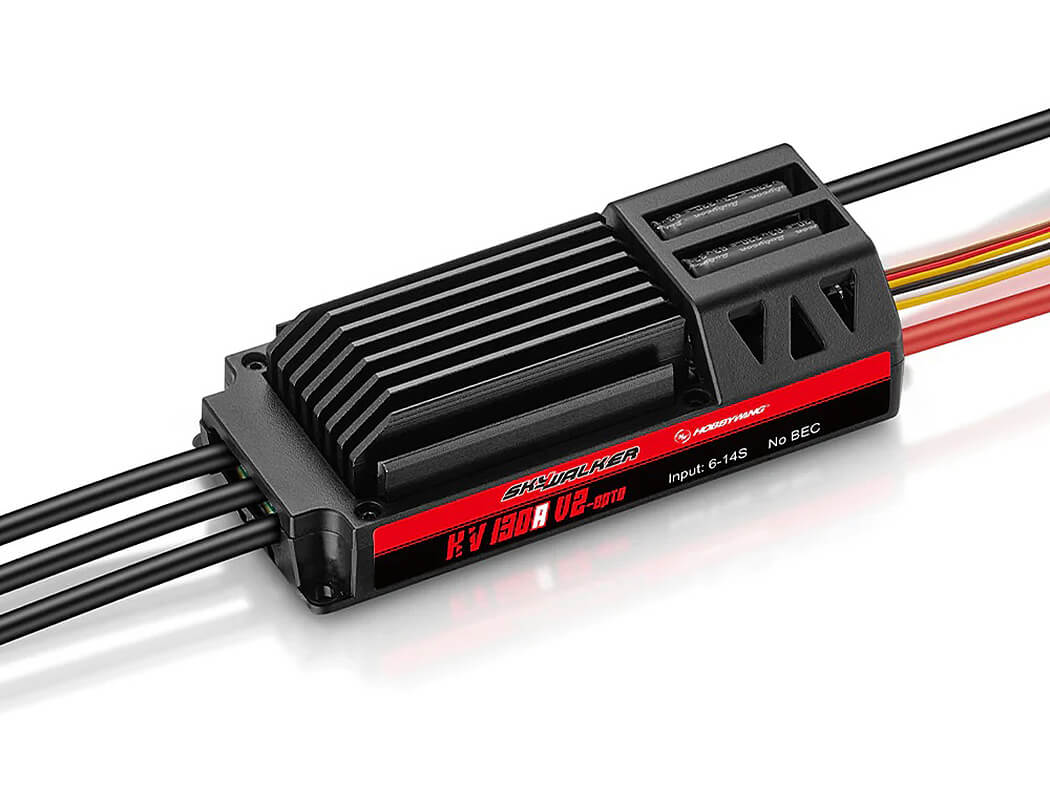

HOBBYWING SKYWALKER 130A HV 14S OPTO V2 ESC

Info

HobbyWing Logo

HOBBYWING SKYWALKER 130A HV 14S OPTO V2 ESC

  • Part Number: HW30222300
  • Brand: HobbyWing
  • Availability: Out of stock
    Expected On: TBC
    Email me when in stock
    Check our Shop Finder for local RC shops
RRP : £97.99 Where To Buy?

Description

Features

  • ESC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 120MHz) is compatible with various brushless motors.
  • DEO (Driving Efficiency Optimisation) Technology greatly improves throttle response, driving efficiency, and reduces ESC temperature.
  • Separate programming cable for connecting ESC to an LED program box and allows users to program the ESC anytime, anywhere.
  • Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
  • Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
  • Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage, and throttle signal loss effectively prolong the service life of the ESC.

Specifications

Type: Brushed/Brushless: Brushless
High Voltage/Regular: High Voltage
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: No BEC
Input Wires: Red-10AWG-300mm*1, Black-10AWG-300mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
ESC Programing via:
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Program WireNot Supported
Size: 104x48x29mm
Weight: 253.2g
