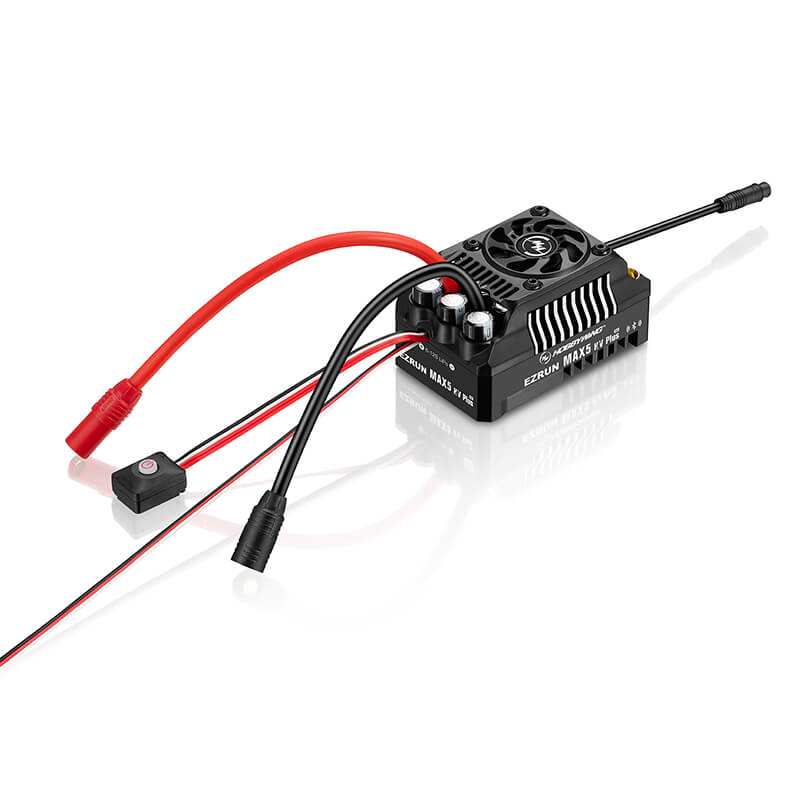

HOBBYWING EZRUN MAX5 HV PLUS G2 SPEED CONTROL

Specifications

Scale: 1/5th, 1/7th, 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Yes
Cont./Peak Current: 330A/2000A
Input Voltage: 6-12S Lipo
BEC Output: 6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)
Input Wires: Red-8AWG-200MM*1, Black-8AWG-200MM*1
Output Wires: No
Input Connectors: AS150-F plug - red shell, AS150-M plug - black shell
Output Connectors: 8.0MM Gold female plug
ESC Programing via -
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Bluetooth (directly connected by mobile phone APP)/ Independent Programming Port (connected by LCD/OTA)
Data Recording -
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 94.5*59.4*51.6mm
Weight: 450g(Including wires and plug)
Applications -
Motors: Sensored Brushless motors & Sensorless Brushless motors
Vehicles: 1/8th, 1/7th and other model cars for extreme speed applications, 1/5th trucks/monsters trucks for violent applications
KV Rating/T Count: EZRUN 5690/56118SL G2
