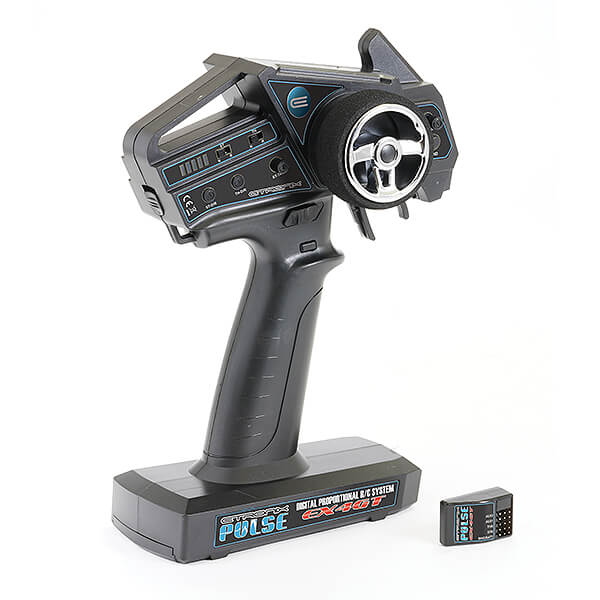

ETRONIX EX4GT TRANSMITTER & RECEIVER COMBO

Etronix’s EX4GT 4-channel radio control system uses the latest in 2.4ghz radio technology to ensure that each transmitter’s frequency remains secure from external interference. The EX4GT benefits from 2 extra Aux switched channels, one is a 2 stage and the other a three stage switch.

Ideally suited to r/c car and boat applications up to 120m.

Features

• 2.4GHz Spread Spectrum GFSK Crystal Free
• 6-Channels (2 x Proportional, 1 x Three Stage Switch, 1 x Two Stage Switch)
• Easy to use Control for Basic Models
• GFSK Modulation
• Steering and Throttle Trim Adjustment
• Steering and Throttle End Point Adjustment
• Steering and Throttle End Dual Rates
• Servo Reversing
• Fail Safe Function
• Surface Range 120M

Transmitter Specifications

Voltage Range: 4.2V – 8.4V
Operating Frequency: 2.4GHz (FHSS)
Modulation: GFSK
Transmit Power: <20dBm
Batteries Required: 4 x AA (Not included)
Dimensions: 210 x 160 x 95mm
Weight: 230g (Without batteries)

Receiver Specifications

Input Voltage Range: 4V – 6.5V
Connector Interface: Futaba, JR
Dimensions: 33 x 22 x 13mm
Water Resistant: IP67 Rating.
Weight: 5g

Receiver Update

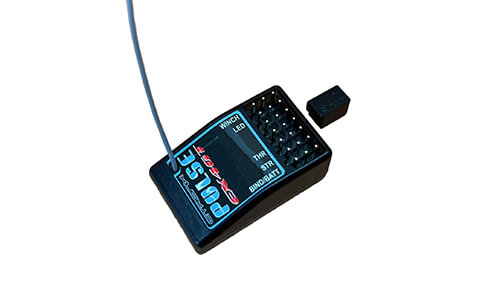

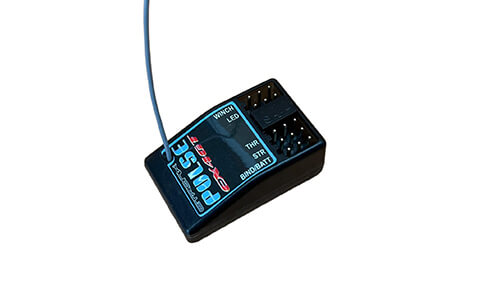

Please note that the receiver included with this system has recently been updated. Its AUX1 and AUX2 channels remain the same and are easily accessible by removing the receiver channel blanking plug (pictured). Two additional channels are now also available, labelled ‘Winch’ and ‘LED’.

• Winch: This channel can be used to directly control an aftermarket winch system. When a 2-wire (positive/negative) winch system is connected to the positive and negative terminals of this channel, forward and reverse rotation of the motor can be controlled via the transmitter’s three-position AUX2 switch. The maximum output of this channel is 3A.
• LED: This channel can be used to directly power an aftermarket LED lighting system. The channel features an integrated 200-ohm resistor to prevent LED burnout.
