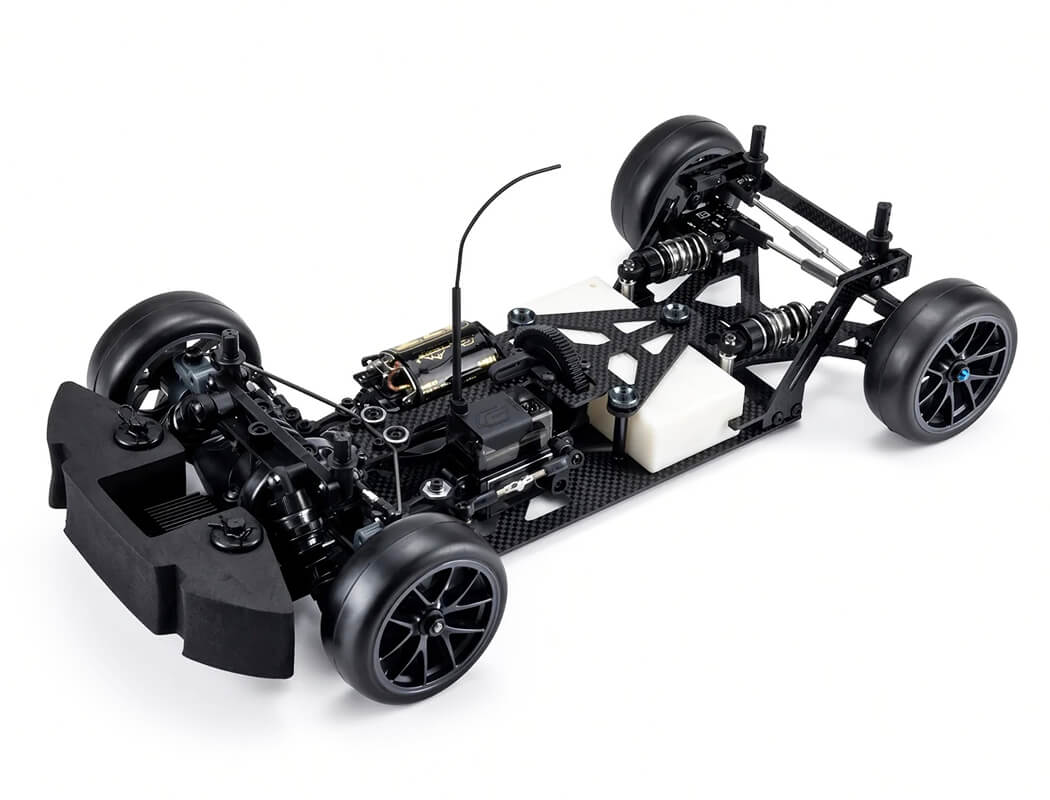

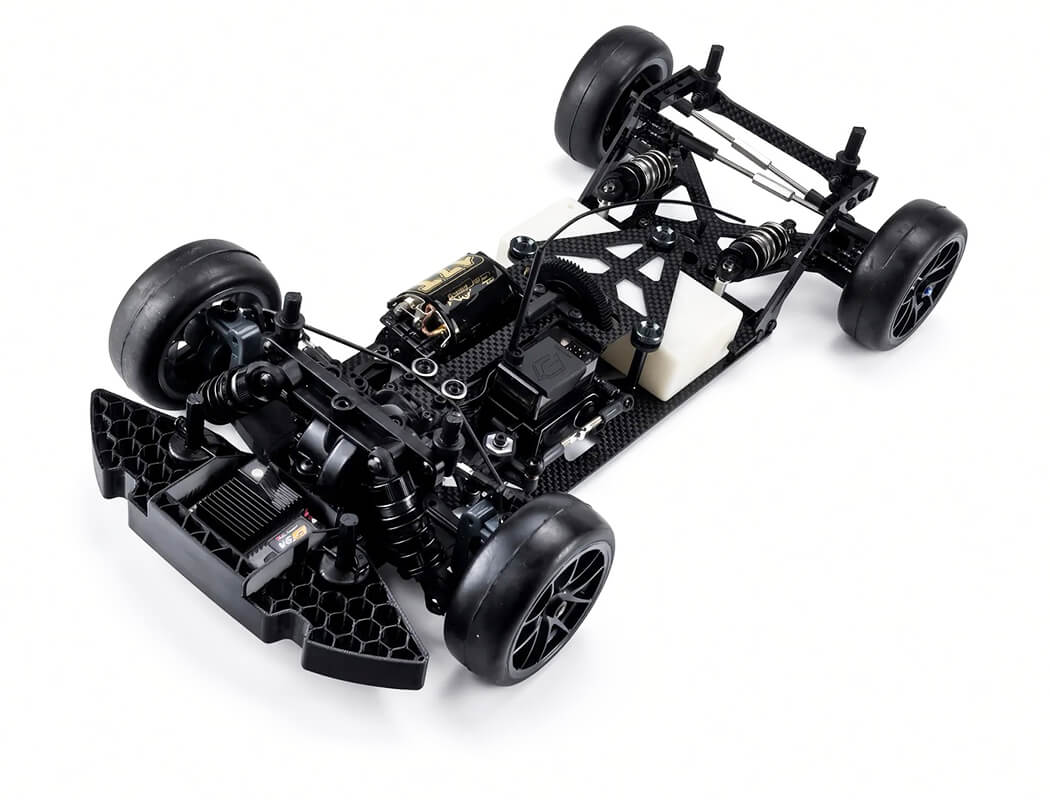

CARISMA M40F MID-MOTOR FWD 1/10 ASSEMBLY KIT

Mid-Motor FWD Assembly Kit for Drivers Who Want Something Different. Carisma announces the M40F, a new 1/10 mid-motor front-wheel-drive assembly kit in the M40 series.

Why we built it.

Every few years, Carisma runs a special off-the-chart development program for the R&D team. Most of these projects stop after the prototyping stage. Once in a while, one stands out. The M40F is that project.

The recent launch of the Honda FL5 Civic Type R created a lot of interest in a proper FWD chassis to pair with Honda Civic bodies. That demand gave the project a clear purpose: build a front-wheel-drive car that feels different, works with 190 mm bodies, and is enjoyable to assemble and drive.

The M40F is positioned for hobby customers who want a fresh FWD experience, not for the hardcore racing class. It is an assembly kit, so customers install their own motor, ESC, servo, radio and battery. This gives shops a flexible product that pairs easily with existing electronics, Civic-style bodies and 190 mm wheel and tyre inventory.

Drive Something Different.

Features

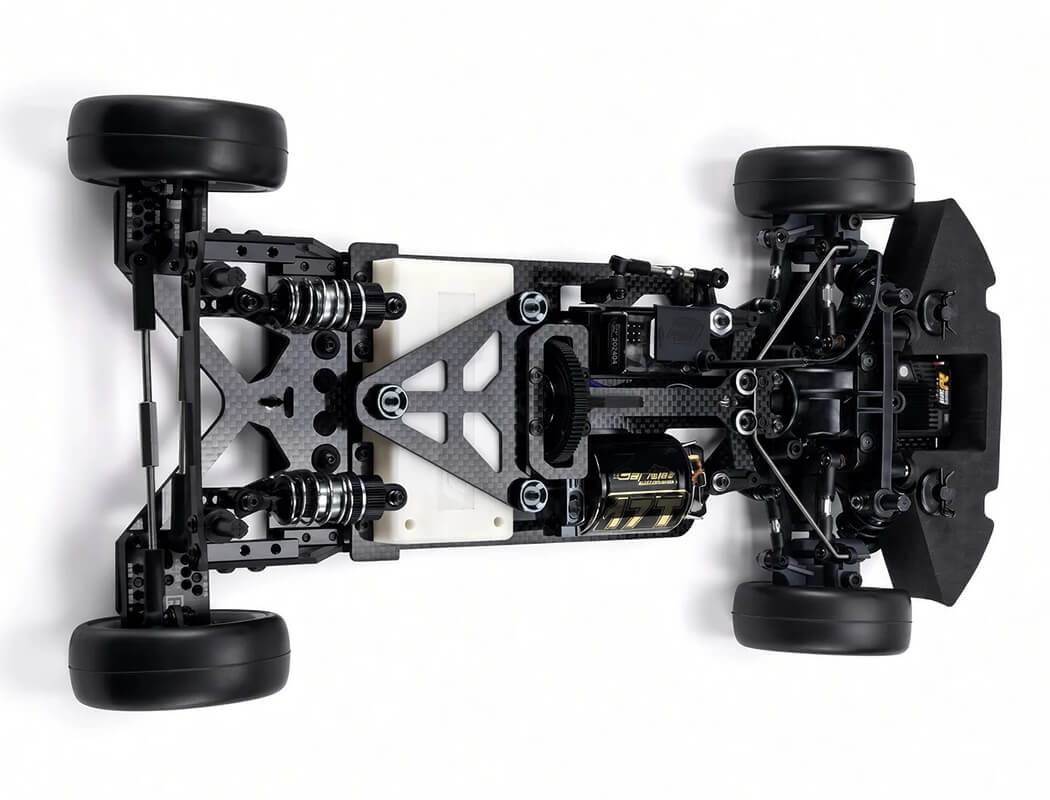

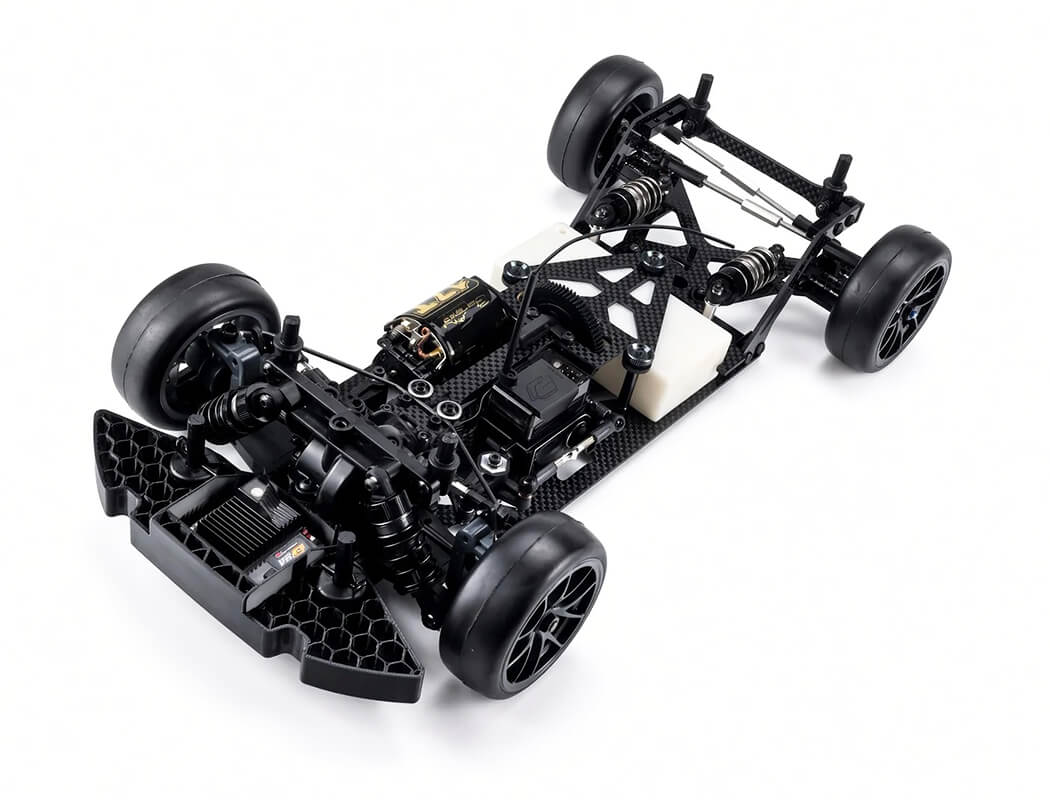

• Mid-motor front-wheel-drive layout.

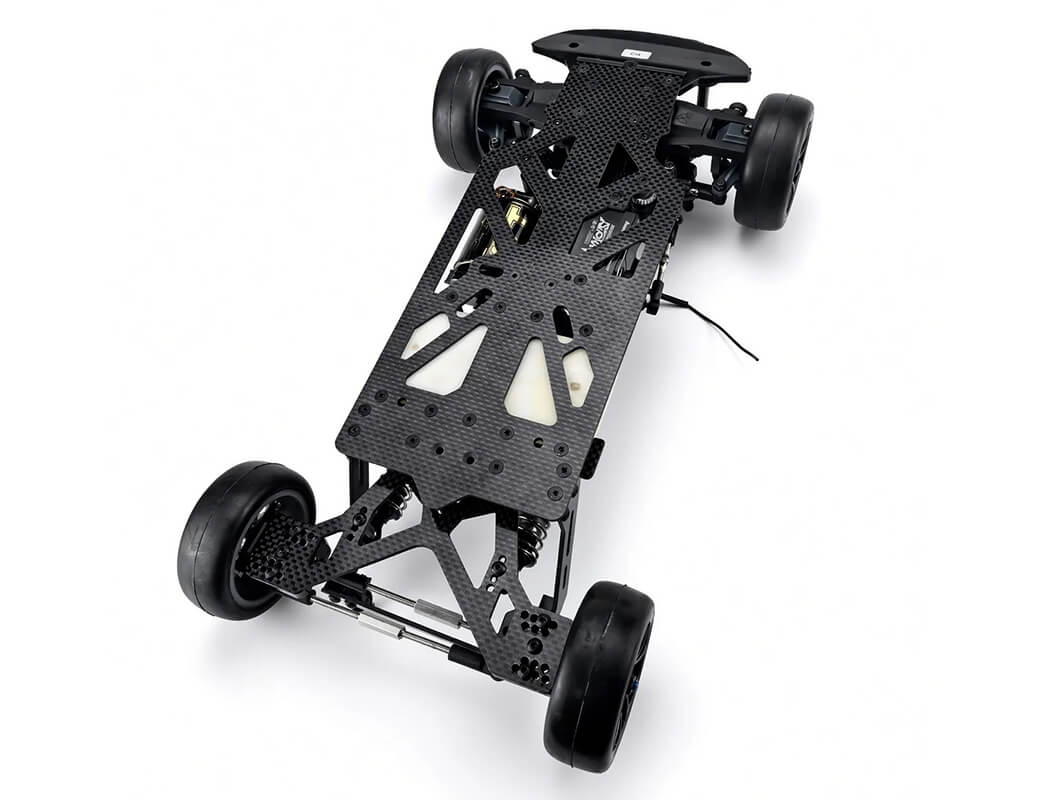

• Carbon fibre main chassis with AI-assisted flex.

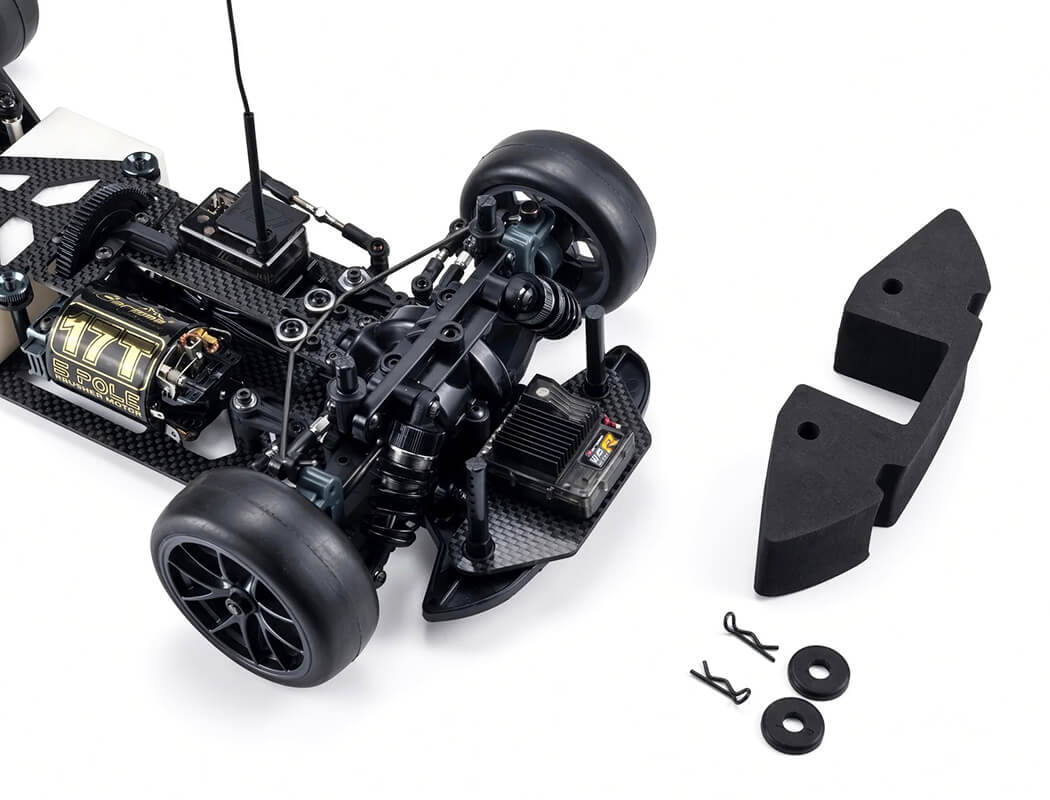

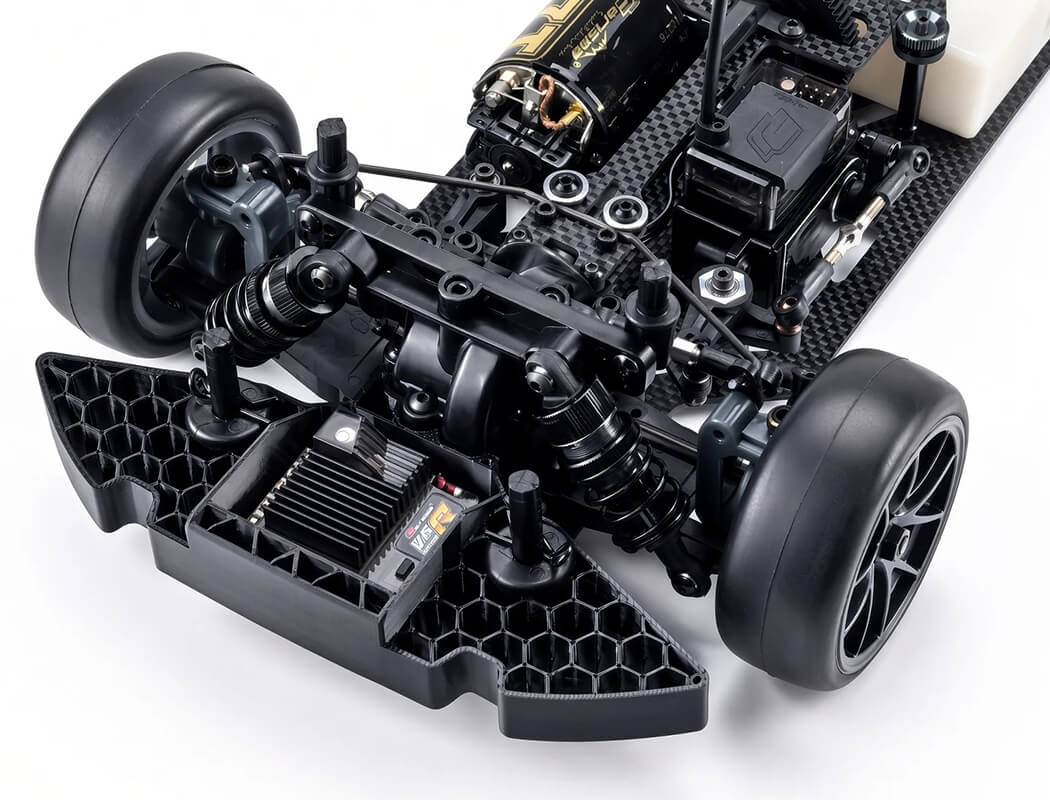

• Front-mounted ESC position for strong front weight bias.

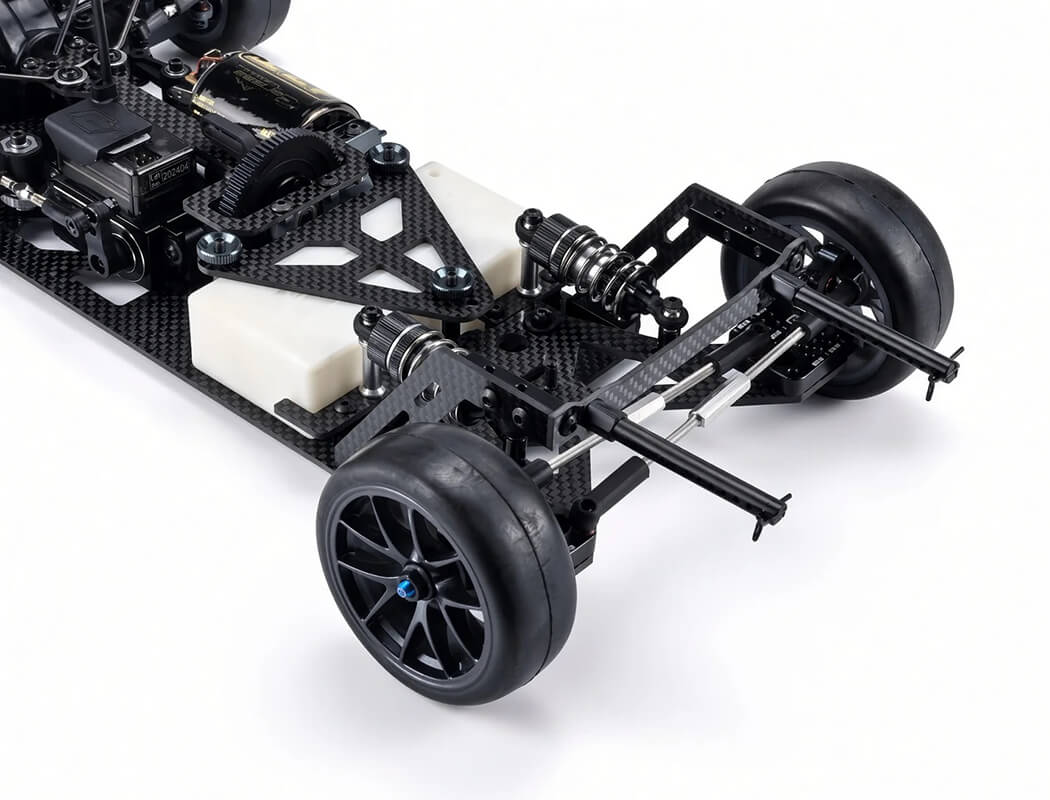

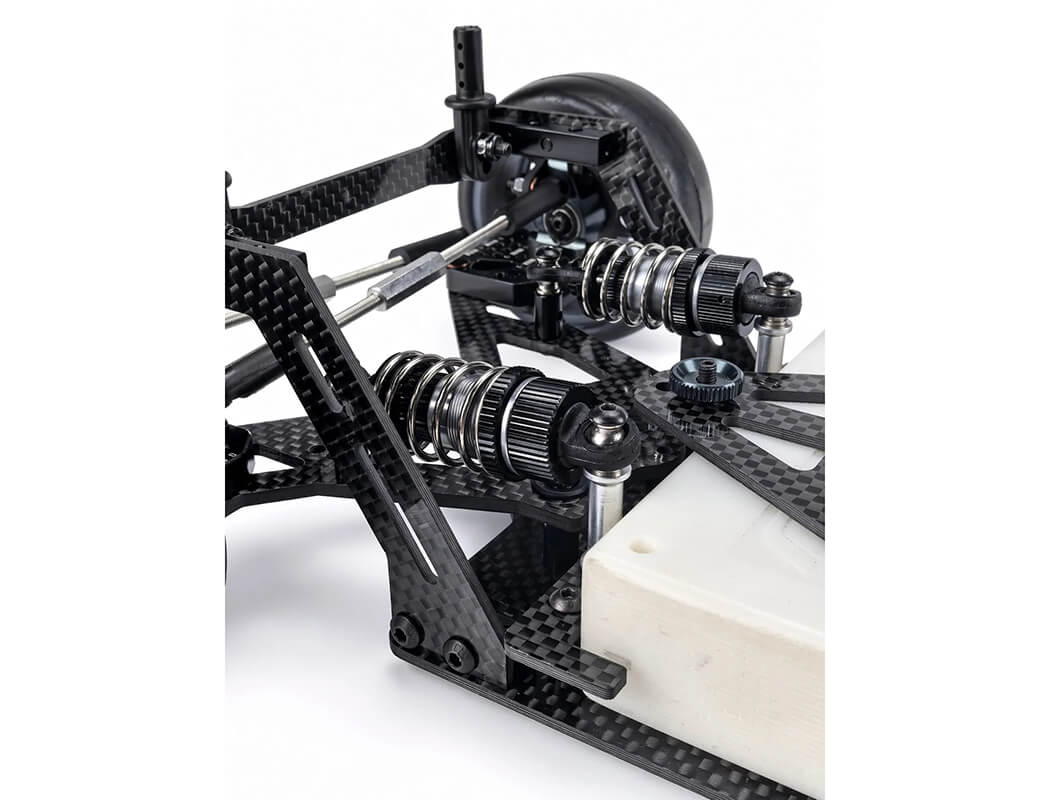

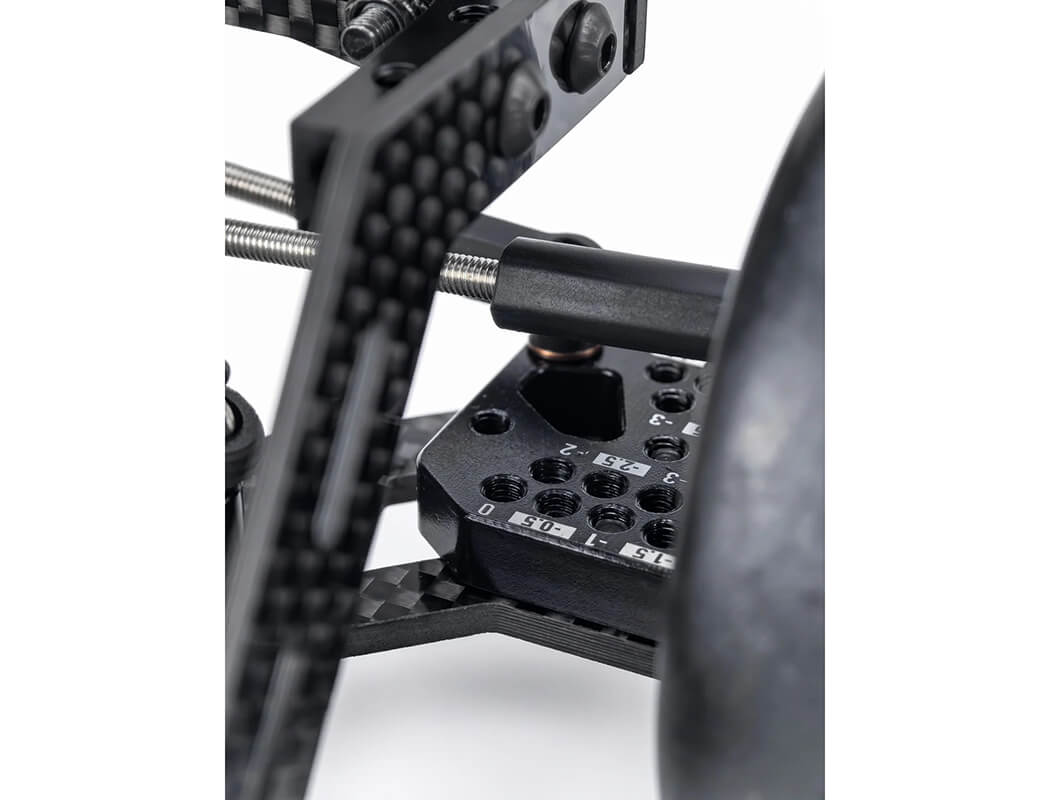

• Rear torsion plate suspension inspired by real-car design.
• CNC motor mount.
• Full metal gear front differential.
• Carisma NEW M40S 2.0 front suspension arms.

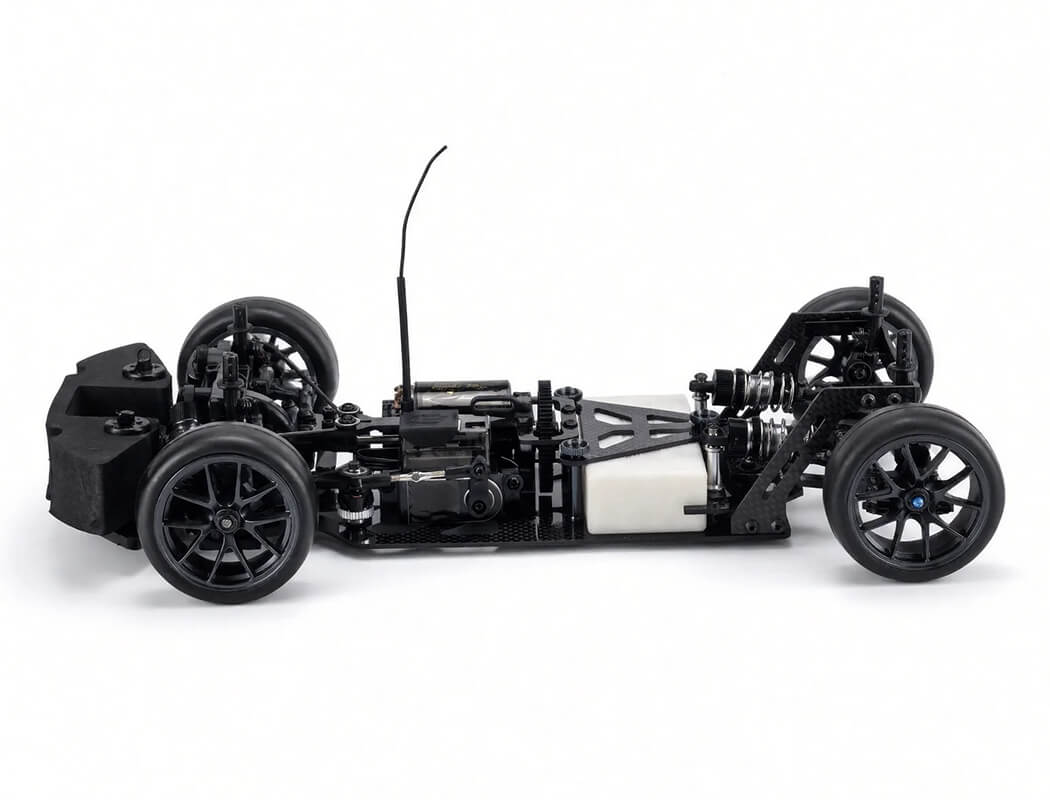

• Adjustable wheelbase: 257 mm – 260 mm.
• Adjustable camber and toe, front and rear.
• Fits 190 mm body shells.
• 12 mm wheel hex / 24 mm tyres.

An optional independent rear suspension conversion will be available later for customers who want a more conventional four-wheel independent setup.

Who is this for ?

• Drivers looking for a FWD chassis to pair with Honda Civic and other 190 mm bodies.
• Customers who already own a 4WD touring car and want a second, more characterful FWD car.
• Builders who like to choose their own electronics.
• Hobby and club drivers looking for a different on-road feel.

This is not a replacement for high-end FWD race kits. It is a distinctive kit with a clear story: front bias, torsion rear, mid-motor FWD, built to enjoy.

Required To Complete

• Motor
• ESC
• Shorty Servo
• Radio System
• Shorty Battery
• 190 mm Body Shell
• 24 mm Tyres
• 12 mm Hex Wheels, Shock Oil
• Tools needed: 1.5 mm, 2.0 mm and 2.5 mm hex drivers

Specifications

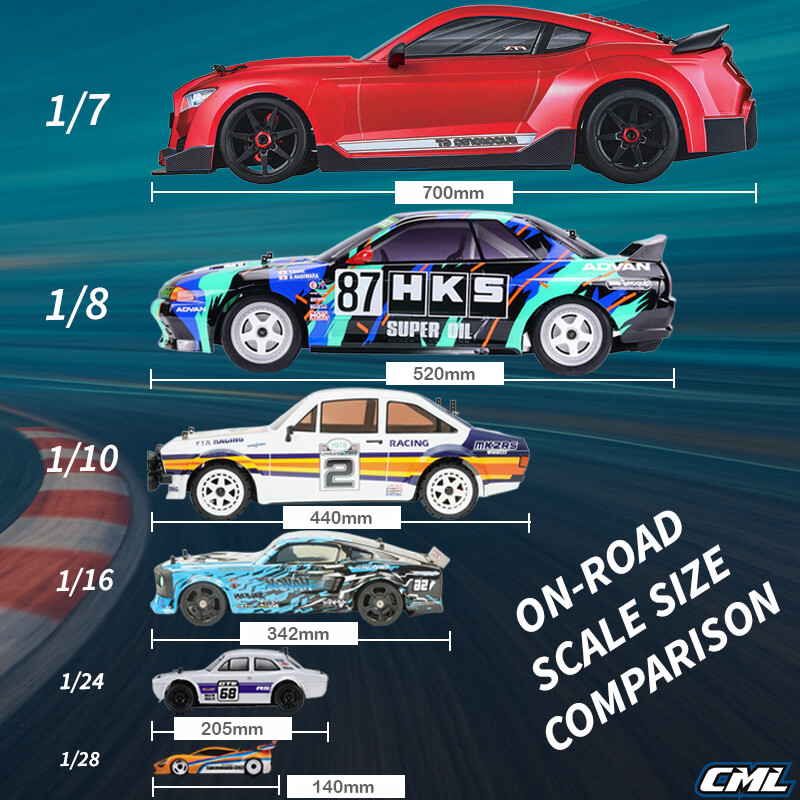

Scale: 1/10
Motor: Mid-Motor FWD
Fits: 190 body
Wheel Base: adjustable 257~260mm
Wheel Hex: 12mm
Wheel Size: 24mm standard touring tyres.
