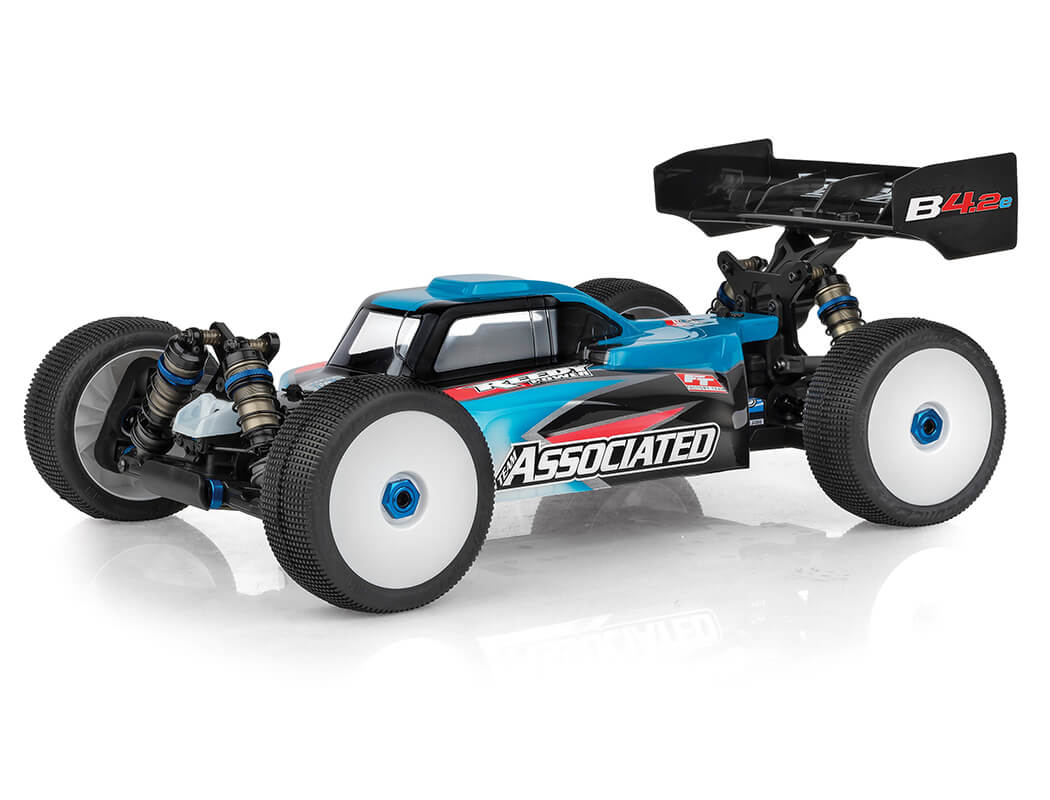

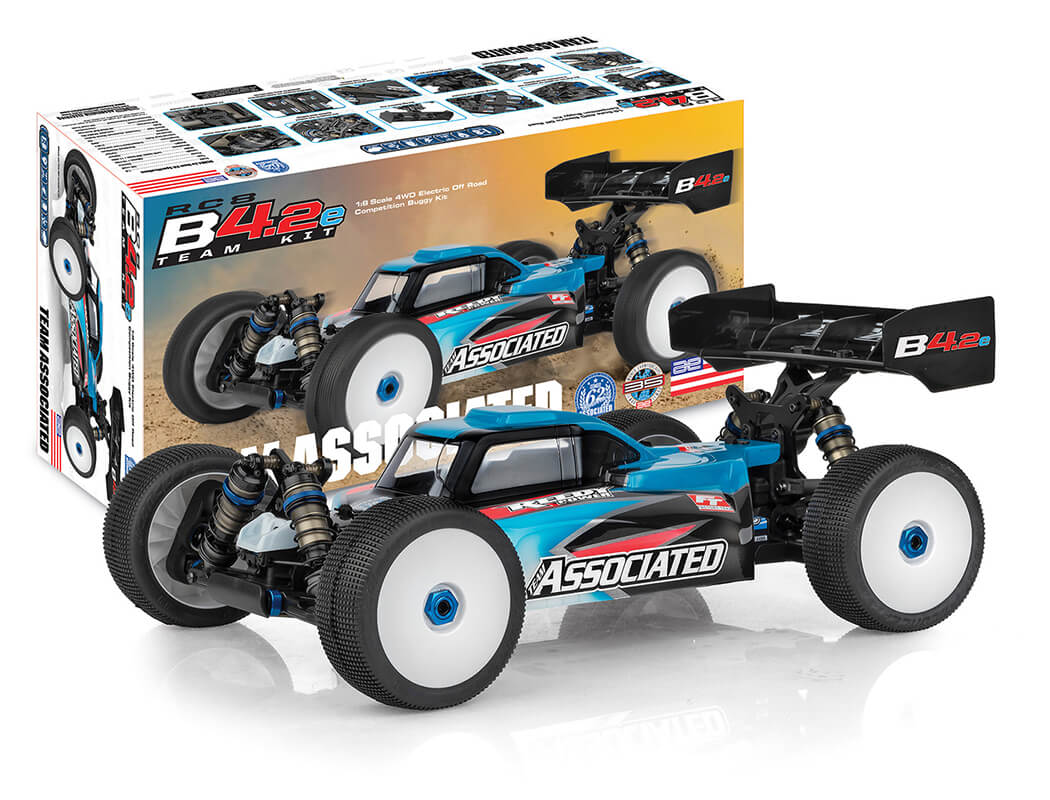

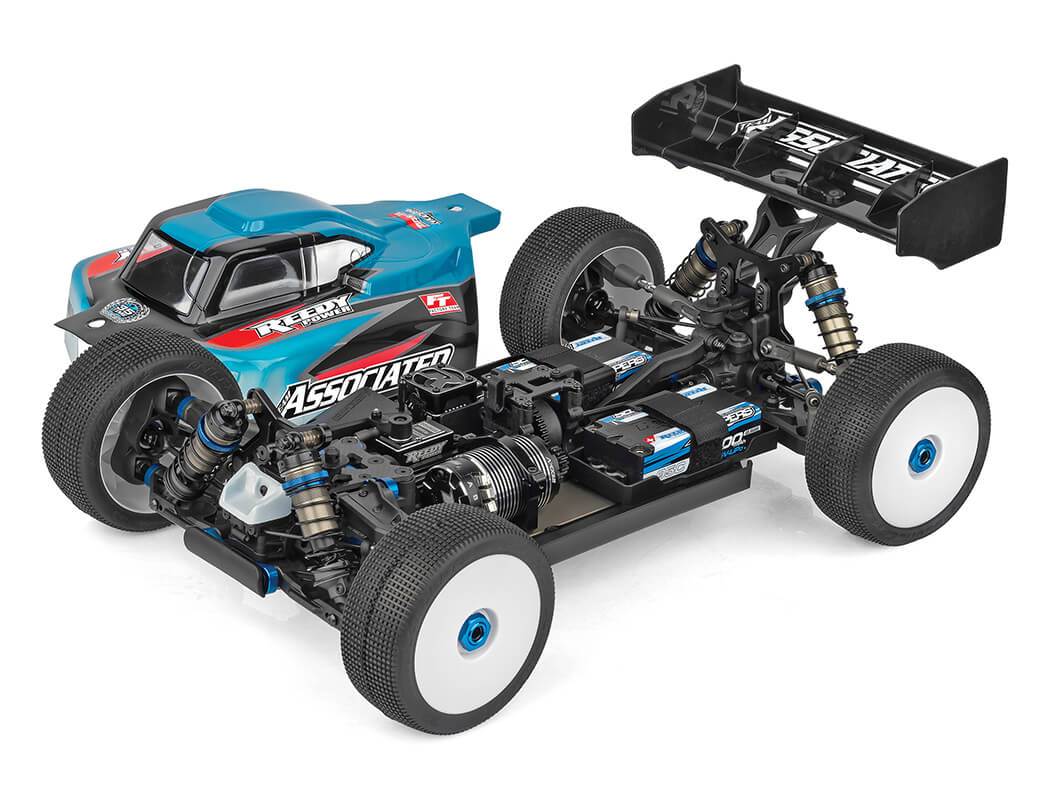

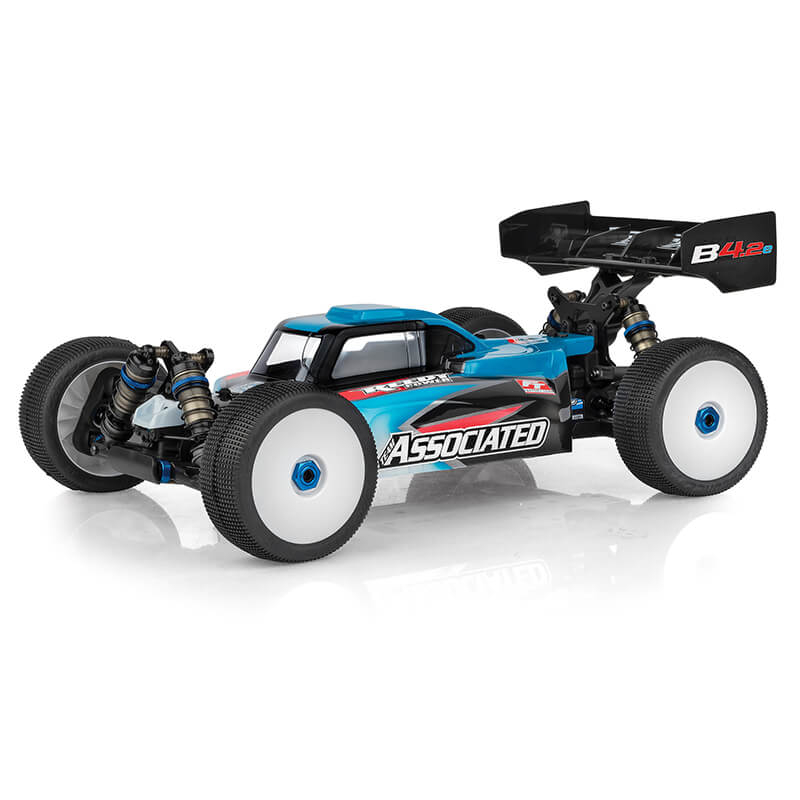

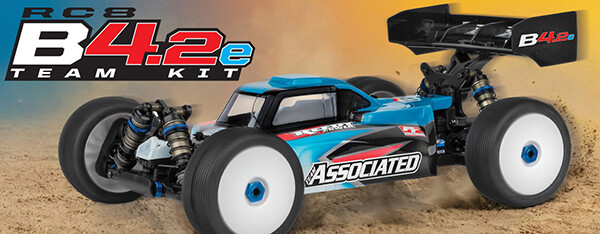

TEAM ASSOCIATED RC8B4.2e TEAM KIT 1/8 BUGGY

Pushing The Boundaries

1:8 scale off road racing is one of the hobby’s most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics’ Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

Features

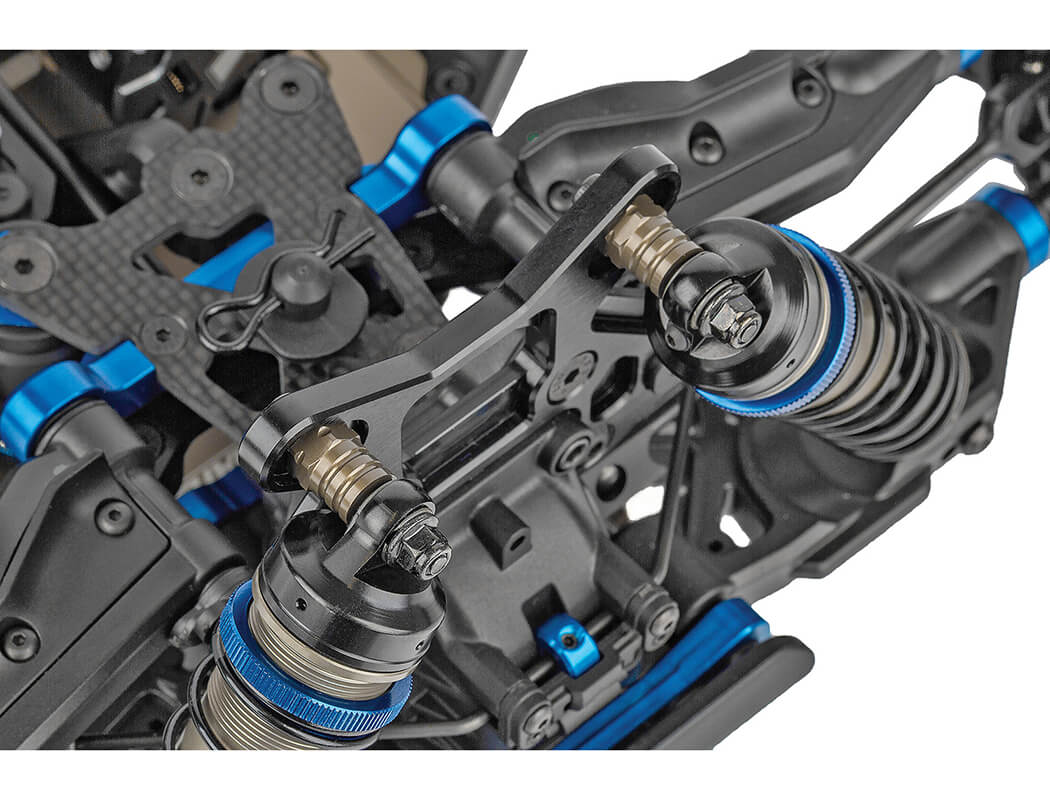

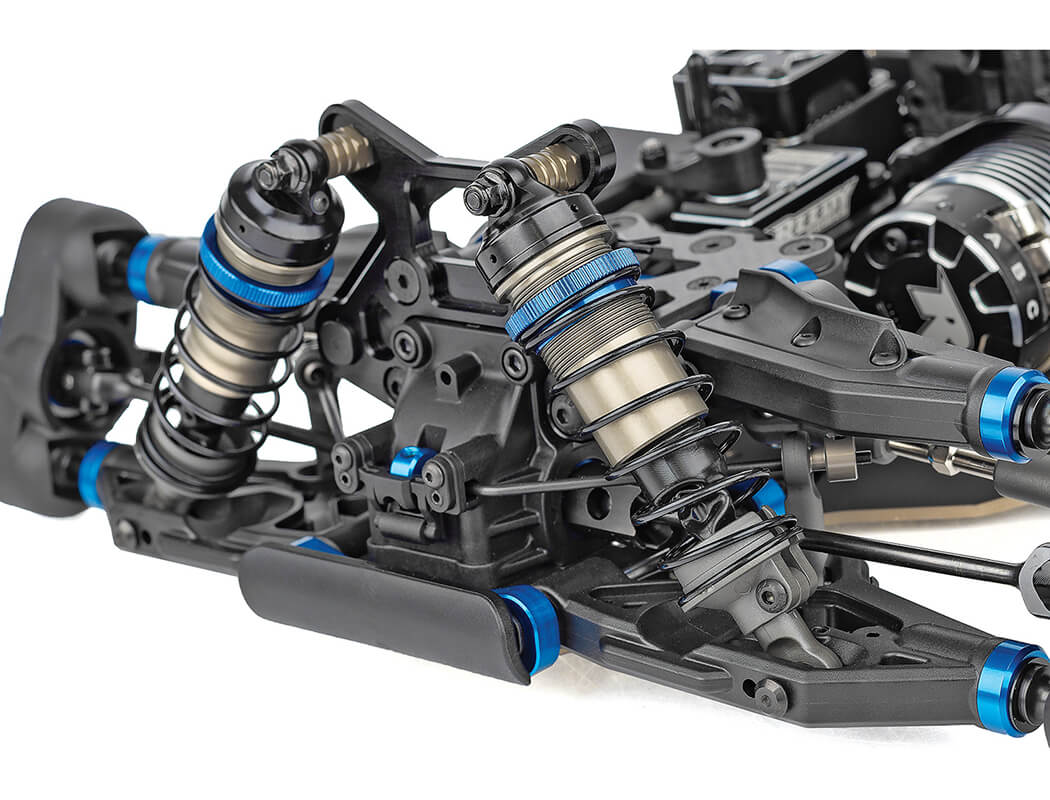

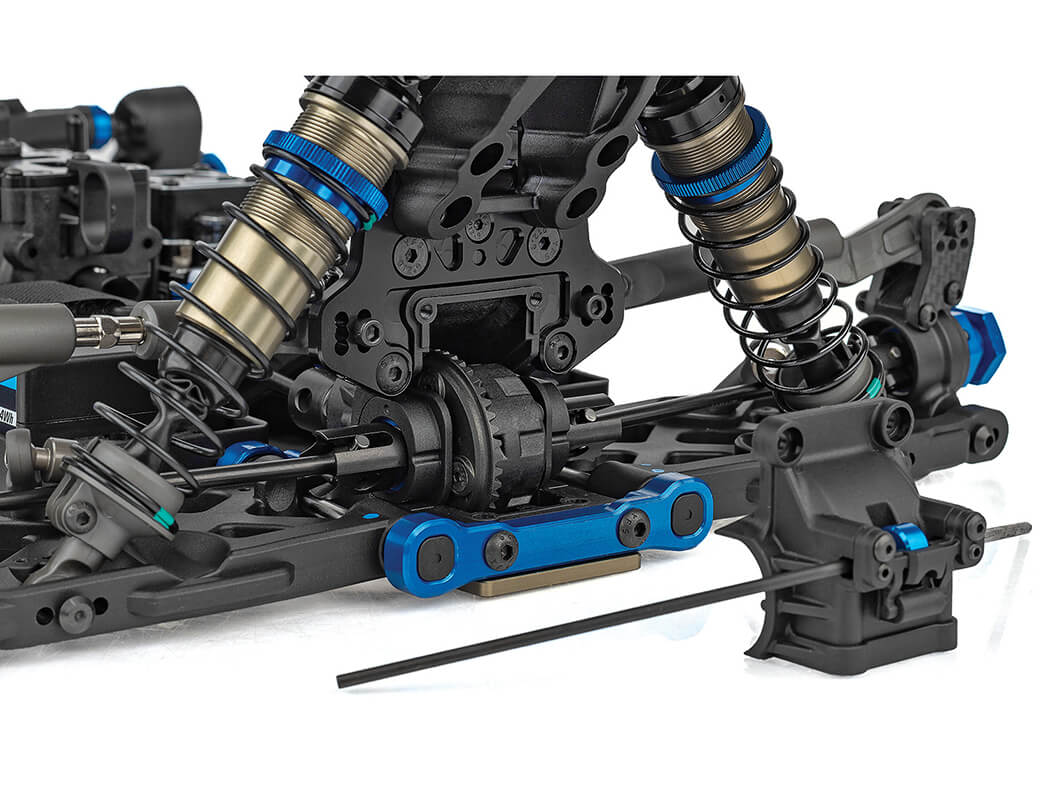

• New molded height-adjustable gearboxes front and rear.

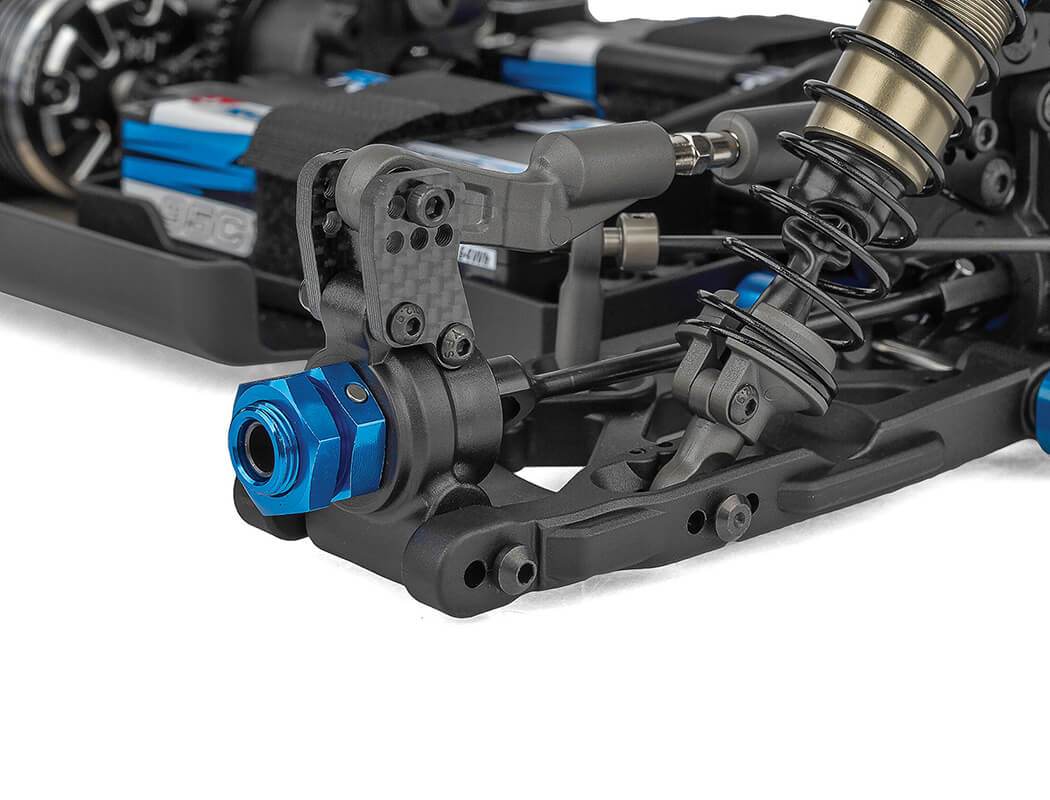

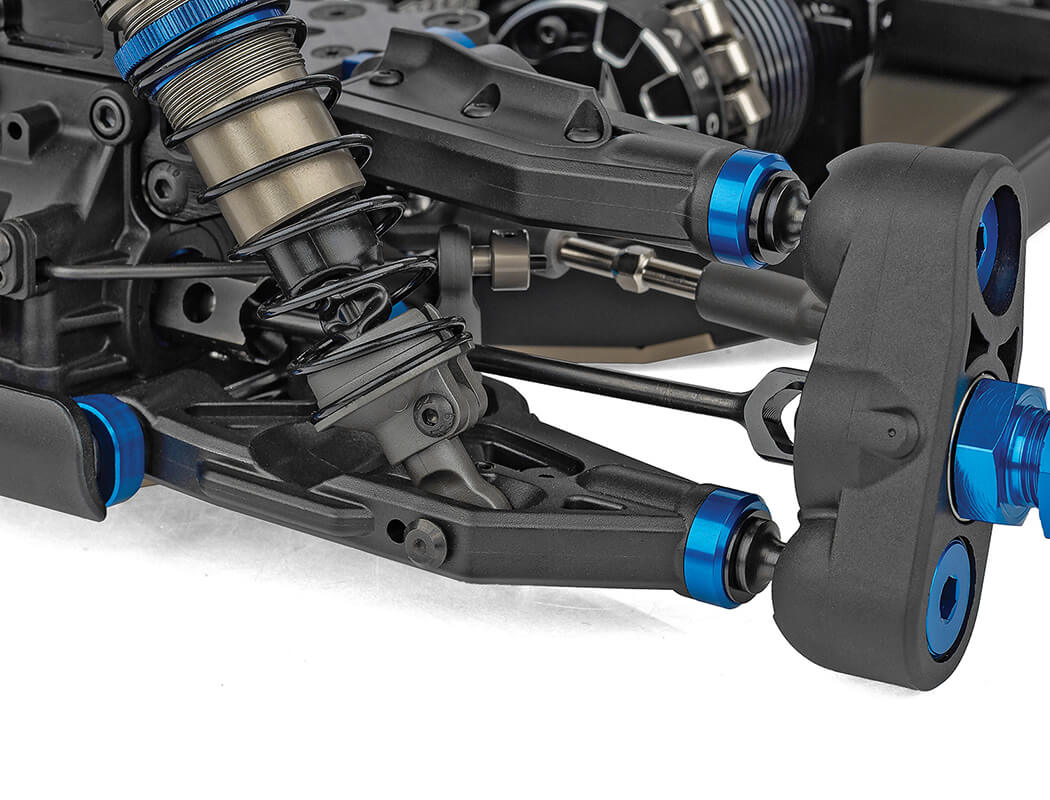

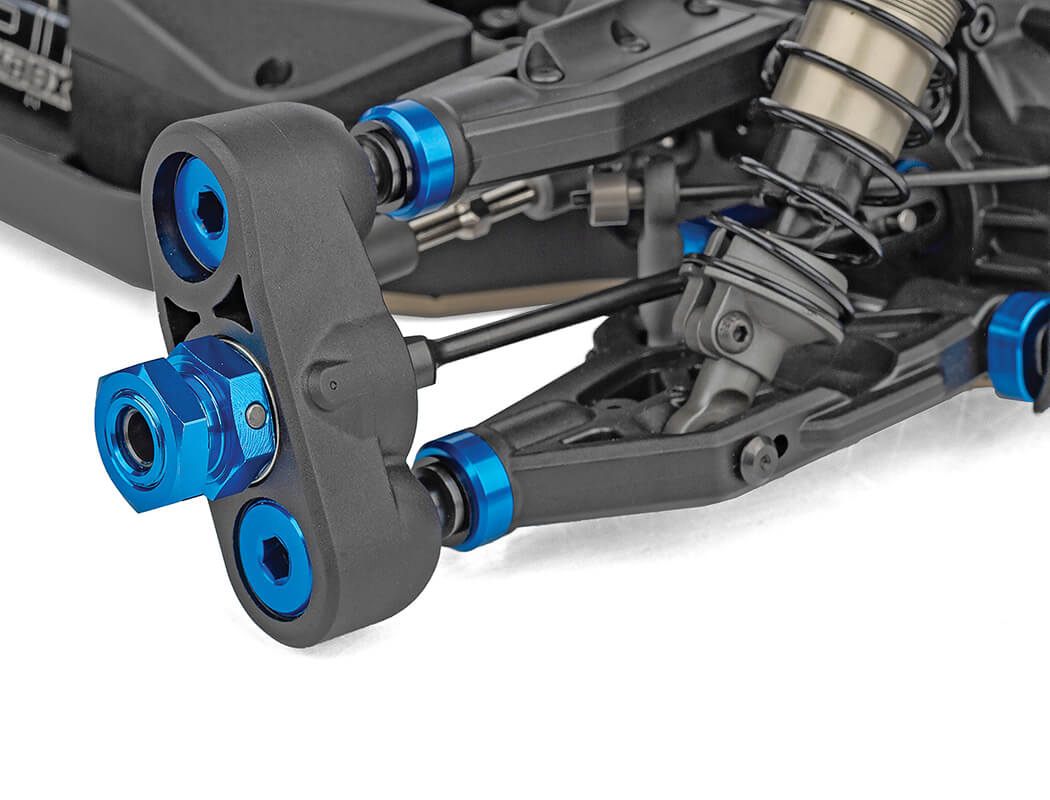

• New offset hubs and updated rear suspension arms to accommodate new hub geometry.
• New high-volume center differential.

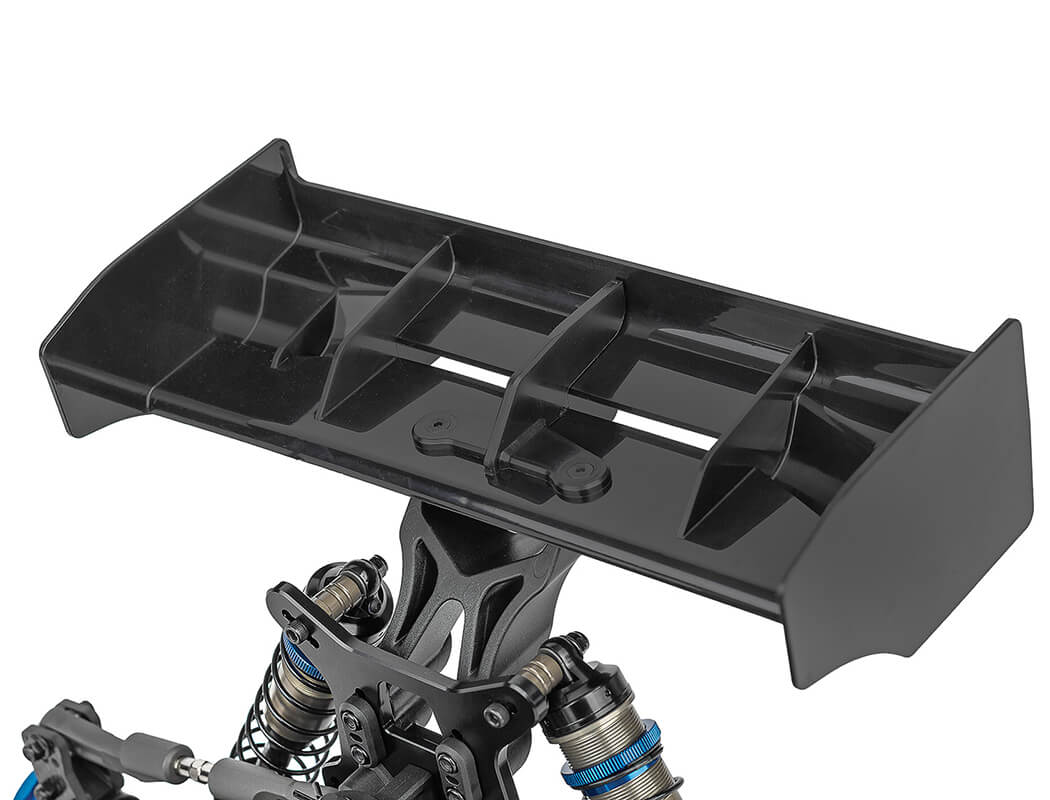

• New high-downforce wing.
• Now includes FT hard-anodized aluminium shock bushings.
• RWB/FWB adjustable weight bias chassis.
• Soft blend material suspension arms.
• 8-degree KPI steering blocks included.
• 44/13 ring and pinion gear sets.
• 92mm universal driveshafts with 17mm outdrives.
• Both 19mm and 20mm diameter HTC internal differential gear sets included.
• 47T machined steel spur gear included.

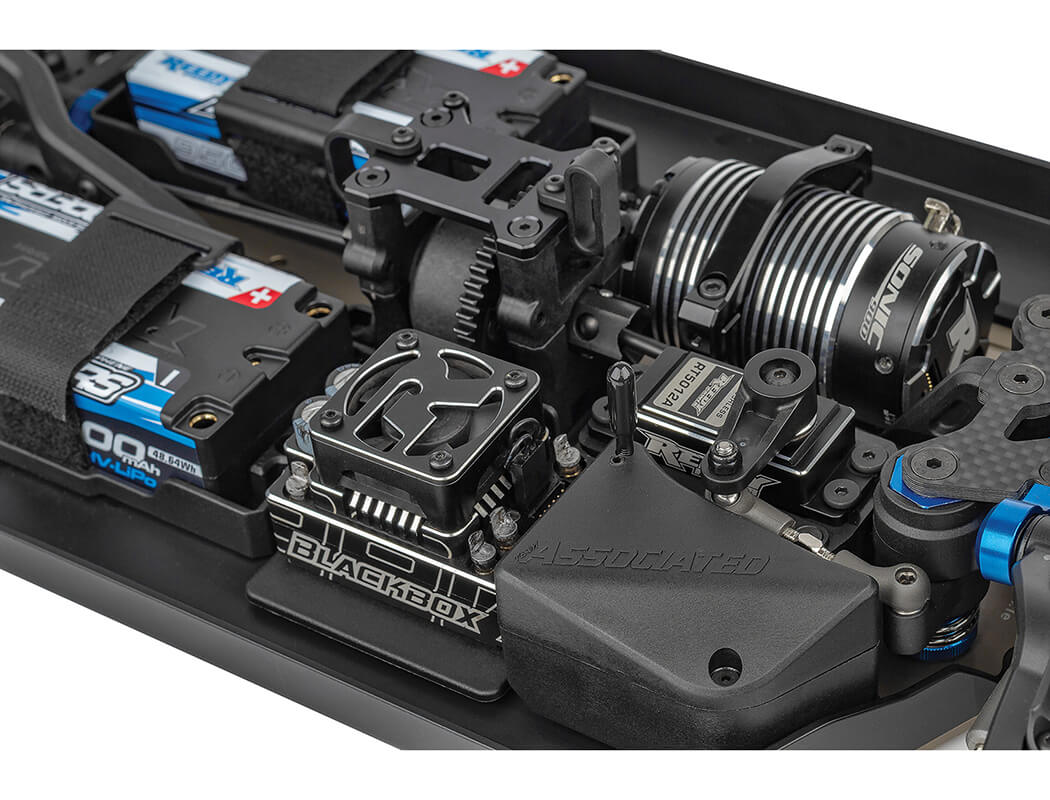

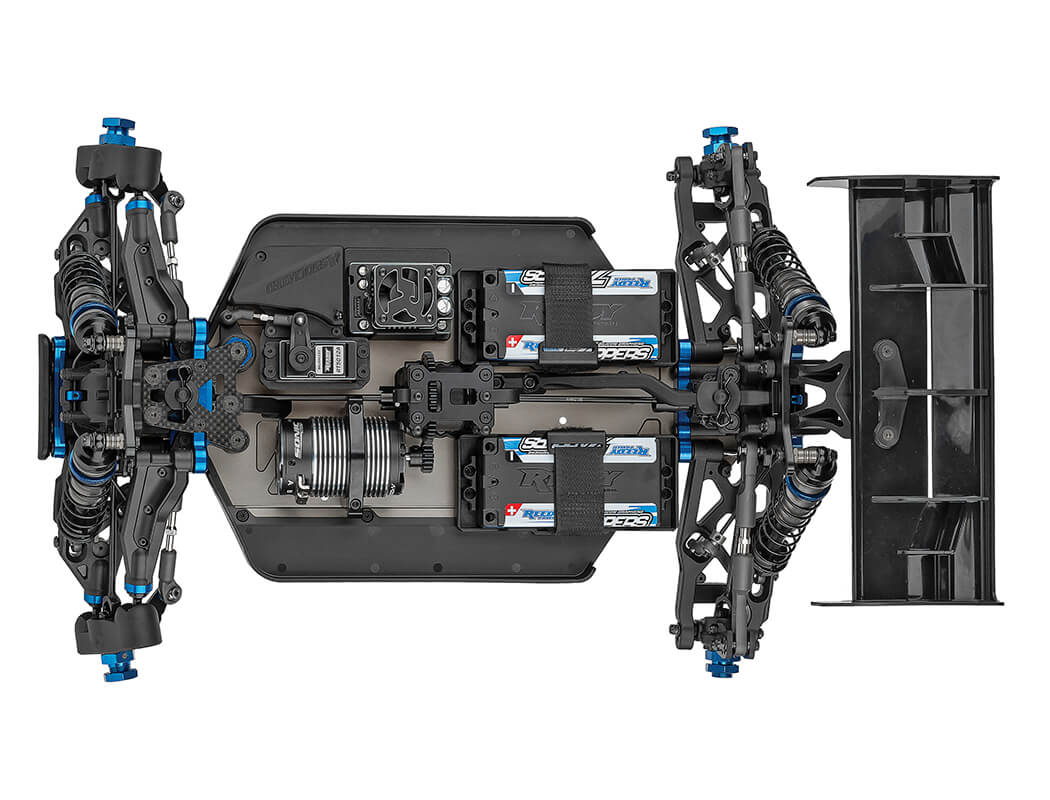

• Centralised drivetrain and chassis configuration optimized for shorty-style batteries.

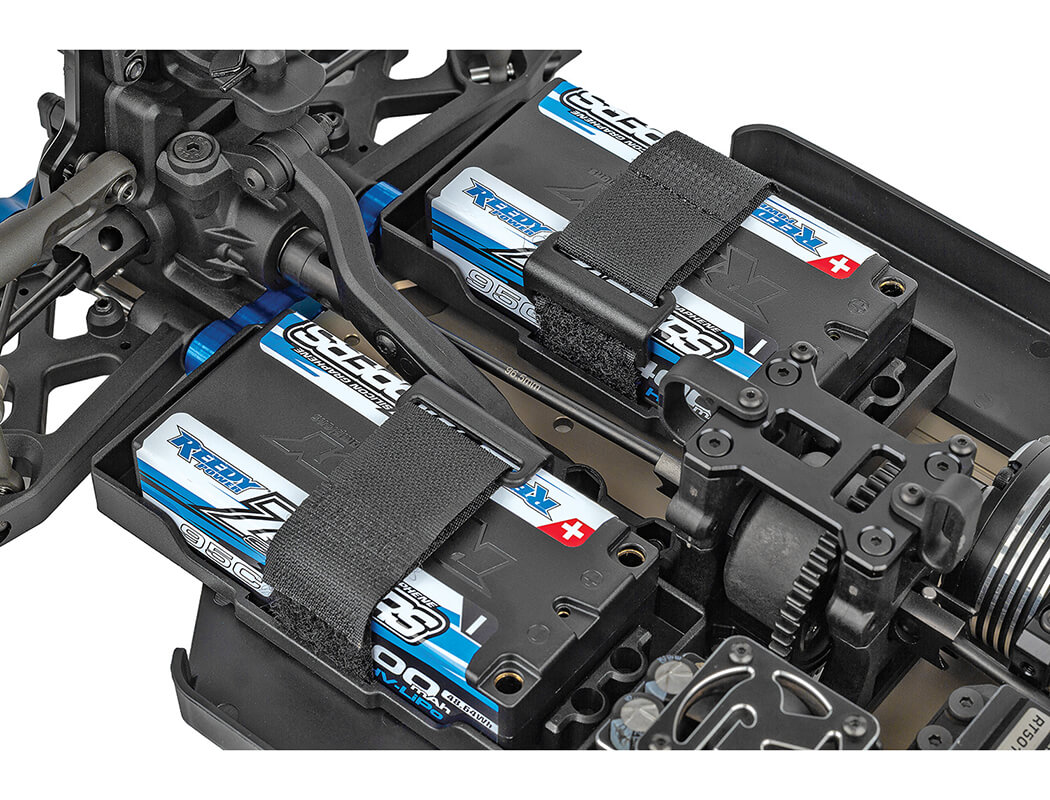

• Adjustable battery tray design with hook and loop strap for retaining batteries.

Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy

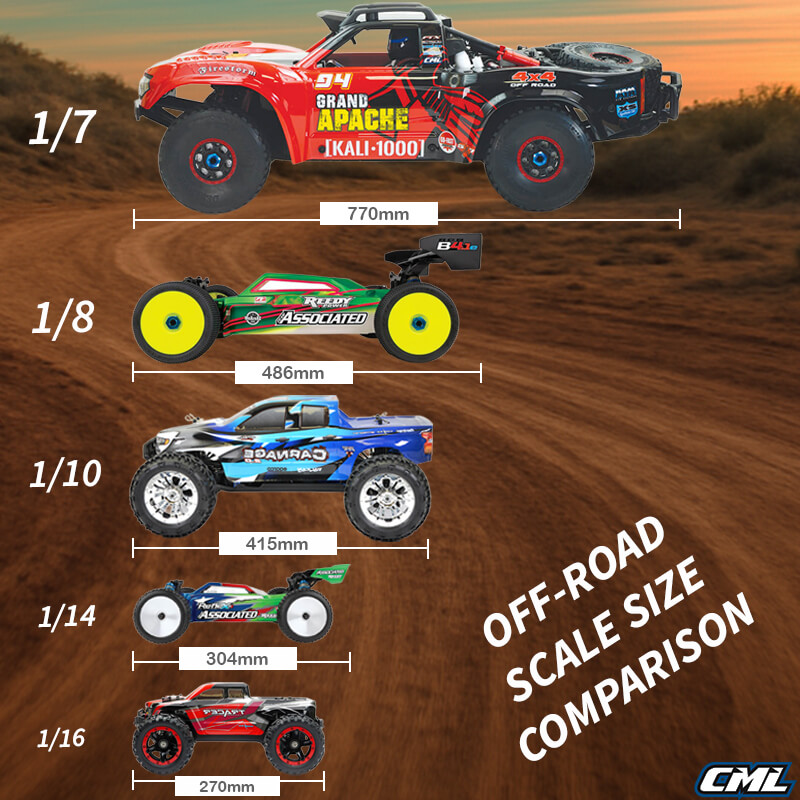

Scale Size: 1:8 Scale
Assembly Level: Kit*
Length: 486mm (19.13in)
Width: 304.5mm (11.99in)
Wheelbase: Varies
Weight: Varies
Internal Gear Ratio: 3.38:1
Drive: 4WD

Please Note: *This vehicle comes as a kit and must be fully assembled by the user.

Required To Complete

• Motor
• ESC
• Batteries
• Servo
• Receiver
• Tyres & Wheels
• Radio
• Assembly and painting required

Recommended Electronics

• Servo (AS27168 Reedy RS4008A Hi-Speed HV Servo).
• Battery (AS27619 Zappers SG7 7800mAh 140C 7.6V 1:8 Long-Shorty).
• ESC (AS27043 Reedy Blackbox 880R Competition 1:8 ESC).

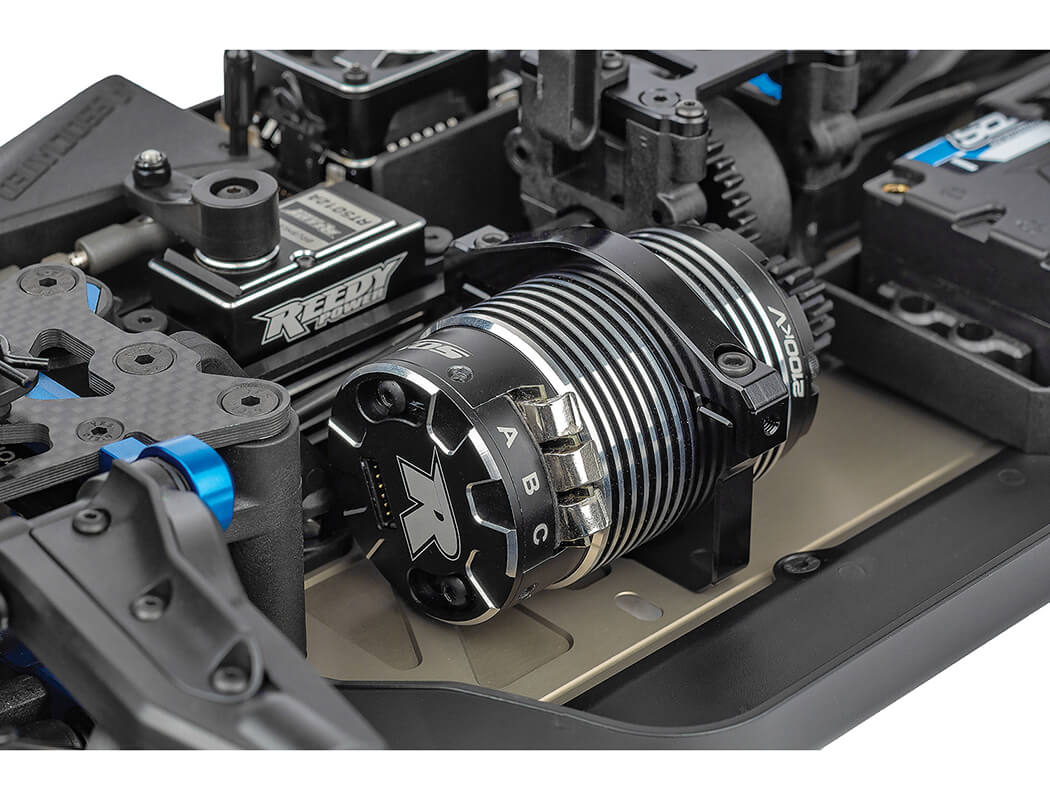

• Motor (AS27509 SONIC 900 1900kV DE Competition 1:8 Motor).
• Charger (AS27203 Reedy 1416-C2L Dual AC/DC Competition Balance Charger).
• Accessories.
