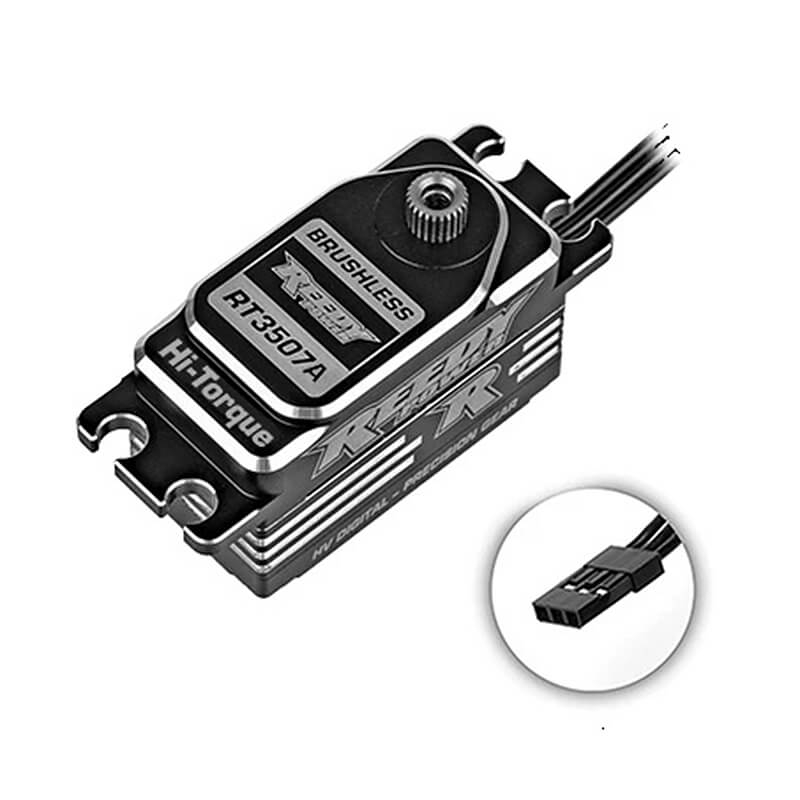

REEDY RT3507A LP BRUSHLESS HI-TORQUE HV COMPETITION SERVO

Designed for 1:10 racing, when space and weight-savings are at a premium, the Reedy Power RT3507A servo is the choice for off-road and on-road competition by offering a low-profile design, high speeds and maximum torque.

Features

• High voltage
• Low-profile
• 25-tooth Spline
• Steel Gears
• Precision ball bearings
• Brushless motor
• Full CNC aluminum case with integrated heat sink
• High speed: .065 - 0.1 sec/60 degrees (8.4V - 6.0V)
• Extreme torque: 486.1 oz-in – 305.5 oz-in (8.4V – 6.0V)

Specifications

Input (V): 6.0 - 8.4
Motor: Brushless
Speed (sec/60°) 6.0V: 0.1
Speed (sec/60°) 7.4V: >0.08
Speed (sec/60°) 8.4V: 0.065
Torque (kg-cm/in-oz) 6.0V: 22/306
Torque (kg-cm/in-oz) 7.4V: 28/389
Torque (kg-cm/in-oz) 8.4V: 35/486
Dimensions (mm): 40.8 x 20.2 x 25.6
Weight (g): 53
Spline: 25
