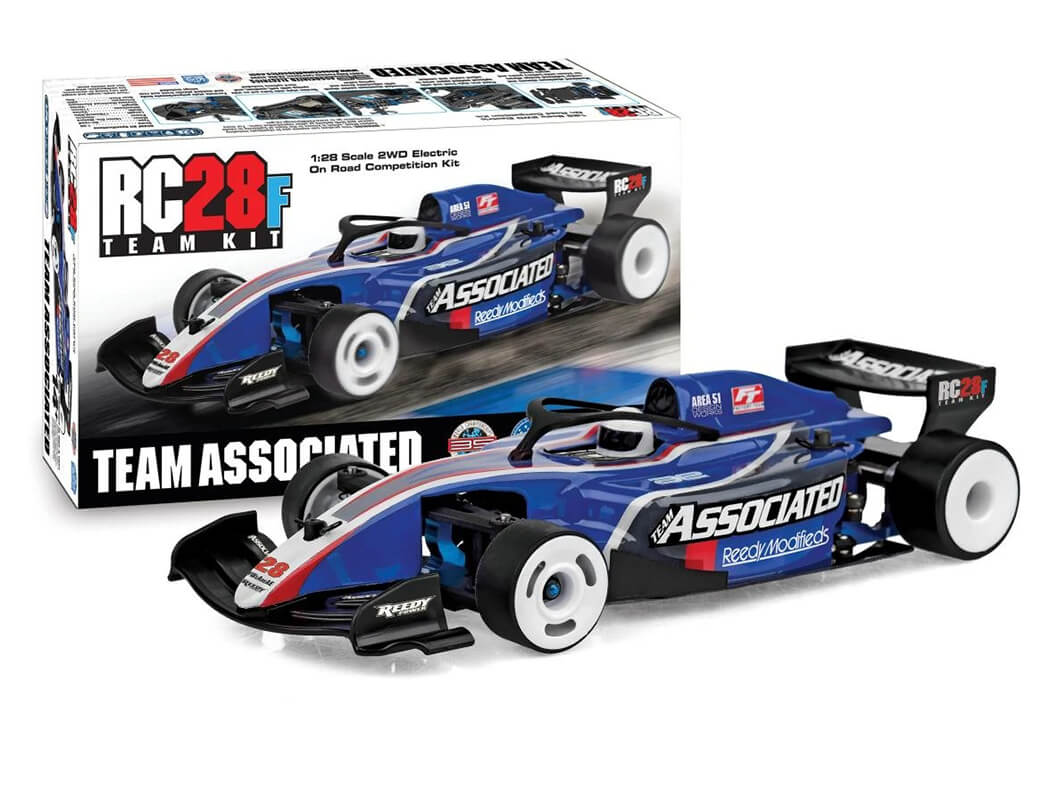

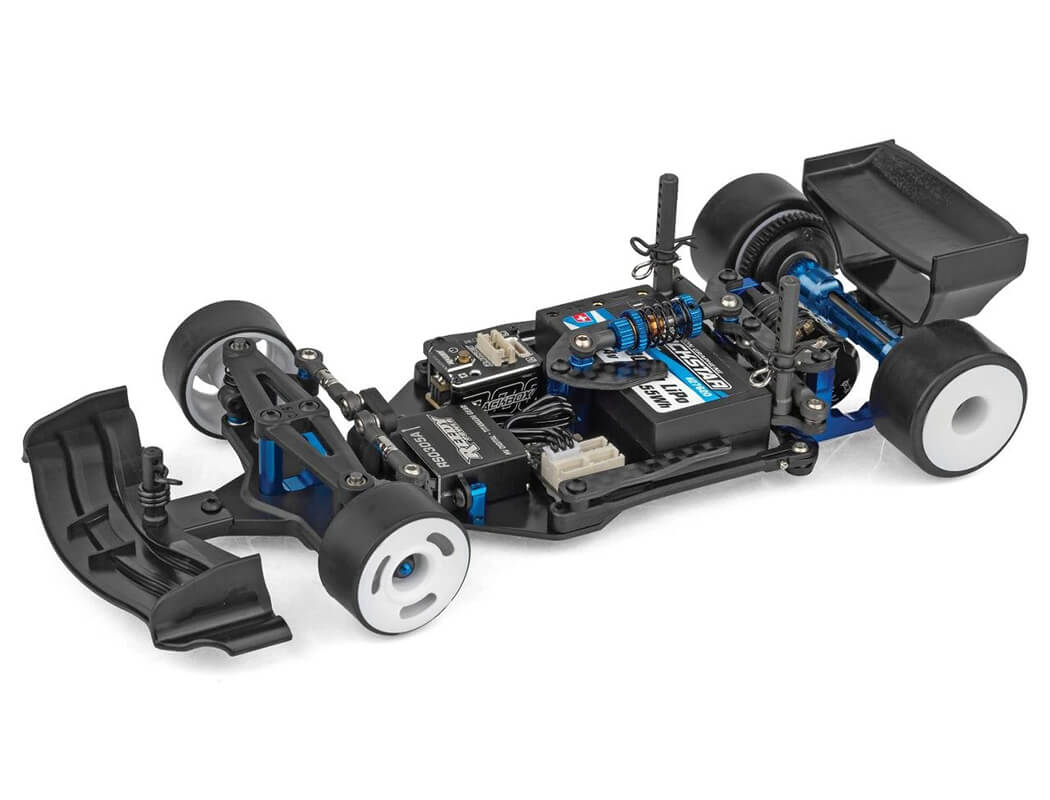

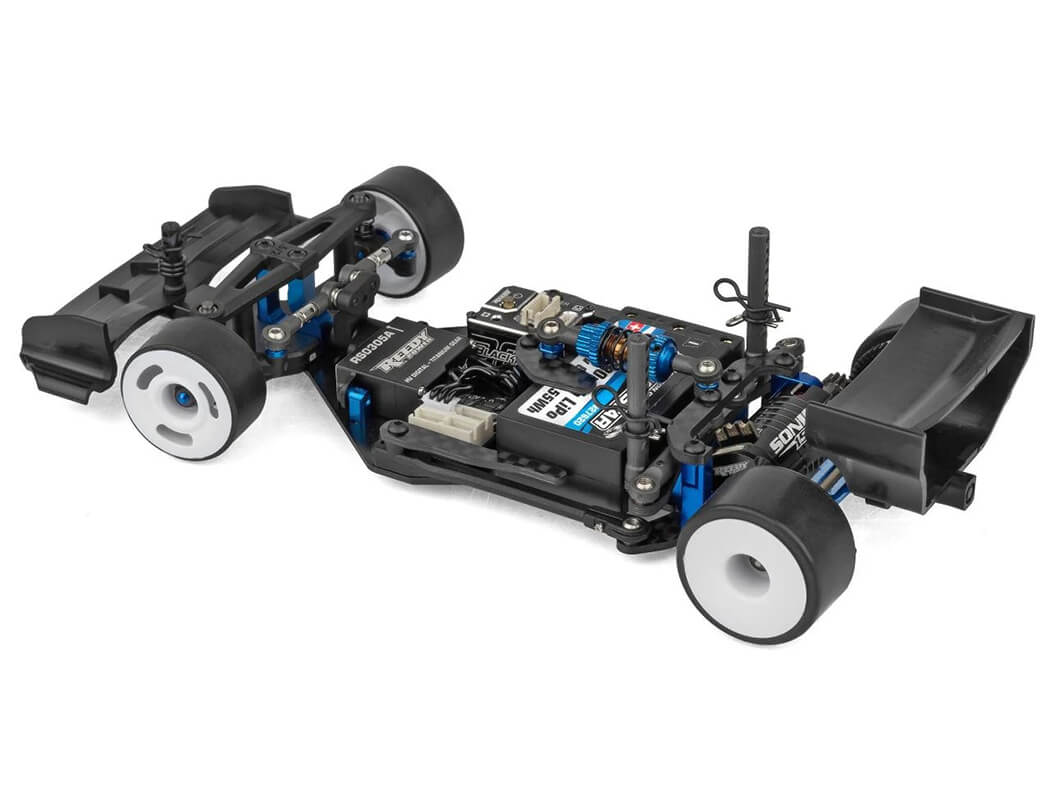

TEAM ASSOCIATED RC28F TEAM KIT

Full-scale F1-style racing is considered one of the most elite forms of racing in existence, with technology and looks off the chart. Though small in scale, the RC28F delivers big performance in an easy to set up package. Featuring a F1-style polycarbonate body and molded plastic wings, ample space for mounting electronics and overall weight reduction. A new F1-style inspired fixed arm style front end with optional molded upper arms to adjust caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not.

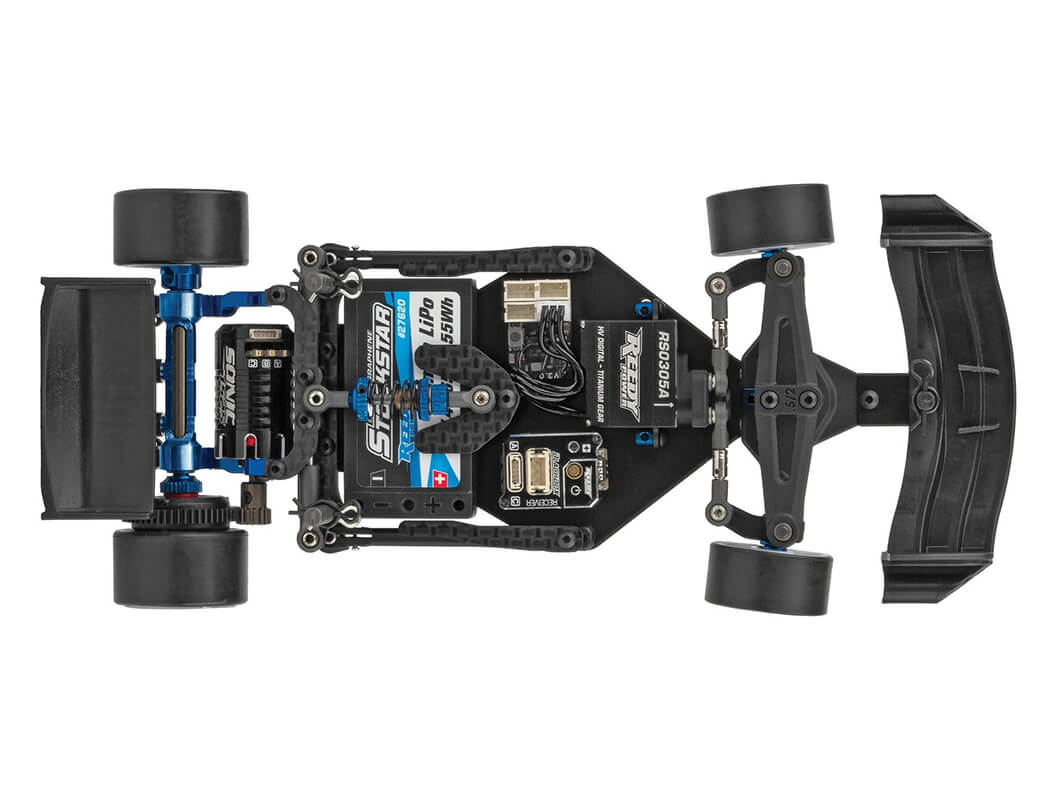

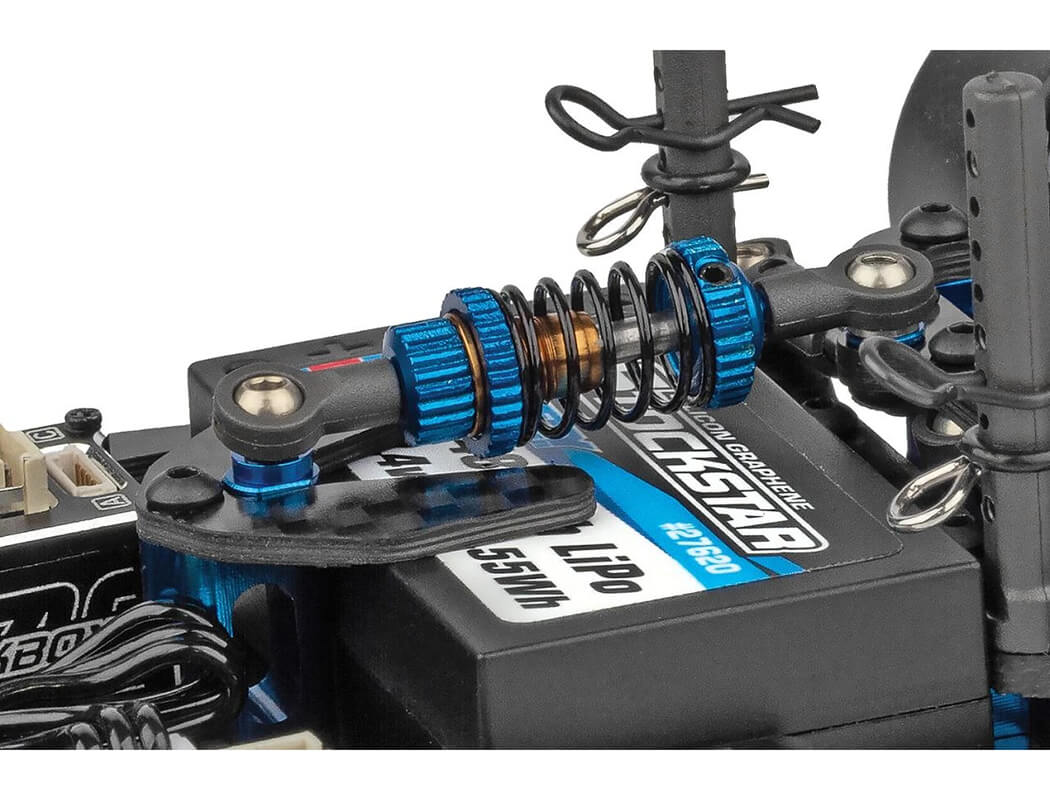

The new aluminium chassis and center bulkhead allows wider 24mm battery packs and electronic mounting space while keeping overall weight to a minimum. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminium center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. This RC28F is compatible with all 28th scale Reedy Electronics. Compact, tunable, and designed to race, the RC28F is built for high performance and fun, even in tight spaces.

Features

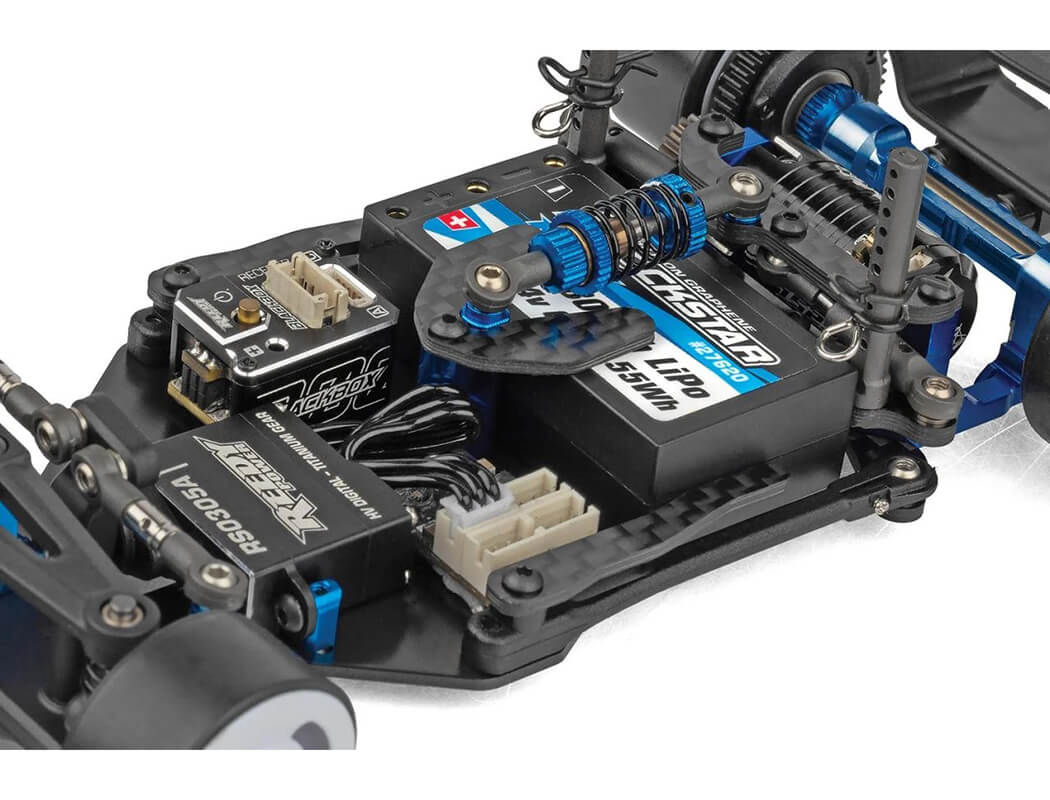

• Machined aluminium chassis and center bulkhead design allows for 24mm wide battery packs and ample space for mounting electronics while also reducing overall weight.

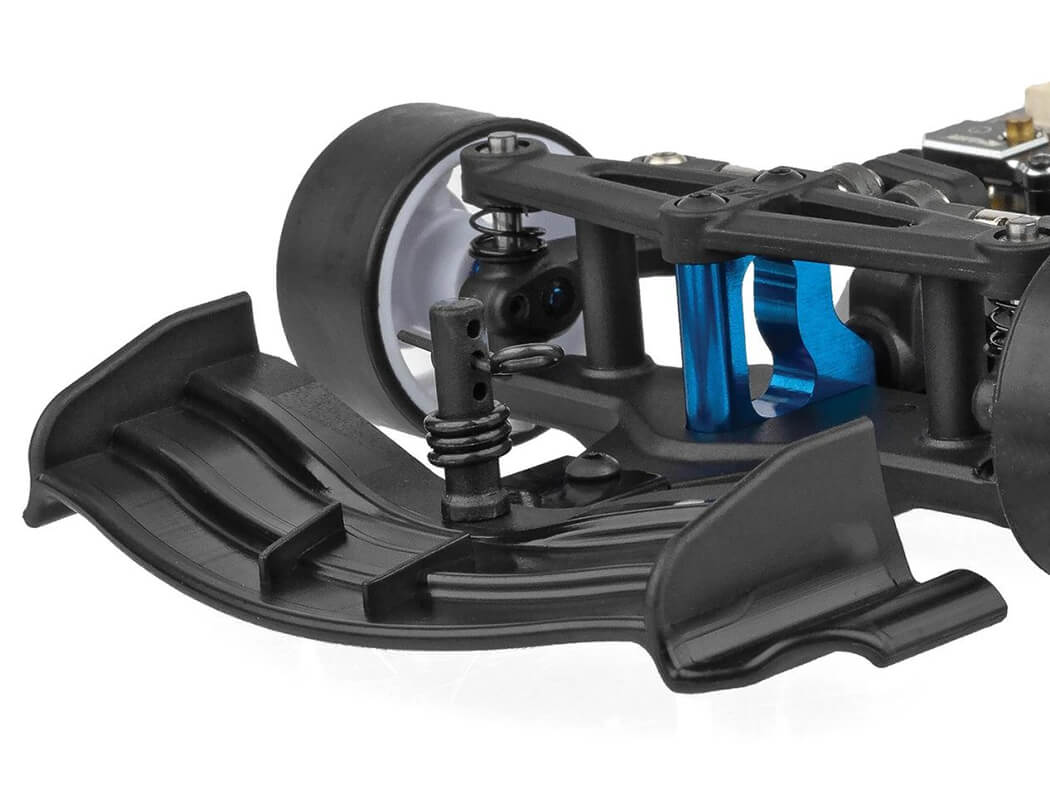

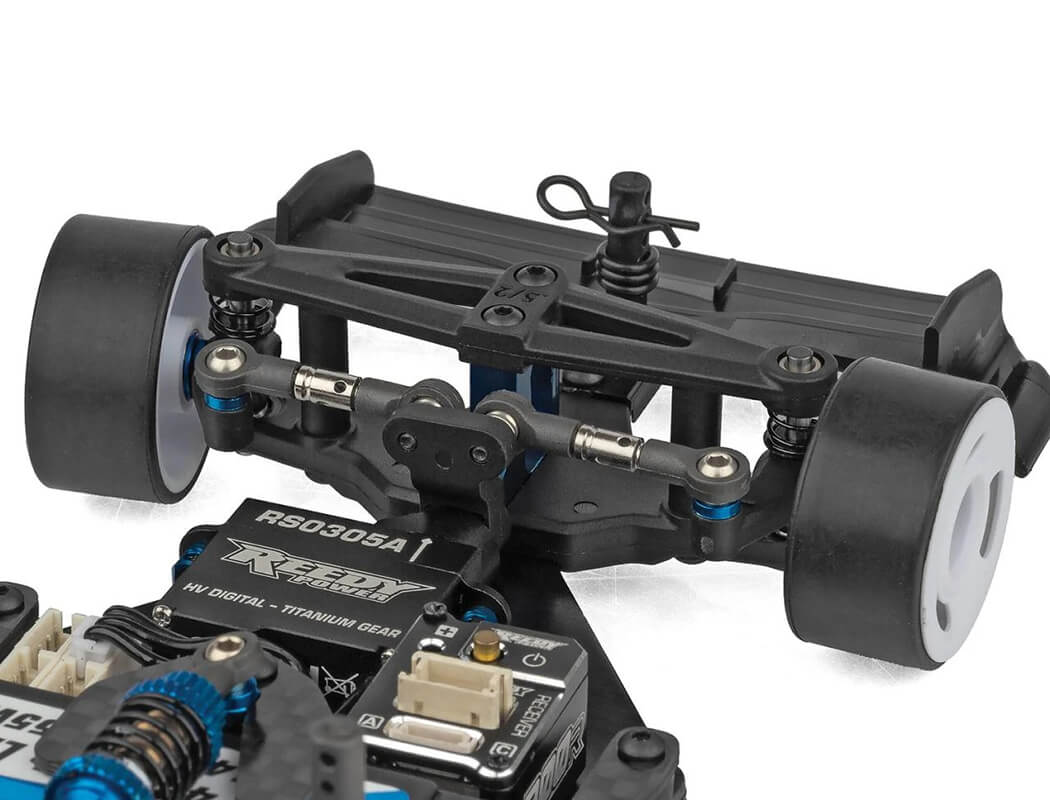

• Fixed arm style front end with optional molded upper arms to adjust caster and camber.

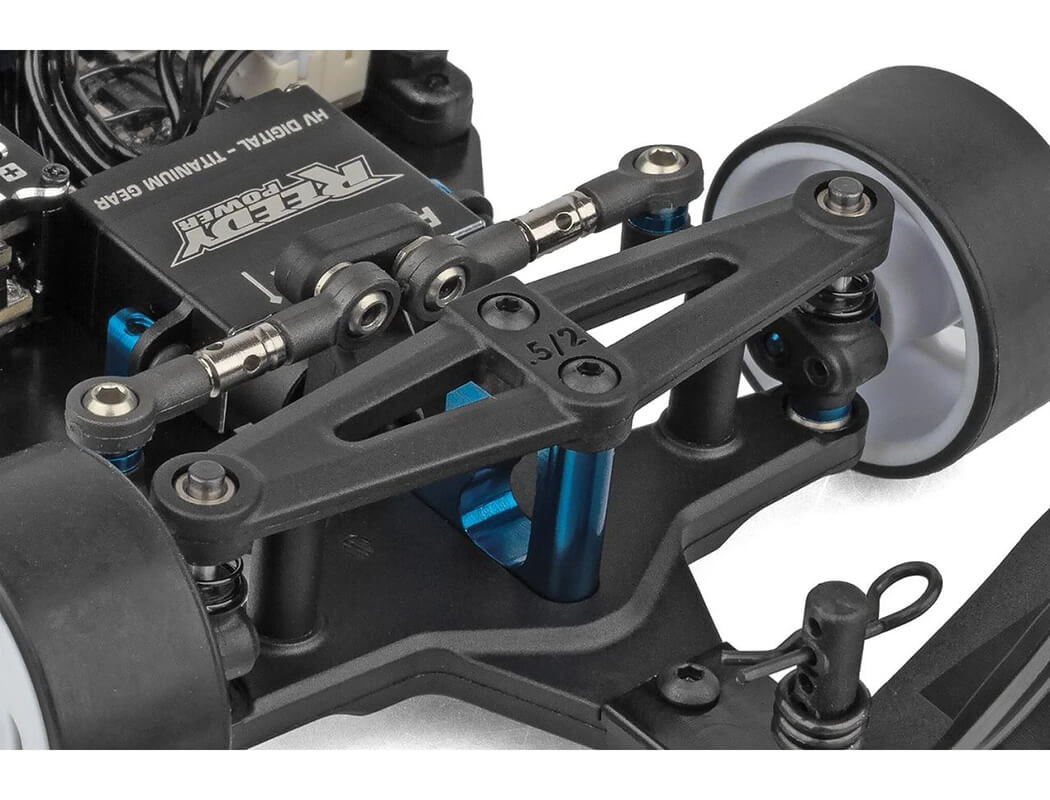

• Front bulkhead design allows for quick upper arm changes with consistent fitment and alignment.

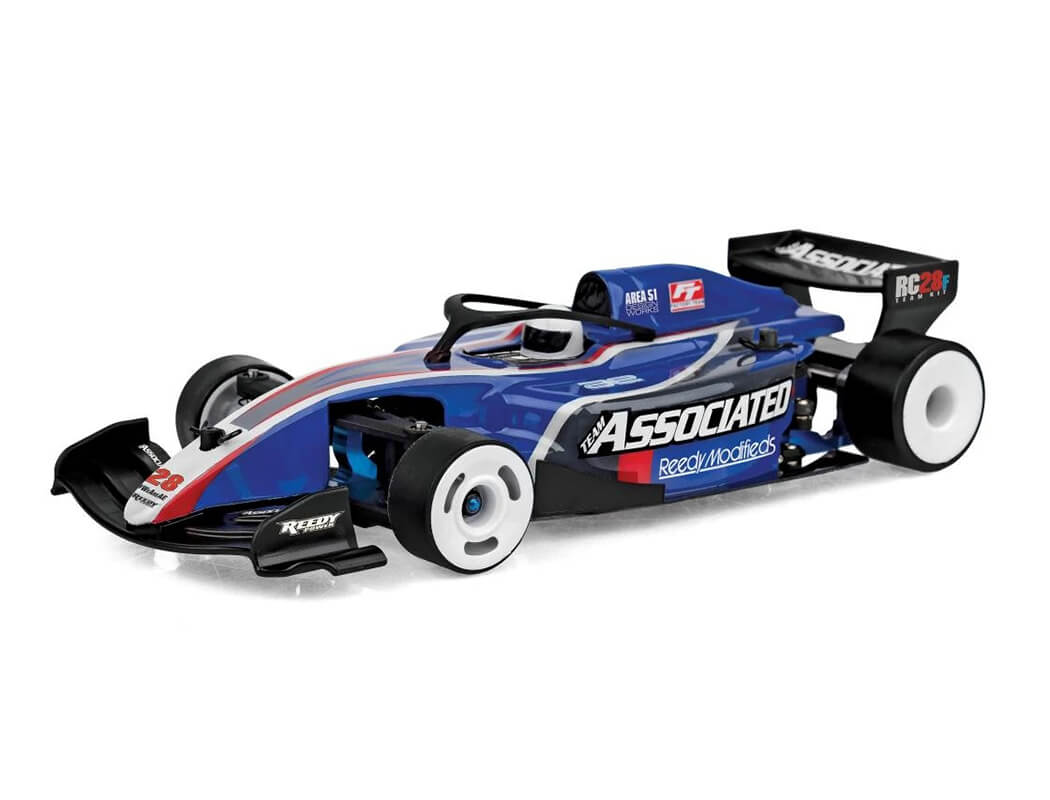

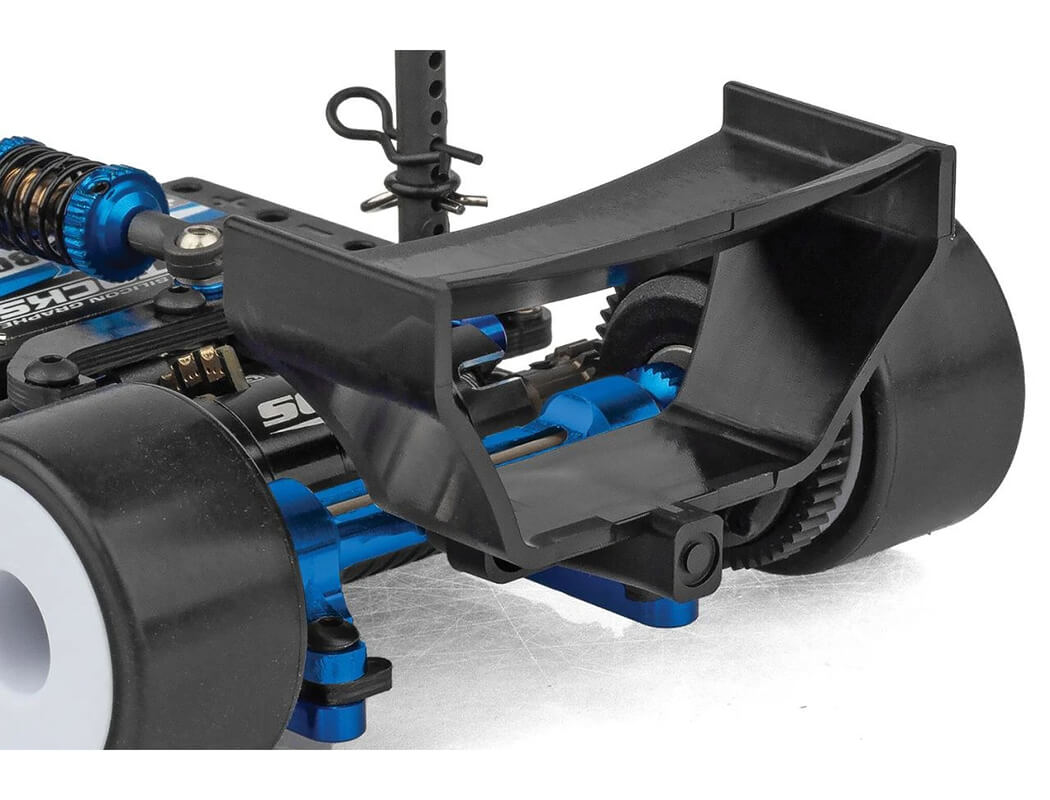

• F1-style style polycarbonate body and molded plastic wings included.
• Torsion style side links act as side spring with soft, medium, and hard options included.

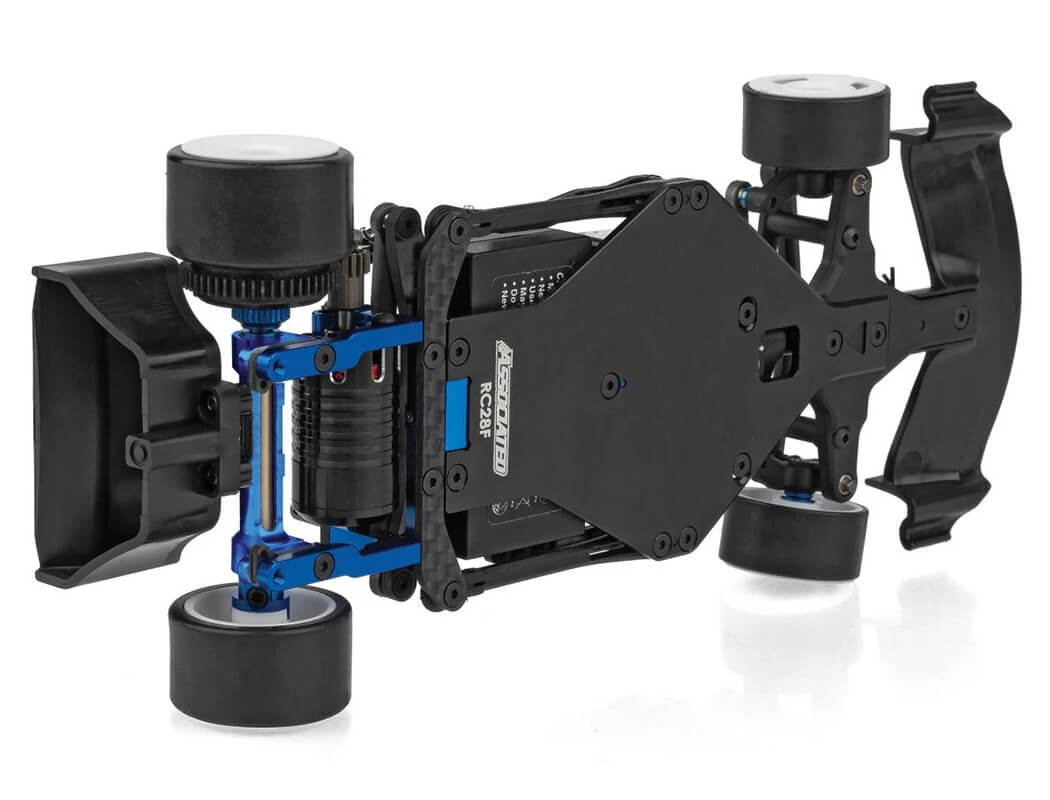

• Adjustable rear pod roll center inserts to tune roll characteristics to grip level.
• Optimized roll geometry with side damper tubes.
• Team carbon fiber shims.
• Gear differential included but can fit other aftermarket options currently available.
• V2 White wheels included that fit optional front wheel flanges to tune steering feel.
• Team Associated’s quality, distribution, support, and customer service.

Specifications

Power Source: Electric
Terrain: On-Road
Body Style: F1

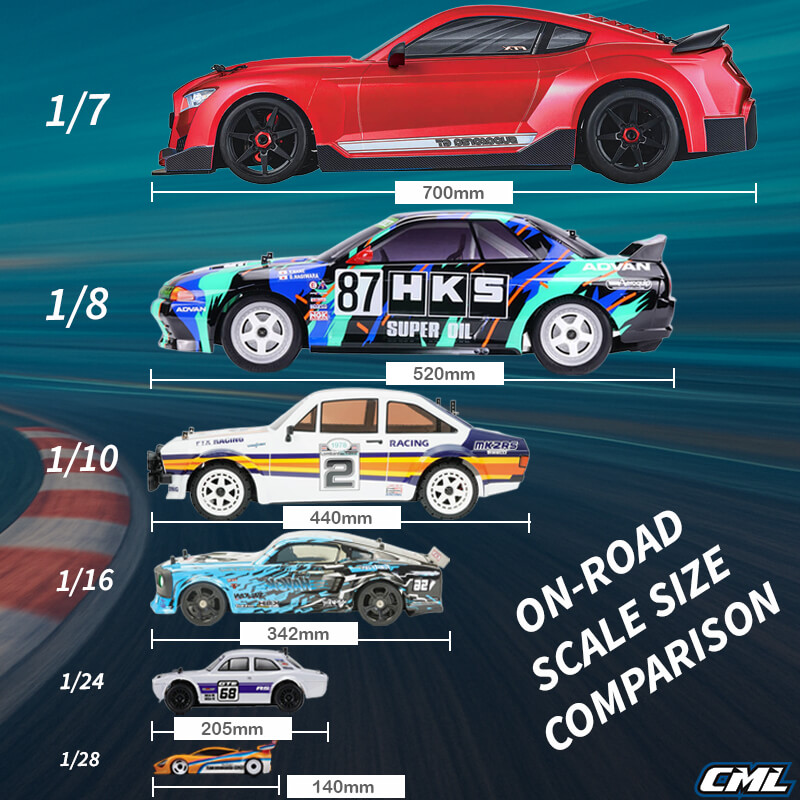

Scale Size: 1:28 Scale
Assembly Level: Kit*
Length: 176mm (6.93in)
Width: Varies
Wheelbase: 115mm (4.53in)
Weight: Varies
Internal Gear Ratio: Varies
Drive: 2WD

Please Note: *This vehicle comes as a kit and must be fully assembled by the user.

Required To Complete

• Motor
• Battery
• Servo
• ESC
• Charger
• Radio & Receiver

Recommended Electronics

• Motors (AS27503 SONIC 1525 2500kV Micro Brushless Motor)
  (AS27504 SONIC 1525 3500kV Micro Brushless Motor)
  (AS27505 SONIC 1525 4500kV Micro Brushless Motor)
• Battery (AS27620 REEDY Stockstar 480mah 65c 7.4v 1:28 Stick)
  (AS27610 REEDY POWER 400mAh 60C 7.4V 1:28 Stick Battery)
• Servo (AS27175 REEDY RS0305A Micro Hi-Speed Servo)
• ESC (AS27045 REEDY BLACKBOX 300R Competition Micro ESC)
• Charger (AS27203 Reedy 1416-C2L Dual AC/DC Competition Balance Charger)
