SAVOX HIGH TORQUE CORELESS DIGI SERVO 20KG@6.0V - BLACK

Savox have listened to racers requests and released this Limited Edition range of ‘Black Edition’ servos primarily aimed at r/c car racers. With many race vehicles now sporting a stealthy all black appearance ranging from the moulded components, carbon chassis and black aluminium accessories racers have been looking to continue the theme with their electronics.

Savox have taken this onboard and released six servos from their range featuring a sleek black aluminium centre case with laser etched details, as well as a 200mm all black wire.

Sleek new unique black design with laser etching and a shorter 200mm all black leaded wire. This servo pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC1256TG sports titanium and metal gears to keep things strong and running smooth. Black anodized to better match any color scheme.

Features

• Black aluminium centre case.
• Shorter 200mm all black leaded wire.
• Extremely powerful with 20kg-cm torque at its size
• Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
• Super light-weight.
• Coreless motor provides high speed, incredible efficiency, and low power consumption.
• Titanium gears ensure long life and durability.
• The case design not only looks good but also allows for cooler operating temps.

Specifications

• Dimensions: 40.3 x 20 x 37.2mm
• Weight: 52.4g**
• Speed (sec/60°): @4.8v 0.18, @6.0v 0.15
• Torque (kg/cm): @4.8v 16, @6.0v 20
• Gear: Titanium/Alloy
• Case: Aluminium Heat Sink
• Servo Horn: 25 Tooth Spline

**Weight listed does not include wires or horns.

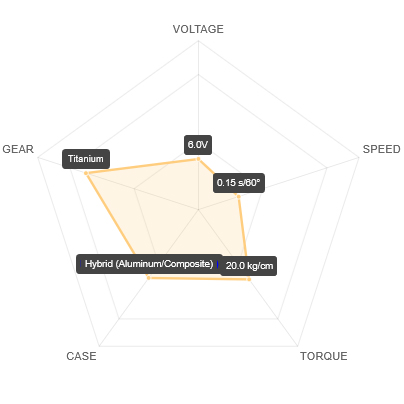

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

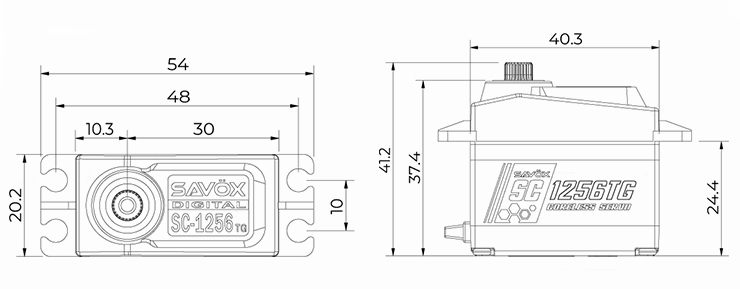

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
