SAVOX LOW PROFILE BRUSHLESS HV DIGI 12KG/0.08S@7.4V - BLACK

Info

Savox Logo

SAVOX LOW PROFILE BRUSHLESS HV DIGI 12KG/0.08s@7.4V - BLACK

  • Part Number: SAV-SB2265MG
  • Brand: Savox
  • Availability: Very Low Stock
RRP : £74.99 Buy via Kibo

Description

Features

  • Metal gear train ensures durability under harsh situations.
  • Ideal for 1/10 on road cars requiring a high speed servo
  • Servo Type / Size: Low Profile
  • Application: 1/10 Cars
  • Motor Type: Brushless
  • Gear Material: Steel

Specifications

  • Input Voltage (V): 7.4v
  • Torque @ 7.4v - 12.0kg/166.6oz-in
  • Speed @ 7.4v - 0.08 sec/60 deg

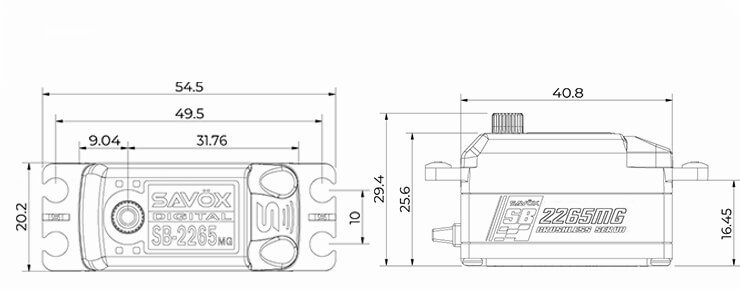

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.
  • Weight: 57.0g
  • Spline size: 25T

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
