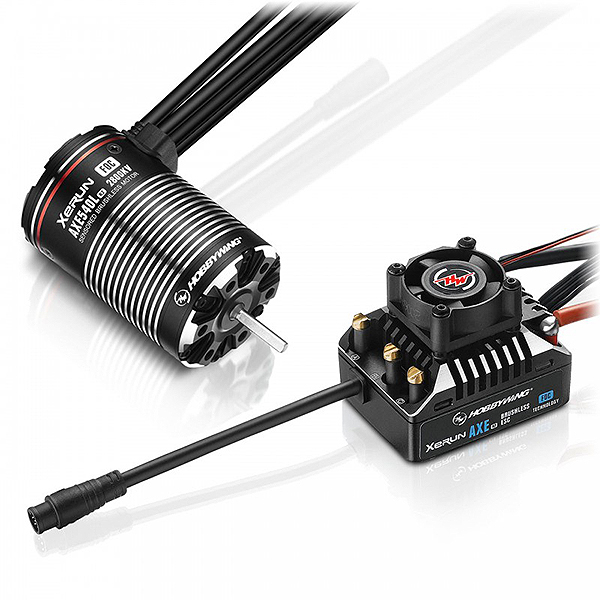

HOBBYWING XERUN AXE540L 2800KV R2 FOC SENSORED B/LESS COMBO

Intelligent torque and speed control for precise driving manoeuvres!

The XeRun AXE "R2" brushless controller, connected to an associated AXE "R2" motor, automatically regulates torque and speed depending on the load requirement. This technology is also called FOC (Field-Oriented Control) and is responsible for this really great driving experience.

The XeRun AXE "R2" 540 motor with its 3.175mm shaft and 2800KV also contributes to this. With the built in staggered pole rotor design patented by Hobbywing, the 4-pole motor has hardly any detent torque and runs smoothly under all conditions. With the professional handbrake function, the car is now 100% immobile, even on the steepest slopes. The motor and controller are both connected via an improved waterproof, special sensor plug.

The ESC also offers extensive setting options for all professionals. Connected via Bluetooth and APP, relevant data can be read out, settings changed or firmware updates carried out, everything is simple and easy.

Specifications

ESC Data

Type: Brushless FOC
Max cont/peak current: 80A/480A
Cells count: 2s-3s LiPo, 6-9 Cells NiMH
Motor limit: For XeRun-AXE "R2" range
BEC: 6V/7.4V with 6A
Programming: via Bluetooth & APP "HW LINK"
Waterproof: Yes
Dimensions: 47.4 x 36.2 x 26.5mm
Weight: 108g
Usage: 1/10 Rock Crawler

Motor Data

Type: Sensored Brushless FOC
Pole: 4
Kv: 2800KV
Lipo count: 2s-3s
No load current: 3.6A
Diameter: 36.0mm
Length: 57.8mm
Waterproof: Yes
Weight: 213g
Usage: 1/10 Rock Crawler
