TEAM ASSOCIATED RC28R TEAM KIT

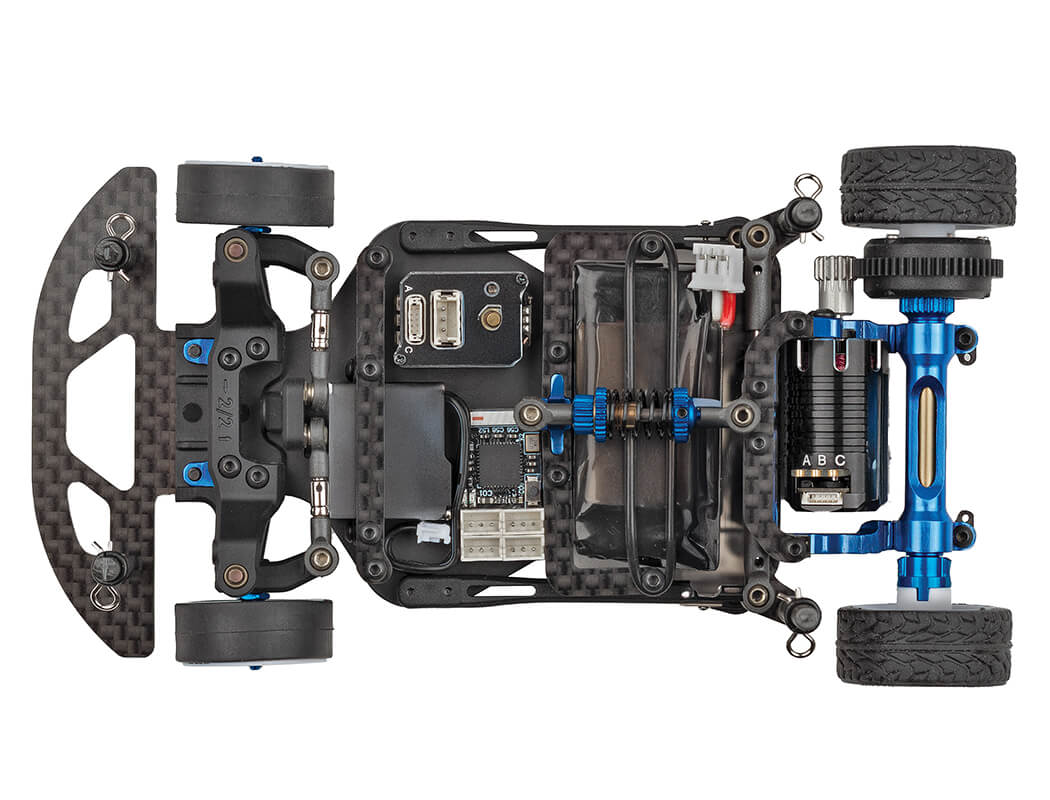

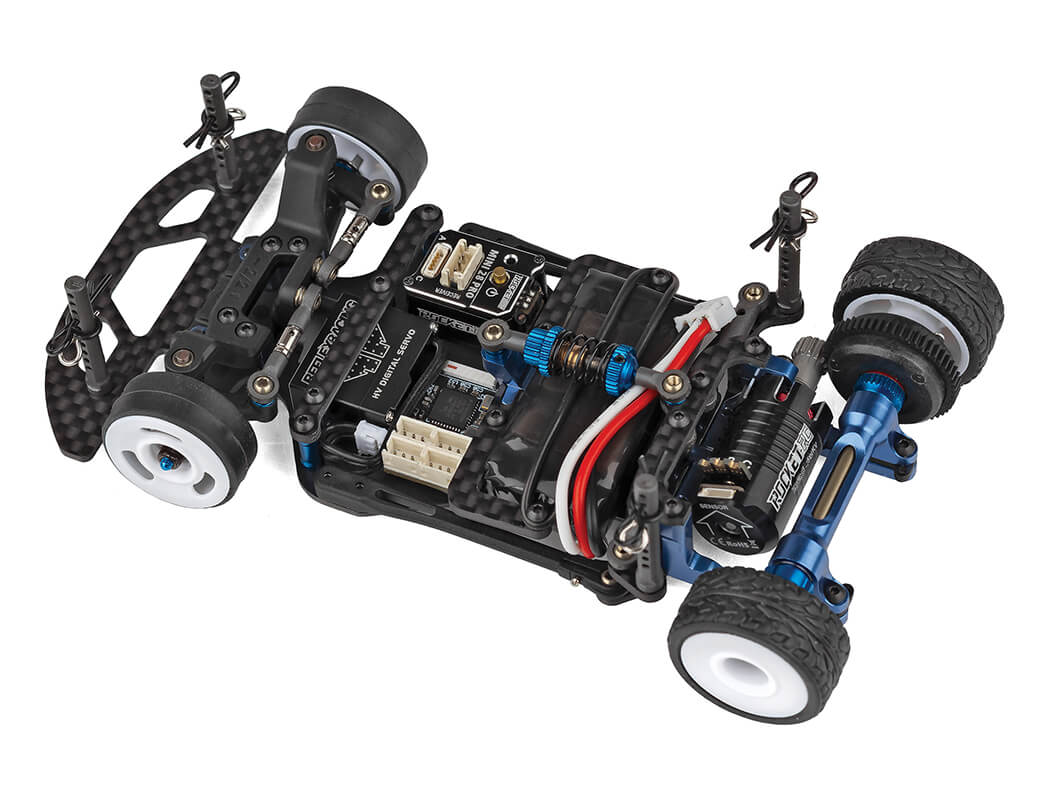

Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.

The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminium center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilising Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun - even in tight spaces.

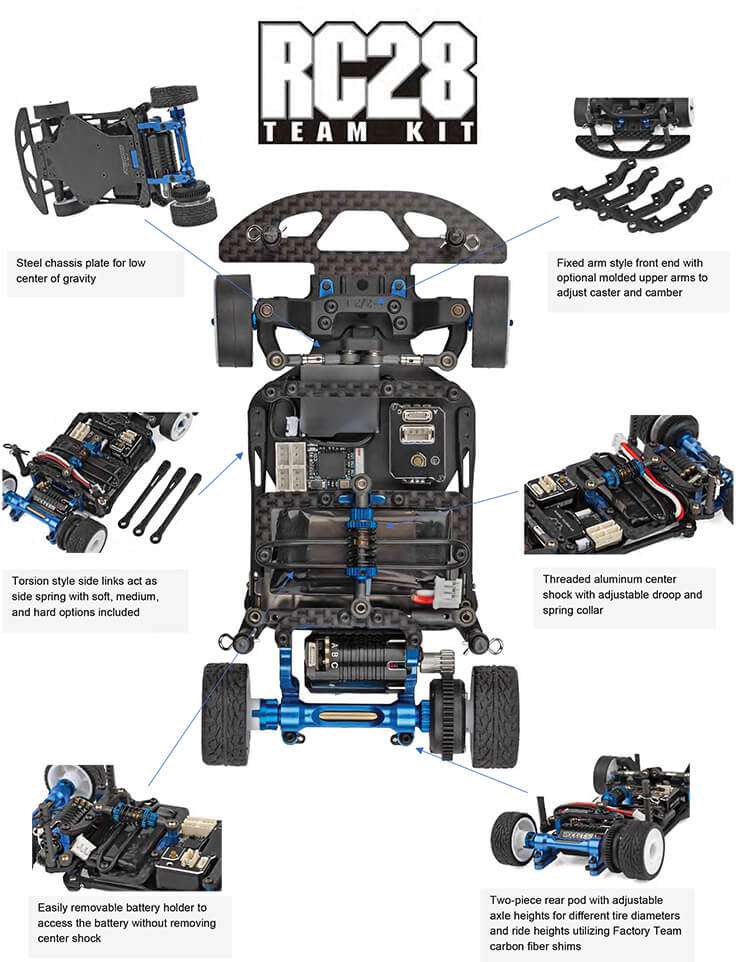

Features

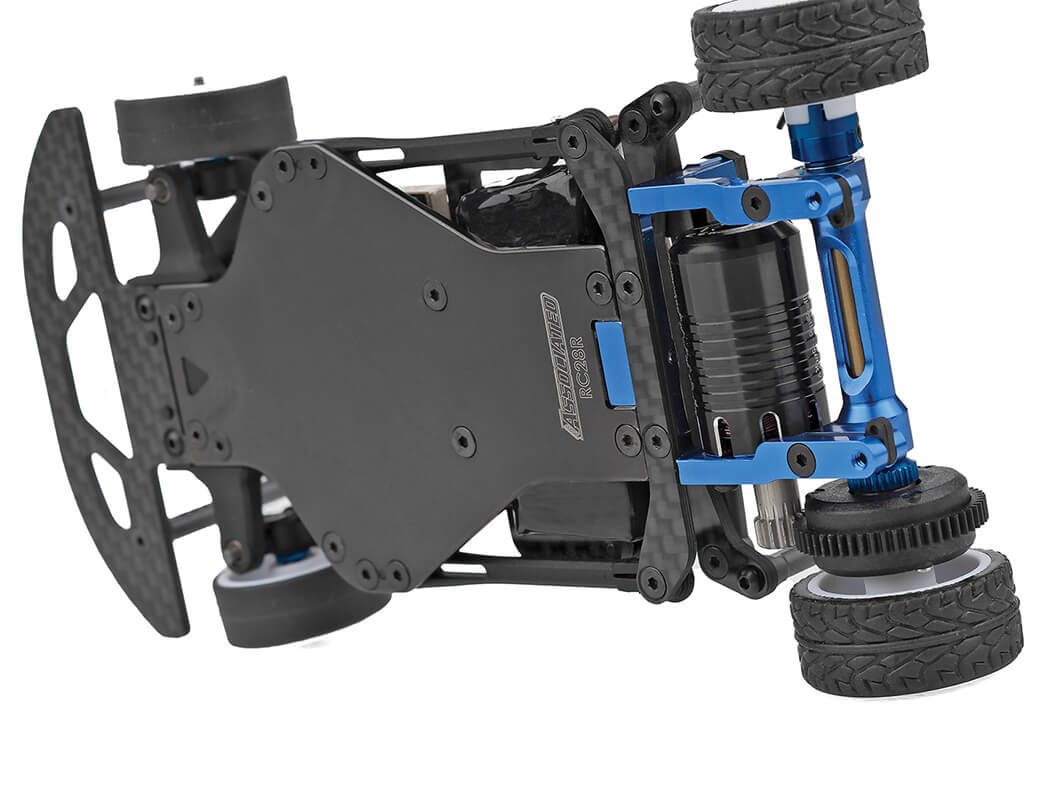

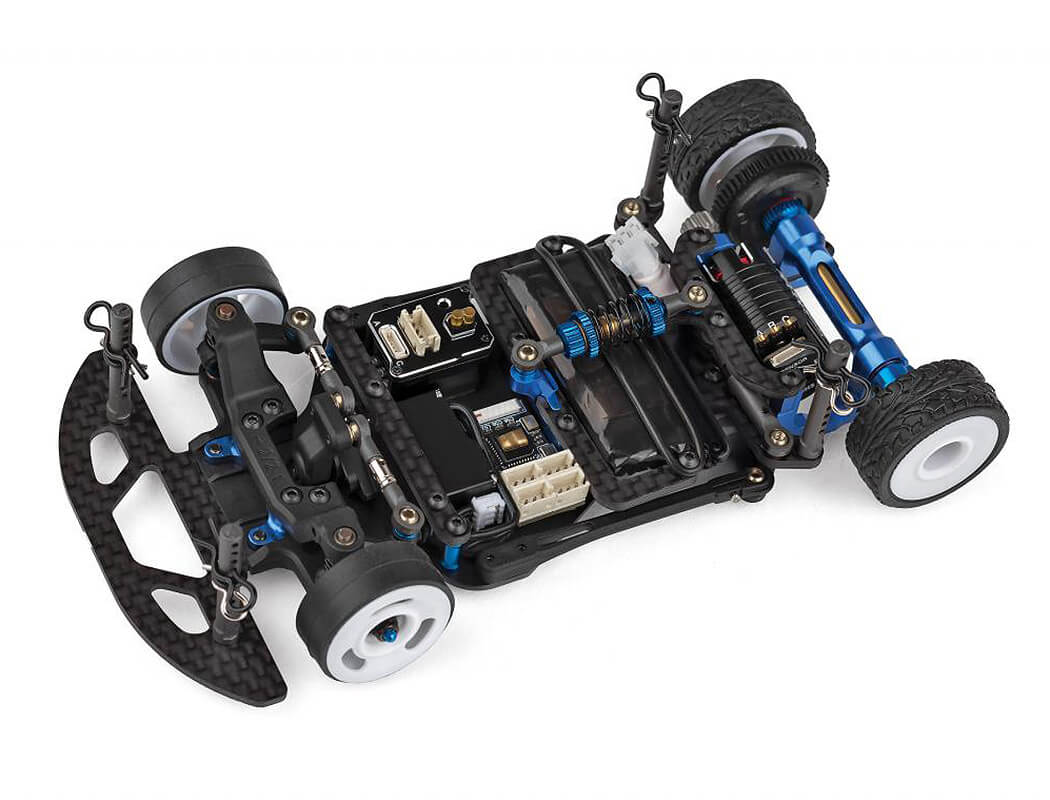

• Steel chassis plate for low center of gravity.

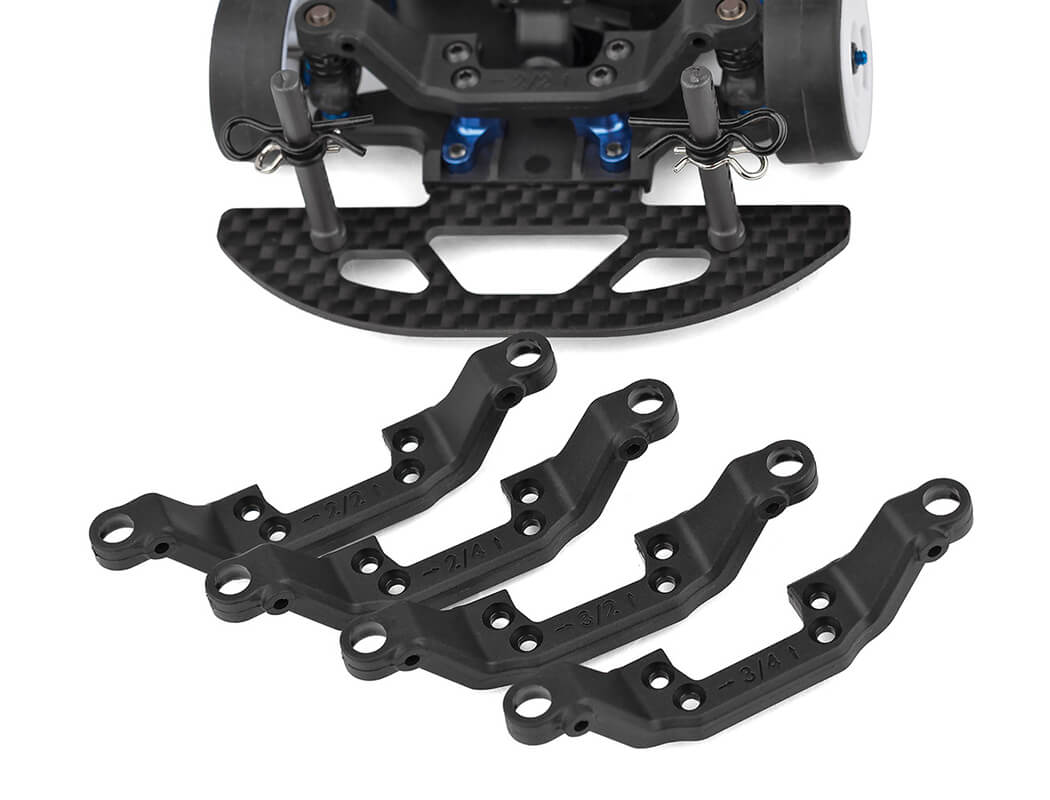

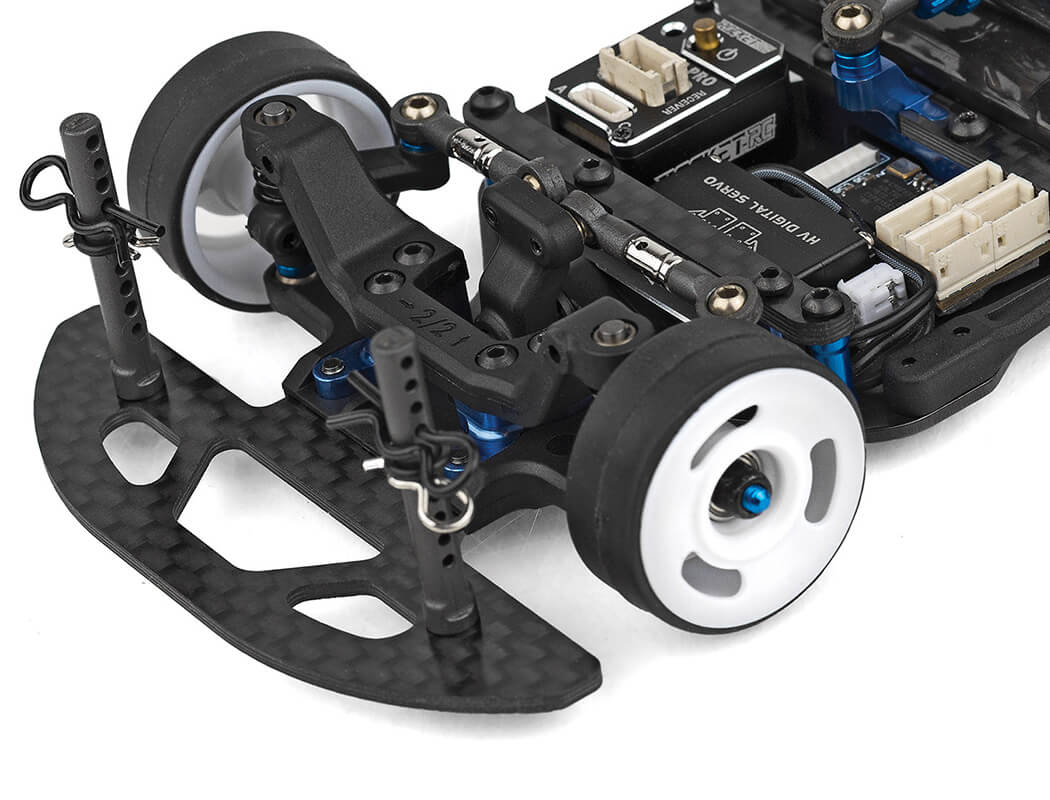

• Fixed arm style front end with optional molded upper arms to adjust caster and camber.

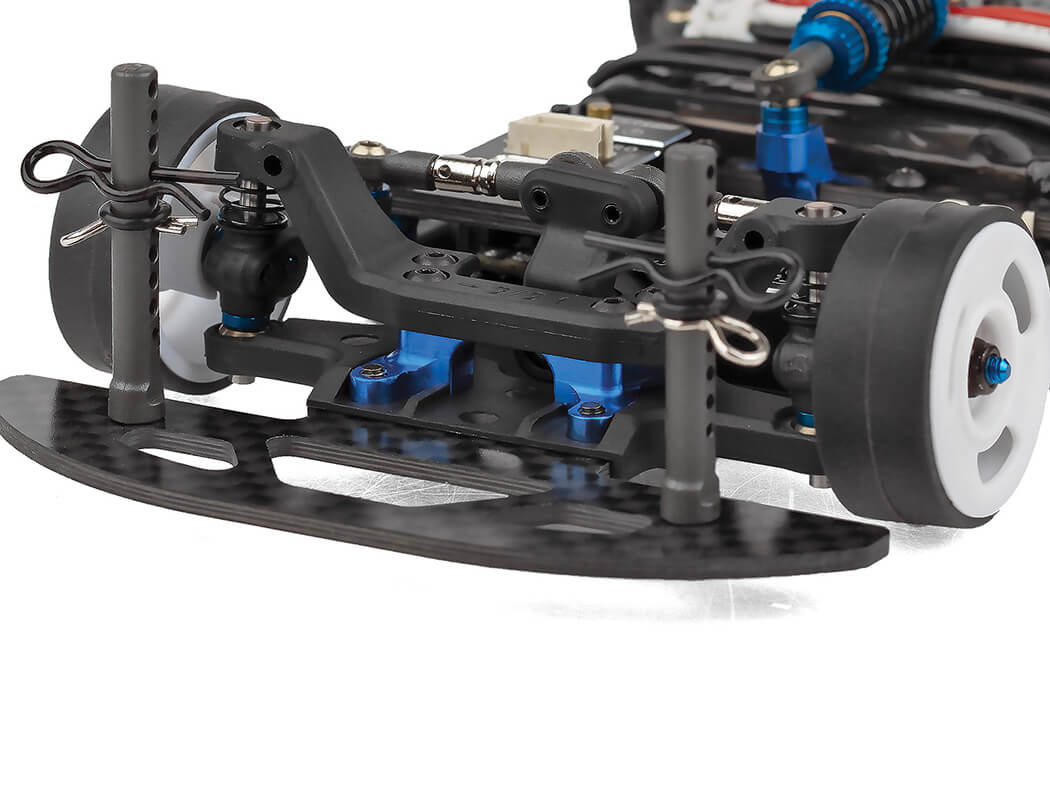

• Front bulkhead design allows for quick upper arm changes with consistent fitment and position.

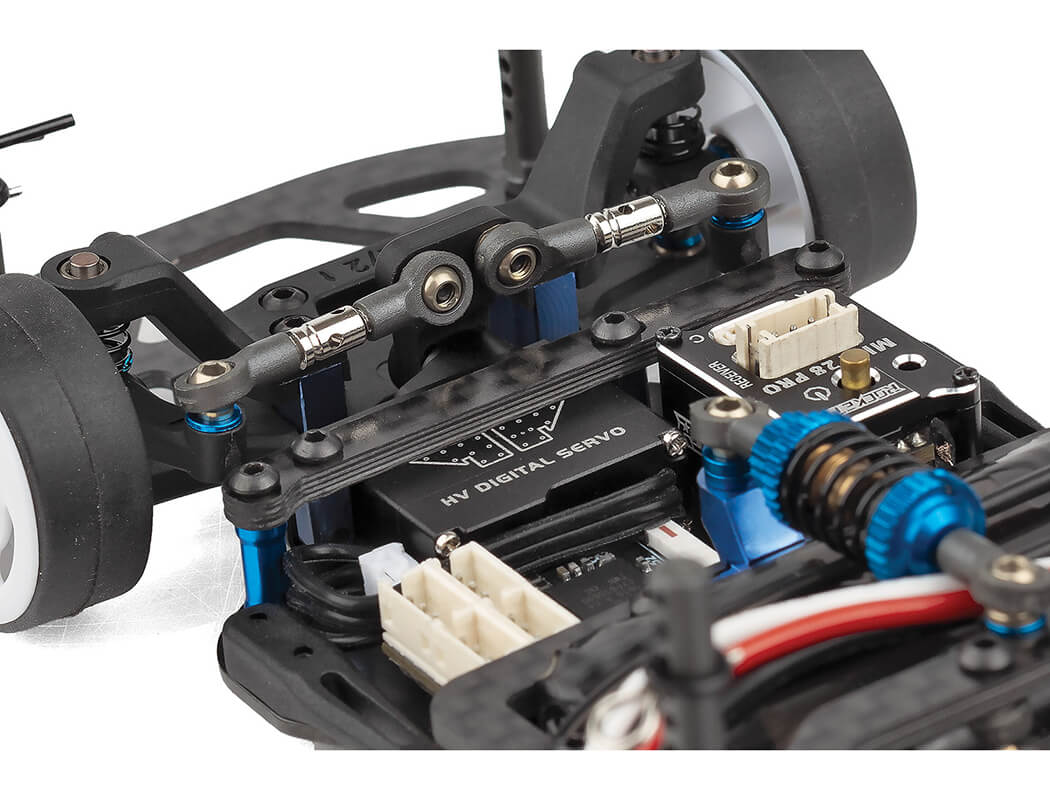

• Optimised steering geometry with adjustable servo mount to tune ackerman on the fly.
• Easily removable battery holder to access the battery without removing center shock.

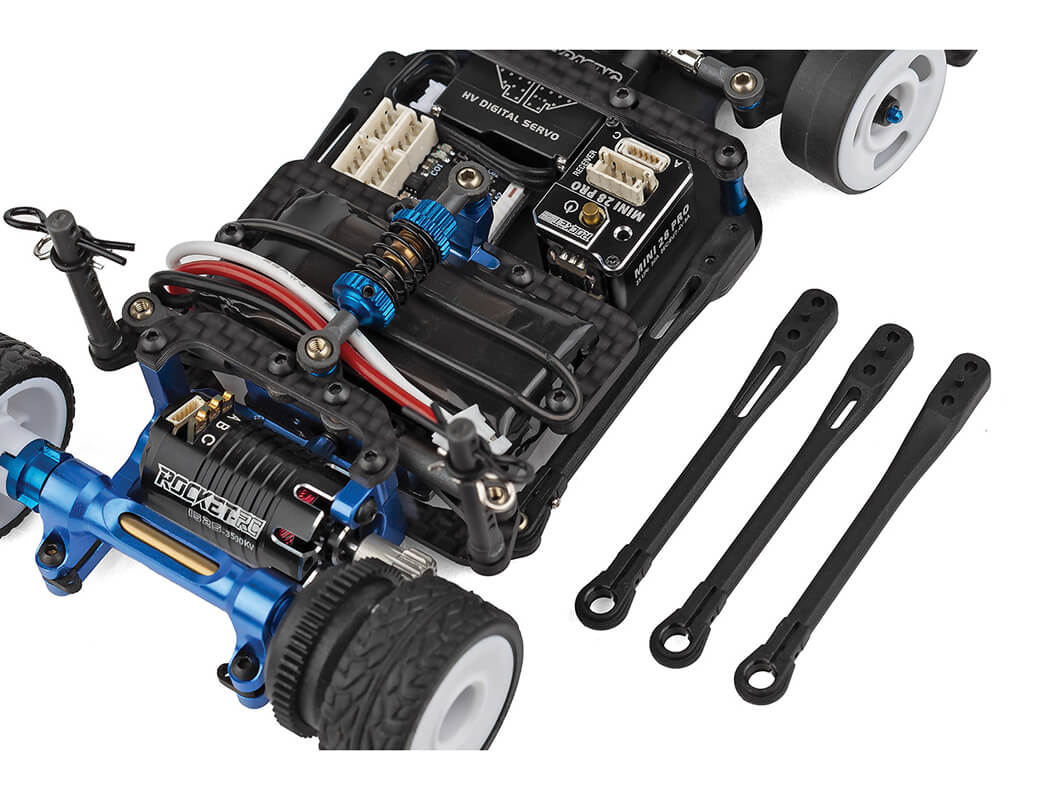

• Torsion style side links act as side spring with soft, medium, and hard options included.
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level.
• Optimised roll geometry with side damper tubes.

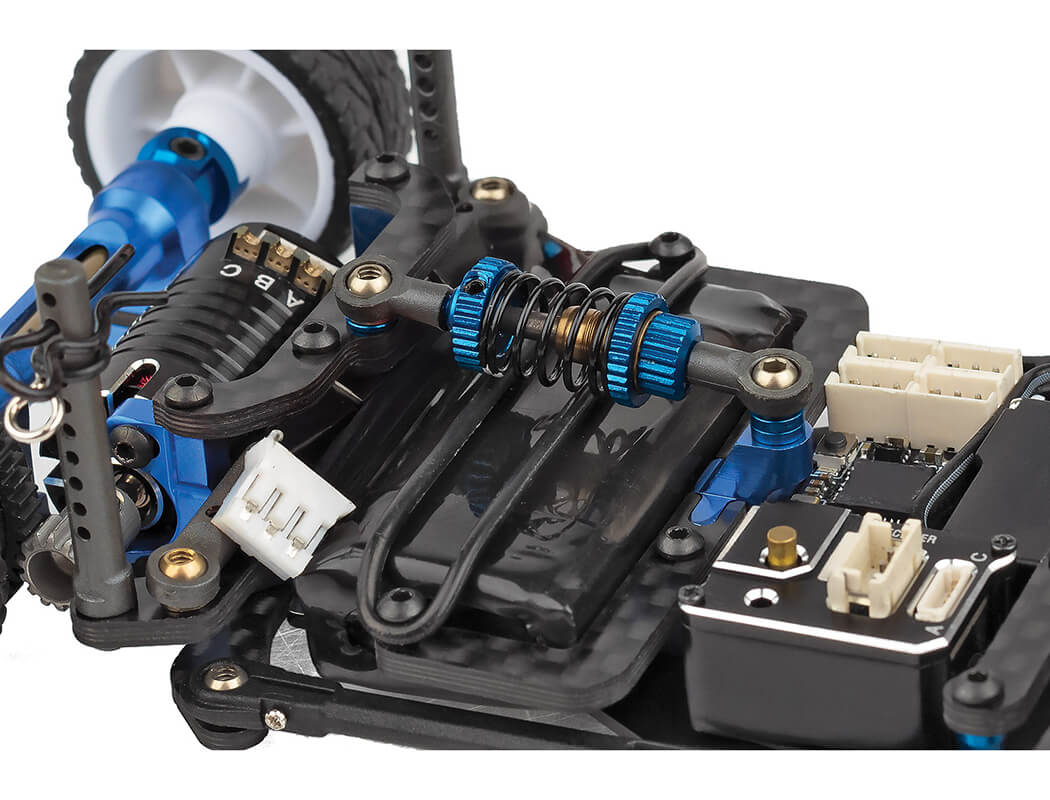

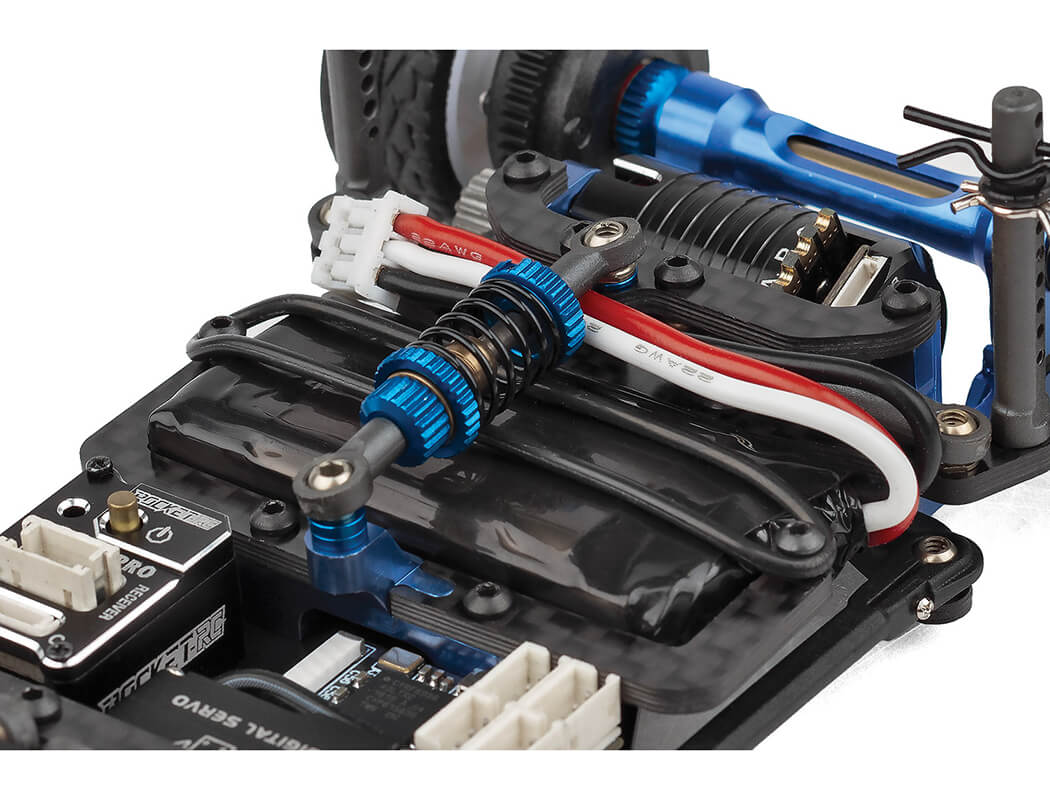

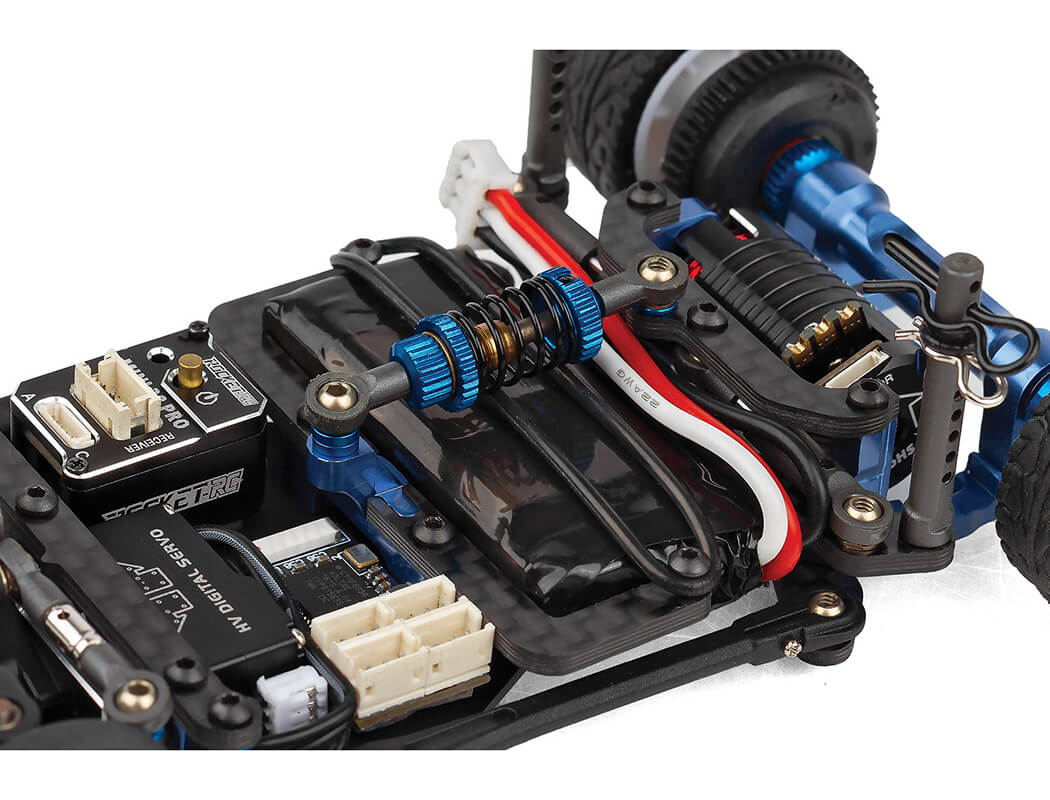

• Threaded aluminium center shock with adjustable droop and spring collar.

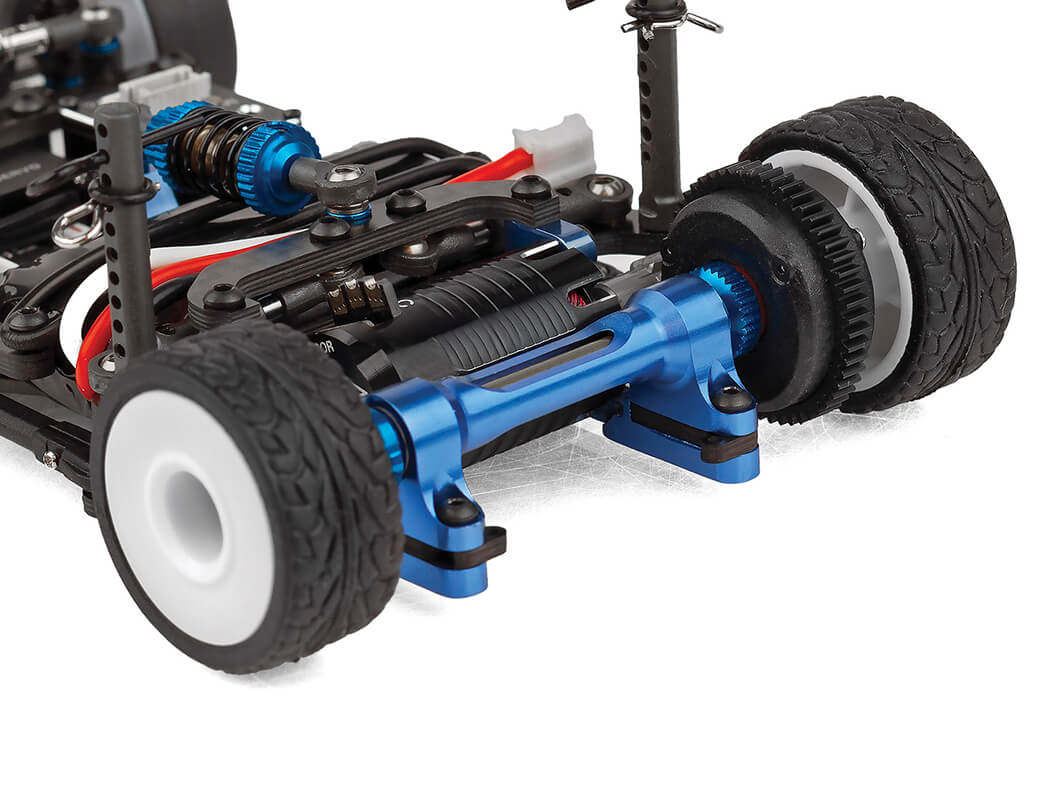

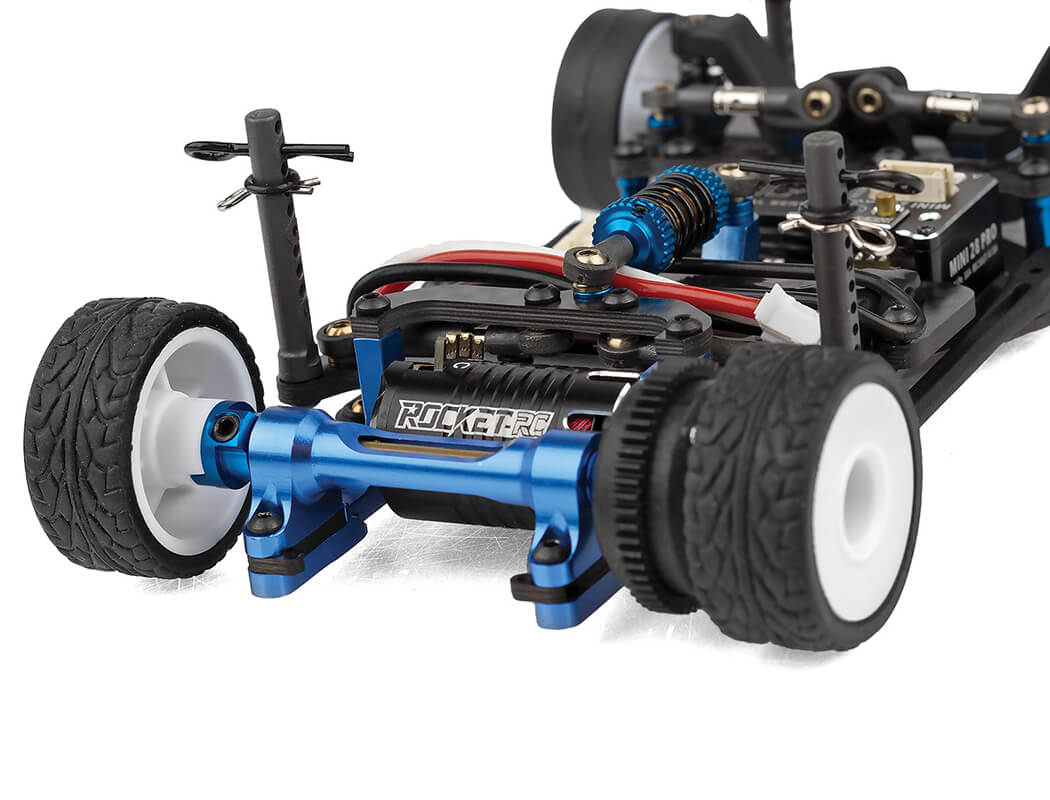

• Two-piece rear pod with adjustable axle heights for different tyre diameters and ride heights utilizing Factory Team carbon fiber shims.
• Gear differential included and can fit other aftermarket options currently available.

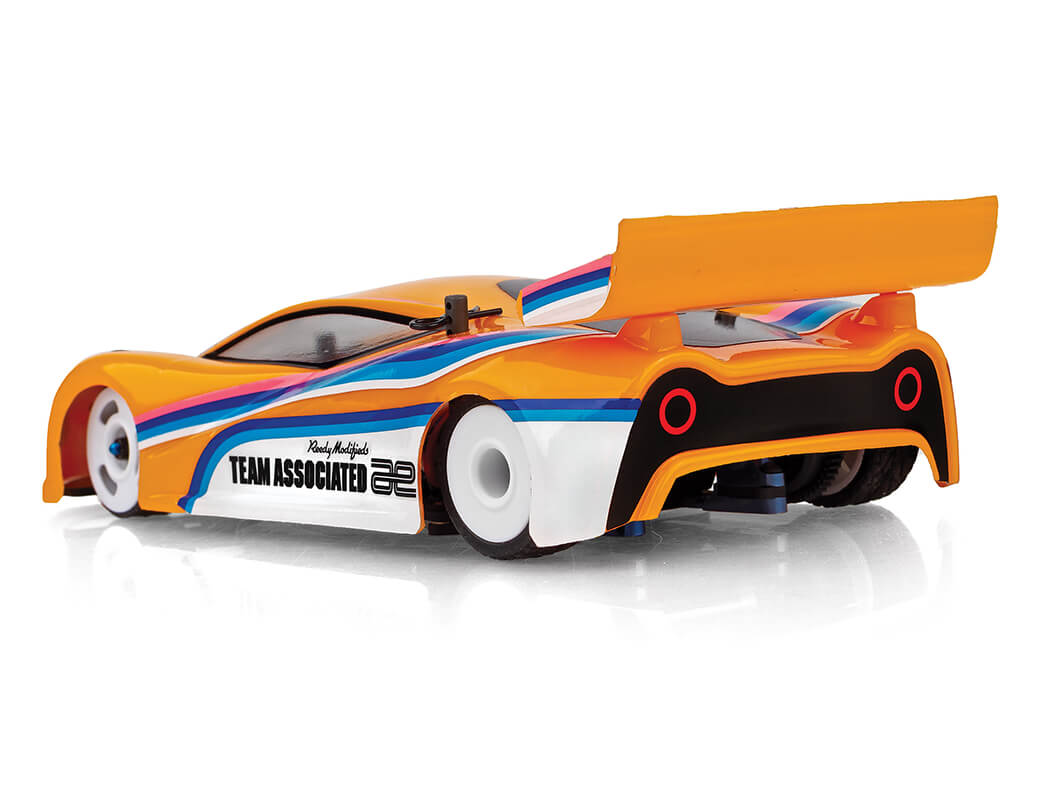

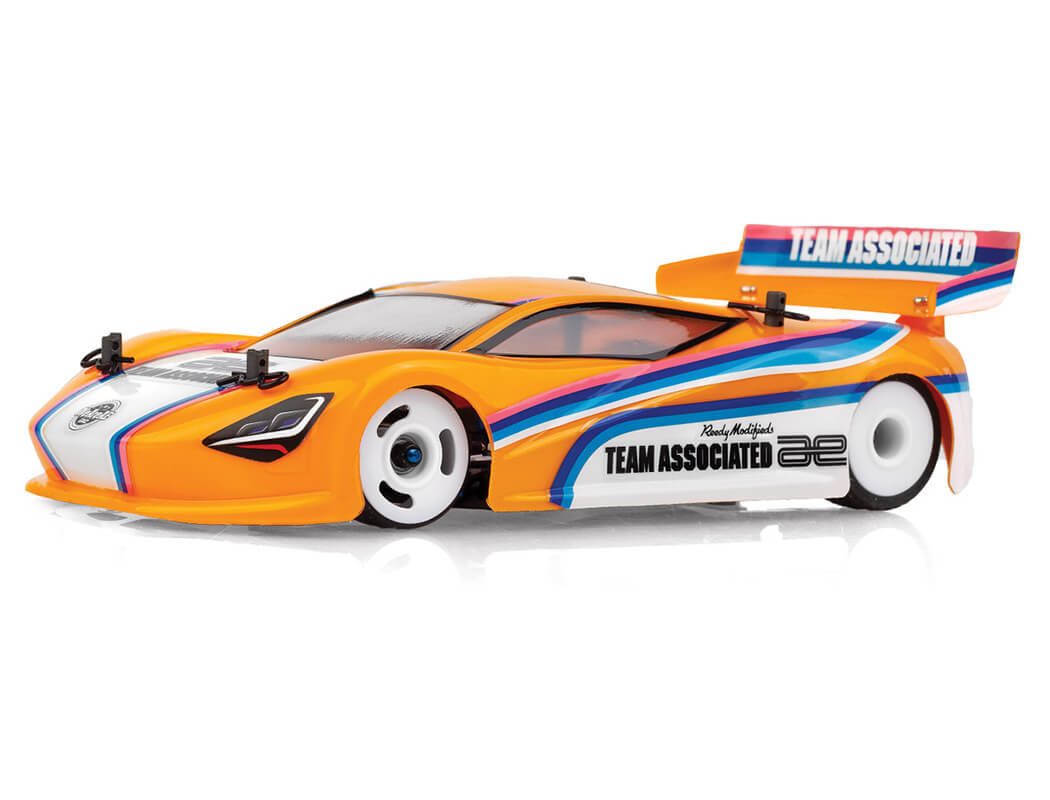

• Hard plastic and polycarbonate body mounting options included.
• White wheels included that fit optional front wheel flanges to tune steering feel.
• Universal front bumper included.

Please Note: Body Not Included.

Other Helpful Items

• Silicone Shock Fluid.
• Silicone Diff Fluid.
• Body Scissors (AS1737).
• Reamer / Hole Punch.
• FT Wrench Set (AS1519).
• Hobby Knife.
• Needle Nose Pliers.
• Wire Cutters.
• Soldering Iron.
• Calipers or a Precision Ruler.
• 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers,

Specifications

Power Source: Electric
Terrain: On-Road
Body Style: Other
Scale Size: 1:28 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user.
Length: 140mm (5.51in)
Width: Varies
Wheelbase: 98mm (3.86in)
Weight: Varies
Internal Gear Ratio: Varies
Drive: RWD
