Conquer Any Terrain with Unmatched Crawling and Off-Road Capabilities.

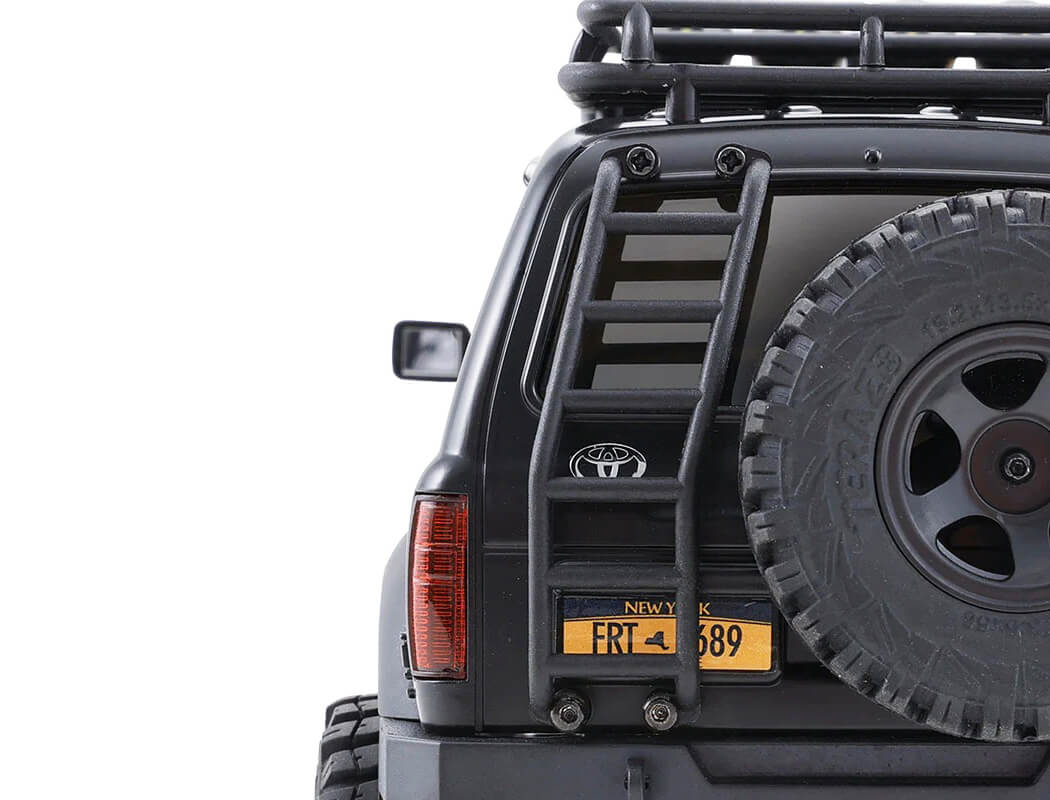

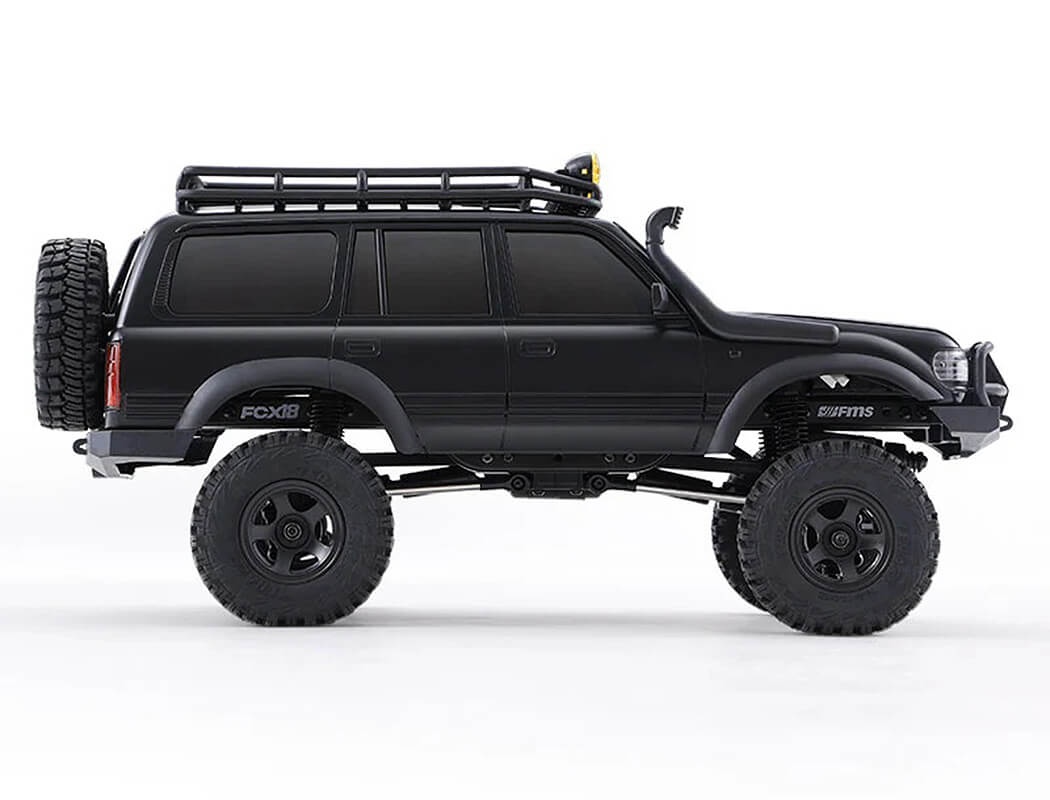

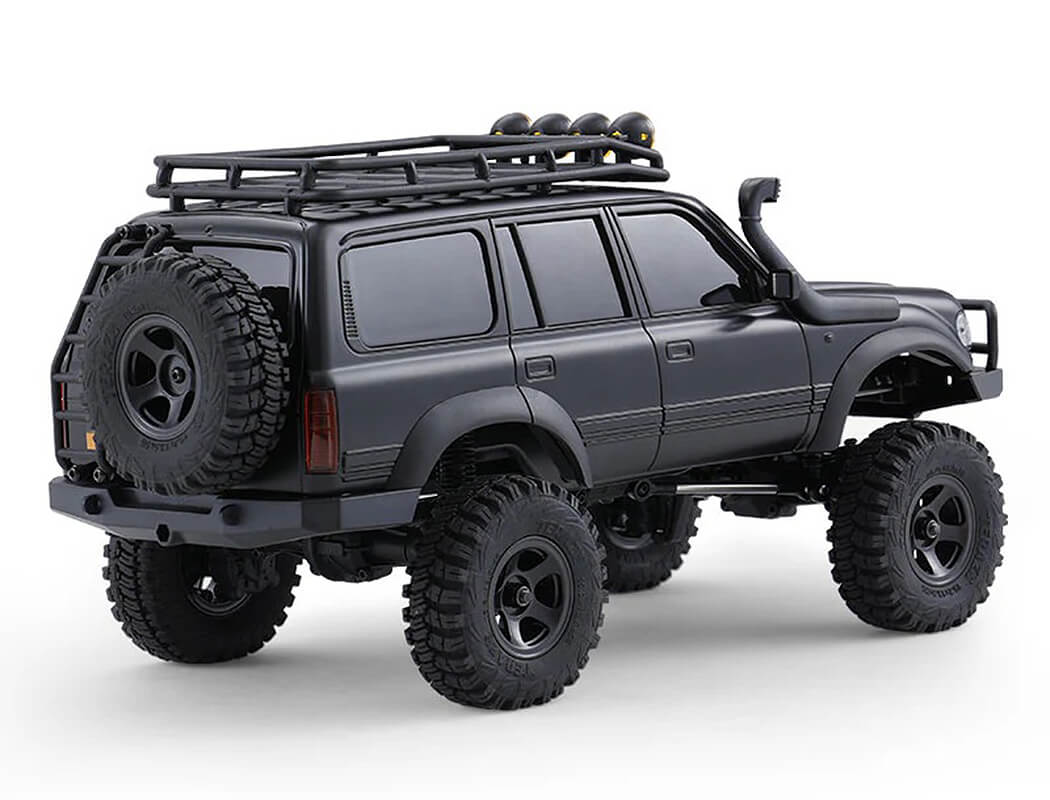

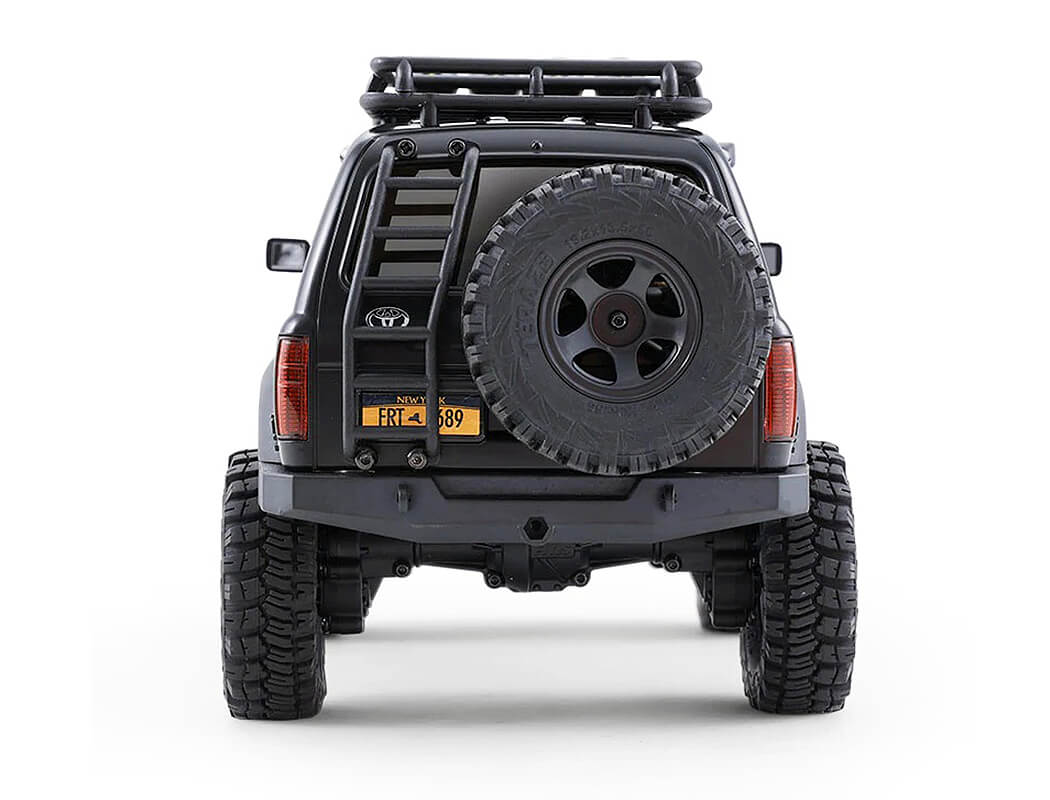

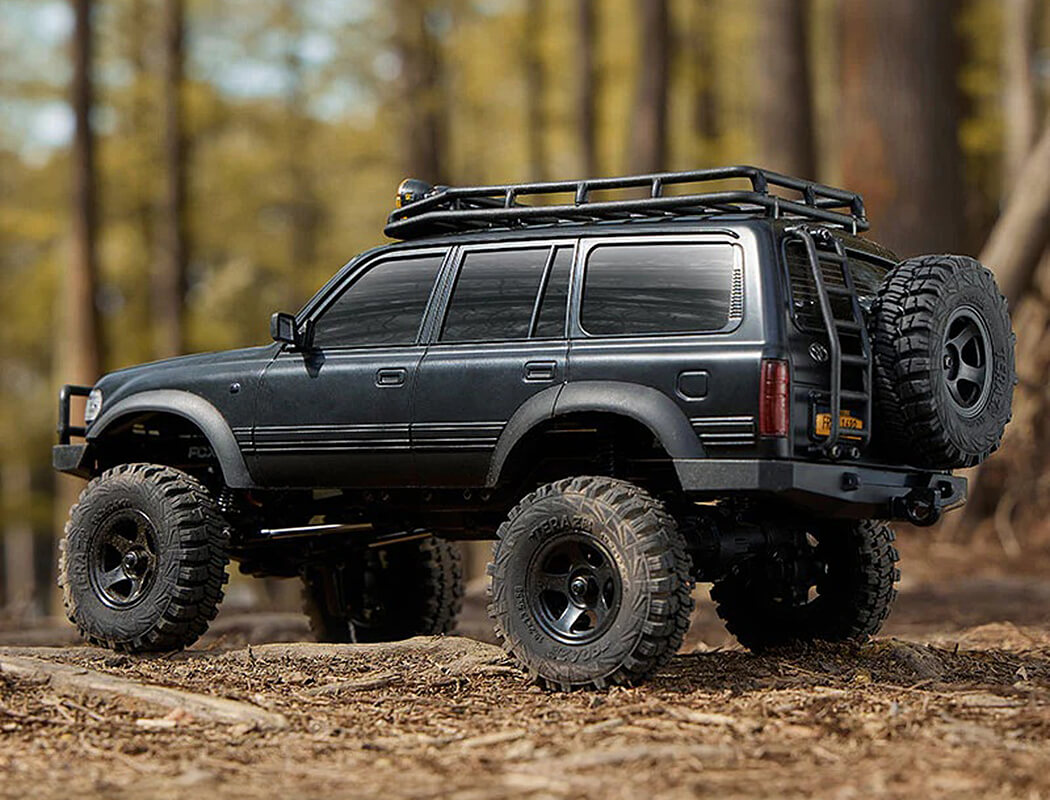

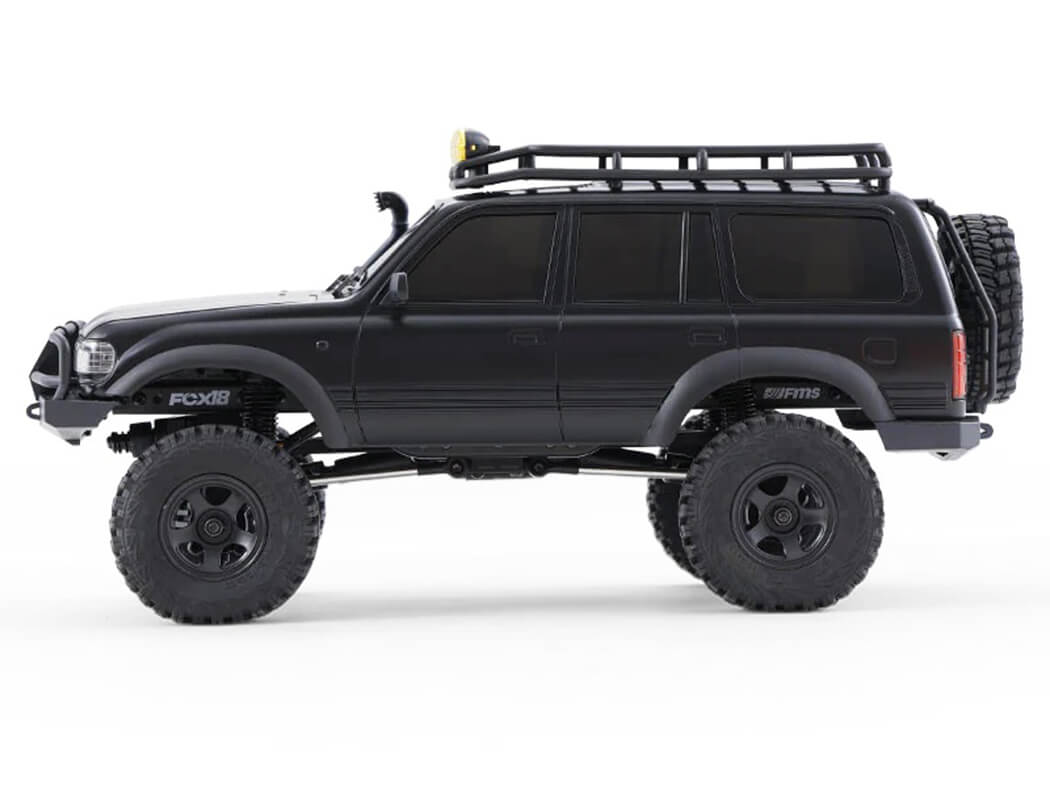

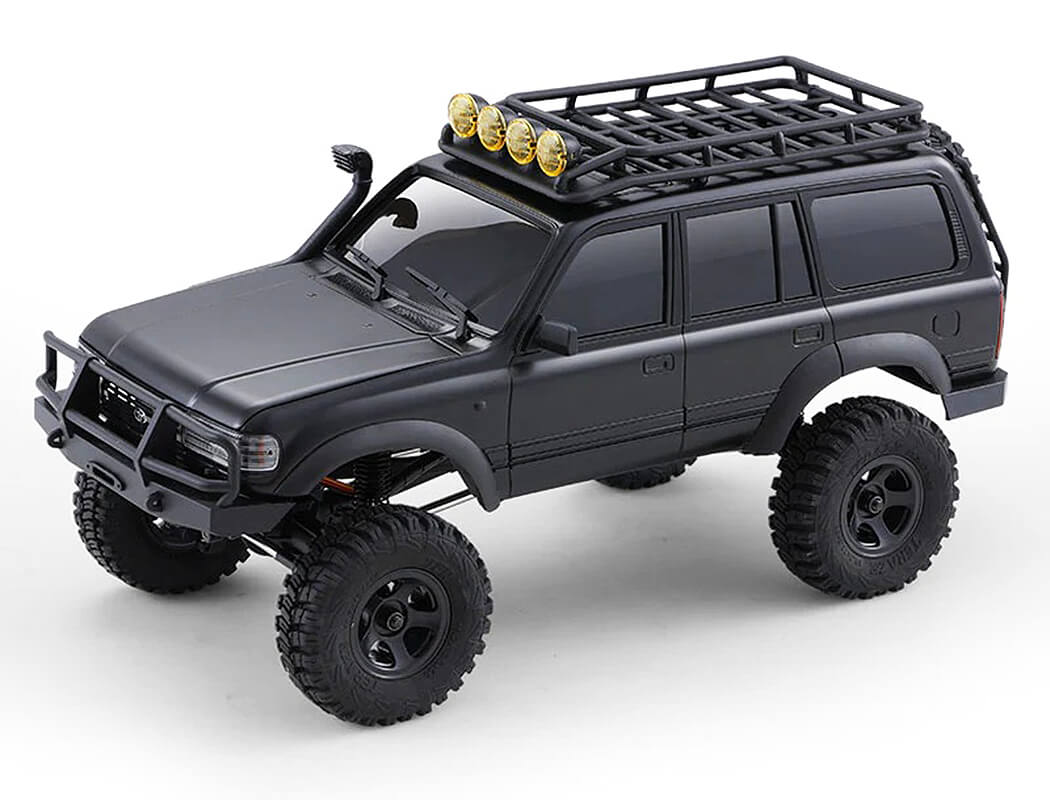

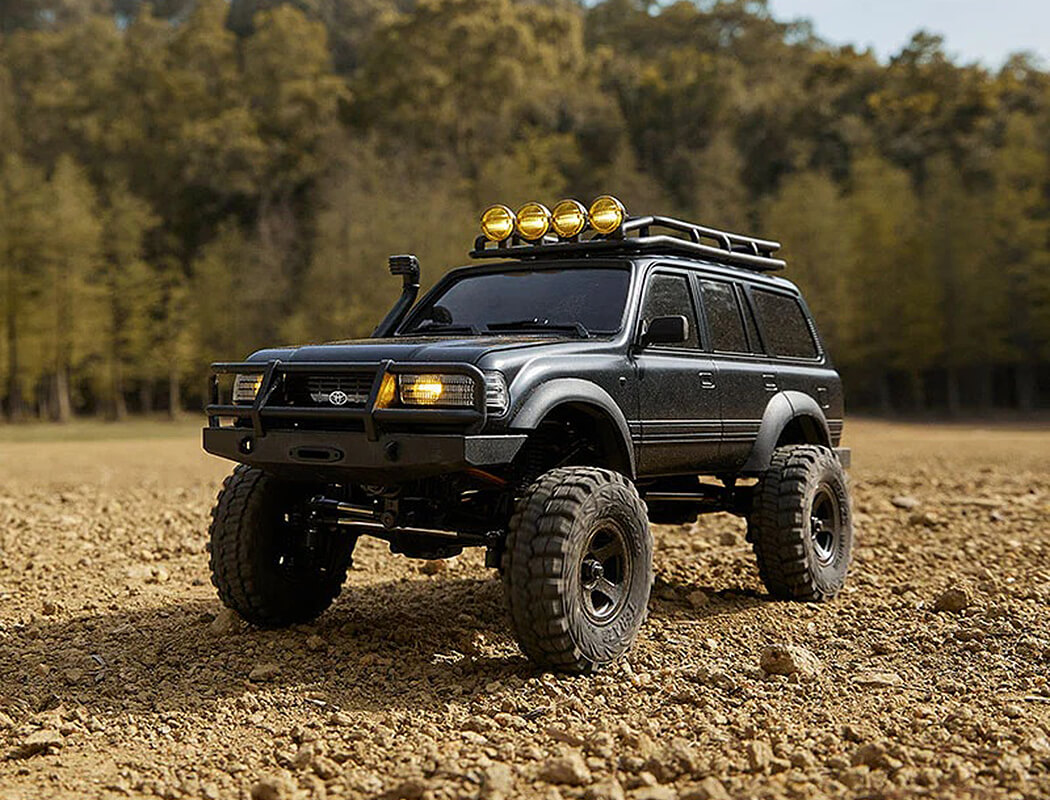

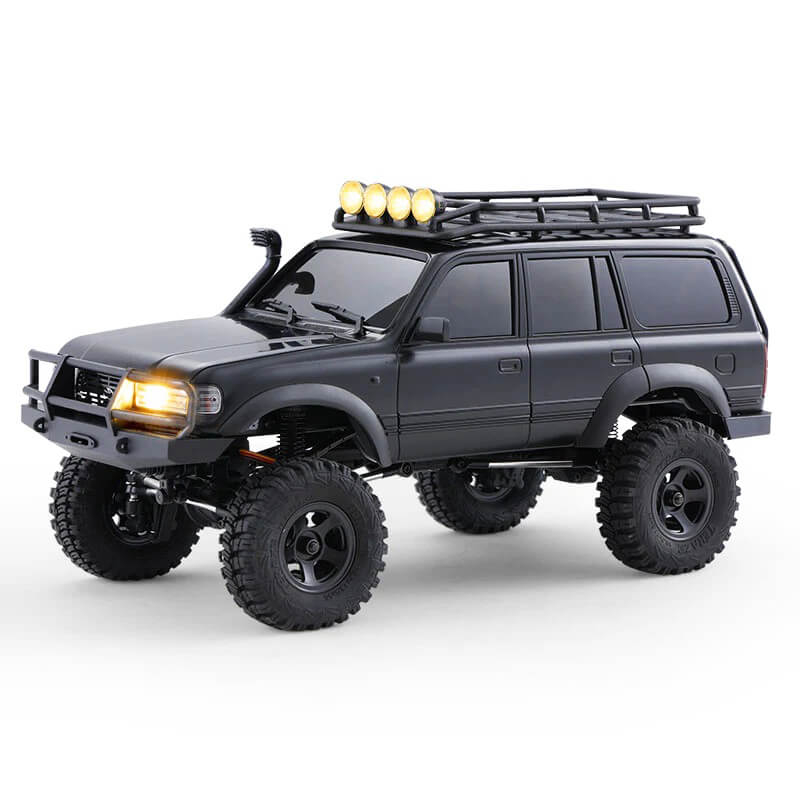

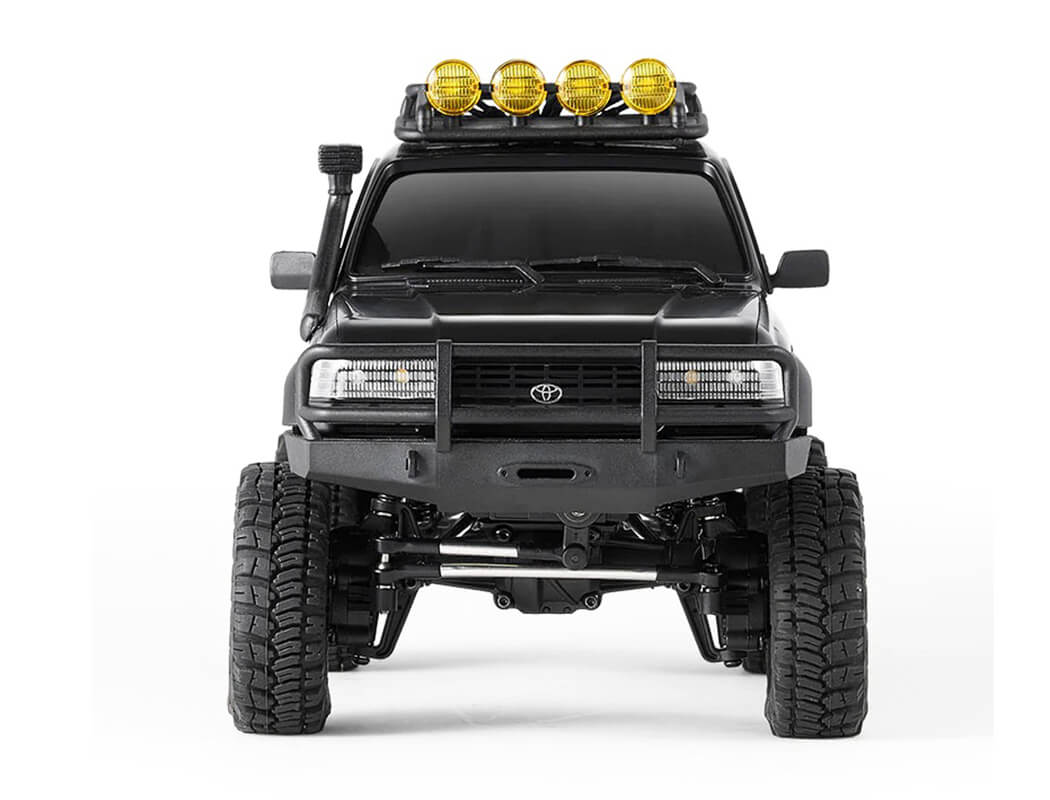

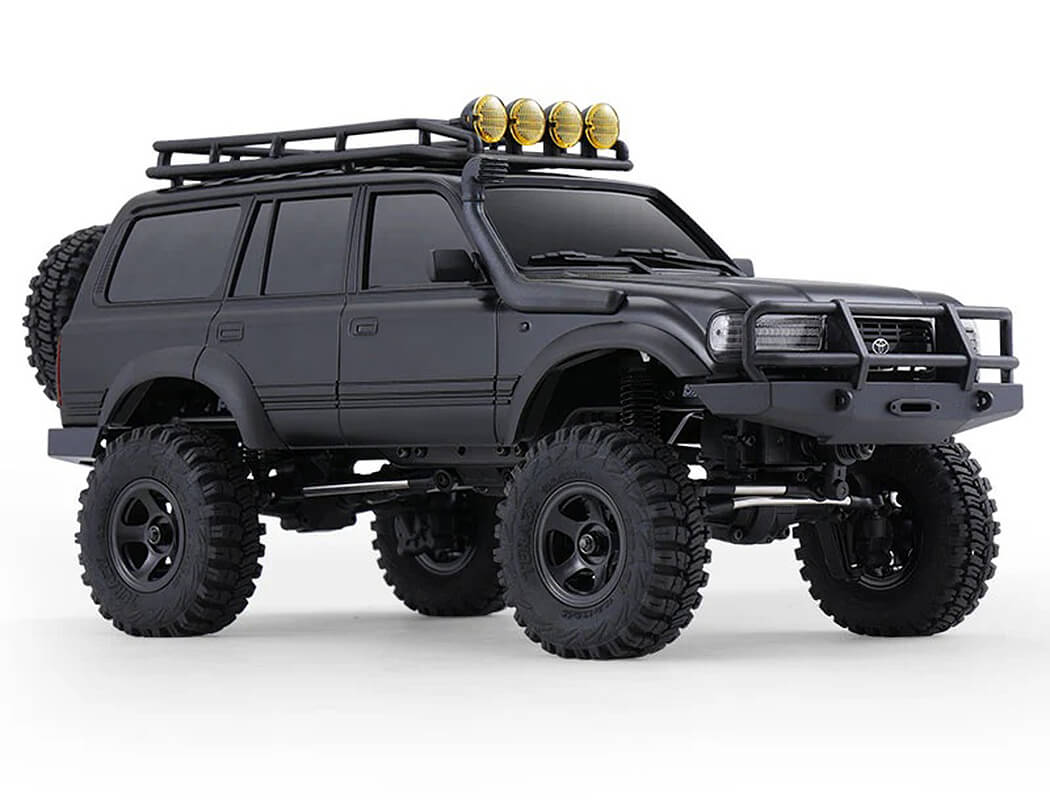

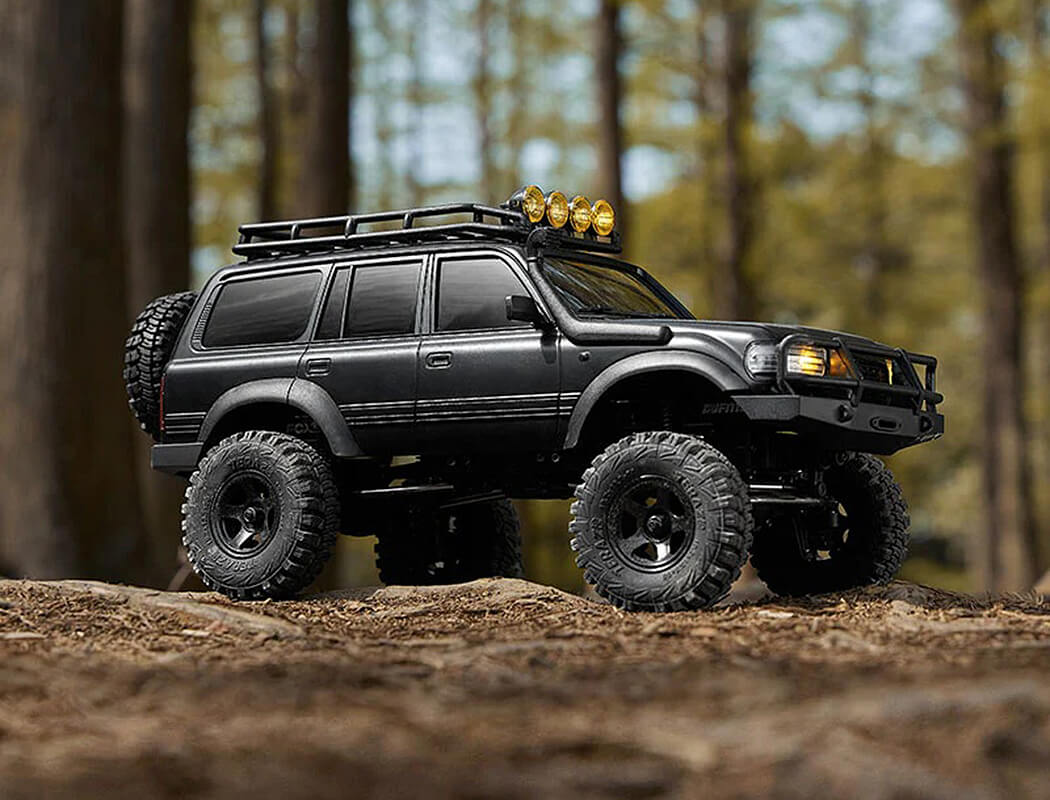

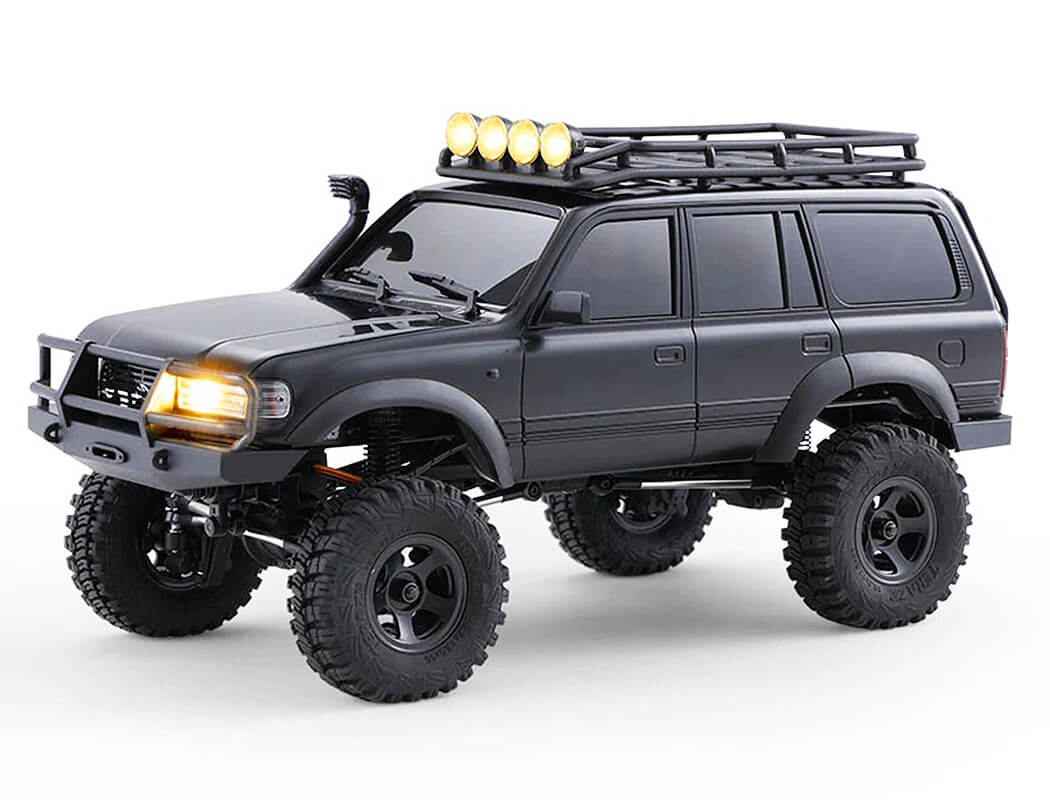

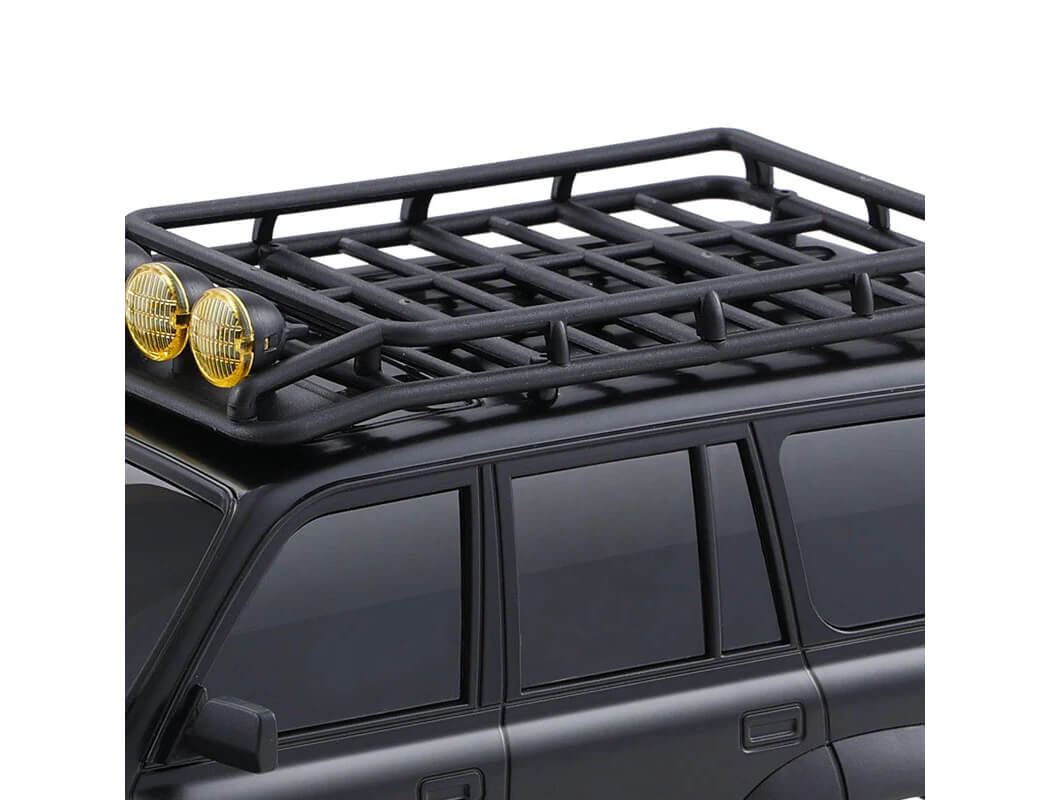

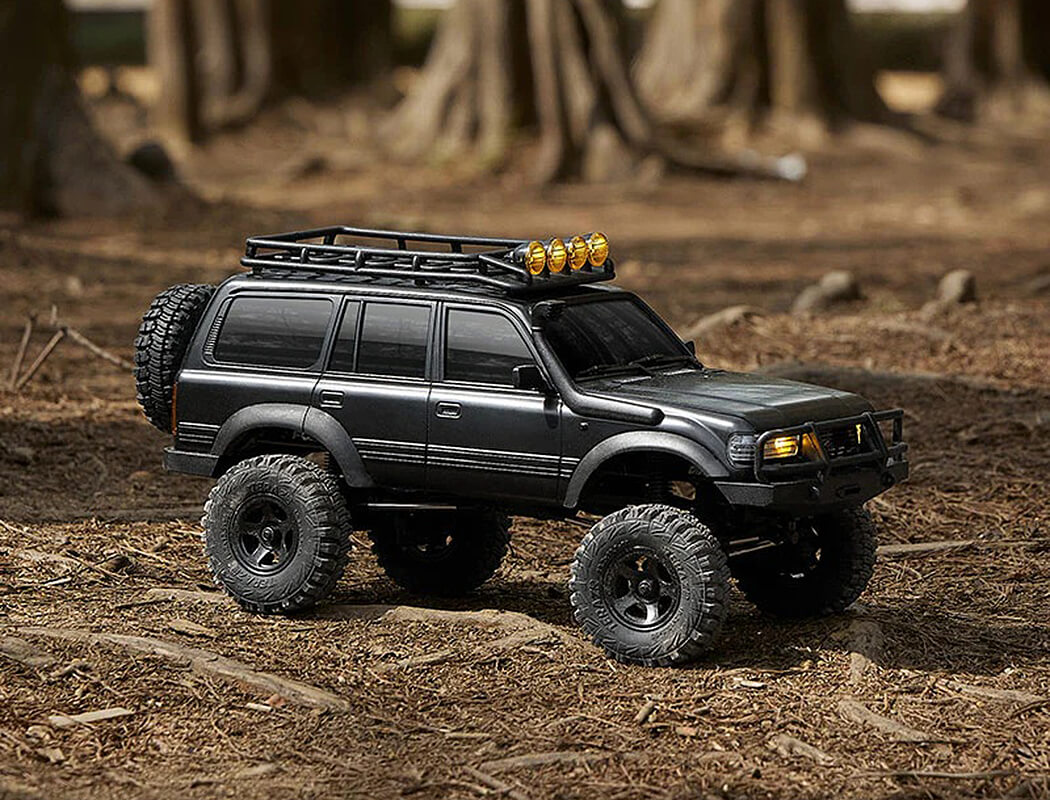

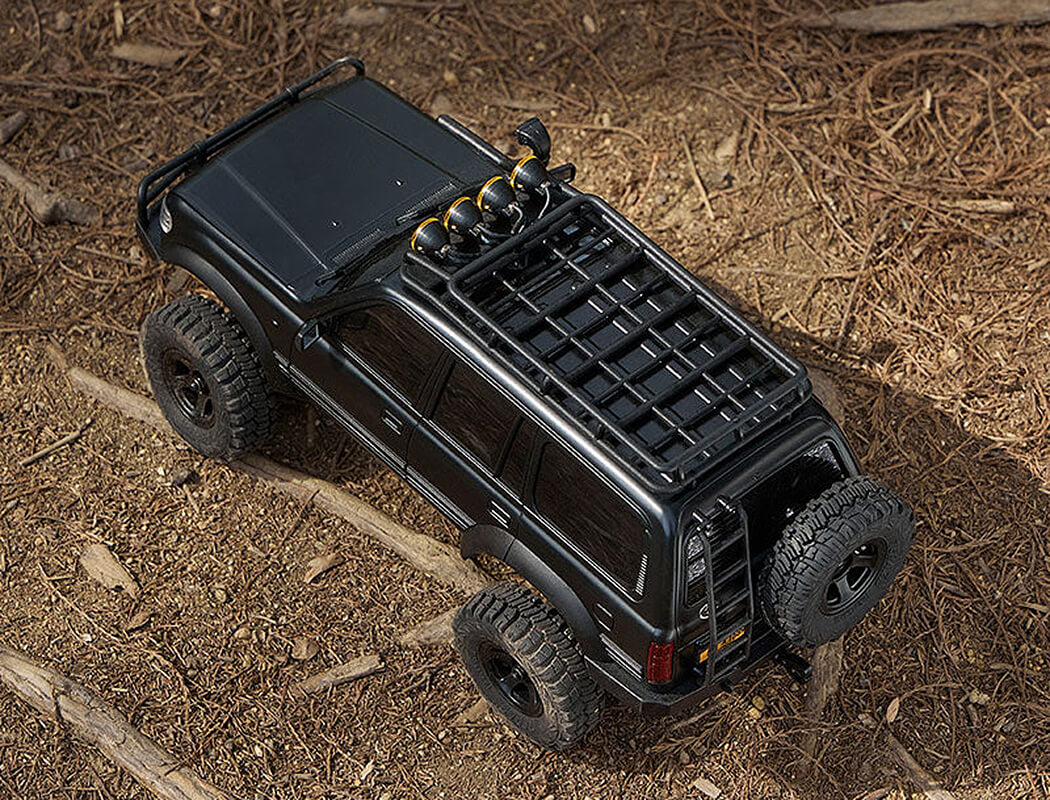

Authorised by Toyota, FMS has replicated the highly acclaimed Land Cruiser 80 classic off-road vehicle. From the straight body lines, roof luggage rack, snorkel, front and rear bumpers, usable spare tyre, to steering-linked turn signal assembly, simulated bevel gear driving axles, ball bearings full set (24pcs), FMS focuses on every detail.
Based on FCX24Pro, FCX18 is equipped with 1212 outrunner brushless motor for the first time, which has an exceptionally delicate linear control experience compared with brushed motors, letting you feel the vehicle crawling at a snail’s pace with a low uniform speed. At the same time, the outrunner structure provides good dynamic balance characteristics, with noise and vibration levels being lowered and the outer rotor structure reducing the stator winding end effect, helping to improve highspeed running performance.

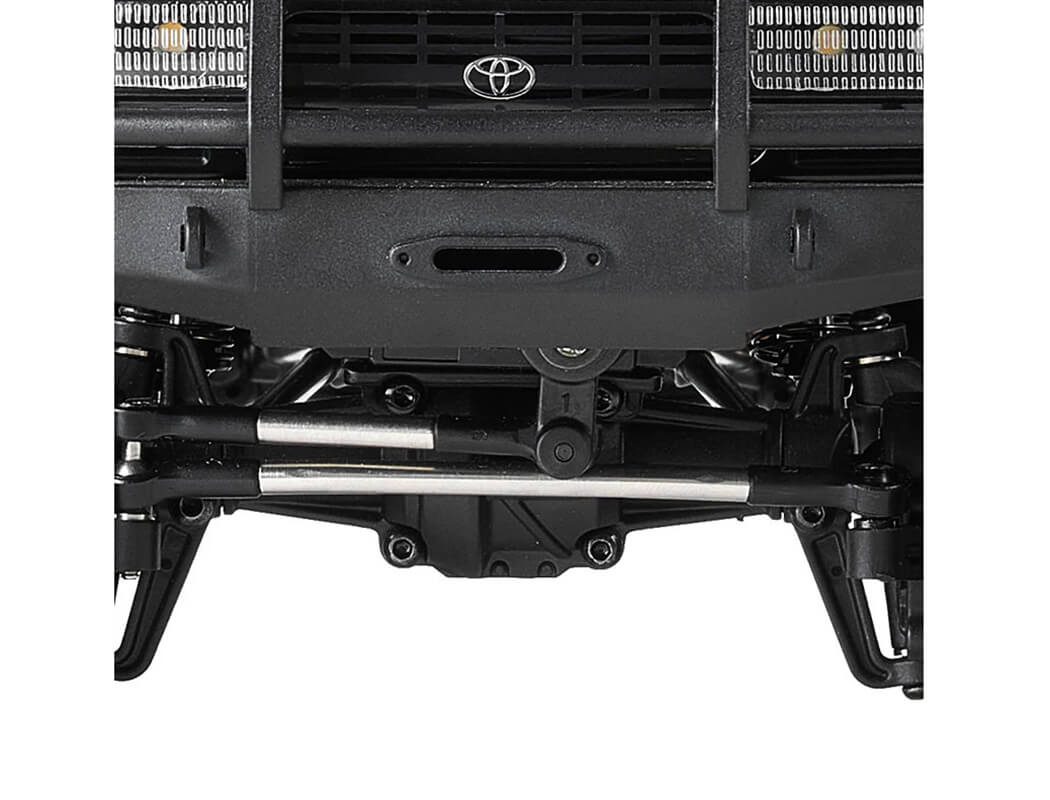

The FCX18 chassis adopts a metal beam construction, as well as metal low bars (4pcs) and steering links (2pcs) that are capable of maintaining performance in extreme environments. The mid-mounted power assembly has a low center of gravity and integrates a 2-speed transmission, transfer case and a 1212 brushless motor. The power is transmitted to the front and rear axles through the universal joint drive shaft. The axles are equipped with portal axles, which can increase the ground clearance of the centre axles and improve passability.
The FCX18 is equipped with a straight axle by default, but the planetary gear differential can also be replaced with high-viscosity silicone
oil to simulate the driving effect of an LSD limited-slip differential. After installing the differential, the ultimate climbing ability will be reduced, but a smaller turning radius and a more stable high-speed driving quality can be obtained.
A variety of upgraded and modified parts such as metal differential, metal universal joint drive shaft, metal gears, brass wheel counterweights and trailers (three styles) etc. will be launched to match the FCX18 chassis for further improving the performance of the vehicle.
Brushless Power System.
Equipped with a 1212 3200KV brushless motor for precise control and smooth crawling, along with an independent ESC and receiver for easy upgrades.
Two-Speed Transmission.
Enjoy superior low-speed control for crawling and high-speed power for off-road adventures, effortlessly switching between gears for an authentic experience.

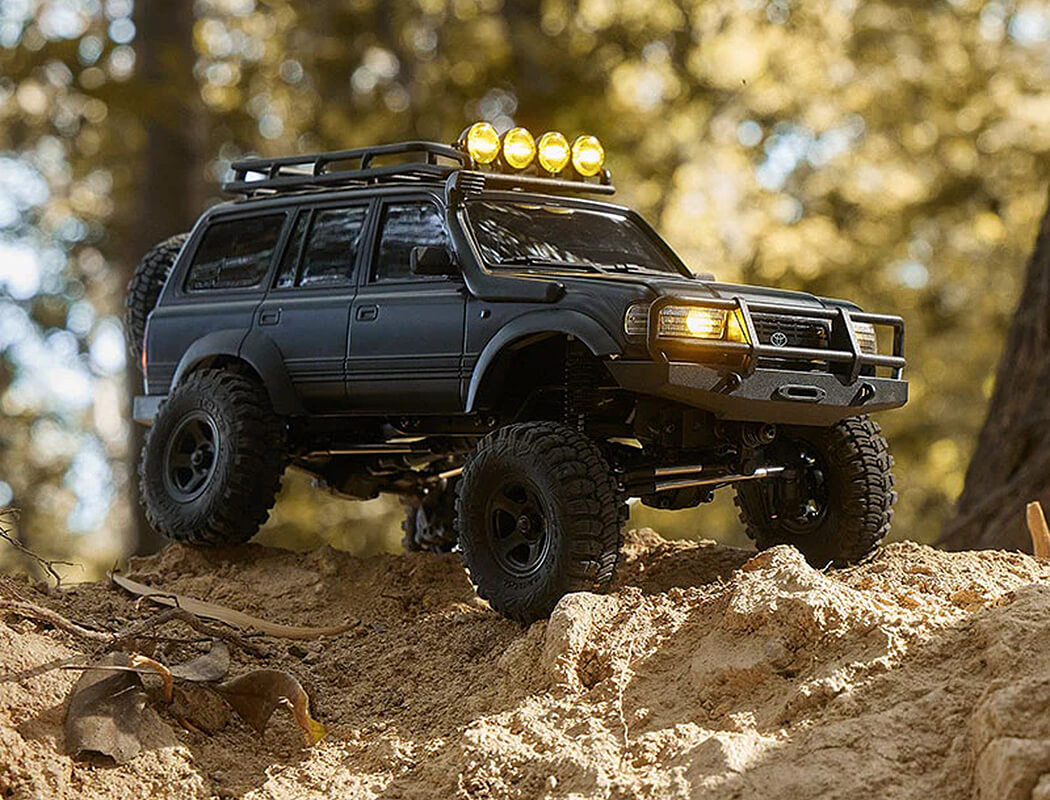

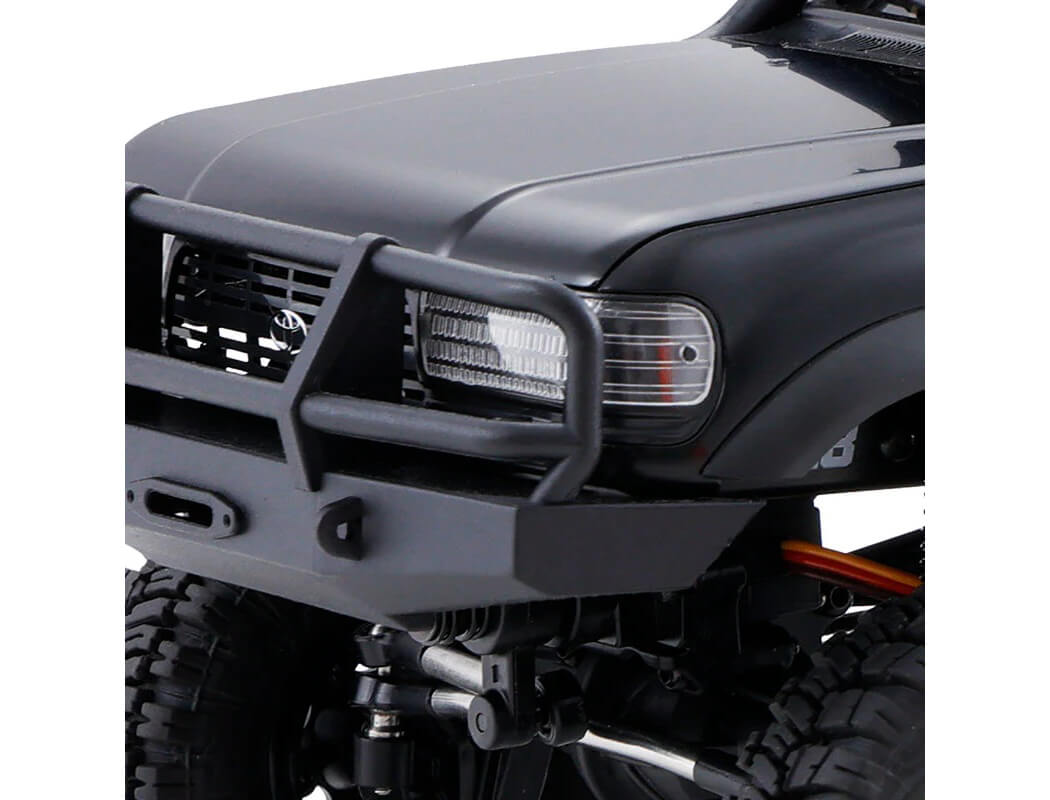

Smart Sync Lighting.

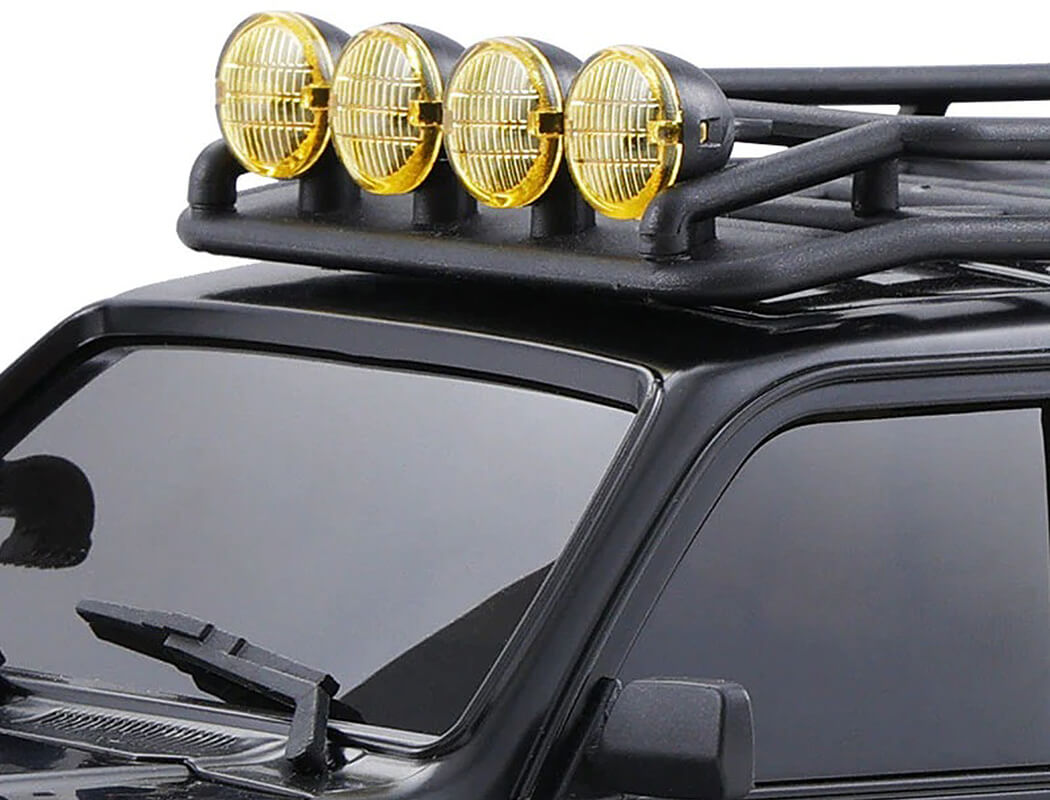

Automatically activates turn signals and reverse lights in sync with your driving, while allowing independent CH4 control of headlights and spotlights for ultimate visibility and safety.

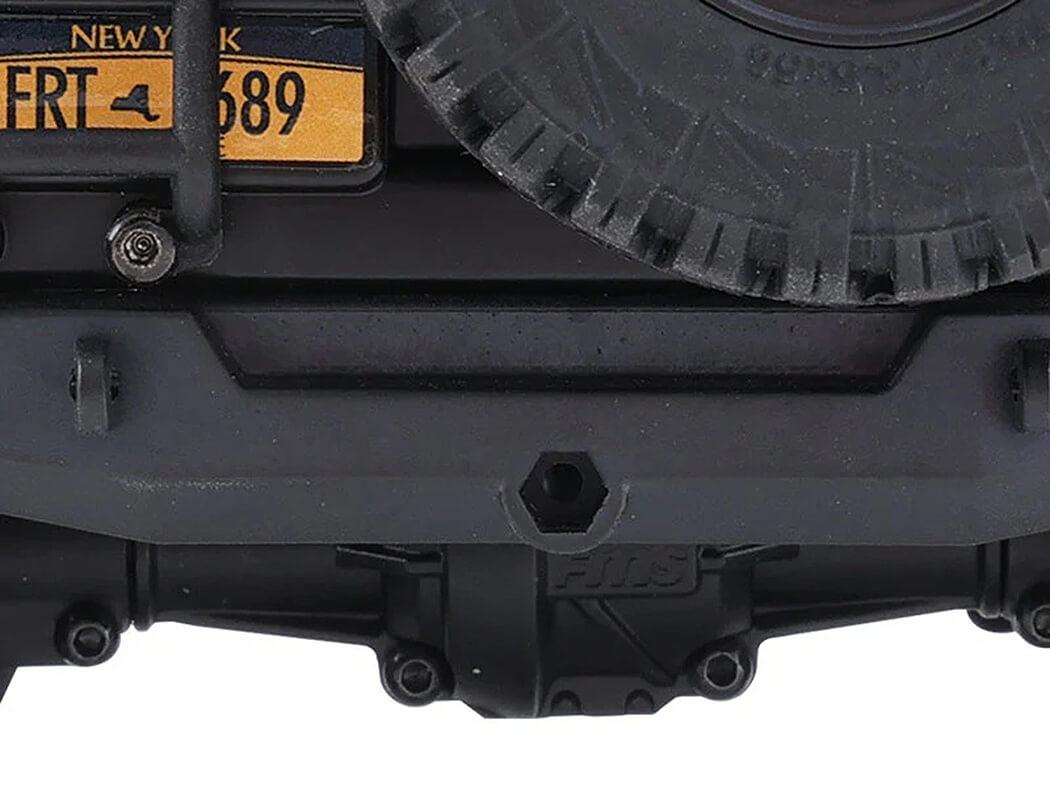

Metal Geared Portal Axles.
By increasing ground clearance, portal axles enable RC cars to overcome obstacles and traverse varied terrain efficiently.
Protective Motor Cover.
Protects users from high-temperature surfaces while ensuring uninterrupted motor performance, delivering the perfect balance of safety and operational reliability.
Upgraded FCX18 Performance Parts.
Upgraded parts like a metal differential, universal joint drive shaft, metal gears and brass wheel weights will be available for the FCX18 chassis to enhance vehicle performance.
Length: 282mm
Width: 126mm
Height: 136mm
Wheelbase: 160mm
Tyre F/R: D: 56mm, W: 19.2mm
Minimum Ground Clearance: 35mm
Approach Angle: 61°
Departure Angle: 35°
Motor: 1212 Brushless Motor 3200KV
Battery: 7.4V 900mAh 2S LiPo Battery with 51005 2-Pin Male and XH2.54 3-Pin Male Connectors
Remote Control Distance: 30m
Approx. Operating Duration Time: 45mins
Remote Control: MG44 + R4P1 Transmitter Receiver Set BS Version
