Axial Racing SCX10 - TR (Trail Ready) RTR 1/10th Scale Electric 4WD Rock Crawler

Construction / RC Crawling - Rock Crawlers

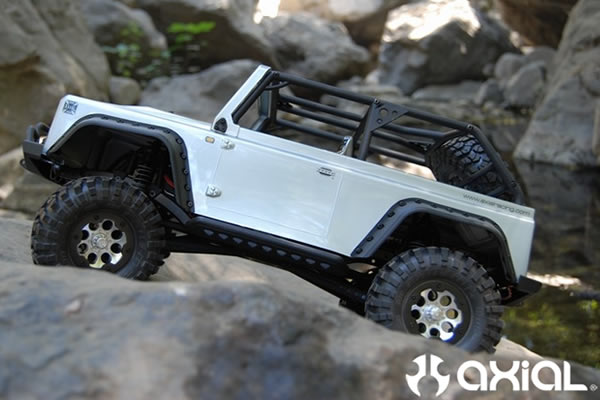

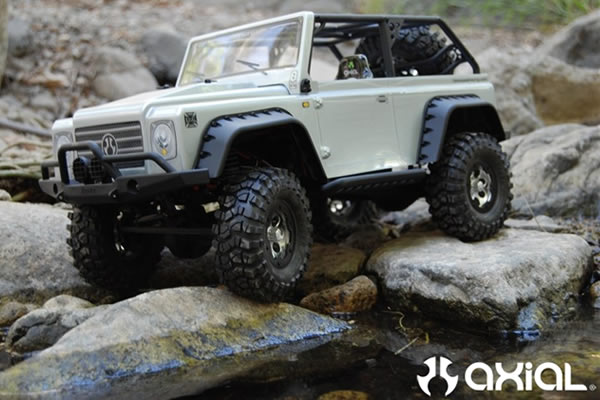

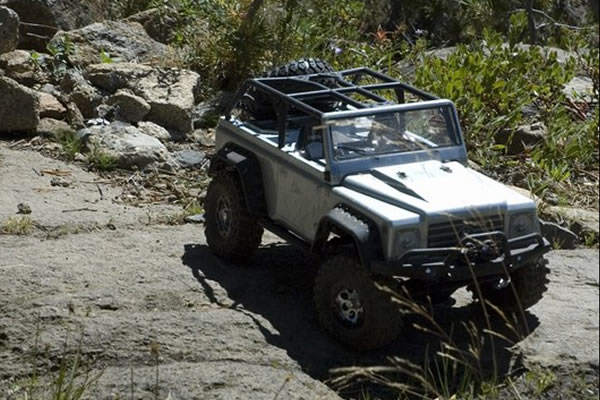

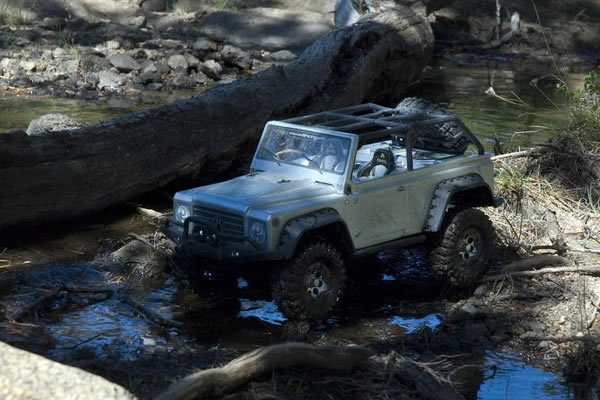

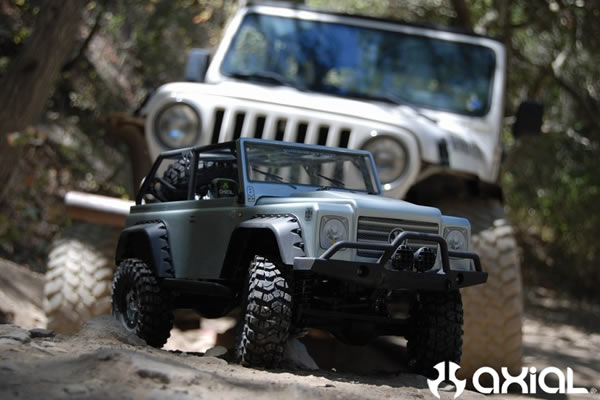

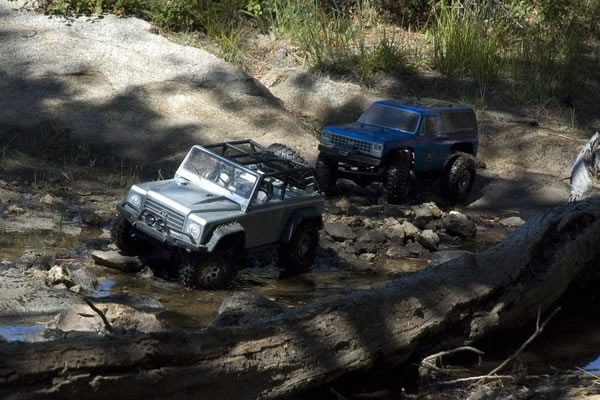

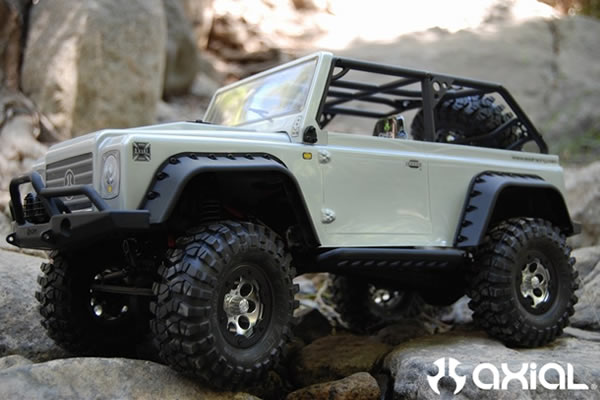

Get ready to hit the trails now with the new SCX10 Ready-to-Run TR (Trail Ready). The TR features a true steel C-channel ladder frame with bolt on shock hoops, molded skid plate, and dual spring oil filled shocks. These are just a few of the items that make this one capable off-road truck. The Dingo truck body is also specifically designed for the trail because it incorporates a realistic molded roll cage and fender flares which are molded in tough durable composite plastics that will withstand the abuse of some of the toughest trail runs.

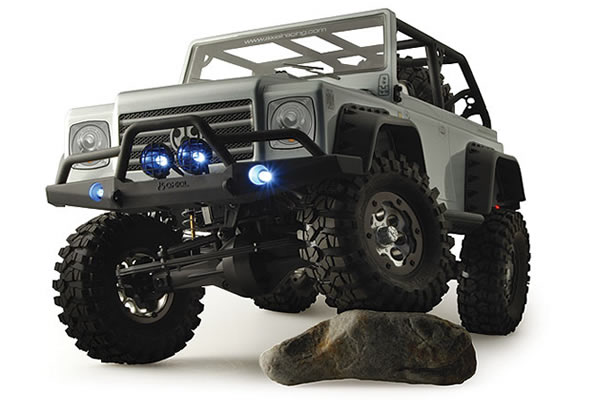

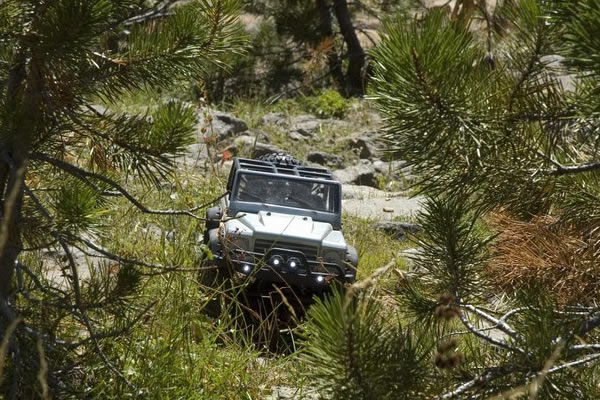

Also when the sun sets, the outings don't stop either because a total of 6 LED's brightly illuminate the trail, so there's no trail too treacherous for the SCX10 TR.

SCX10 TR Features:

Complete ready to run out of the box
4WD

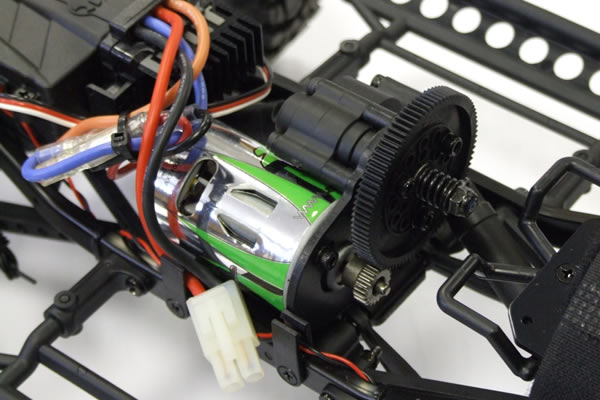

27T Electric Motor: Tear up the terrain in-door or out-doors. Easy Operation: No Tuning, No Fuel, No Loud Exhaust Noise. Just Plug'n'go!
20T pinion paired with an 87T spur gear gives you quick acceleration while still allowing for a smooth low end speed range
True Beadlocks: No Messy Glue!
Hi-quality Composite Plastic and Metals

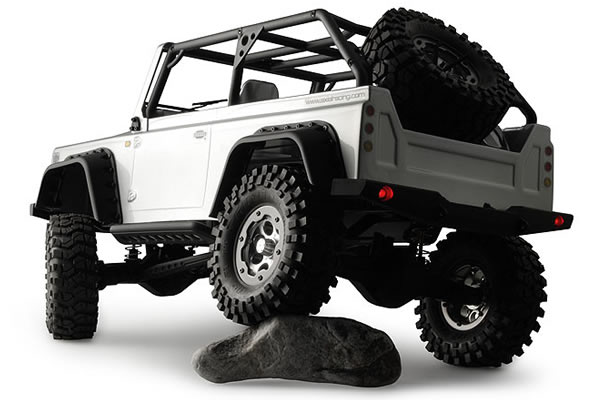

6 LED's: 4 white LED’s for the front and 2 red LED’s for the rear
Electronic Speed Controller (ESC): forward and reverse speed controller.

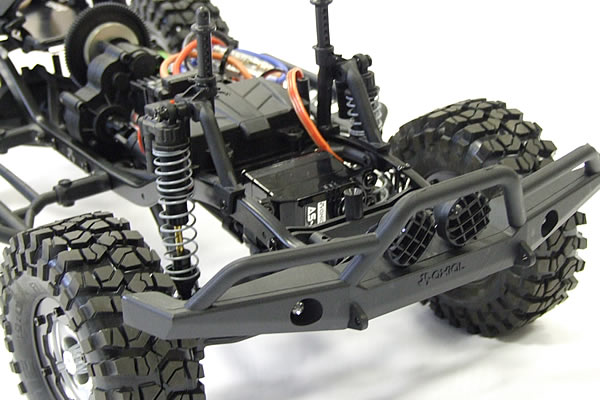

Hi-Torque metal gear servo helps hold your line when rock crawling
Solid Rear Axle lockouts improve ground clearance and offer a more realistic appearance
Slipper Clutch: Reduces gear wobble for a more efficient drivetrain.
Allows a motor to work more efficiently and greatly enhances the durability of the drivetrain.

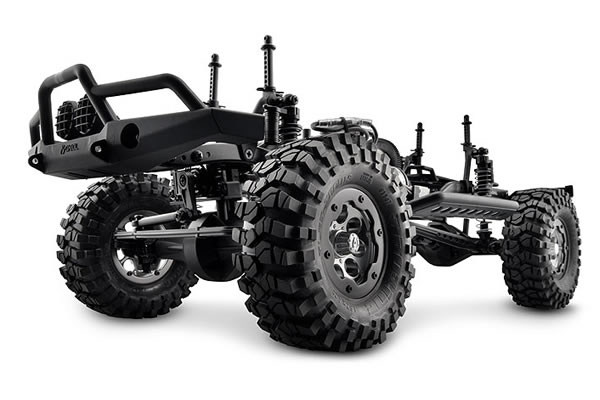

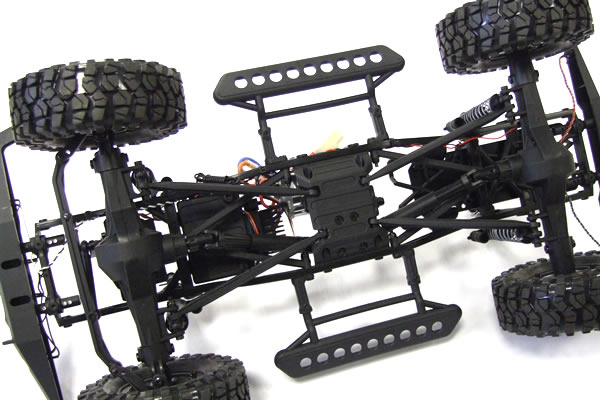

Steel chassis rails with a molded composite plastic cross members provide a solid and rigid chassis
Ultra compact and lightweight transmission
Full Ball bearings
Overall gear ratio range from 15:1 to 74:1
Transmission: 2.6:1; center mounted
Tyres: Pro-Line 1.9 Flatirons tires

Suspension: 3 Link
Drive Shafts: Universal front and rear

Spec Check:

Chassis Dimensions

Ground Clearance: 68mm (2.7”)
Body Dimensions

Required for completion: Charger, 7.2v Stick Pack Battery, 8 xAA Size Batteries.

Axial Racing SCX10 - TR (Trail Ready) RTR 1/10th Scale Electric 4WD Rock Crawler


AX90012-Exploded-Sheet1

AX90012-Exploded-Sheet2

Right Click and select "Save As"

Crawler Bodyshells


	SCX10 1/10th Scale Electric 4WD Truck w/Trail Honcho Body - TR (Trail Ready)

	SCX10 1/10th Scale Crawler Kit with Trail Honcho Body

	SCX10 1/10th Scale Electric 4WD Rock Crawler

Part #	Description	Price (RRP)
AX90012	SCX10 - TR (Trail Ready) RTR 1/10th Scale Electric 4WD Rock Crawler	£274.99

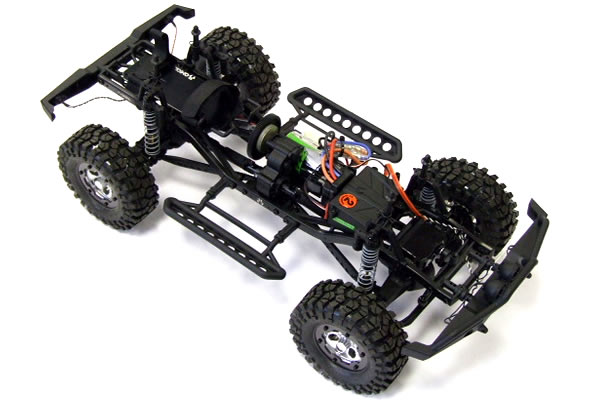

Axial Racing SCX10 - TR (Trail Ready) RTR 1/10th Scale Electric 4WD Rock Crawler Image Gallery
