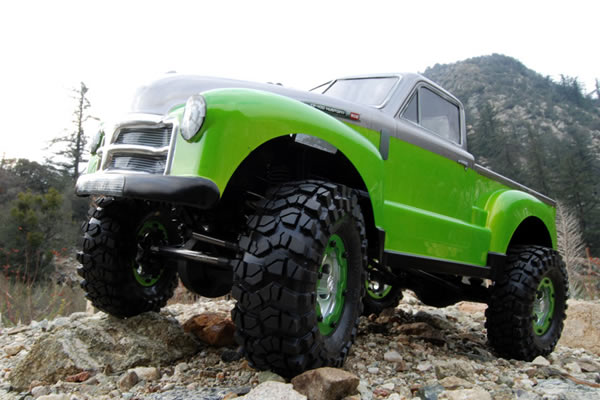

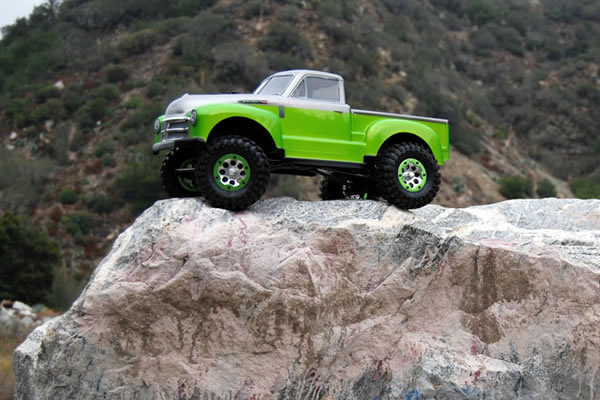

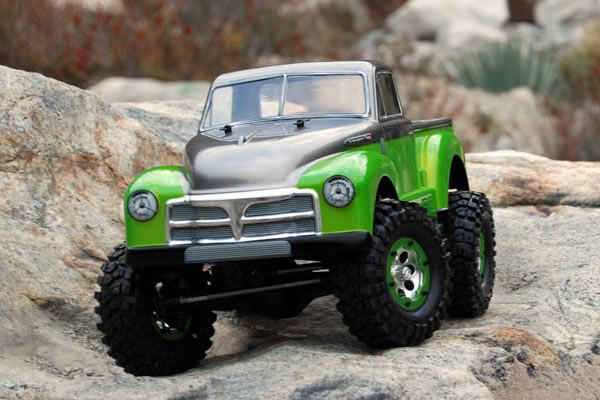

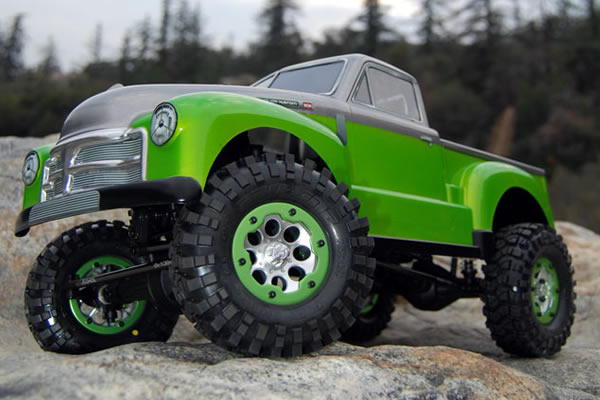

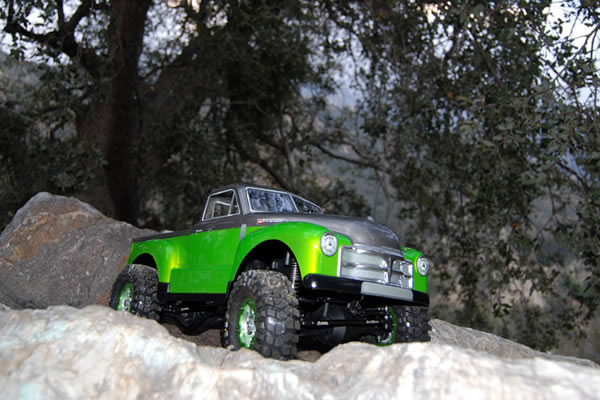

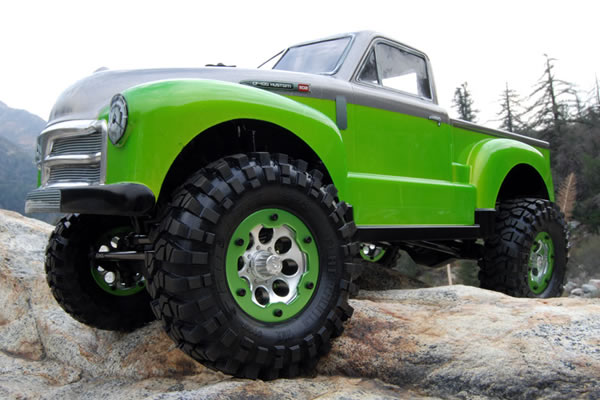

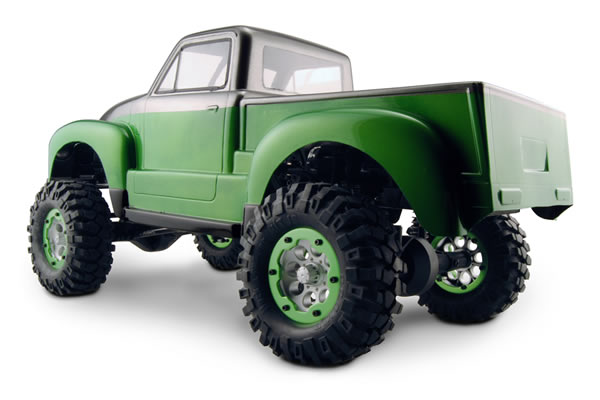

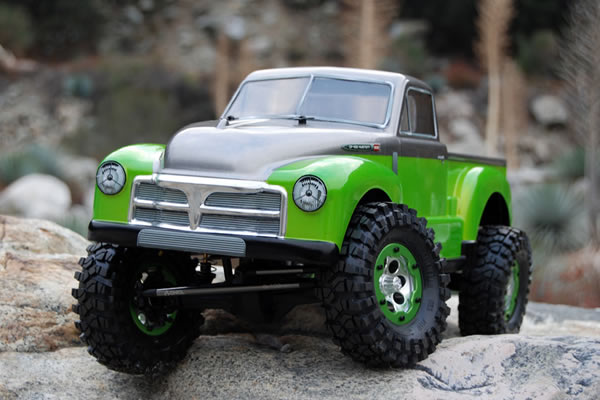

Axial Racing SCX10 1/10th Scale Electric 4WD Rock Crawler

Construction / RC Crawling - Rock Crawlers

The new Axial SCX10 is the kit to have when it comes to building a scale working replica of your favorite old truck. Features like a true C-channel ladder frame, with bolt on shock hoops, custom styled skid plate and double spring oil filled shocks are just a few of the items that sets this kit apart.

The axles have been designed with many features that are not available from other products on the market. Everything from the axle strength, pinion angle, caster, and ground clearance were taken into consideration when designing these axles. The result is a far superior axle that will stand-up to some severe punishment. To ensure added longevity from the start a hi-tolerance sintered diff locker is included along with hardened axle shafts.

The SCX10's realistic scale looks are based on the durable drive train from the popular AX10 Scorpion Crawler. The realism kicks in even more with the all new 1.9" wheels and Pro-Line tyres that not only look realistic but are a huge upgrade in performance.

Features

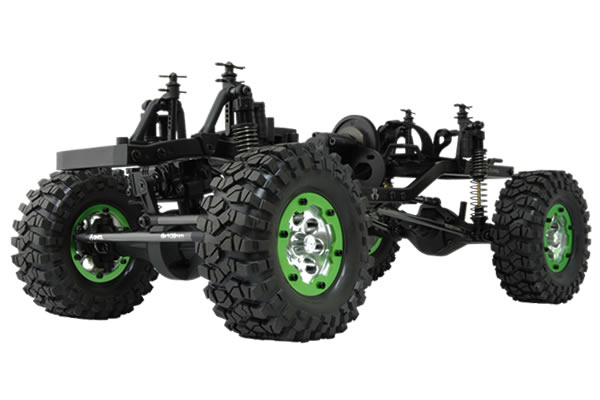

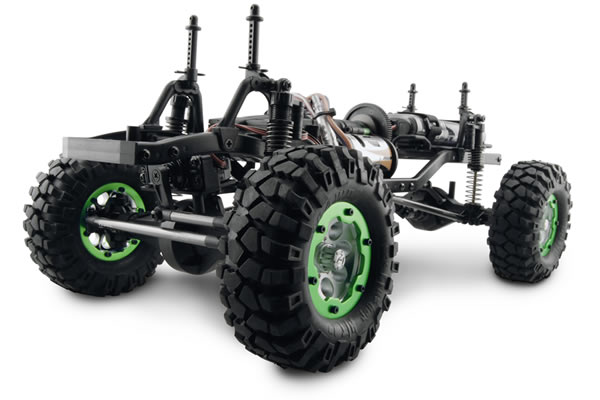

Rigid steel C-channel frame
Realistic looking frame and cross braces improves chassis rigidity
Tapered frame for increased articulation and added realism
Simplified design for easy and quick maintenance and assembly

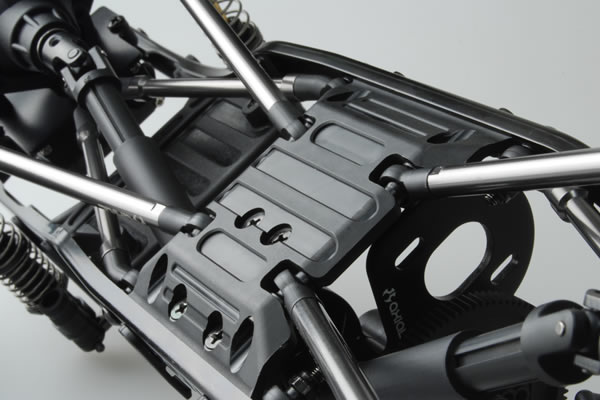

Contoured skidplate: significantly reduces hang-ups on terrain
Shock hoops allow for multiple shock positions for tuneable performance
Dual rate springs provide maximum off-road performance
Oil filled shocks allow you to tune dampening rate

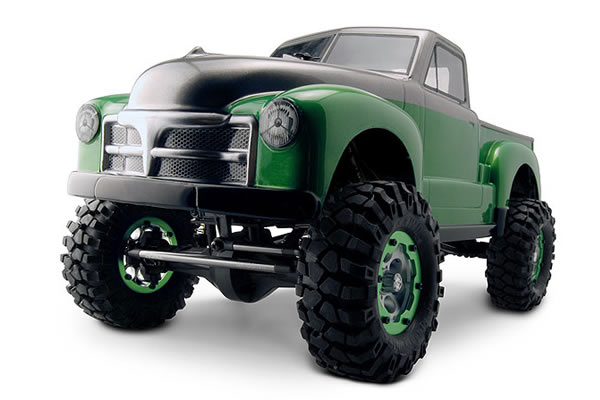

CF-100 Kustom Retro Truck Body included
Grey anodized aluminum links add to the scale realism
Adjustable body posts accommodate varying body sizes
Includes additional rear mount for SUV body’s

Spec Check

Wheelbase: 290mm (11.4")
Chassis Width: 227mm (9")
Chassis Height: 150mm (5.9")
Ground Clearance: 75mm (3")
Body Length: 470mm (18.5")
Body Width: 184mm (7.25")
Body Height: 159mm (6.25")

Requires radio, servo, ESC, motor and battery to complete.

This video shows the Axial SCX10 with Pro-Line CGR Bodyshell, Pro-Line scale accessories and the 3Racing automatic winch.

Axial Racing SCX10 1/10th Scale Electric 4WD Rock Crawler


AX90007-Exploded-Sheet1

AX90007-Exploded-Sheet2

SCX Review in RRCi

Right Click and select "Save As"
