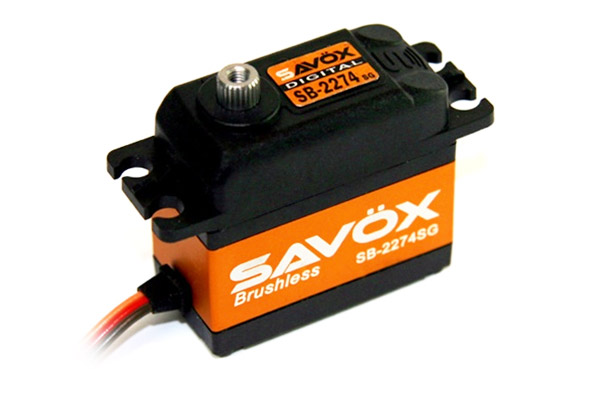

This is the Savox SA-2274SG High Speed Brushless Unique Steel Gear Digital Servo.
SB2274SG Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
Spec Check:
- Dimensions(mm): 40.3x20.2x38.5
- Weight(g): 69.0
- Speed(@6.0V sec/60): .105
- Torque(@6.0V oz-in): 277.7
- Speed(@7.4V sec/60): .08
- Torque(@7.4V oz-in): 347.2
- Gear: Unique Steel
- Bearing: 2BB
- Case: Full Aluminum
- 25 Tooth Spline
|
|
|
